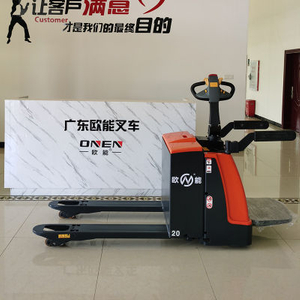

| CBD STAND-ON ELECTRIC PALLET TRUCKS TECHNICAL PARAMETERS | |||||||
| Feature | 1 | Model | CBD | ||||
| 2 | Configuration No. | 20-F | 25-F | 30-F | |||
| 3 | Drive | electric | |||||
| 4 | Steering mode | electronic steering | |||||
| 5 | Type of operation | stand on | |||||
| 6 | Load capacity | Q | kg | 2000/2500/3000 | |||
| 7 | Load center | C | mm | 600 | |||
| 8 | Load distance | X | mm | 970 | |||
| 9 | Wheel base | Y | mm | 1400 | |||
| Weight | 1 | Service weight with battery | kg | 600/650 | |||
| Wheels | 1 | Wheels type | PU | ||||
| 2 | Driving wheel size | mm | Φ230×75 | ||||
| 3 | Balance wheel size | mm | Φ125×50 | ||||
| 4 | Bearing wheel size | mm | Φ80×70 | ||||
| 5 | Wheel quantity(front /rear)(x=Driving wheel) | 1x-4/2 | |||||
| 6 | Track width,front | mm | 400/520 | ||||
| 7 | Track width,rear | mm | 515 | ||||
| Dimension | 1 | Overall size | L1×B×h1 | mm | 1850×725×1435 | ||
| 2 | Lift | h2 | mm | 200 | |||
| 3 | Lowered fork height | h3 | mm | 85 | |||
| 4 | Overall height(Max/min) | h6 | mm | 1435/985 | |||
| 5 | Length to face of forks | L2 | mm | 700 | |||
| 6 | Fork size | s/e/l | mm | 160/55/1150 | |||
| 7 | Overall fork width | b1 | mm | 560/680 | |||
| 8 | Min.ground clearance | m2 | mm | 30 | |||
| 9 | Min.Aisle width for pallets 1000×1200 | Ast | mm | 2132 | |||
| 10 | Turning radius | Wa | mm | 1695 | |||
| Performance | 1 | Travel speed(laden/unladen) | km/h | 5.2/6 | |||
| 2 | Lift speed(laden/unladen) | mm/s | 40/50 | ||||
| 3 | Lowering speed(laden/unladen) | mm/s | 50/40 | ||||
| 4 | Gradeability(laden/unladen) | % | 8/15 | ||||
| 5 | Brake | electromagnetic | |||||
| Electrical configuration | 1 | Drive motor | kw | AC 1.5 | |||
| 2 | Lift motor | kw | 1.2 | ||||
| 3 | Battery voltage | V | 24 | ||||
| 4 | Battery capacity | Ah | 150/210 | ||||
| 5 | Battery weight | kg | 145/185 | ||||
| Other Details | 1 | Type of drive control | AC | ||||
| 2 | Sound leave at driver's ear to EN 12053 | dB(A) | <70 | ||||
