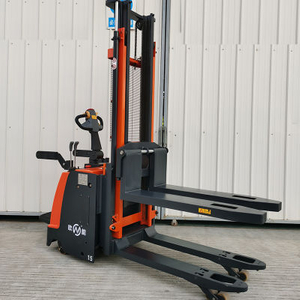

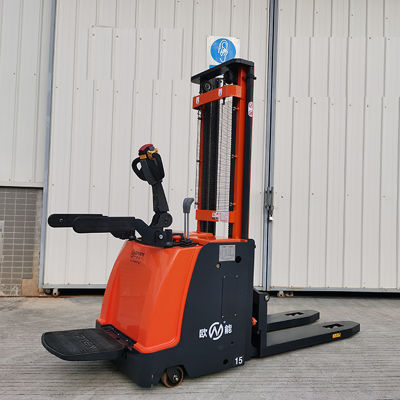

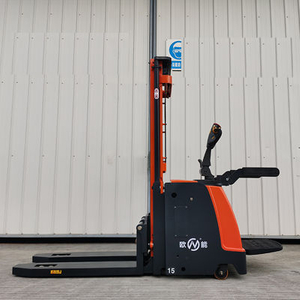

| CDD-FS Electric Double Pallet Handling Stacker Technical Parameter | ||||||
| Feature | 1 | Model | CDD | |||
| 2 | Series No. | 15-FS | 20-FS | |||
| 3 | Power type | Electric | ||||
| 4 | Steering type | Electric Power Steering | ||||
| 5 | Operating type | Stand-on | ||||
| 6 | Load capacity | Q | kg | 1500 | 2000 | |
| 7 | Load center distance | C | mm | 500 | ||
| 8 | Rear overhang | X | mm | 400 | ||
| 9 | Wheel base | Y | mm | 1375 | ||
| Weight | 1 | Service weight with battery | kg | 1200 | 1250 | |
| Wheel | 1 | Wheel type | PU | |||
| 2 | Driving wheel size | mm | Φ230×75 | |||
| 3 | Balance wheel size | mm | Φ125×60 | |||
| 4 | Bearing wheel size | mm | Φ80×70 | |||
| 5 | Qty. (front/rear, X=driving wheel) | 1x-4/2 | ||||
| 6 | Front wheel span | mm | 350/450 | |||
| 7 | Rear wheel span | mm | 700 | |||
| Size | 1 | Lowered mast height | h1 | mm | See details in Mast Table | |
| 2 | Free lifting height | h2 | mm | |||
| 3 | Max. lifting height | h3 | mm | |||
| 4 | Extended mast height | h4 | mm | |||
| 5 | Overall length | L1 | mm | 2075 | 2115 | |
| Overall width | b1 | 850 | ||||
| 6 | Fork clearance from the ground | h5 | mm | 90 | ||
| 7 | Length to face of fork | L2 | mm | 927 | ||
| 8 | Fork size | s/e/l | mm | 230/60/1150 | ||
| 9 | Fork outer width | b3 | mm | 580/680 | ||
| 10 | Min. ground clearance | m | mm | 30 | ||
| 11 | Aisle width | Ast | mm | 2335 | ||
| Pallet 1000x1200(1000) | ||||||
| 13 | Turning radius | Wa | mm | 1940 | 1970 | |
| Performance | 1 | Driving speed (laden/ unladed) | km/h | 5.2/6.0 | ||
| 2 | Lifting speed (laden/ unladed) | m/s | 95/165 | 70/120 | ||
| 3 | Lowering speed (laden/ unladed) | m/s | 100/110 | 65/80 | ||
| 4 | Max. gradeablity (laden/ unladed) | % | 8/15 | |||
| 5 | Brake type | Electromagnetic brake | ||||
| Motor power | 1 | Driving motor power | kw | AC 1.5 | ||
| 2 | Lifting motor power | kw | 2.5 | |||
| Battery | 1 | Voltage/ Capacity | V/Ah | 24/210 | ||
| 2 | Weight | kg | 185 | |||
| Others | 1 | Control mode | Mosfets control | |||
| 2 | Sound level at driver's ear | dB(A) | <70 | |||
| Mast Table | |||
| Lift height | Free lift height | Closed mast height | Extended mast height |
| h3(mm) | h1(mm) | h2(mm) | h4(mm) |
| 1600 | 2230 | 1600 | 2230 |
| 2000 | 1735 | 200 | 2660 |
| 2500 | 1985 | 200 | 3160 |
| 3000 | 2200 | 200 | 3660 |
| 3300 | 2385 | 200 | 4060 |
| 3500 | 2450 | 200 | 4160 |
| 4000 | 2700 | 200 | 4410 |
