Electric pallet jacks are among the best tools for heavy-duty tasks in a warehouse. They feature rugged construction and are durable enough to withstand constant vibrations, sudden direction changes, and pallet entries. Electric pallet jacks come with AC motors that deliver dependable service. They also feature convenient carry handles. They are highly portable, enabling them to move from one place to another with ease.
An electric pallet jack has many advantages over manual squat lifts. They are safer for workers, and they can also reduce strain. But while they have these benefits, the use of electric pallet jacks should be carried out only by qualified workers.

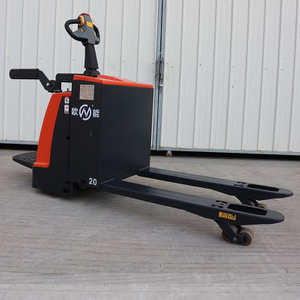

| CBD-C STAND-ON ELECTRIC PALLET JACK TECHNICAL PARAMETERS | |||||||
| Feature | 1 | Model | CBD-B | ||||
| 2 | Configuration No. | 20-F | 25-F | 30-F | |||
| 3 | Drive | electric | |||||
| 4 | Steering mode | Manual steering | |||||
| 5 | Type of operation | stand on | |||||
| 6 | Load capacity | Q | kg | 2000/2500/3000 | |||
| 7 | Load center | C | mm | 600 | |||
| 8 | Load distance | X | mm | 970 | |||
| 9 | Wheel base | Y | mm | 1400 | |||
| Weight | 1 | Service weight with battery | kg | 600/650 | |||
| Wheels | 1 | Wheels type | PU | ||||
| 2 | Driving wheel size | mm | Φ230×75 | ||||
| 3 | Balance wheel size | mm | Φ125×50 | ||||
| 4 | Bearing wheel size | mm | Φ80×70 | ||||
| 5 | Wheel quantity(front /rear)(x=Driving wheel) | 1x-4/2 | |||||
| 6 | Track width,front | mm | 400/520 | ||||
| 7 | Track width,rear | mm | 515 | ||||
| Dimension | 1 | Overall size | L1×B×h1 | mm | 1850×725×1435 | ||
| 2 | Lift | h2 | mm | 200 | |||
| 3 | Lowered fork height | h3 | mm | 85 | |||
| 4 | Overall height(Max/min) | h6 | mm | 1435/985 | |||
| 5 | Length to face of forks | L2 | mm | 700 | |||
| 6 | Fork size | s/e/l | mm | 160/55/1150 | |||
| 7 | Overall fork width | b1 | mm | 560/680 | |||
| 8 | Min.ground clearance | m2 | mm | 30 | |||
| 9 | Min.Aisle width for pallets 1000×1200 | Ast | mm | 2132 | |||
| 10 | Turning radius | Wa | mm | 1695 | |||
| Performance | 1 | Travel speed(laden/unladen) | km/h | 5.2/6 | |||
| 2 | Lift speed(laden/unladen) | mm/s | 40/50 | ||||
| 3 | Lowering speed(laden/unladen) | mm/s | 50/40 | ||||
| 4 | Gradeability(laden/unladen) | % | 8/15 | ||||
| 5 | Brake | electromagnetic | |||||
| Battery | 1 | Battery capacity | 24V/ 80Ah Lead-acid | ||||
| Other Details | 1 | Type of drive control | AC | ||||
| 2 | Sound leave at driver's ear to EN 12053 | dB(A) | <70<> | ||||
GOOD QUALITY
ONEN Forklifts is the top rank material handling equipment manufacturer in Jiangmen City of Guangdong Province, China.
Main products includes electric pallet jack, electric pallet stacker, electric forklift, diesel forklift, etc.
Our key technology was originated from EUR-Italy, 20+ years manufacturing experience make ONEN Forklifts can provide customers high qaulity equipment.
COMPETITIVE PRICE
As a professional manufacturer, ONEN Forklifts uses mature standardized manufacturing techonlogy and insists on innovation to privde customers warehouse equipment with reasonable price.
FAQ:
1, How can I get the price:
We usually reply within 24 hours after receive your inquiry.
If you are urgent to get the price please contact us by email or Mobilephone.
2, Can I buy a sample?
Sure, sample orders are always welcome.
3, What is your lead time?
It depends on the order quantity and season you place order. Normally we can delivery goods in 7-15 days for small quantity, 30 days for large quantity.
4, What's your payment term?
T/T, L/C, Western Union, Cash, etc.
5, What is the shipment method?
It can be shipped by sea, by air, by train, or even by express, you can discuss with us.
