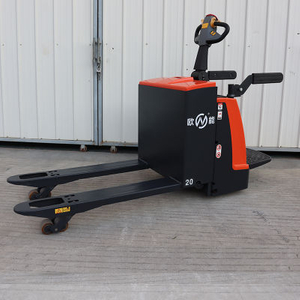

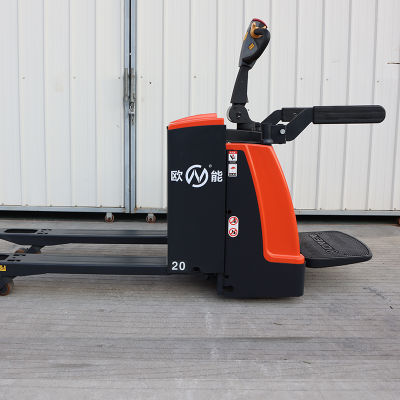

Best Sell Electric Pallet Truck with CE

electric pallet truck rental

CBD STAND-ON ELECTRIC PALLET TRUCKS (CASTING FORK)
Feature	1	Model			CBD
	2	Configuration No.			50-F
	3	Drive			electric
	4	Steering mode			electronic steering
	5	Type of operation			stand on
	6	Load capacity	Q	kg	5000
	7	Load center	C	mm	600
	8	Load distance	X	mm	970
	9	Wheel base	Y	mm	1595
Weight	1	Service weight with battery		kg	750
Wheels	1	Wheels type			PU/iron wheel
	2	Driving wheel size		mm	Φ230×75
	3	Balance wheel size		mm	Φ125×60
	4	Bearing wheel size		mm	Φ80×70
	5	Wheel quantity(front /rear)(x=Driving wheel)			1x-4/2
	6	Track width,front		mm	400/520
	7	Track width,rear		mm	700
Dimension	1	Overall size	L1×B×h1	mm	2040×850×1435
	2	Lift	h2	mm	200
	3	Lowered fork height	h3	mm	85
	4	Overall height(Max/min)	h6	mm	1435/985
	5	Length to face of forks	L2	mm	890
	6	Fork size	s/e/l	mm	160/55/1150
	7	Overall fork width	b1	mm	560/680
	8	Min.ground clearance	m2	mm	30
	9	Min.Aisle width for pallets 1000×1200	Ast	mm	2332
	9	Min.Aisle width for pallets 1000×1200	Ast	mm	2332
	10	Turning radius	Wa	mm	1890
Performance	1	Travel speed(laden/unladen)		km/h	5.5/10
	2	Lift speed(laden/unladen)		mm/s	40/50
	3	Lowering speed(laden/unladen)		mm/s	50/20
	4	Gradeability(laden/unladen)		%	8/20
	5	Brake			electromagnetic
Electrical configuration	1	Drive motor		kw	AC 2.2
	2	Lift motor		kw	2.5
	3	Battery voltage/capacity		V/Ah	24/240
	4	Battery weight		kg	200
Other Details	1	Type of drive control			AC
Other Details	2	Sound leave at driver's ear to EN 12053		dB(A)	<70

CBD STAND-ON ELECTRIC PALLET TRUCKS TECHNICAL PARAMETERS
Feature	1	Model			CBD
	2	Configuration No.			20-F	25-F	30-F
	3	Drive			electric
	4	Steering mode			electronic steering
	5	Type of operation			stand on
	6	Load capacity	Q	kg	2000/2500/3000
	7	Load center	C	mm	600
	8	Load distance	X	mm	970
	9	Wheel base	Y	mm	1400
Weight	1	Service weight with battery		kg	600/650
Wheels	1	Wheels type			PU
	2	Driving wheel size		mm	Φ230×75
	3	Balance wheel size		mm	Φ125×50
	4	Bearing wheel size		mm	Φ80×70
	5	Wheel quantity(front /rear)(x=Driving wheel)			1x-4/2
	6	Track width,front		mm	400/520
	7	Track width,rear		mm	515
Dimension	1	Overall size	L1×B×h1	mm	1850×725×1435
	2	Lift	h2	mm	200
	3	Lowered fork height	h3	mm	85
	4	Overall height(Max/min)	h6	mm	1435/985
	5	Length to face of forks	L2	mm	700
	6	Fork size	s/e/l	mm	160/55/1150
	7	Overall fork width	b1	mm	560/680
	8	Min.ground clearance	m2	mm	30
	9	Min.Aisle width for pallets 1000×1200	Ast	mm	2132
	9	Min.Aisle width for pallets 1000×1200	Ast	mm	2132
	10	Turning radius	Wa	mm	1695
Performance	1	Travel speed(laden/unladen)		km/h	5.2/6
	2	Lift speed(laden/unladen)		mm/s	40/50
	3	Lowering speed(laden/unladen)		mm/s	50/40
	4	Gradeability(laden/unladen)		%	8/15
	5	Brake			electromagnetic
Electrical configuration	1	Drive motor		kw	AC 1.5
	2	Lift motor		kw	1.2
	3	Battery voltage		V	24
	4	Battery capacity		Ah	150/210
	5	Battery weight		kg	145/185
Other Details	1	Type of drive control			AC
Other Details	2	Sound leave at driver's ear to EN 12053		dB(A)	<70<>
