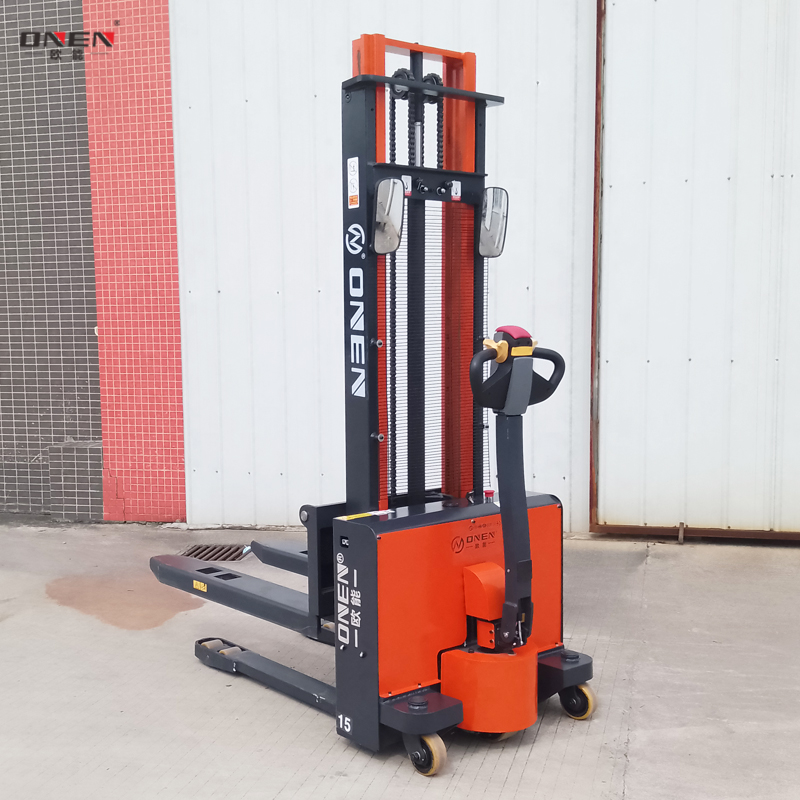

| CDD-A ELECTRIC WALKIE PALLET STACKER TECHNICAL PARAMETERS | |||||
| Feature | 1 | Model | CDD-B | ||
| 2 | Configuration No. | 1525 | |||
| 3 | Drive | electric | |||
| 4 | Steering mode | Mechanical steering | |||
| 5 | Type of operation | Walkie | |||
| 6 | Load capacity | Q | kg | 1500 | |
| 7 | Load center | C | mm | 500 | |
| 8 | Wheel base | Y | mm | 1115 | |
| Weight | 1 | Service weight with battery | kg | 600 | |
| Wheels | 1 | Wheels type | PU | ||
| 2 | Driving wheel size | mm | Φ210×75 | ||
| 3 | Balance wheel size | mm | Φ125×50 | ||
| 4 | Bearing wheel size | mm | Φ80×70 | ||
| 5 | Wheel quantity(front /rear)(x=Driving wheel) | 1x-4/1 | |||
| 6 | Wheel span,front | mm | 400/520 | ||
| 7 | Wheel span,rear | mm | 530 | ||
| Dimension | 1 | Mast lowered height | h1 | mm | Appendix 1 for details |
| 2 | Free lift | h2 | mm | ||
| 3 | Lift height | h3 | mm | ||
| 4 | Extended mast height | h4 | mm | ||
| 5 | Overall size(lenght x width) | L1×b1 | mm | 1727×800 | |
| 5 | Lowered fork height | h5 | mm | 85 | |
| 6 | Handle ground clearance(Max/Min) | h6 | mm | 1300/700 | |
| 7 | Length to face of forks | L2 | mm | 577 | |
| 8 | Fork size | s/e/l | mm | 160/60/1150 | |
| 9 | Overall fork width | b3 | mm | 560/680 | |
| 10 | Min.ground clearance | m | mm | 30 | |
| 11 | Min.Aisle width for pallets 1000×1200 | Ast | mm | 2200 | |
| 12 | Turning radius | Wa | mm | 1300 | |
| Performance | 1 | Travel speed(laden/unladen) | km/h | 4/4.5 | |
| 2 | Lift speed(laden/unladen) | m/s | 95/165 | ||
| 3 | Lowering speed(laden/unladen) | m/s | 100/110 | ||
| 4 | Gradeability(laden/unladen) | % | 5/8 | ||
| 5 | Brake | electromagnetic | |||
| Electrical configuration | 1 | Drive motor | kw | 0.65 | |
| 2 | Lift motor | kw | 2.5 | ||
| 1 | Battery voltage/capacity | V/Ah | 2×12V/80 Ah | ||
| 2 | Battery weight | kg | 2×27 | ||
| Other Details | 1 | Type of drive control | DC | ||
| 2 | Sound leave at driver's ear to EN 12053 | dB(A) | <70 | ||
| Appendix 1 | |||
| Lift height | Mast lowered height | Free lift | Extended mast height |
| h3(mm) | h1(mm) | h2(mm) | h4(mm) |
| 1600 | 2050 | 1600 | 2050 |
| 2000 | 1600 | - | 2870 |
| 2500 | 1850 | - | 3120 |
| 3000 | 2100 | - | 3370 |
| 3500 | 2350 | - | 3620 |
GOOD QUALITY
ONEN Forklifts is the top rank material handling equipment manufacturer in Jiangmen City of Guangdong Province, China.
Main products includes electric pallet jack, electric pallet stacker, electric forklift, diesel forklift, etc.
Our key technology was originated from EUR-Italy, 20+ years manufacturing experience make ONEN Forklifts can provide customers high qaulity equipment.
COMPETITIVE PRICE
As a professional manufacturer, ONEN Forklifts uses mature standardized manufacturing techonlogy and insists on innovation to privde customers warehouse equipment with reasonable price.
FAQ:
1, How can I get the price:
We usually reply within 24 hours after receive your inquiry.
If you are urgent to get the price please contact us by email or Mobilephone.
2, Can I buy a sample?
Sure, sample orders are always welcome.
3, What is your lead time?
It depends on the order quantity and season you place order. Normally we can delivery goods in 7-15 days for small quantity, 30 days for large quantity.
4, What's your payment term?
T/T, L/C, Western Union, Cash, etc.
5, What is the shipment method?
It can be shipped by sea, by air, by train, or even by express, you can discuss with us.
