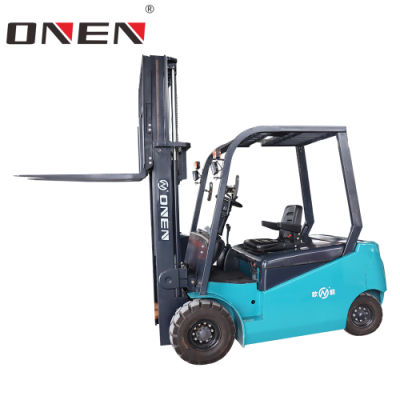

China Factory Price 48V Battery Operated 2 tons 3 tons Compact Small Size 4 Wheels Counterbalance Electric Forklift for Narrow-aisle Warehouse with CE RoHS
* Wide view mast, clear visibility.
* Low height access step with wide steel non-slip plate for easy entry and exit.
* Cowl-mounted hydraulic levers design offers big operation space.
* An adjustable tilt steering column offers the most comfortable operator position.
* Seat with safety belt and armrest.
* High-friction brake shoes are a fee for asbestos.
| Technical Parameter | ||
| Model: | CPDD2030 | CPDD3030 |
| Power: | Electric | Electric |
| Rated Load: | 2000 kg | 3000 kg |
| Load Center Distance: | 500 mm | 500 mm |
| Maximum Lifting Height: | 3000 mm | 3000 mm |
| Mast Height (closed/ extended) | 2030/4000 mm | 2030/4000 mm |
| Number of Wheels: | 2/2 | 2/2 |
| Tire Type: | Solid / Pneumatic tire | Solid / Pneumatic tire |
| Tire Size (front/ rear): | 23*9-10NHS/ 18*7-8NHS | 23*9-10NHS/ 18*7-8NHS |
| Mast Tilt Angle (Front/ Rear): | 6°/12° | 6°/12° |
| Fork Arm Carrier (DIN standard): | 1100 mm | 1100 mm |
| Fork Outer Width (Adjustable): | 272-1072 mm | 272-1072 mm |
| Fork Size (s/e/l): | 45/125/1070 mm | 45/125/1070 mm |
| Overall Length: | 3640 mm | 3640 mm |
| Overall Width: | 1290 mm | 1290 mm |
| Overhead Guard Height: | 2130 mm | 2130 mm |
| Turning Radius: | 2060 mm | 2060 mm |
| Aisle Width: | 4060 mm | 4060 mm |
| Travel Speed (laden/ unladen): | 10/13 km/h | 10/13 km/h |
| Lifting Speed (laden/ unladen): | 0.25/0.36 m/s | 0.25/0.36 m/s |
| Max. Gradeablility (laden/ unladen): | 12% /15% | 12% /15% |
| Battery: | 48V /600Ah Lead-Acid Battery | 48V /600Ah Lead-Acid Battery |
| Self Weight: | 4300 kg | 4700 kg |
