Walkie stacker forklifts are a versatile and highly durable option for warehouses. They have many features to offer, including a keyless entry system and password protection. These features allow for custom profiles and customizable performance preferences. For instance, managers can select a slower speed during operation. Moreover, walkie stackers have an unparalleled aftermarket and dealer support network.
While walkie stackers are not required to have a forklift license, they can provide you with a more flexible solution if your workload demands for pallet-lifts and other equipment. However, it is important to be aware of safety regulations and best practices while operating a Walkie Stacker Forklift.

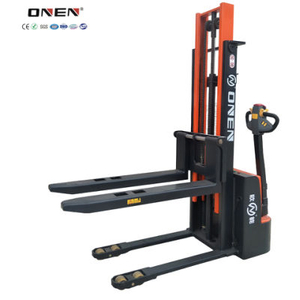

| CDD-A Electric Walkie Pallet Stacker Technical Parameter | ||||||||
| Features | Product model | CDD-A10 | CDD-A15 | |||||
| Power type | Electric | |||||||
| Driving way | Walkie | |||||||
| Rated load | Q kg | 1000 | 1500 | |||||
| Load center | C mm | 500 | ||||||
| Wheel base | Y mm | 1115 | ||||||
| Weight | self-weight(include battery) | kg | 1050 | |||||
| Wheel | Tire | Polyurethane wheels | ||||||
| Driving wheel | mm | Φ250×80 | ||||||
| Bearing wheel | mm | Φ80×70 | ||||||
| Balance wheel | mm | Φ125×50 | ||||||
| Wheel number(Front/rear)(x=driven wheel) | 1x-2/2 | |||||||
| Front wheel span | mm | 520 | ||||||
| Real wheel span | mm | 530 | ||||||
| Size | Overall height(Closed) | h1 mm | See below schedule for details. | |||||
| Free lifting height | h2 mm | |||||||
| Max. lifting height | h3 mm | |||||||
| Overall height(Extended) | h4 mm | |||||||
| Fork clearance from the ground | h5 mm | 85 | ||||||
| Overall length | L1 mm | 1727 | ||||||
| Body width | L2 mm | 577 | ||||||
| Overall width | b1 mm | 800 | ||||||
| Size | Fork size | s/e/l mm | 160/60/1150 | |||||
| Fork outer width | b3 mm | 560/680 | ||||||
| Min. ground clearance | m mm | 25 | ||||||
| Aisle width for pallet 1000*1200 | Ast mm | 2200 | ||||||
| Performance | Turning radius | Wa mm | 1296 | |||||
| Travel speed (full / empty load) | km/h | 4/4.5 | ||||||
| Lifting speed (full / empty load) | m/s | 95/165 | ||||||
| Lowering speed (full / empty load) | m/s | 110/100 | ||||||
| Max. gradeability (fully / empty load) | % | 5/8 | ||||||
| Brake type | Electromagnetic brake | |||||||
| Motor | Driving motor power | kw | 0.65 | |||||
| Lifting motor power | kw | 2.5 | ||||||
| Battery | V/Ah | 24/80 | ||||||
| Other | Weight of battery | kg | 27x2 | |||||
| Control model | Field effect tube control | |||||||
| Noise | dB(A) | <70 | ||||||
| Schedule | ||||||||
| a | Lifting height | h3(mm) | 1600 | 2000 | 2500 | 3000 | 3300 | 3500 |
| b | Overall height | h1(mm) | 2050 | 1600 | 1850 | 2100 | 2250 | 2350 |
| c | Free lifting height | h2(mm) | 1600 | 0 | 0 | 0 | 0 | 0 |
| d | Max. height | h4(mm) | 2050 | 2870 | 3120 | 3370 | 3520 | 3620 |
