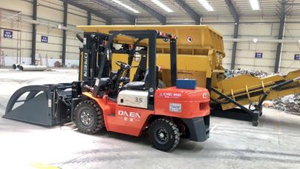

Wholesale Diesel engine durable advanced High Lift Pallet Truck
| Specification | |||||
| Features | Model | CPCD3030 | CPCD3530 | ||
| Power type | Diesel | ||||
| Rated load | kg | 3000 | 3500 | ||
| Load center | mm | 500 | |||
| Weight | Self-weight | Unladen | kg | 4280 | 4500 |
| Size | Max. lifting height | Standard 2-stage mast | mm | 3000 | |
| Mast tilt angle (front/ rear) | Standard 2-stage mast | deg | 6/8 | ||
| Fork size | s/e/l | mm | 45*125*1070 | ||
| Overall length | With/ without fork | mm | 2735/3825 | ||
| Overall width | mm | 1230 | |||
| Max. fork lifting height | With backrest | mm | 4265 | ||
| Mast height | Fork to the ground and mast be vertical | mm | 2050 | ||
| Overall height | Overhead guard | mm | 2120 | ||
| Fork outer width (min./max.) | Adjustable | mm | 250/1100 | ||
| Turning radius | mm | 2470 | |||
| Min. Aisle width | mm | 2120 | 2235 | ||
| Size | Min. ground clearance | Mast to ground | mm | 126 | |
| Wheel base | mm | 1770 | 1850 | ||
| Wheel span | Front/Rear | mm | 1000/970 | ||
| Front overhang | mm | 500 | |||
| Rear overhang | mm | 570 | |||
| Performance | Travel speed | Laden/ Unladen | km/h | 18/19 | |
| Lifting speed | Laden/ Unladen | mm | 460/540 | ||
| Lowering speed | Laden/ Unladen | M/S | 450/420 | ||
| Max. traction force | Laden/ Unladen | kn | 20/16 | 21/17 | |
| Max. gradeability | Unladen | % | 20 | ||
| Tire & Brake | Tire type | Solid tyre / Pneumatic tyre | |||
| Number of wheel, x=drive wheel | Front/Rear | 2X/2 | |||
| Tire size | Front | 28*9-15-12PR | |||
| Rear | 6.50-10-10PR | ||||
| Service brake | Hydraulic-foot pedal | ||||
| Parking brake | Mechanical-hand lever | ||||
