CPDD-L-7030
ONEN
Counterbalanced Electric Forklift
Electric
7.0T
Seated
600mm
Pneumatic Tire / Solid Core Tire
3000mm
1520mm
3450mm
Lithium Battery
Single Sided Tray, Double Sided Tray
80V/690Ah
80V/200A
support
Warranty for one year or 2000 hours (5-year warranty for lithium batteries)
CE/RoHS/SGS

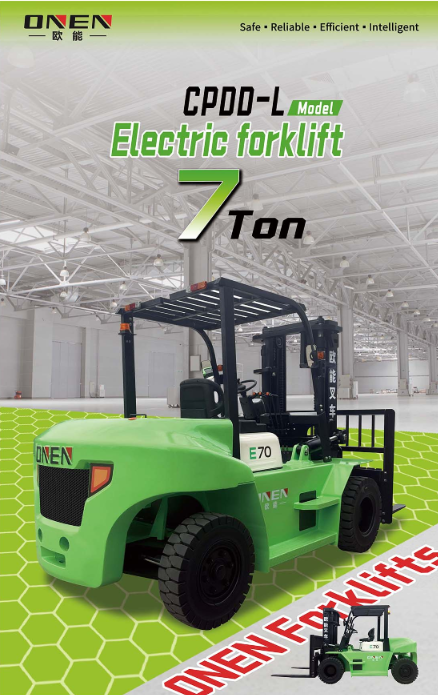

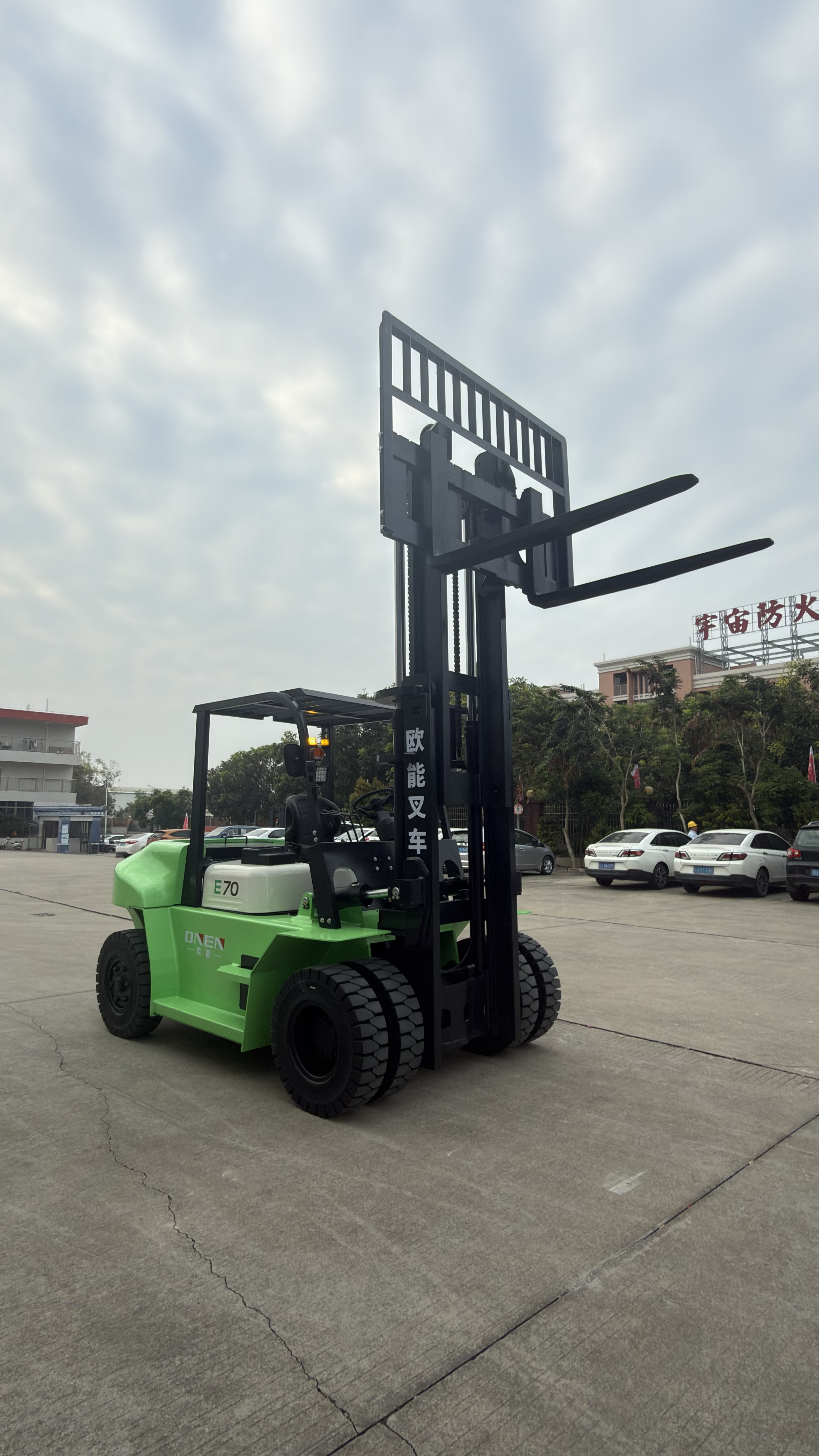

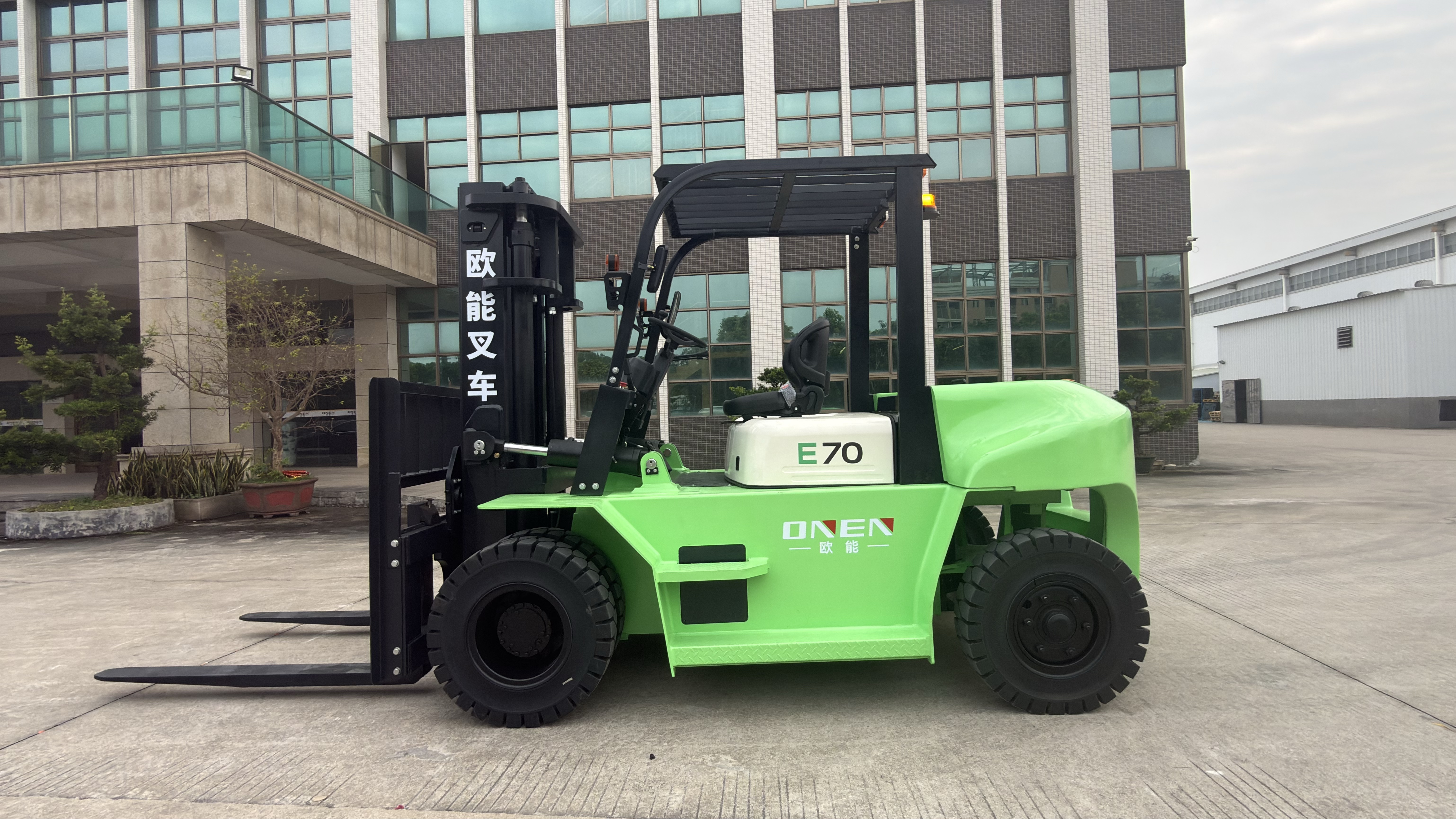

ONEN 7T Li-ion Counterbalance Electric Forklift, Lift 3m
(CPDD-L-70)
Model: CPDD-L-70
Rated Load: 7,000 kg (5,500 lb)
Max. Lift Height:optional(3M-7Moptional)
Drive Type: Seated Operation
Power: 80V / 690Ah Lithium Battery
Tires: Solid or Pneumatic (Optional)
The ONEN CPDD-L-7030 is not a "fuel-to-electric" retrofit. Designed from the ground up as a 7-ton class counterbalanced electric forklift, it combines an 80V/690Ah high-energy-density lithium system with a compact heavy-duty chassis. It delivers zero-emission performance that meets continuous heavy-load handling demands, helping fleet operators, manufacturers, and logistics enterprises reduce both operating costs and carbon footprint within strict environmental policy frameworks.
Beyond Diesel — Six Core Technologies That Redefine 7-Ton Electric Handling
1. Native 80V Lithium Battery Platform — 690Ah Capacity, 5-Year Warranty
Built on a high-voltage 80V architecture with a 690Ah lithium battery pack, the CPDD-L-7030 stores enough energy for full-shift heavy-duty cycles. The 80V/200A rapid charging system minimizes downtime during lunch breaks or shift changes. Unlike retrofitted lead-acid designs, this native lithium platform offers consistent power output across the entire discharge curve, and the industry-leading 5-year battery warranty protects your total cost of ownership.
2. Compact Heavy-Duty Chassis — 7-Ton Muscle, 3.45m Turning Radius
At 7 tons rated capacity, the CPDD-L-7030 achieves a turning radius of just 3,450 mm — tighter than many internal-combustion equivalents in its class. With an overall length of 5,155 mm (including forks) and a width of 1,980 mm, it maneuvers confidently in narrow warehouse aisles, congested factory floors, and crowded loading bays where space is at a premium.
3. Precision Mast & Fork System — Rack-Ready 3m Lift with Optimized Tilt
The high-rigidity mast delivers a standard lift height of 3,000 mm with a maximum extended height of 4,370 mm, aligning perfectly with standard pallet racking. The 6° forward and 10° backward tilt angles ensure secure load handling during transport and stacking. With 1,520 mm fork length and compatibility with both single-sided and double-sided pallets, it handles diverse material flows without equipment swaps.
4. Permanent Magnet Synchronous Drive — Silent, Smooth, and Responsive The 23 kW permanent magnet drive motor delivers instantaneous torque for confident loaded acceleration and precise inching control during pallet placement. Without an internal combustion engine, operation noise drops dramatically, making the CPDD-L-7030 ideal for food processing, cold storage, pharmaceutical facilities, and any environment where noise and air quality are strictly regulated.
5. Dual Tire Configuration — Solid or Pneumatic for Any Surface Choose between super-elastic solid tires for puncture-proof indoor warehouse duty or pneumatic tires for improved shock absorption on rough outdoor yards, port surfaces, and uneven concrete. Both options are mounted on a reinforced axle system designed to handle 7-ton loads without compromise.
6. Minimized Maintenance, Maximized Uptime Electric drive means no engine oil, no transmission fluid, no exhaust after-treatment, and no diesel particulate filters. With only 1-year or 2,000-hour general vehicle maintenance intervals and a 5-year battery warranty, the CPDD-L-7030 slashes operating costs while keeping availability rates high.
Precision Dimensions — The Golden Balance Between Maneuverability and Lifting Power
Parameter | Value | Operational Advantage |
|---|---|---|
Load Capacity | 7,000 kg | Lifts heavy machinery, steel coils, and bulk raw materials in single cycles |
Load Center Distance | 600 mm | Standard ISO pallet compatibility with optimized stability margin |
Overall Length (with forks) | 5,155 mm | Navigates narrow warehouse aisles and congested loading docks |
Overall Width | 1,980 mm | Passes through standard industrial doorways and racking lanes |
Wheelbase | 2,280 mm | Balanced weight distribution reduces abnormal tire wear under 7-ton loads |
Turning Radius | 3,450 mm | Outmaneuvers comparable IC forklifts in confined stacking areas |
Lift Height | 3,000 mm | Matches standard warehouse racking for efficient high-bay stacking |
Extended Mast Height | 4,370 mm | Full vertical clearance for container loading and high-bay operations |
Mast Lowered Height | 2,470 mm | Travels through low-clearance doorways and mezzanine levels |
Ground Clearance (below mast, laden) | 140 / 120 mm | Smooth travel over dock plates and uneven yard surfaces |
Travel Speed (laden / unladen) | 16 / 17 km/h | Fast travel between loading bays and storage racks without sacrificing safety |
Gradeability (laden / unladen) | 15% | Confident ramp and dock climbing even at full 7-ton capacity |
Fork Length | 1,520 mm | Handles oversized pallets and double-deep racking with stability |
Battery Voltage / Capacity | 80V / 690Ah | High-voltage platform delivers consistent torque and all-shift endurance |
Comprehensive International Certifications — Zero Risk for Export Procurement and Policy Compliance
From ISO 9001/45001/14001 management systems to CE, RoHS, and SGS product compliance, plus TX type test certificates and Special Equipment Production Licenses — the CPDD-L-7030's certification matrix covers quality management, product safety, environmental directives, and special equipment manufacturing regulations.
What does this mean for you?
Overseas Fleet Customers: CE and SGS compliance ensures smooth customs clearance and market entry into Europe and other high-standard regions without costly retrofits.
Domestic Enterprise Customers: Complete special equipment qualifications and type test reports meet the bidding thresholds and safety inspection requirements of large state-owned enterprises and logistics groups.
Green Warehouses & Manufacturing: RoHS environmental directive compliance and zero-emission operation support corporate ESG ratings and carbon footprint accounting.
Born for Real-World Conditions — Three Core Application Scenarios
01 / HEAVY-DUTY LOAD HANDLING — STEEL, BUILDING MATERIALS & PORTS
7,000 kg Load Capacity · 600 mm Load Center · 1,520 mm Forks
Handles dense pallets, coils and oversize loads, backed by a 9,200 kg self weight (excluding battery) and a 1,980 mm fork-carriage width for stable heavy-load handling.
02 / HIGH-BAY STACKING — WAREHOUSING & DISTRIBUTION
3,000 mm Lift Height · 4,370 mm Extended Mast Height · 2,470 mm Mast Lowered Height
Stacks to 3,000 mm while the 2,470 mm lowered mast clears height-restricted entries; a 3,450 mm turning radius and 310/360 mm/s lift speed keep aisle cycles short.
03 / INDOOR & EMISSION-SENSITIVE SITES — MANUFACTURING & RETAIL DCs
Electric · 80V/690Ah Lithium Battery · 80V/200A Charger
Battery-electric drive removes on-site exhaust from indoor handling; the 80V/690Ah lithium pack is paired with a specified 80V/200A charger, and seated operation suits high-frequency loading cycles.
04 / RAMPS, YARDS & LOADING DOCKS — MIXED SURFACES
40 kN Max. Traction (Laden) · 15% Gradeability · Solid or Pneumatic Tyres (Optional)
40 kN laden traction and 15% gradeability cover ramps and dock approaches, while the solid/pneumatic tyre option and 225/210 mm ground clearance (center of wheelbase) suit both paved yards and rougher ground.
| 1 | Model | CPDD-L | |
| 2 | Configuration No. | 7030 | |
| 3 | Power type | Electric | |
| 4 | Operation type | Seated | |
| 5 | Load capacity | kg | 7000 |
| 6 | Load center distance | mm | 600 |
| 7 | Wheels type | Solid tires/Pneumatic tires(Optional) | |
| 8 | Track width (Front) | mm | 1470 |
| 9 | Track width (Rear) | mm | 1735 |
| 10 | Mast lowered height | mm | 2470 |
| 11 | Free lift | mm | / |
| 12 | Lift height | mm | 3000 |
| 13 | Extended mast height | mm | 4370 |
| 14 | Tilt of mast carriage (Forward/Backward) | ° | 6/10 |
| 15 | Fork length | mm | 1520 |
| 16 | Overall length (With forks) | mm | 5155 |
| 17 | Overall length(Without forks) | mm | 3635 |
| 18 | Overall width | mm | 1980 |
| 19 | Overall height | mm | 2510 |
| 20 | Turning radius | mm | 3450 |
| 21 | Travel speed (Laden/Unladen) | km/h | 16/17 |
| 22 | Lift speed (Laden/Unladen) | mm/s | 310/360 |
| 23 | Lowering speed (Laden/Unladen) | mm/s | 320/300 |
| 24 | Max. traction (Laden) | KN | 40 |
| 25 | Gradeability (Laden/Unladen) | % | 15 |
| 26 | Driving motor | kw | 23 |
| 27 | Voltage/Capacity of lithium battery | V/Ah | 80/690 |
| 28 | Lithium battery charger | V/A | 80/200 |
