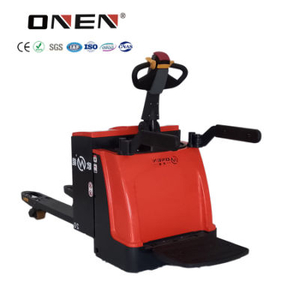

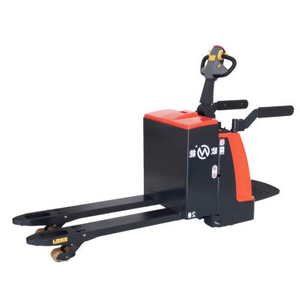

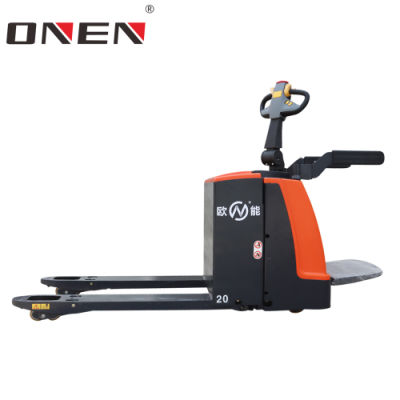

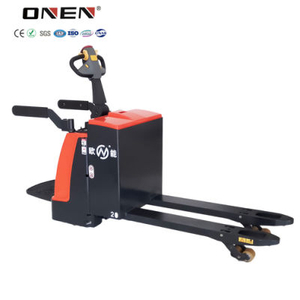

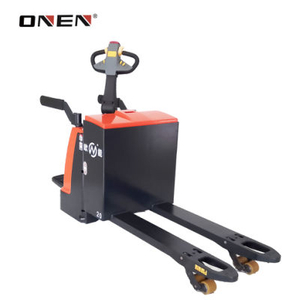

Electric pallet jacks are ideal for warehouses and other businesses that often lift heavy loads. These tools can be operated from a platform, by walking beside the truck or from behind it. Controls on these machines are ergonomically designed to help the operator lift and lower the pallets safely. In addition, these jacks have on-board diagnostics and safety-enhancing features, including an emergency reverse belly horn and switch. This allows operators to operate the pallet jack without the fear of injury, or the loss of the load.
It is essential to review the operating manual of your Electric Pallet Jack before beginning work. Before operating the jack, make sure the ground is not slick and remove the battery charger if applicable. Grab the controller on the jack's handle and set the forks to the lowest position. Twist the controller to move the jack forward. To reverse, twist the controller in the opposite direction. When you reach the end of a ramp, be sure to yield to pedestrians and keep your eyes open.
| Technical Parameter | |
| Model: | CBD25 |
| Power Type: | Electric |
| Rated Load: | 2000/ 2500/ 3000/ 5000 kg |
| Load Center Distance: | 600 mm |
| Front Overhang: | 970 mm |
| Wheel Base: | 1400 mm |
| Wheel (front/ bearing/ balance): | PU, Φ230*75 / Φ80*70 / Φ125*50 mm |
| Tire QTY. (front/ rear): | 1x-4/2 |
| Fork Size (s/e/l): | 160/55/1150 mm |
| Fork Outer Width: | 560 mm (or 680mm) |
| Overall Length: | 1850 mm |
| Overall Width: | 725 mm |
| Overall Height(Closed): | 1435 mm |
| Lifting Height: | 200 mm |
| Turning Radius: | 1695 mm |
| Min. Ground Clearance: | 30 mm |
| Max. Gradeablility (full loaded/ unloaded) | 8/15 % |
| Brake: | Electromagnetic brake |
| Steering: | Mechanical / EPS |
| Battery: | 24V/150Ah Lead Acid |
| Self Weight( with battery): | 650 kg |
Q1. Are you a factory or trading company?
A: We are a professional manufacturer of warehouse material handling equipment for more than 20 years, our factory Guangdong ONEN New-resource Equipments Co., Ltd. Locates in Taishan City of Guangdong province which is only 2 hours away from Guangzhou or Shenzhen by car.
Q2. Can I buy samples?
A: Sure, please feel free to contact with us for samples.
Q3. What is your lead time?
A: It depends on the order quantity and the season you place order. Usually we can ship within 7-15 days for small quantity, and about 30 days for large quality.
Q4. What is your payment term?
A: T/T, Western Union, MoneyGram, Paypal, L/C. Payment term is negotiable.
Q5. What is the shipping method?
A: Goods can be shipped by sea, by air, by railway, or by express. Please confirm with us before place order.
Q6: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers' benefit, Furthermore, we respect every customer as our friend and we sincerely do business with them, no matter where they are.
