FL960-E Ultra Smart Pure Electric Loader | Dual-gun Fast Charging

Share to:

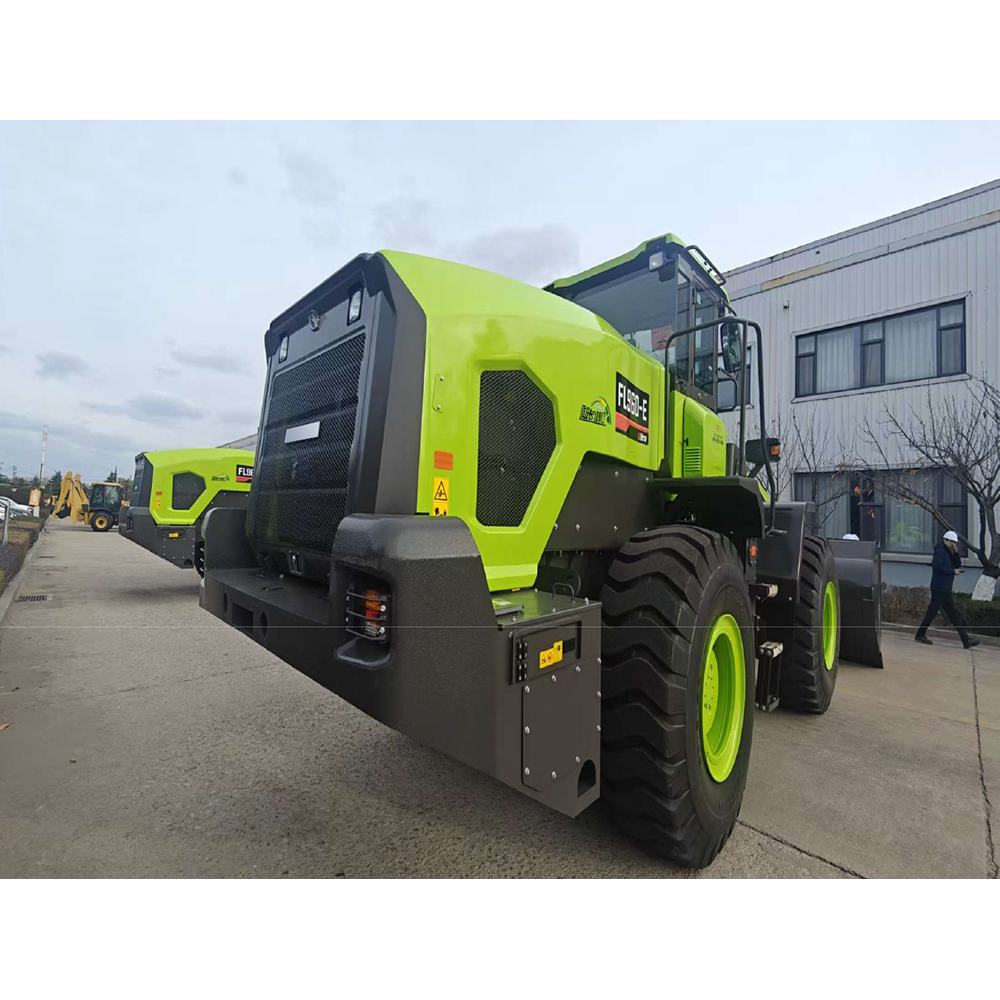

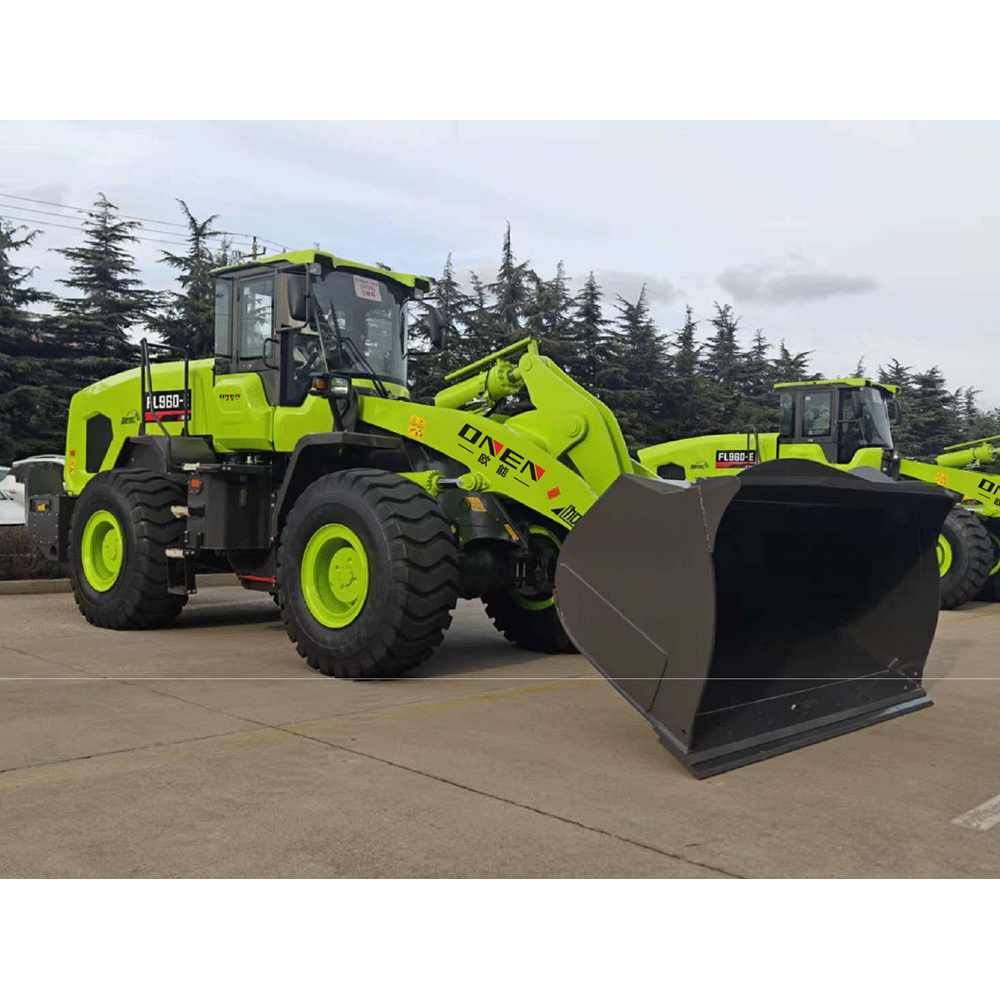

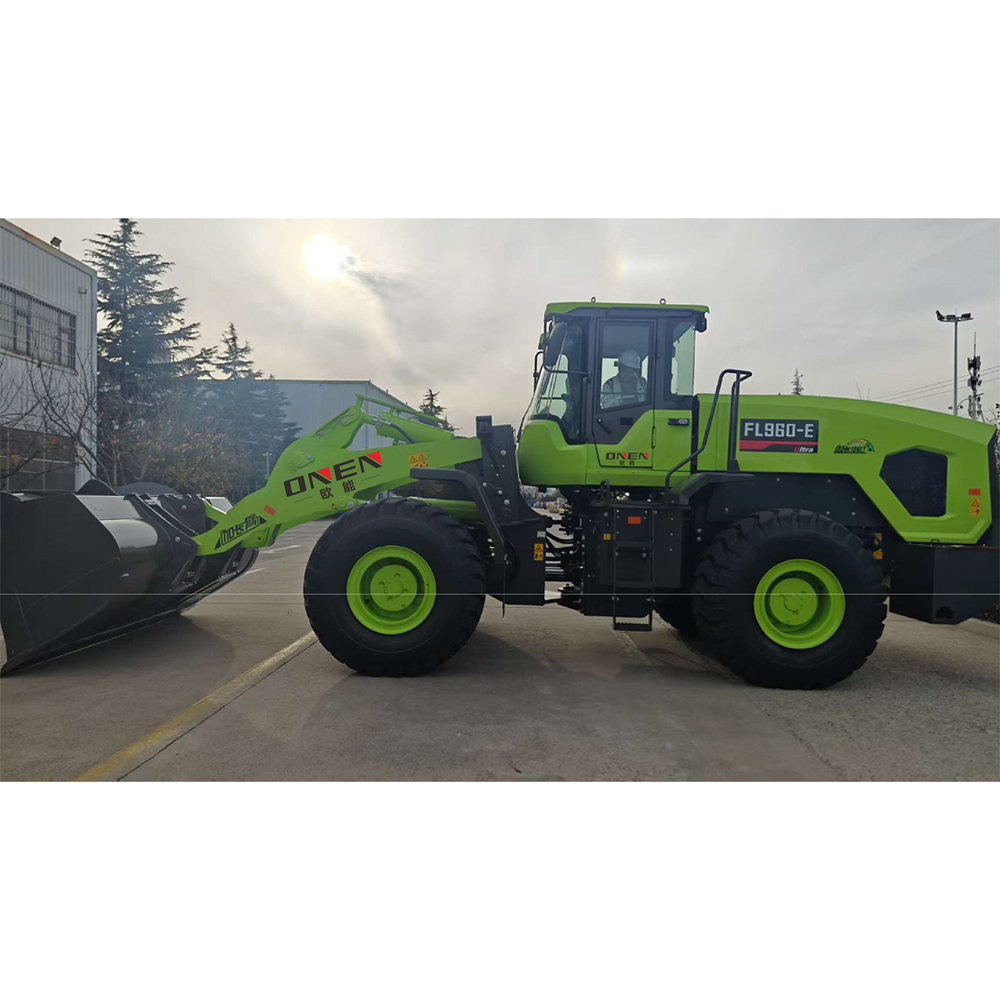

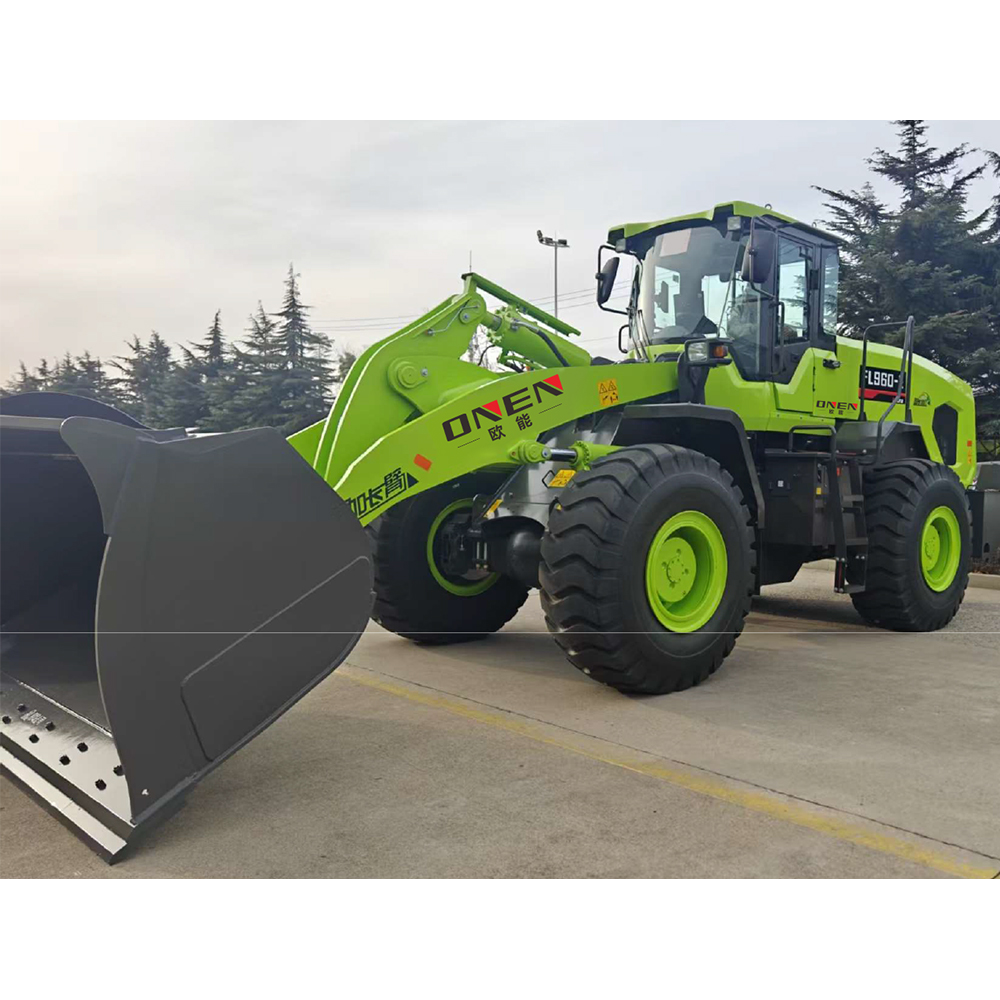

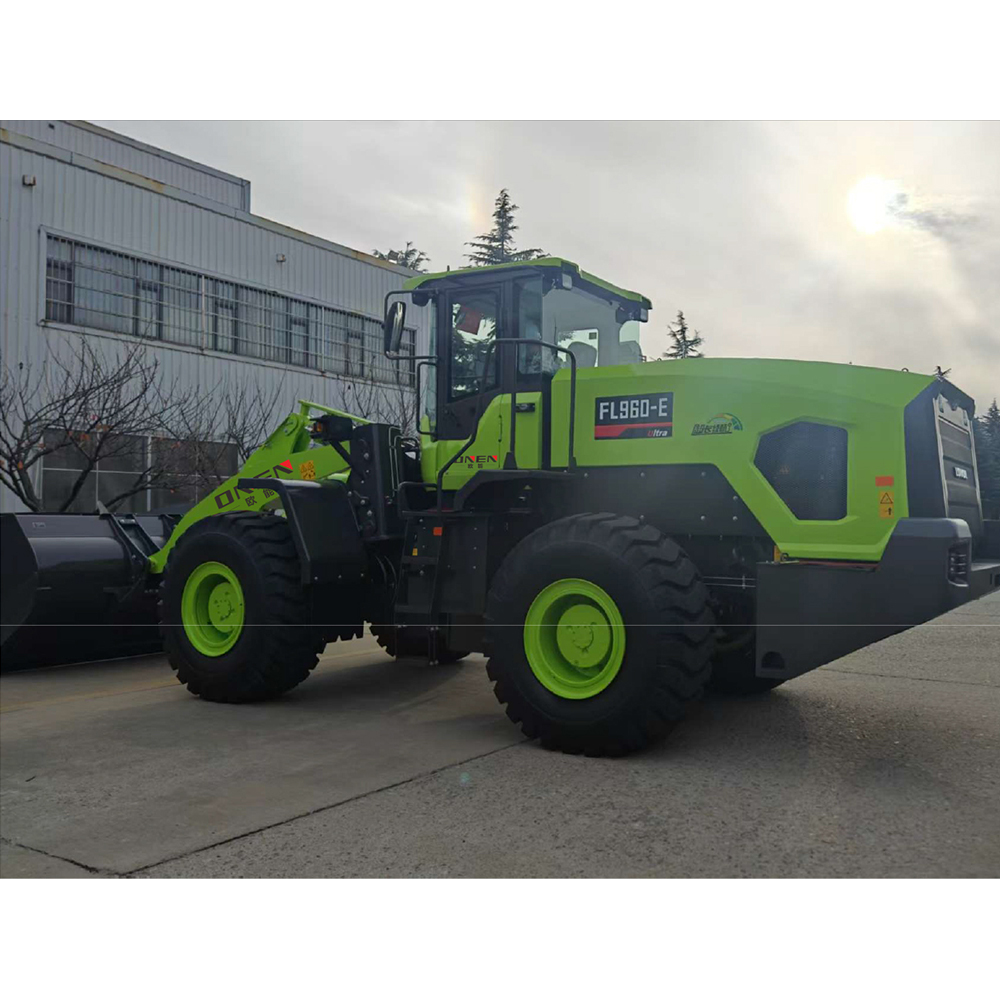

FL960-E Ultra Smart Pure Electric Loader | Dual-gun Fast Charging

Name: FL960-E Ultra Smart Pure Electric Loader | Dual-gun Fast Charging
Brand: ONEN
Rating: 5.0 (34 reviews)

Product Introduction
FL960-E Ultra is a product specially designed for sand and gravel, coal loading and unloading, and short distance transportation scenarios, targeting organizational customers and fully adapting to domestic policy requirements. Equipped with a high-energy density battery system, it achieves ultra long battery life and meets the requirements of high-intensity operations. Vehicle deep integration of intelligent technology, with efficient and reliable product characteristics, significantly reduces energy consumption and emissions, and helps green logistics. Taking energy conservation and environmental protection as the core advantages, empowering fleet customers to reduce costs and increase efficiency, easily responding to environmental policies, and leading the intelligent upgrade of transportation equipment.

Availability:



Inquire Add to Basket

Model:
FL960-E Ultra
Brand:
ONEN
Name:
Electric Loader
Power form:
Electric
Load Capacity:
5800kg
Driving Style:
Dual pump confluence
lift height:
3380mm
Battery:
lithium iron phosphate
Certification:
CE/RoHS/SGS

Basic Parameters
1	model		FL960-E Ultra
2	Load Capacity	kg	5800
3	Rated Power	kW	225 (120+105)
4	Maximum Torque	N.m	1100 (800+300)
5	Curb Weight	kg	18260/18400/19000
6	Bucket Capacity	m3	2.5-5.0
7	Tilting Load (full steering)	kg	≥116
8	Unloading Height	mm	3380
9	Unloading Distance	mm	1140
10	Maximum Traction	kN	170
11	Maximum Lifting Force	kN	170
12	First Gear Speed (Forward/Reverse)	km/h	16/16
13	Second Gear Speed (Forward/Reverse)	km/h	40/-
14	Overall Length	mm	9060
15	Overall Height	mm	3480
16	Wheel Track	mm	2250
17	Wheelbase	mm	3450
18	Steering Angle	。	37
19	Maximum Climbing Angle	。	28
20	Three-term Sum	S	9.8
Power Battery 动力电池
1	Battery Type		lithium iron phosphate
2	Rated Capacity Of Power Battery	kWh	289/357/408
3	Rated Voltage Of Power Battery	V	589/538/614
4	Maximum Charging Power Of Charging Pile	kW	240/280/320 twin guns
5	Power Battery Heating		electric heating
Hydraulic System 液压系统
1	Type		dual pump confluence
2	Operation Method		pilot operation
Walking Motor 行走电机
1	Motor Type		Permanent Magnet Synchronous
2	Rated Power	kW	120
3	Rated Torque	N.m	358
4	Peak Power	kW	220
5	Peak Torque	N.m	800
Hydraulic Motor 液压电机
1	Motor Type		Permanent Magnet Synchronous
2	Rated Power	kW	105
3	Rated Torque	N.m	167
4	Peak Power	kW	190
5	Peak Torque	N.m	300
Other 其他
1	Gearbox		Electronically controlled fixed-shaft AMT gearbox
2	Drive Axle	Mpa	Enhanced dry drive axle
3	Tire	Mpa	23.5-2518PR/16PR
4	Service Brake System	Km/h	Fully hydraulic four-wheel disc brake
5	Air Conditioning System		Air conditioner with heating and cooling functions

ELECTRIC

LOADER

Learn More

Working Device

Battery

Motor Thermal Management System Cooling System Gearbox Strengthen The Drive Axle Pilot Operation

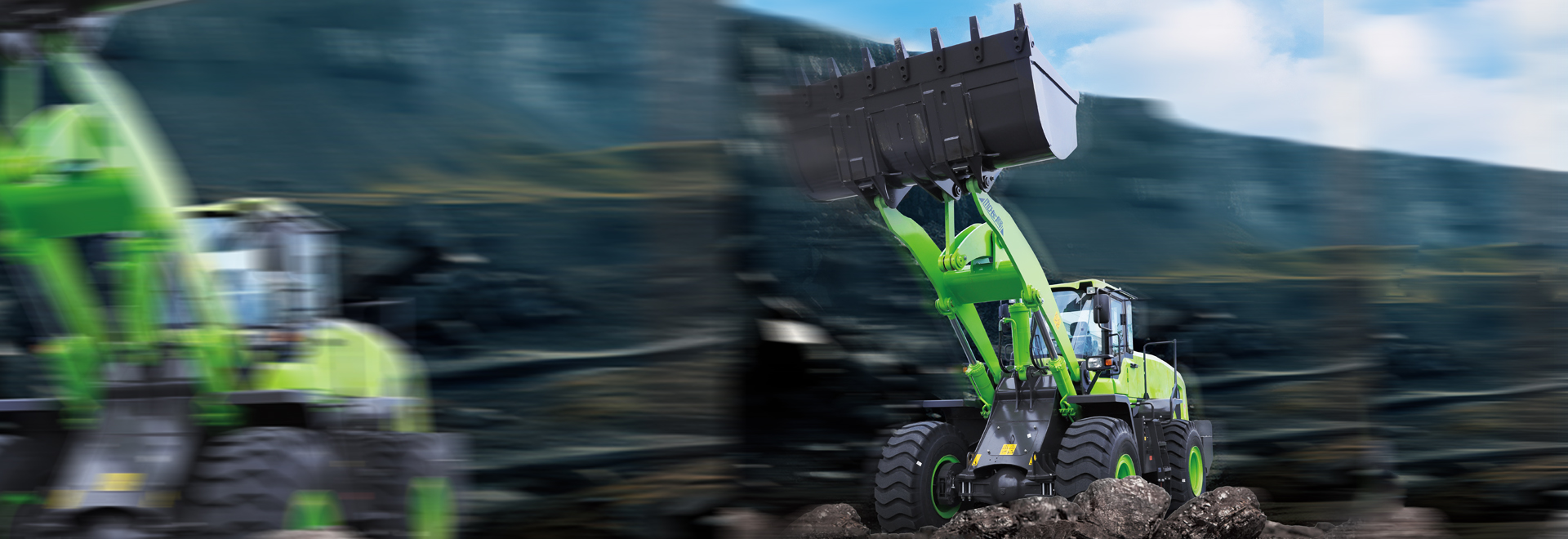

Working Device

·The bucket adopts dual verification of CAE analysis and shovel loading operation, with high reliability and long service life;
·The main blade is made of quenched plate, which has high wear resistance, light overall weight, and long service life.
Learn More
Battery

·Lithium iron phosphate blade battery, with stable and safe chemical properties, long cycle life, good high-temperature performance, and excellent charge and discharge performance;
·Rated capacity of 289/357/408 kWh, with multiple power options available.
Learn More
Motor

·High torque, fast response, and high efficiency;
·The integration of the controller and motor reduces high-voltage wiring harnesses, greatly improving safety and reliability.
Learn More
Thermal Management System

·The battery thermal management and cabin air conditioning share a set of compressor and condenser, and the refrigerant exchanges heat through the battery cooler to provide cooling for the power battery, which is more efficient and energy-saving;
·The thermal management controller coordinates and controls the cabin air conditioning and battery thermal management to ensure battery life.
Learn More
Cooling System

·Adopting intelligent heat dissipation electronic fan, single water dissipation, independent control, with better heat dissipation performance;
·Efficient and intelligent control strategies ensure the safety and lifespan of motors and hydraulic systems;
·The cooling fan adopts a double door type and can be equipped with automatic and manual dust removal functions, making dust removal convenient and worry free.
Learn More
Gearbox

·Electric installation dedicated high-speed motor, electrically controlled shifting fixed axis gearbox, forward/reverse motor direct drive, high operating efficiency;
·The walking motor and gearbox adopt an integrated design, with higher transmission efficiency and greater reliability.
Learn More
Strengthen The Drive Axle

·The front axle adopts a reinforced bridge, which is suitable for various harsh working conditions and has reliable performance;
·Upgrade the drive axle housing to increase its lifespan by 20% compared to industry products;
·Strengthen the differential, increase the gear module, thicken the cross shaft, and increase strength by 40%.
Learn More
Pilot Operation

·The pilot joystick and FNR directional control are integrated, while the right-hand control is integrated and the left-hand control does not detach from the steering wheel, making it safer and more efficient;
·Customize various handling performance to meet the needs of various working conditions.
Learn More

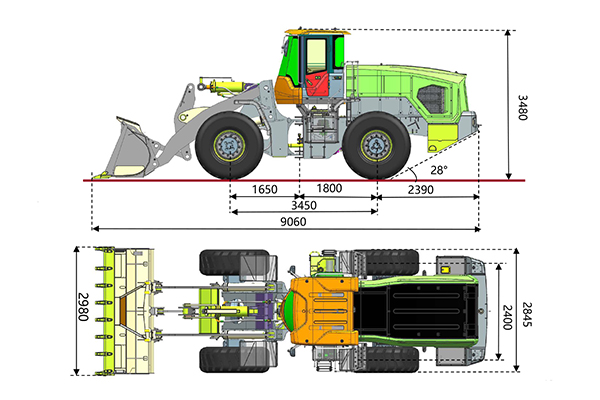

Product Dimensions

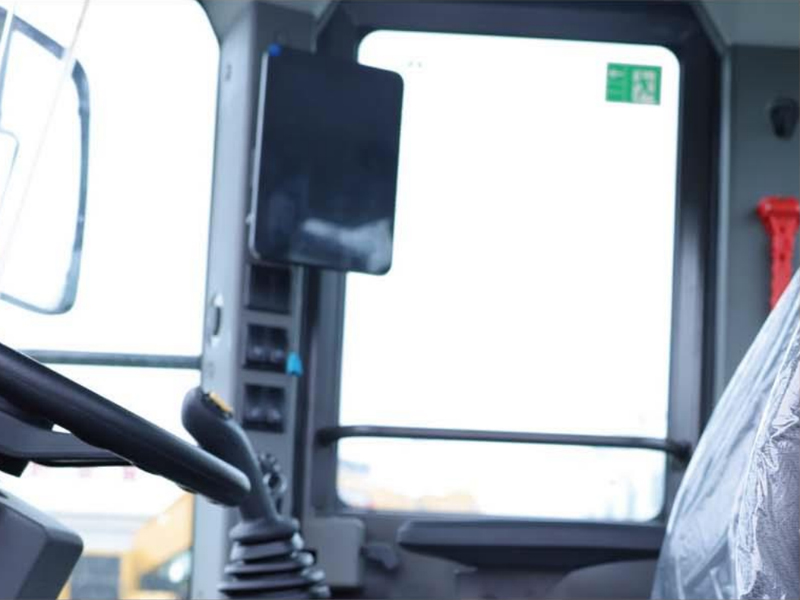

LOADER CAB

Comfortable, environmentally friendly, intelligent, and humanized

·Standard 10 inch touch screen display with more display content, integrated with work mode, air conditioning, rear monitoring, Bluetooth, and radio;
·The warm air adopts electric heating, which can be turned on immediately after starting the car without waiting. It heats up faster and has a parking air conditioning function. The air conditioning can also be used during parking and rest;
·There is almost no need to step on the brake or release the accelerator when reversing before and after normal operation. Energy can be recovered during reversing, quickly reducing the vehicle speed, improving work efficiency, extending the service life of the braking system, and saving electricity;
·The front glass adopts double curvature large opening laminated safety glass to meet the visual requirements of drivers and passengers for the surrounding and working devices; Mechanical suspended seats with dual slide adjustment enhance driving comfort. Optimized air conditioning vents and added rear vents, which also serve as rear defrost vents.

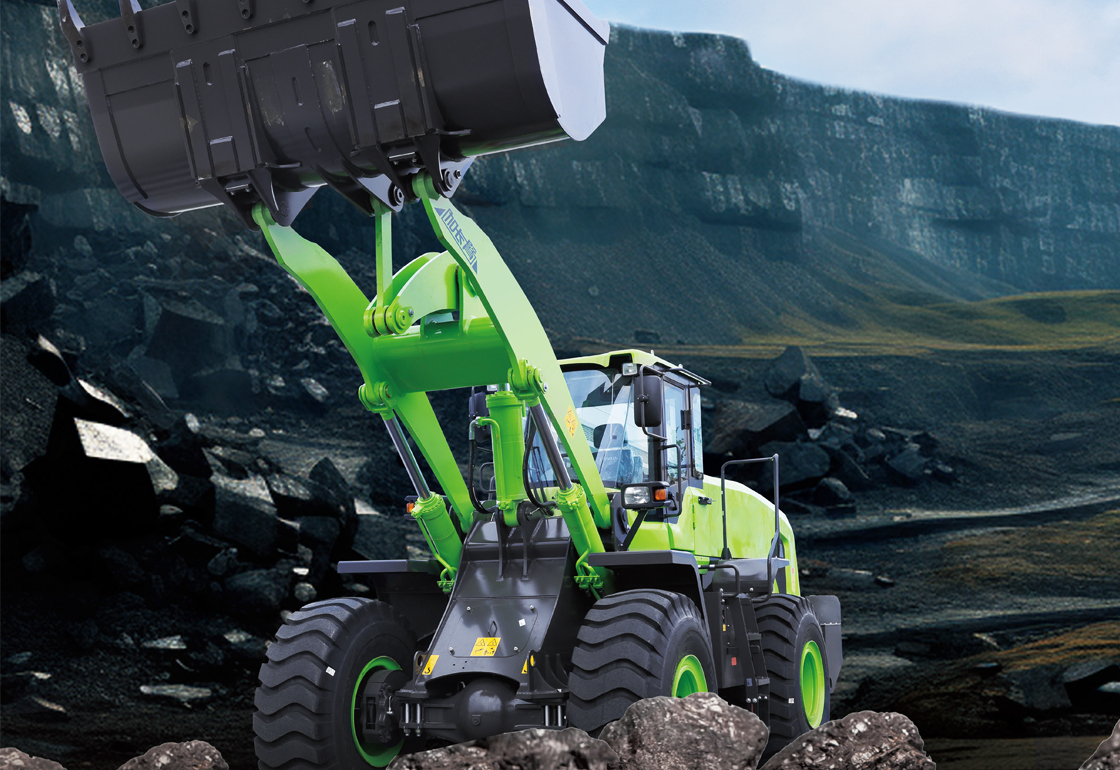

Automatic energy recovery for reversing

charge once, and dry for an additional half hour; Working an extra hour a day, working an extra month, saves 7000 yuan on electricity bills.
Single pedal mode

Release the accelerator to automatically recover energy.
Intelligent thermal management of batteries

The refrigerant is cooled by the battery cooler through heat exchange, with intelligent temperature control to ensure safety and extend lifespan.
Electric control heat dissipation for motors

Intelligent control ensures the safety and longevity of motors, controllers, and hydraulic systems.
High speed permanent magnet synchronous motor

high torque, fast response, and high efficiency.
