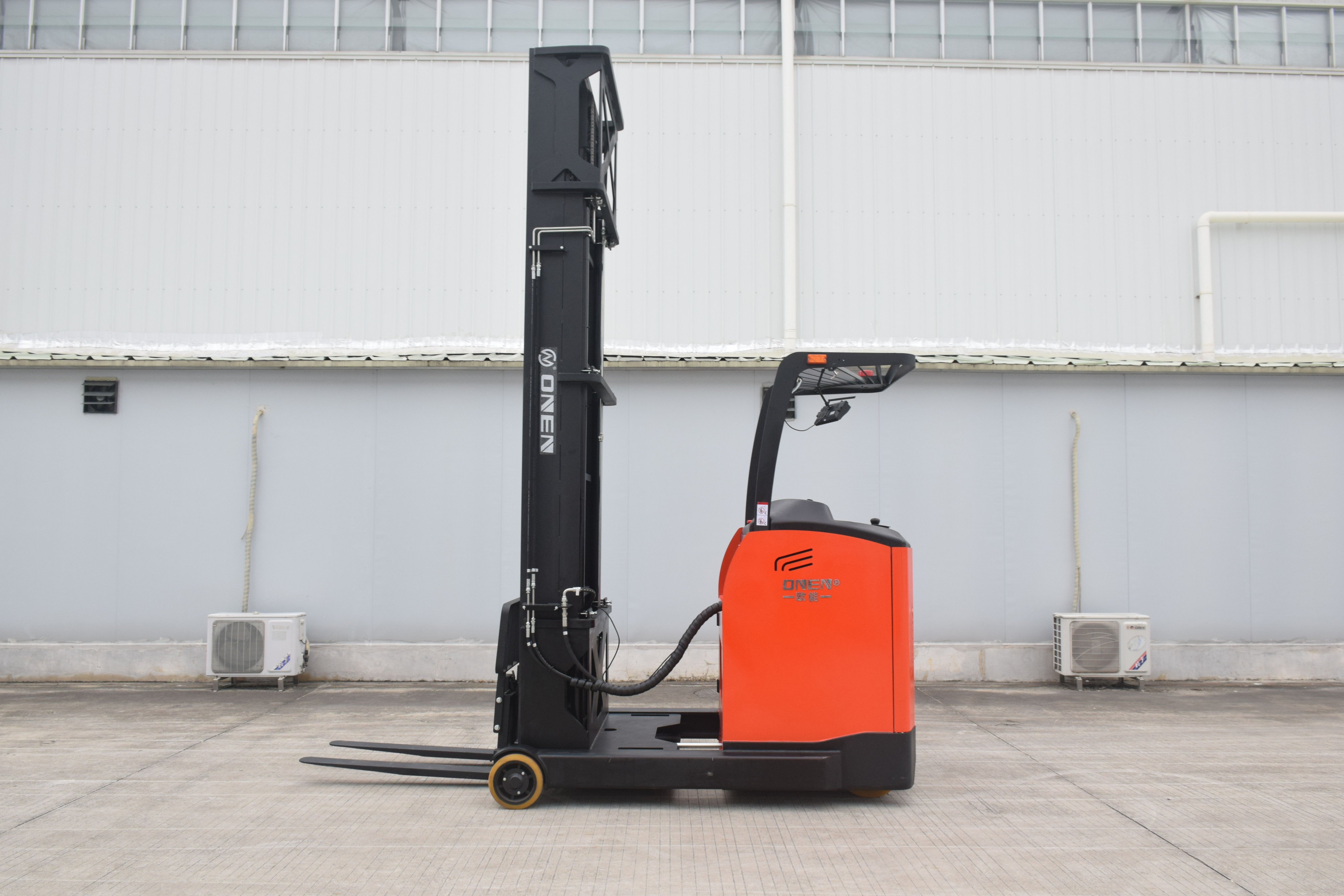

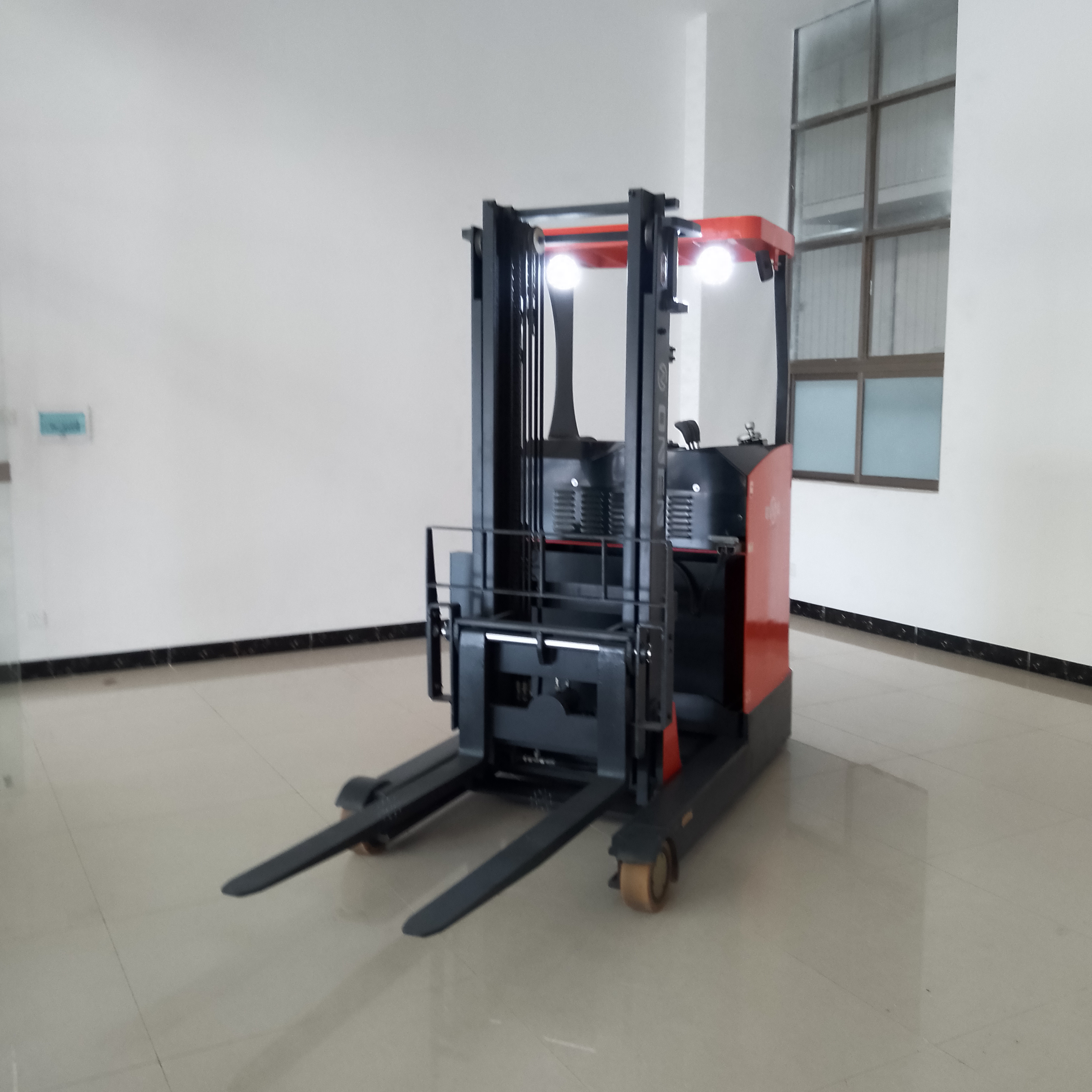

ONEN CQD-B Electric Reach Truck – 1.5 Ton Sit-Down Narrow Aisle Forklift (3m Lift)

Model: CDB-B-1530

Rated Load: 1500 kg

Life Length:3,000mm

Product Overview

The ONEN CQD-B Series is a fully electric, sit-down reach truck built for warehouses where vertical space is money and floor space is scarce. Available in 1.5 ton and 2.0 ton load capacities with a choice of seven mast configurations from 3.0 m to 7.0 m, the CQD-B lets you shrink your aisle width without shrinking your storage volume.

Unlike conventional counterbalance forklifts, the CQD-B places the operator in a seated position behind a reach-forward mast. Electronic power steering and electromagnetic braking deliver precise, car-like control, while the multi-valve hydraulic system coordinates lift, reach, and tilt in one fluid motion. The result is a narrow-aisle specialist that turns tight corners, stacks heavy pallets at height, and keeps operators comfortable during medium-to-long shuttle runs.

Manufactured by Guangdong ONEN New-resource Equipments Co., Ltd. with 30 years of material-handling expertise, every CQD-B ships export-ready with full CE, ISO 9001, ISO 14001, ISO 45001, and SGS documentation.

4 Core Advantages

1. Narrow-Aisle Architecture That Reclaims Floor Space

The CQD-B’s reach-forward mast extends the load center beyond the front wheels, allowing the truck to operate in aisles roughly 40 % narrower than those required by standard counterbalance forklifts. With a turning radius of approximately 1,800 mm and an aisle width of under 3 meters for standard 1,000 × 1,200 mm pallets, you can add extra racking rows without expanding your warehouse footprint. A ~500 mm reach distance and 5°/3° fork tilt let operators deposit 1.5–2.0 ton loads onto 3–7 m high racks with millimeter accuracy, effectively boosting your cubic storage capacity.

2. Electronic Precision, Electromagnetic Safety

Finger-light electronic steering eliminates wrist and shoulder strain during long shifts, while electromagnetic braking provides instantaneous, wear-free stopping power—critical when maneuvering expensive inventory at height. The multi-valve hydraulic system orchestrates lift, lower, reach, and tilt in one smooth sequence, preventing shock loads and pallet spillage. A low 35 mm fork entry height and 70 mm ground clearance ensure smooth transition over dock plates and uneven warehouse floors.

3. Sit-Down Comfort for All-Day Productivity

Designed for operators who clock serious mileage inside the warehouse, the CQD-B features a sit-down layout with an overhead guard and ergonomic controls positioned within natural arm reach. The 48V battery system powers a 6.5 kW drive motor and a 4.5 kW lift motor, delivering travel speeds up to 7.8 km/h and lift speeds up to 240 mm/s—yet the cabin noise level stays below 70 dB(A). The result is a less stressful shift, lower operator turnover, and measurably higher throughput.

4. Rugged Build, Flexible Power

At roughly 3,000 kg service weight (including battery) and riding on a 1,470 mm wheelbase, the CQD-B remains stable even with the mast fully extended. Polyurethane (PU) drive and load wheels resist chunking, marking, and electrostatic buildup—essential for clean-room, retail-backroom, and coated-floor environments. Choose the economical 48V / 300Ah lead-acid battery for standard single-shift duty, or upgrade to the 48V / 280Ah lithium pack for opportunity charging, longer cycle life, and reduced maintenance.

Where the CQD-B Performs Best

High-Bay Automated Warehouses

With lift options up to 7 meters, the CQD-B integrates seamlessly into AS/RS environments and high-density racking systems. The reach mechanism lets you use double-deep racking or simply narrow your aisles to store more SKUs per square meter.

Production-Line Side Warehouses

Feed assembly stations and remove finished-goods pallets without leaving the driver’s seat. The compact 1,270 mm width and tight turning circle navigate congested shop-floor corridors that would block a standard counterbalance truck.

Building Materials & Heavy-Goods Storage

The 1.5–2.0 ton capacity and robust chassis handle concrete products, tile pallets, and packed building materials with confidence. Electromagnetic braking ensures controlled descents on ramps, while PU wheels protect sensitive epoxy floors.

Retail Distribution & Third-Party Logistics

From cross-dock terminals to e-commerce fulfillment centers, the CQD-B’s low noise and zero emissions make it suitable for indoor operations near office staff. Fast lift speeds keep trailers turning and orders shipping on time.

Cold-Chain & Food-Grade Facilities

Electric operation produces no exhaust contaminants, maintaining air quality in temperature-controlled storage. The smooth hydraulic lowering prevents impact damage to fragile packaging and frozen goods.

Why Source from ONEN?

Guangdong ONEN New-resource Equipments Co., Ltd. delivers more than material handling equipment—we deliver a complete warehouse productivity partnership backed by three decades of engineering excellence.

• Complete International Certifications: ISO 9001, ISO 14001, ISO 45001, CE, RoHS, and SGS for seamless global importation and customs clearance.

• Licensed Manufacturing: Fully certified with China Special Equipment Production License and TX type-test certificates, ensuring regulatory compliance in demanding markets.

• Award-Winning Innovation: Recognized with the Canton Fair Design Award for excellence in industrial equipment engineering and ergonomics.

• Full Product Ecosystem: Standardize your fleet with one trusted supplier. Beyond reach trucks, ONEN manufactures diesel forklifts, electric forklifts, scissor lifts, fully electric pallet stackers, and walkie pallet trucks.

• Flexible Power Solutions: Choose between economical lead-acid or lightweight lithium batteries to match your operating budget and shift requirements.

• Factory-Direct Customization: We welcome on-site factory inspections and offer transparent customization of load capacity, fork dimensions, battery chemistry, brand livery, and regional voltage standards.

Frequently Asked Questions

Q: What is the difference between a reach truck and a counterbalance forklift? A: A reach truck uses a telescoping mast that extends the load forward of the front wheels, allowing it to operate in much narrower aisles and achieve higher lift heights than a counterbalance forklift of the same capacity. The CQD-B is designed specifically for high-density racking where floor space is at a premium.

Q: What is the minimum aisle width I need for the CQD-B? A: For standard 1,000 × 1,200 mm pallets, the CQD-B requires an aisle width of approximately 2,964 mm—significantly less than the 3,500 mm+ typically needed by a 1.5-ton counterbalance electric forklift.

Q: Can I order the CQD-B with different mast heights? A: Yes. The CQD-B platform offers seven mast SKU options ranging from 3.0 m to 7.0 m lift height. You can standardize your fleet on one chassis model while selecting the exact mast needed for each zone of your warehouse.

Q: Is the CQD-B fully electric or semi-electric? A: The CQD-B is fully electric: both travel and lift are powered by the 48V battery system. Electronic steering and electromagnetic braking further reduce physical effort, making it suitable for all-day operation.

Q: What battery options are available, and can I upgrade to lithium later? A: The standard configuration ships with a 48V / 300Ah lead-acid battery. You can also specify a 48V / 280Ah lithium battery at order. Because the battery compartment is designed for the standard form factor, retrofitting to lithium is straightforward—contact us for a compatibility check on existing units.

Q: Do you offer OEM, custom colors, or voltage modifications? A: Absolutely. We customize paint schemes, branding, fork lengths, battery configurations, and regional voltage standards for volume partners. Contact our team to discuss private-label requirements.

Q: How do I get the best 1.5-ton reach forklift price for my project? A: As the factory, we publish transparent EXW/FOB/CIF pricing based on quantity, mast specification, and battery choice. Reach out with your warehouse layout and shift plan, and our engineers will recommend the most cost-effective SKU mix.

Get Your Factory-Direct Quote Today

Ready to reclaim warehouse floor space and push your storage ceiling higher? Contact Guangdong ONEN New-resource Equipments Co., Ltd. now for:

• Competitive EXW / FOB / CIF pricing on the CQD-B 1.5–2.0 ton reach truck series

• Volume fleet discounts and mixed-model container loading

• Custom mast heights, battery upgrades, and brand livery (OEM / ODM)

• On-site factory inspection and live video audit scheduling

Whether you need a single narrow-aisle reach truck for a boutique warehouse or a mixed fleet of 3–7 m stackers for a national distribution network, our engineering team will match the ideal specification to your load profile, floor conditions, and budget.
