ONEN 1.2T Stand-on Counterbalance Electric Stacker,Lift1.6-3.0m(CPDD-A)
An electric trolley is a device used for transporting and lifting goods. This machine is driven by electricity and features strong power, convenient operation and adjustable lifting height. An electric trolley is usually composed of a trolley body, an electric drive system, a lifting device and a control system. The body of an electric trolley is usually made of solid steel, which has good load-bearing capacity and stability. The electric drive system uses an electric motor as the power source and is powered by a battery to drive the vehicle forward and backward. The lifting device is usually a hydraulic system. Goods can be lifted and lowered through control buttons or handles, and the lifting height can be adjusted as needed. 1.The entire vehicle is flexible and compact, with a small turning radius, allowing it to work freely and efficiently in confined Spaces 2. It is equipped with a high-energy sealed battery and charger, making maintenance and charging convenient 3. The body is forged from solid steel, featuring strong load-bearing capacity and high stability 4. The structure is relatively simple, the components are durable and the maintenance cost is low 5. The multi-functional operation handle, with buttons for reverse gear braking, turtle immunity mode, and fork lift, is easy to operate
24 V / 30 A (lead-acid); 24 V / 50–100 A (lithium)
Safety & Comfort
Brake type
Electromagnetic
Noise at operator’s ear
< 70 dB(A)
Lift motor
2.0–2.5 kW
Exact dimensions, mast heights, and battery configurations depend on the specific SKU selected. Contact our sales engineers for the complete Mast & Battery Configuration Table.

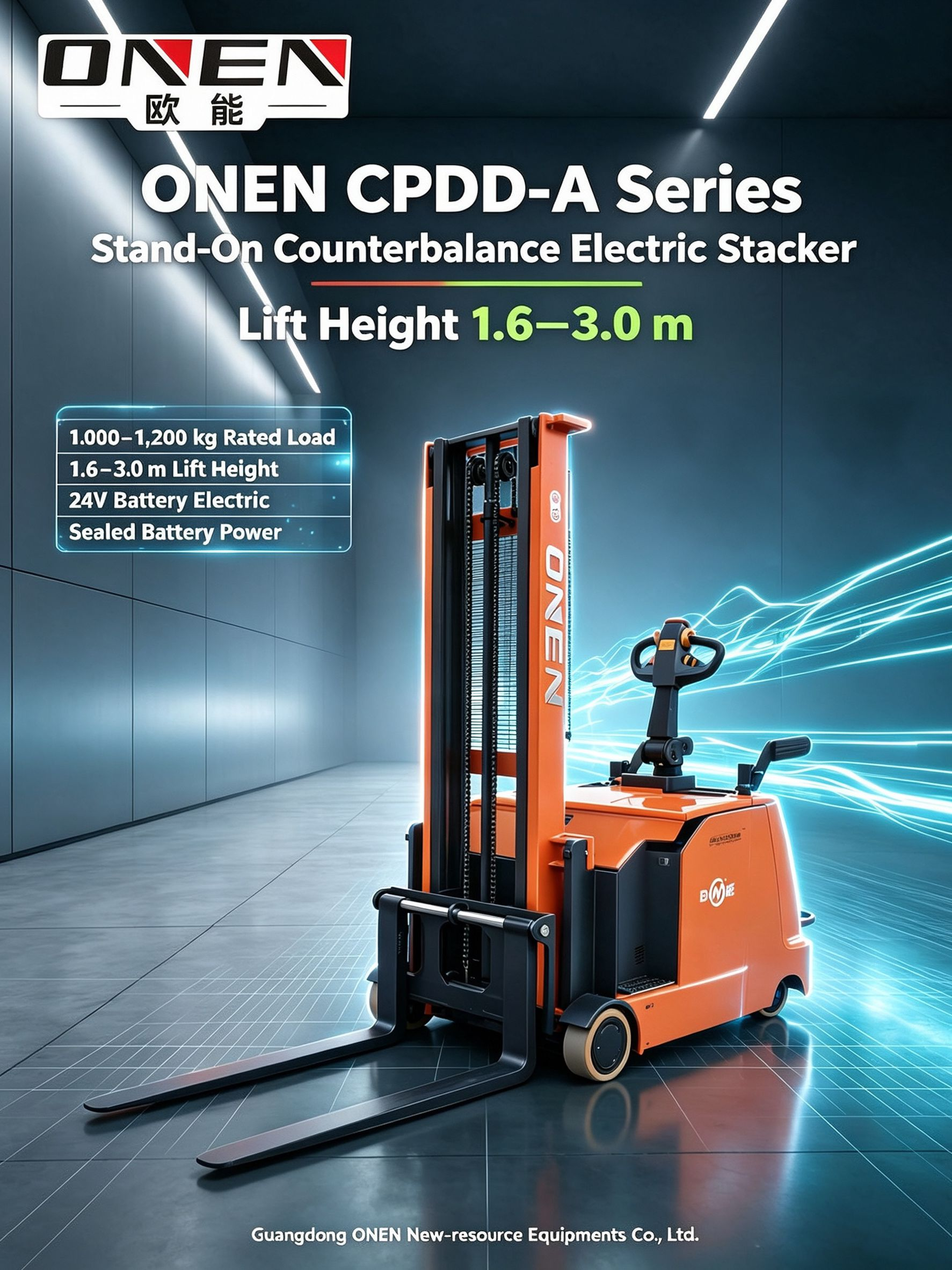

ONEN Stand-on Counterbalance Electric Stacker,Lift1.6-3.0m(CPDD-A)
Product Overview
Our industrial walkie electric pallet stacker series is engineered for warehouses, distribution centers, and production facilities where aisle space is tight but throughput cannot be compromised. Built on a flexible 1.0-ton to 1.2-ton load platform, this battery-powered walk-behind stacker combines a compact footprint with a robust steel chassis, giving operators the confidence to lift, transport, and stack pallets in narrow aisles without the bulk of a traditional counterbalance forklift.
Designed for OEM/ODM partners and end-users alike, every unit ships factory-direct from our ISO-certified plant. Whether you need a 1000 kg entry-level model for light-duty retail backrooms, a 1200 kg mid-range unit for busy workshops, or a 1500 kg configuration for industrial logistics, the same modular architecture adapts to your load profile, battery preference, and mast height—without redesigning your warehouse layout.
5 Core Advantages
1. Compact Agility for Narrow-Aisle Work
The entire vehicle is forged from solid steel yet remains surprisingly compact. A tight turning radius and walkie-style operator presence let the machine pivot and position in confined spaces where larger riders simply cannot fit. By reclaiming aisle width, you gain extra racking rows and higher pallet density without expanding your footprint.
2. Sealed Battery Power, Ready to Work Each stacker is equipped with a high-energy sealed battery and a matched charger. The maintenance-free power pack supports opportunity charging during breaks, while an optional lithium upgrade (24 V / 150 Ah–200 Ah) delivers longer cycle life and faster turnaround for multi-shift operations. Lead-acid and lithium packs are interchangeable within the same battery compartment, future-proofing your fleet.
3. Solid-Steel Chassis, Stable at Height The body is built from heavy-gauge steel plate, delivering the structural rigidity needed for stable 1.5-ton lifts. A low center of gravity, wide wheelbase, and polyurethane (PU) load wheels work together to prevent tipping, even when the mast is fully extended and the load center sits 500 mm forward.
4. Low-Cost Ownership, Simple Maintenance The overall structure is intentionally straightforward: fewer wear parts, durable sealed electrics, and an AC drive motor that eliminates brush replacement. Electromagnetic braking is wear-free, and the hydraulic lift circuit uses proven cartridge valves. The result is less downtime, lower spare-part inventory, and predictable maintenance budgets across 1.0 T, 1.2 T variants.
5. Ergonomic Multi-Function Handle The control tiller places all key functions within thumb reach—forward/reverse travel, electromagnetic brake, turtle-creep mode for tight corners, and fork lift/lower. Operators spend less time learning the controls and more time moving inventory, which directly translates to higher picks per hour and reduced training costs.
Where This Stacker Works Best
Retail & Supermarket Backrooms The compact walkie format and low noise signature (< 70 dB) let crews replenish shelf stock during business hours without disturbing customers. The tight turning radius navigates cramped receiving bays and elevator landings.
E-Commerce & 3PL Warehouses Fast lift speeds and intuitive controls keep trailers turning and orders shipping on time. The narrow-aisle footprint means more SKUs per square meter in high-rent distribution centers.
Factory Workshops & Production Lines Feed assembly stations with raw materials and remove finished-goods pallets in a single trip. The electromagnetic brake ensures controlled descents on sloped shop-floor corridors, while PU wheels protect epoxy and coated floors.
Cold-Chain & Food-Grade Facilities Electric operation produces zero exhaust, preserving air quality in temperature-controlled storage. Smooth hydraulic lowering prevents impact damage to fragile packaging and frozen goods.
Building Materials & Heavy-Goods Storage The 1.5-ton top capacity and solid-steel frame handle tile pallets, packed building materials, and dense industrial loads with confidence.
Factory Profile & Certifications
Manufactured by Guangdong ONEN New-resource Equipments Co., Ltd. with 30 years of material-handling expertise, our plant covers the full production chain—from steel cutting and robotic welding to painting, assembly, and load testing. Every stacker is export-ready and backed by complete documentation:
ISO 9001 Quality Management
ISO 14001 Environmental Management
ISO 45001 Occupational Health & Safety
CE Attestation of Compliance
SGS Supplier Audit
Special Equipment Production License
Canton Fair Design Award Recognition
We welcome on-site factory inspections, live video audits, and third-party pre-shipment testing for volume OEM/ODM partners.
Frequently Asked Questions
Q: What capacities are available in this walkie stacker series?
A: The platform covers 1,000 kg, 1,200 kg ratings. All three share the same chassis architecture, so you can standardize operator training and spare parts across mixed fleets.
Q: Can I choose different mast heights?
A: Yes. Mast options typically range from 1.6 m up to 3.0m. We will match the exact lowered height, free lift, and extended height to your rack configuration and ceiling constraints.
Q: Is the battery included, and can I upgrade to lithium later?
A: Every unit ships with a sealed battery and matched charger. The battery compartment accepts both standard lead-acid and optional lithium packs, so retrofitting is straightforward on existing units.
Q: What is the minimum aisle width this stacker needs?
A: For standard 1,000 × 1,200 mm pallets, the typical right-angle stacking aisle is approximately 2,950 mm. We can verify the exact figure once you confirm your pallet dimensions and rack layout.
Q: Do you offer OEM, custom colors, or voltage modifications?
A: Absolutely. We customize paint schemes, branding decals, fork lengths, battery configurations, and regional voltage standards for private-label partners. Contact us to discuss MOQs and artwork requirements.
Q: How do I maintain the stacker?
A: Daily maintenance is limited to a visual check, battery top-up (lead-acid), and keeping the wheels free of debris. The AC drive motor is brushless, and electromagnetic braking is wear-free, so scheduled service intervals are long and costs are low.
Get Your Factory-Direct Quote Today
Ready to reclaim floor space and move more pallets per shift? Contact us now for:
Competitive EXW / FOB / CIF pricing on the 1.0 T – 1.5 T walkie electric stacker series
Volume fleet discounts and mixed-model container loading
Custom mast heights, lithium upgrades, and brand livery (OEM / ODM)
On-site factory inspection and live video audit scheduling
