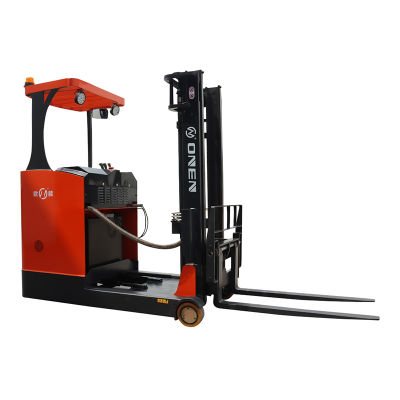

| CQD Electric Reach Forklift Technical Parameter | |||||
| Feature | 1 | Model | CQD | ||
| 2 | Series No. | 1530-B | |||
| 3 | Power type | Electric | |||
| 4 | Steering type | Electric Power Steering | |||
| 5 | Operating type | Driving | |||
| 6 | Load capacity | Q | kg | 1500 | |
| 7 | Load center distance | C | mm | 500 | |
| 8 | Rear overhang | X | mm | 490 | |
| 9 | Wheel base | Y | mm | 1400 | |
| Weight | 1 | Service weight with battery | kg | 1930 | |
| Wheel | 1 | Wheel type | PU | ||
| 2 | Driving wheel size | mm | Ф255x100 | ||
| 3 | Bearing wheel size | mm | Ф210x85 | ||
| 4 | Qty. (front/rear, X=driving wheel) | 1x-2/2 | |||
| 5 | Front wheel span | mm | 990 | ||
| Size | 1 | Overall length | L1 | mm | 2360 |
| 2 | Overall width | b1 | mm | 1090 | |
| 3 | Lowered mast height | h1 | mm | See details in Mast Table | |
| 4 | Free lifting height | h2 | mm | ||
| 5 | Max. lifting height | h3 | mm | ||
| 6 | Extended mast height | h4 | mm | ||
| 7 | Fork clearance from the ground | S | mm | 45 | |
| 8 | Length to face of fork | L2 | mm | 1185 | |
| 9 | Fork size | s/e/l | mm | 40/100/1070 | |
| 10 | Fork outer width | b3 | mm | 220-600 | |
| 11 | Reach distance | mm | 500 | ||
| 12 | Min. ground clearance | m2 | mm | 55 | |
| 13 | Aisle width | Ast | mm | 2650 | |
| Pallet 1000x1200(1000) | |||||
| 14 | Turning radius | Wa | mm | 1700 | |
| 15 | Inner width between tracks | b4 | mm | 770 | |
| Performance | Fork Carriage Tilt Forward/ Backward | ° | 6/9 | ||
| 1 | Driving speed (laden/ unladed) | km/h | 8/10 | ||
| 2 | Lifting speed (laden/ unladed) | mm/s | 135/220 | ||
| 3 | Lowering speed (laden/ unladed) | mm/s | 220/185 | ||
| 4 | Max. gradeablity (laden/ unladed) | % | 3/5 | ||
| 5 | Brake type | Electromagnetic brake | |||
| Motor power | 1 | Driving motor power | kw | AC 2.5 | |
| 2 | Lifting motor power | kw | 4.5 | ||
| Battery | 1 | Voltage/ Capacity | V/Ah | 24/320 | |
| 2 | Weight | kg | 300 | ||
| Others | 1 | Control mode | Mosfets control | ||
| 2 | Sound level at driver's ear | dB(A) | <70 | ||
| Mast Table | |||
| Lift height | Free lift height | Closed mast height | Extended mast height |
| h3(mm) | h2(mm) | h1(mm) | h4(mm) |
| 2500 | 90 | 1780 | 3440 |
| 3000 | 90 | 2030 | 3940 |
| 3300 | 90 | 2180 | 4240 |
| 3500 | 90 | 2385 | 4590 |
| 4000 | 90 | 2590 | 4940 |
| 4500 | 1500 | 2060 | 5340 |
| 5000 | 1660 | 2230 | 5840 |
| 5500 | 1820 | 2400 | 6340 |
| 6000 | 1980 | 2570 | 6840 |
