CPDD-L
欧能
Counterbalanced Electric Forklift
Electric
3.0/3.5T
Seated
500mm

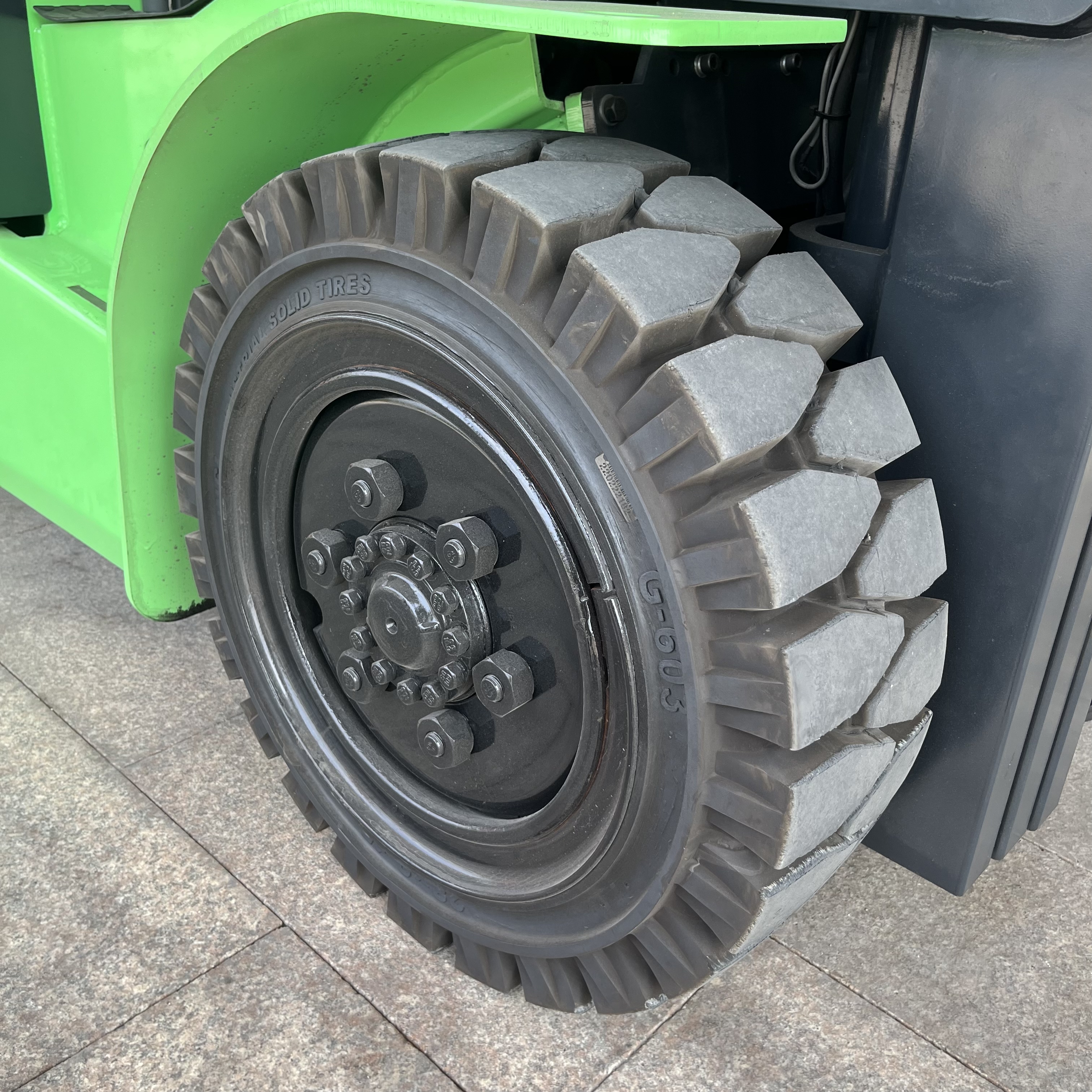

Pneumatic Tire / Solid Core Tire
3.0~5.5m
1070mm
2220mm
Lithium Battery
Single Sided Tray, Double Sided Tray
80V/280Ah or 80V/410Ah or 80V/560Ah
80V/150A or 80V/200Ah
support
Warranty for one year or 2000 hours (5-year warranty for lithium batteries)
CE/RoHS/SGS

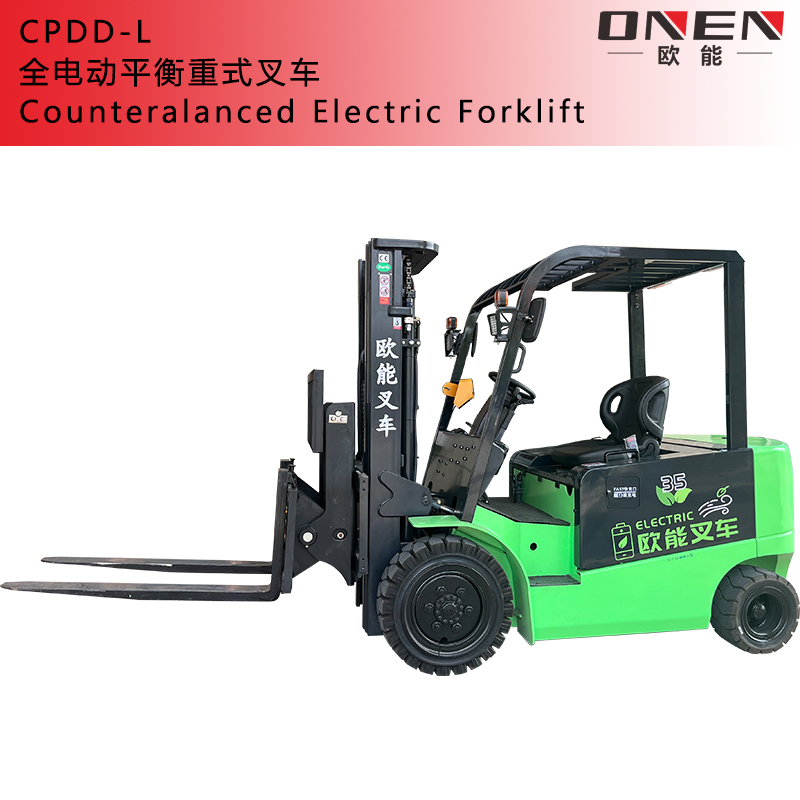

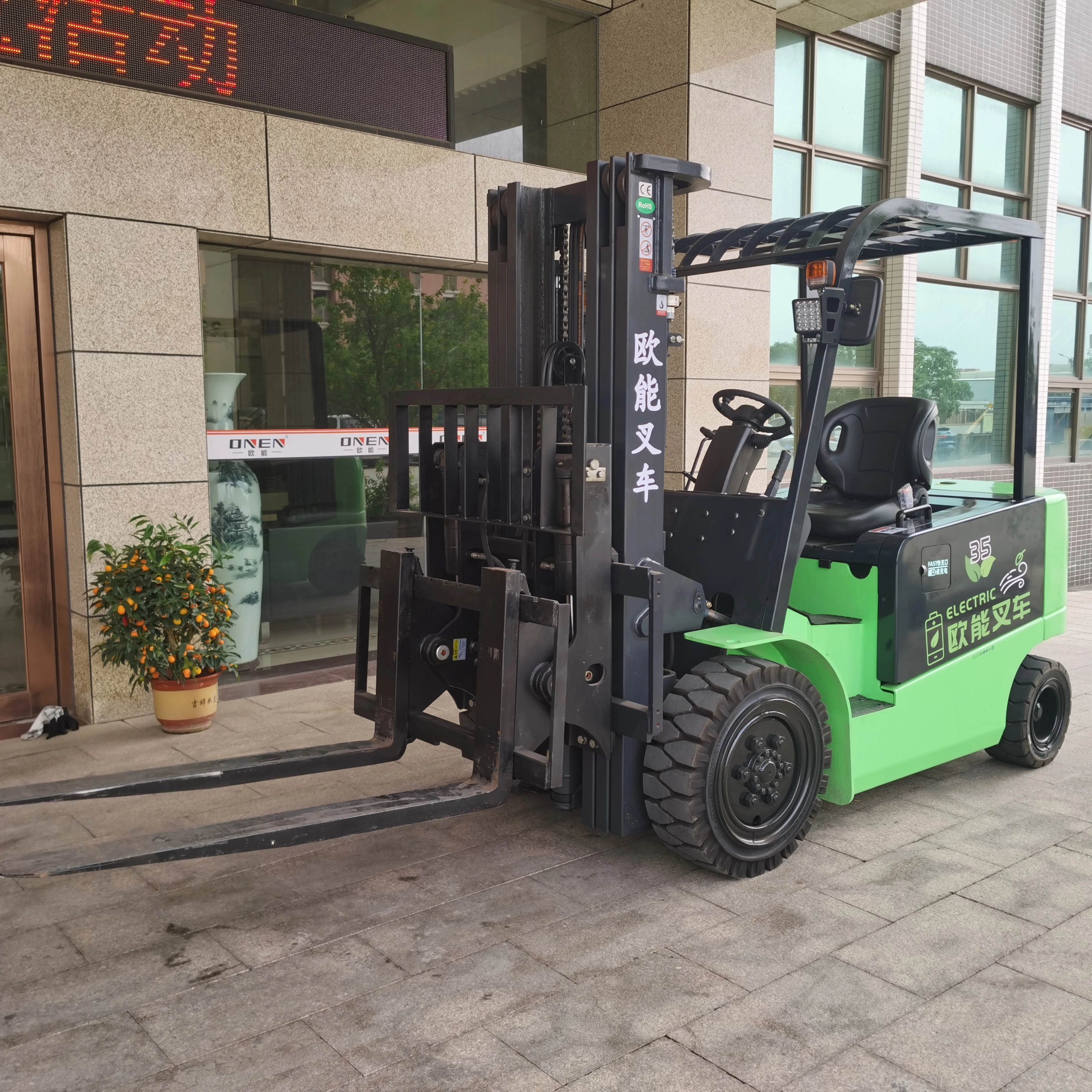

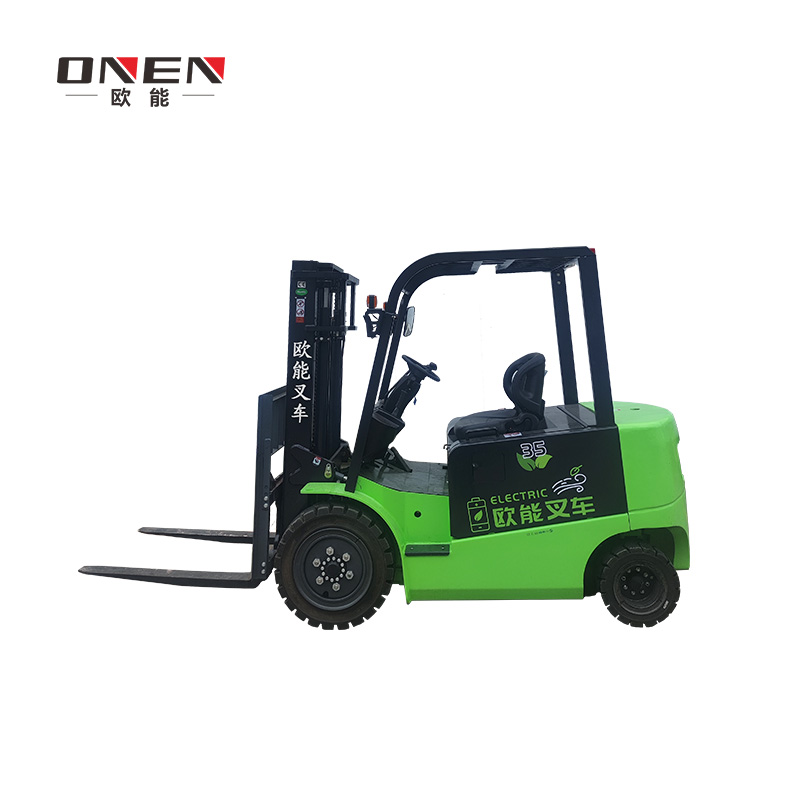

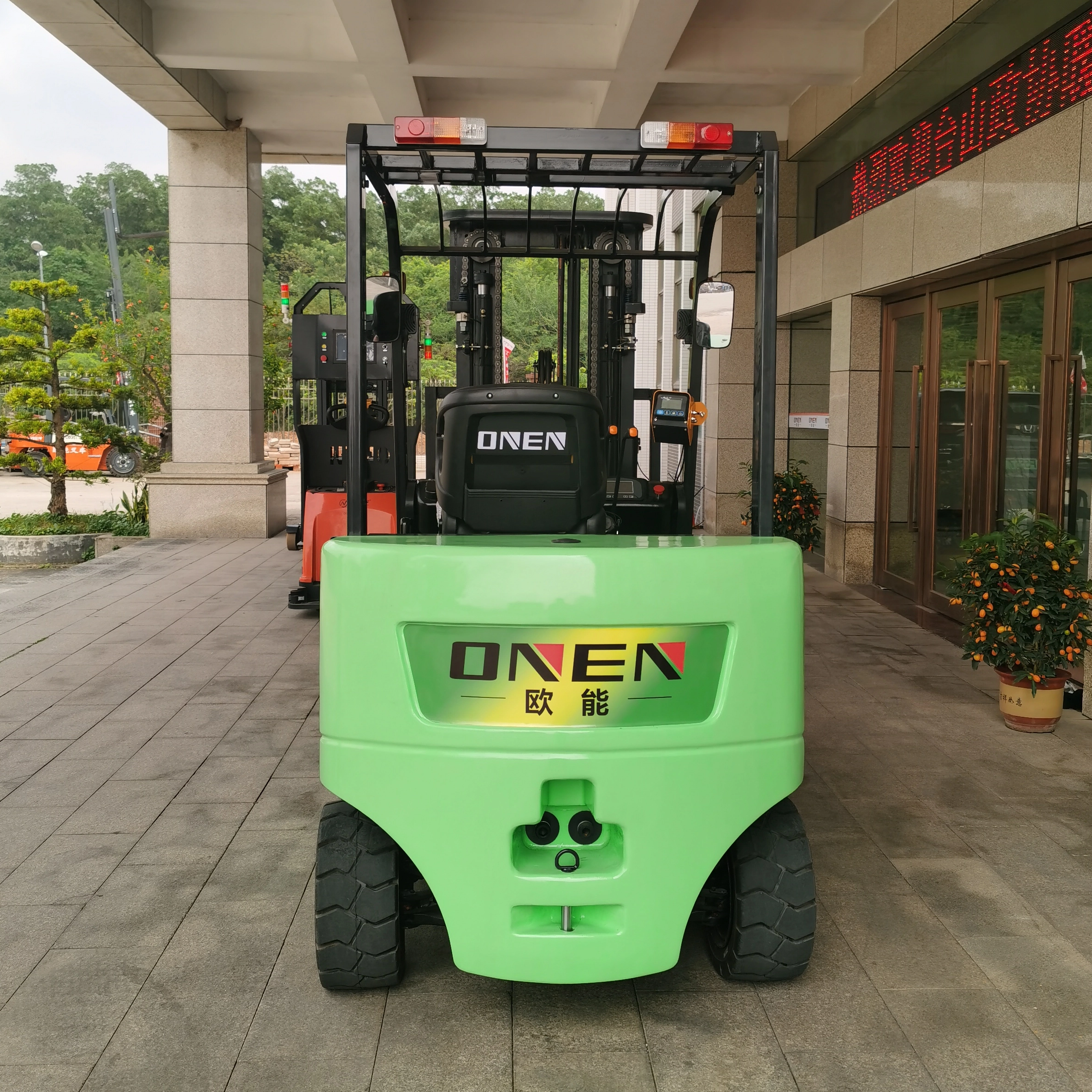

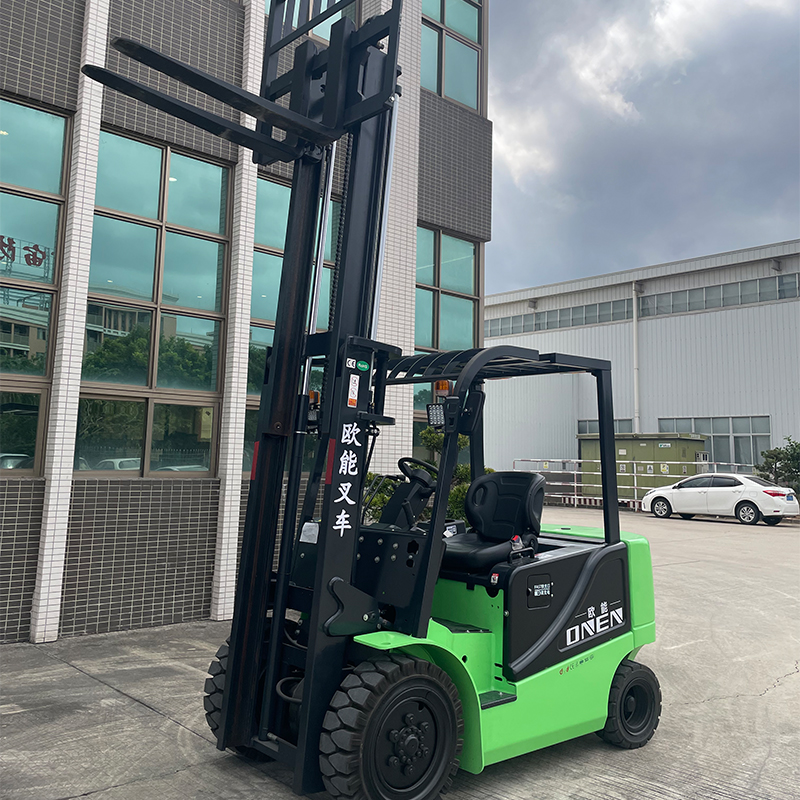

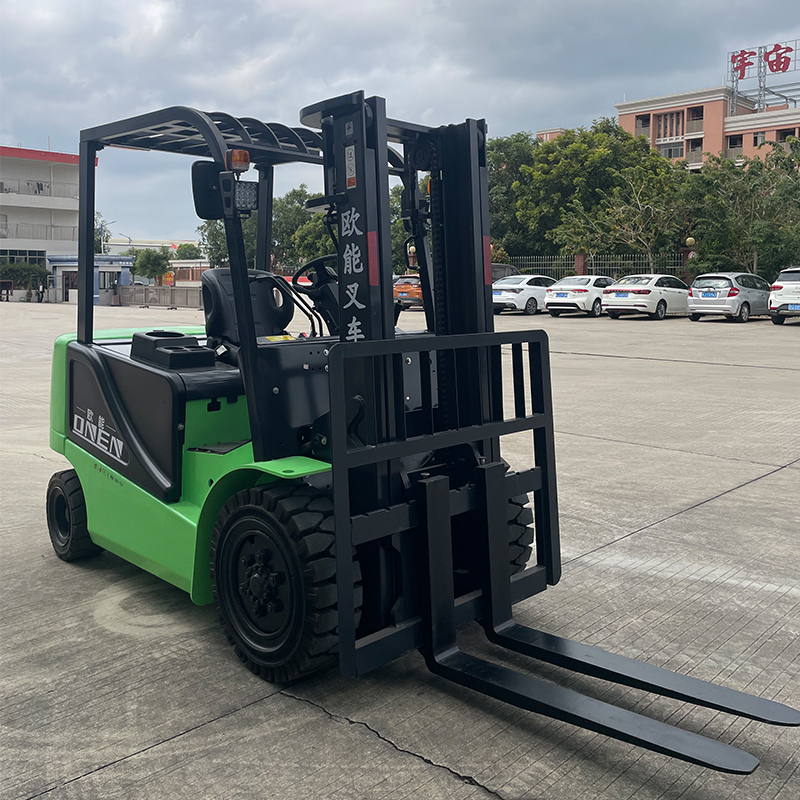

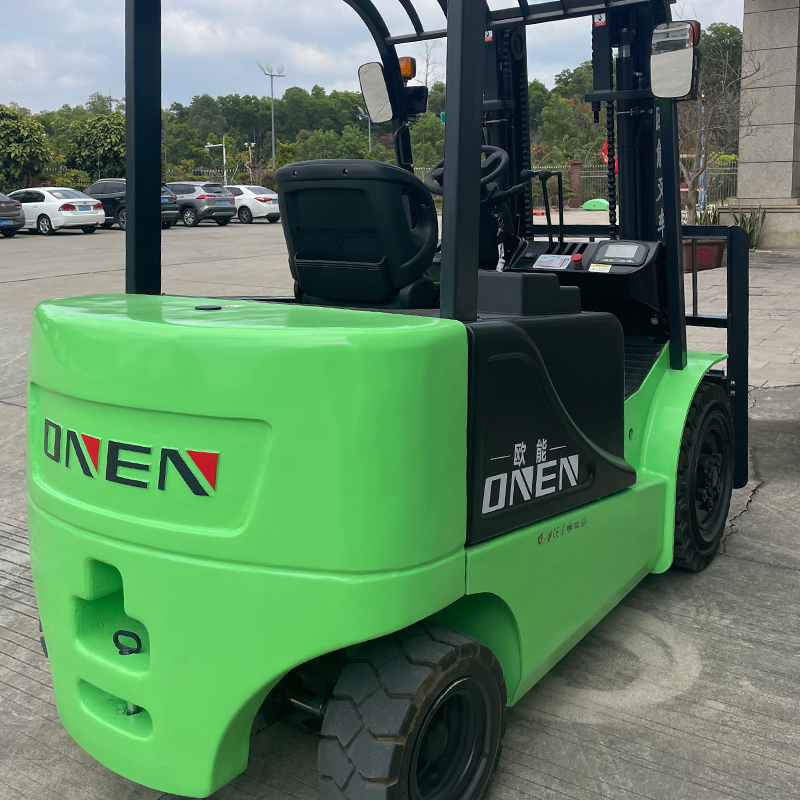

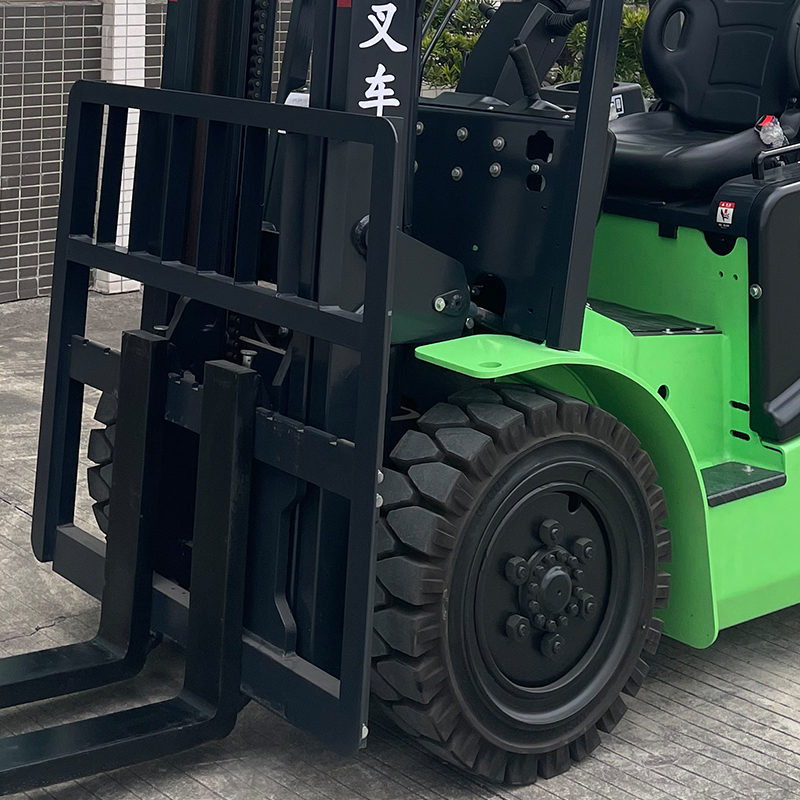

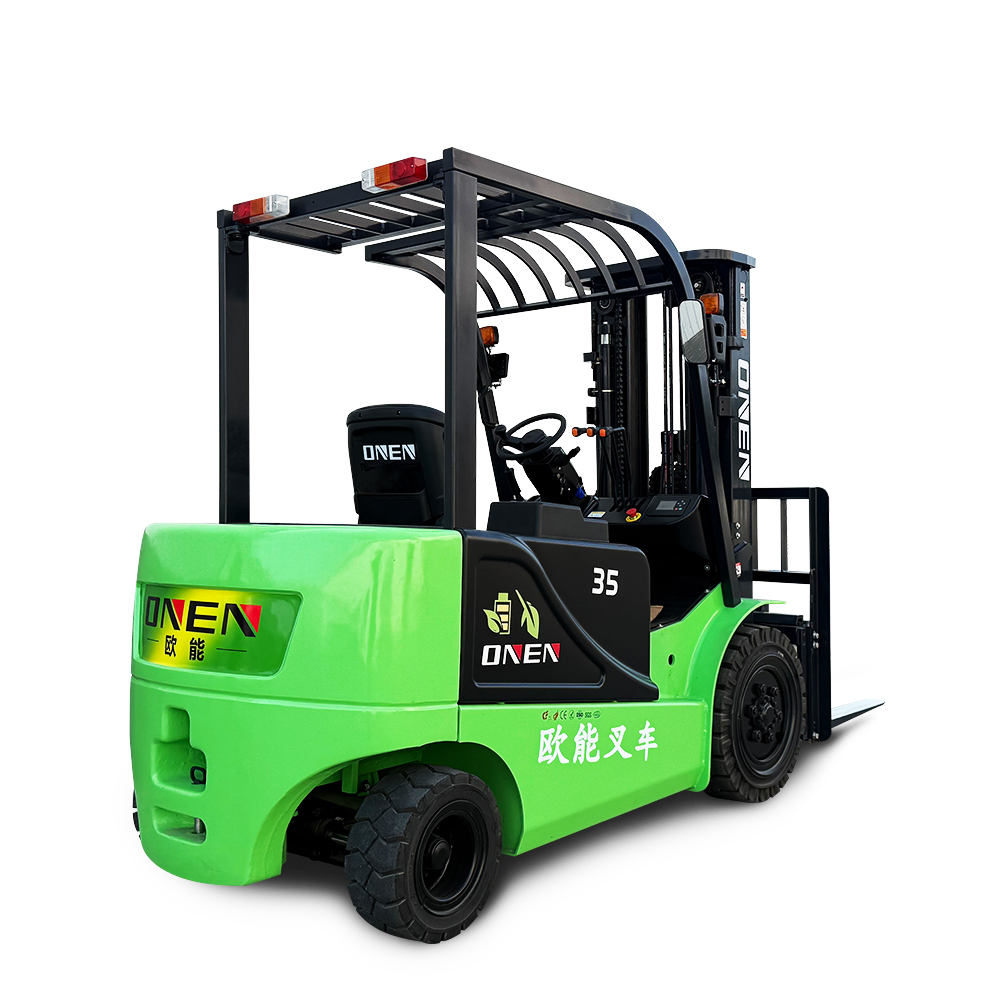

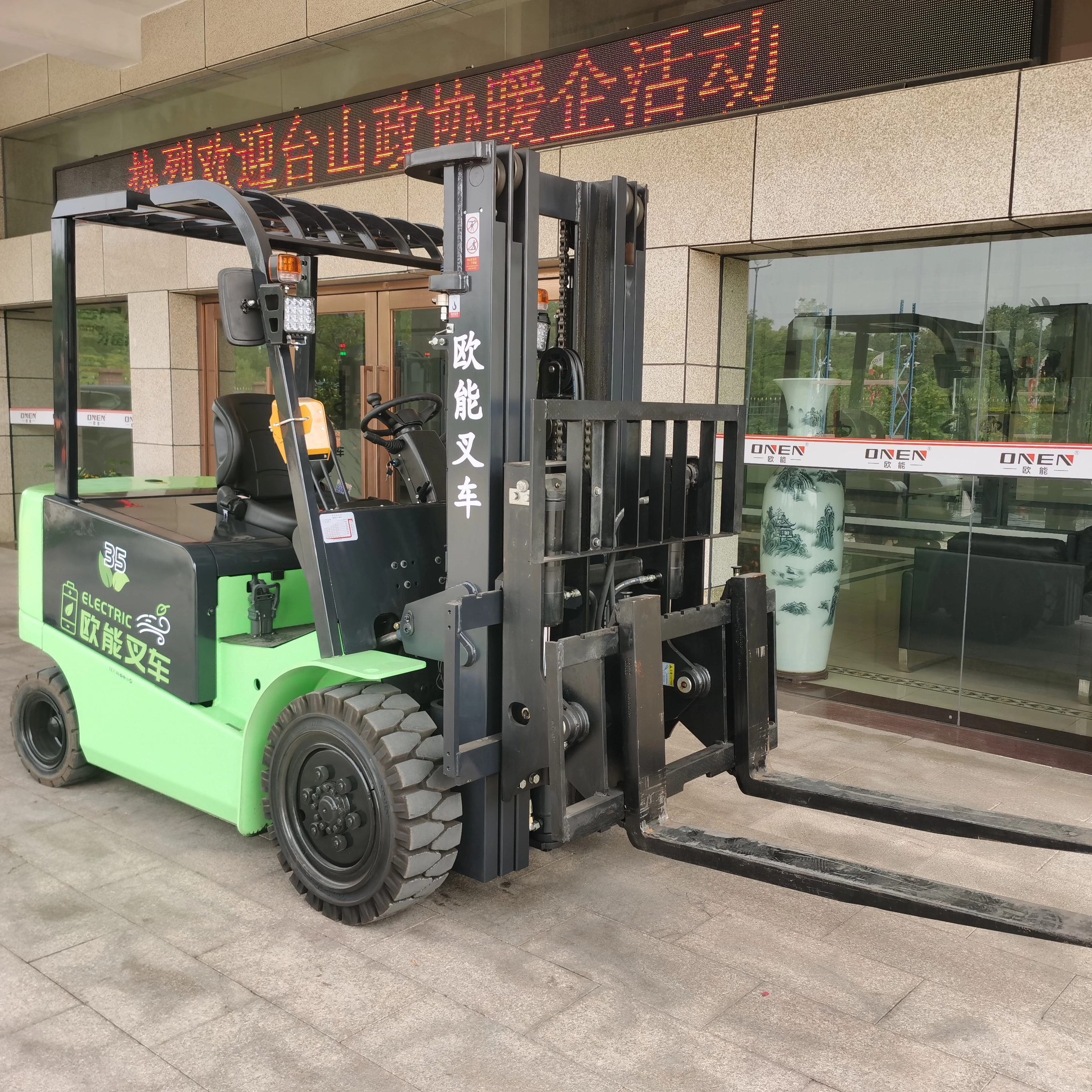

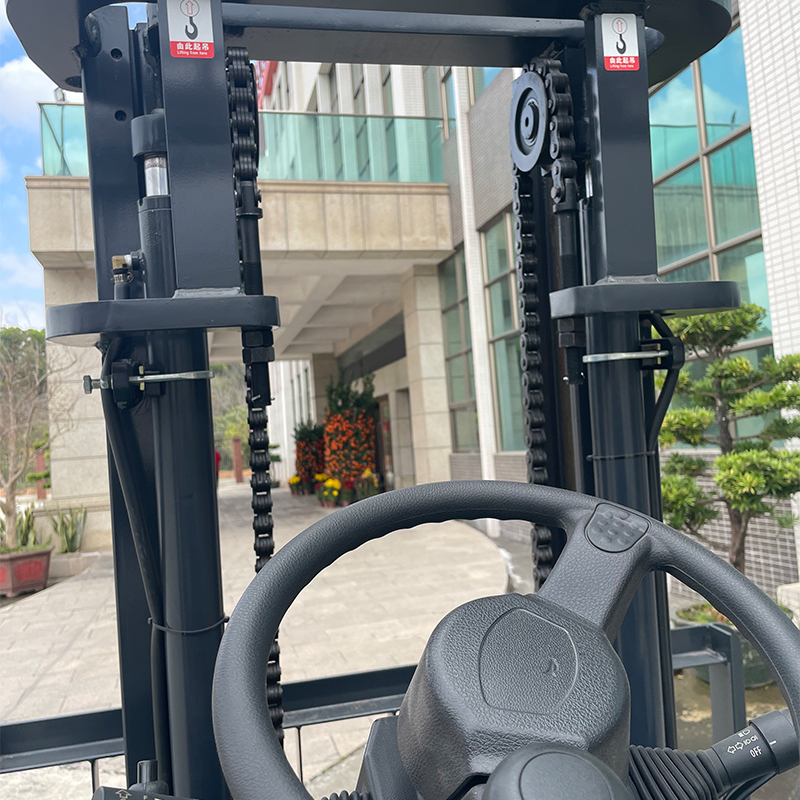

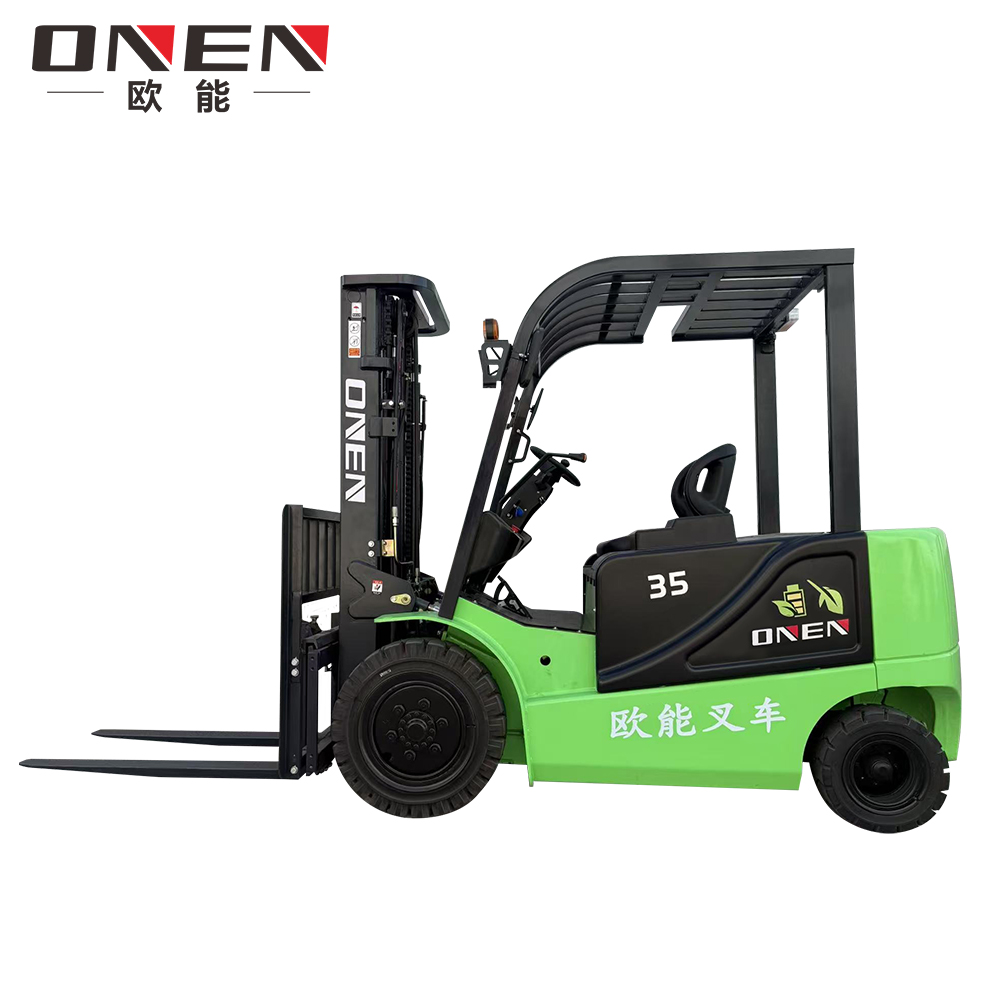

ONEN CPDD-L Lithium Battery Forklift 3.0/3.5T Factory Wholesale
Heavy Duty Electric Forklift
Compared to internal combustion vehicles, ONEN lithium-ion forklifts have the following advantages:
1. Lithium batteries have high energy density and high efficiency, providing more stable and sustainable power output.
2. Zero emissions, no harmful gases generated, help create a cleaner working environment.
3. Silent operation reduces noise pollution and provides a more comfortable working environment.
4. Long battery life, fast charging during work breaks, improving work efficiency.
5. Faster starting speed, can start immediately without the need for preheating and cooling time.
6. When starting, the torque is high and the response is fast, making it more efficient for handling short distance goods.
7. The electric forklift's motor is reversible, with better starting and braking performance, and more flexible control
of vehicle speed and steering angle.
8. Electric forklifts do not have vulnerable parts such as pistons and crankshafts.
9. Low maintenance frequency, long lifespan, greatly improving production efficiency, and more economical long- term operating costs.
10. Suitable for indoor and outdoor work, especially in places sensitive to environmental pollution, such as food storage.
INTRODUCTION ONEN
Warehouse Forklift Truck

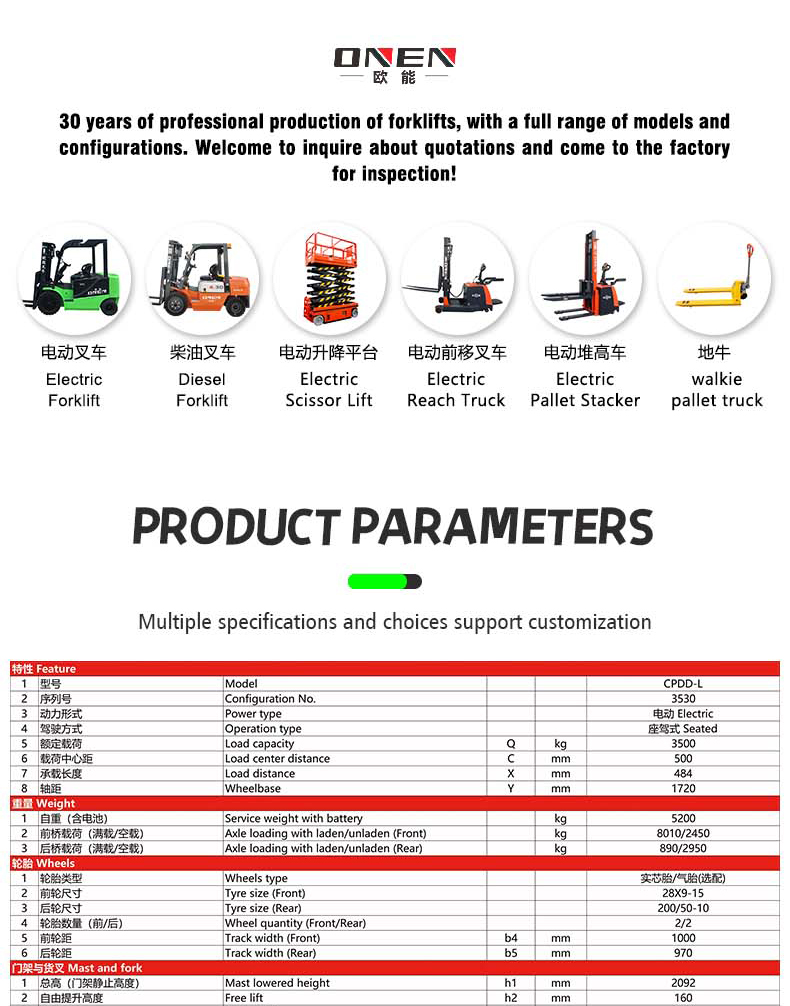

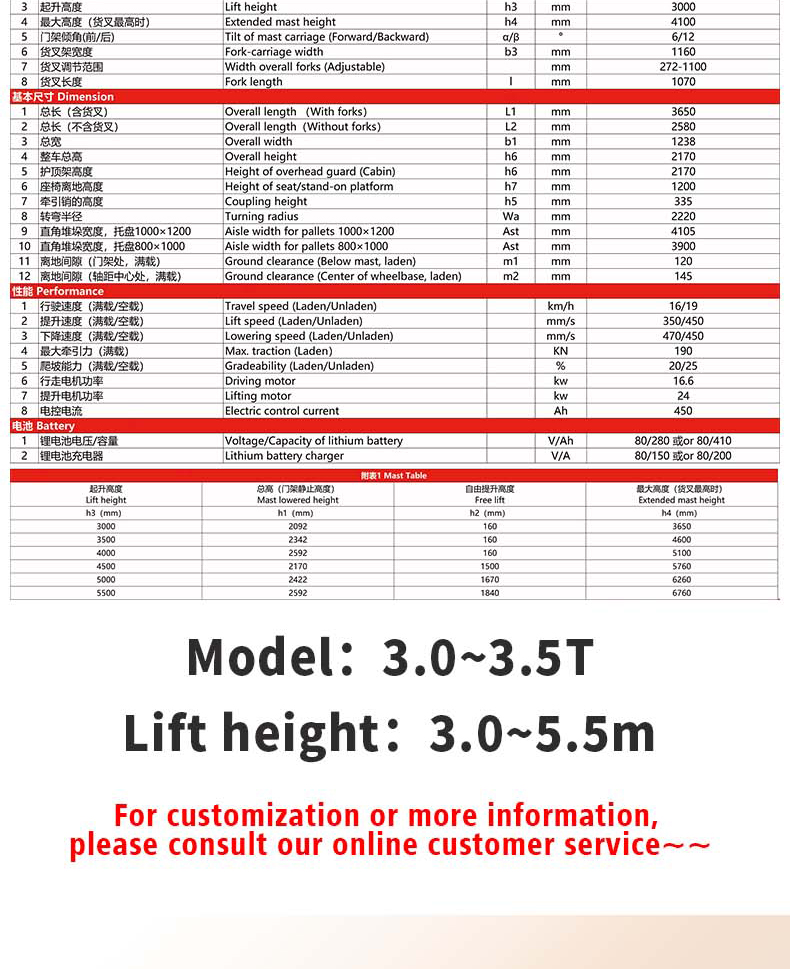

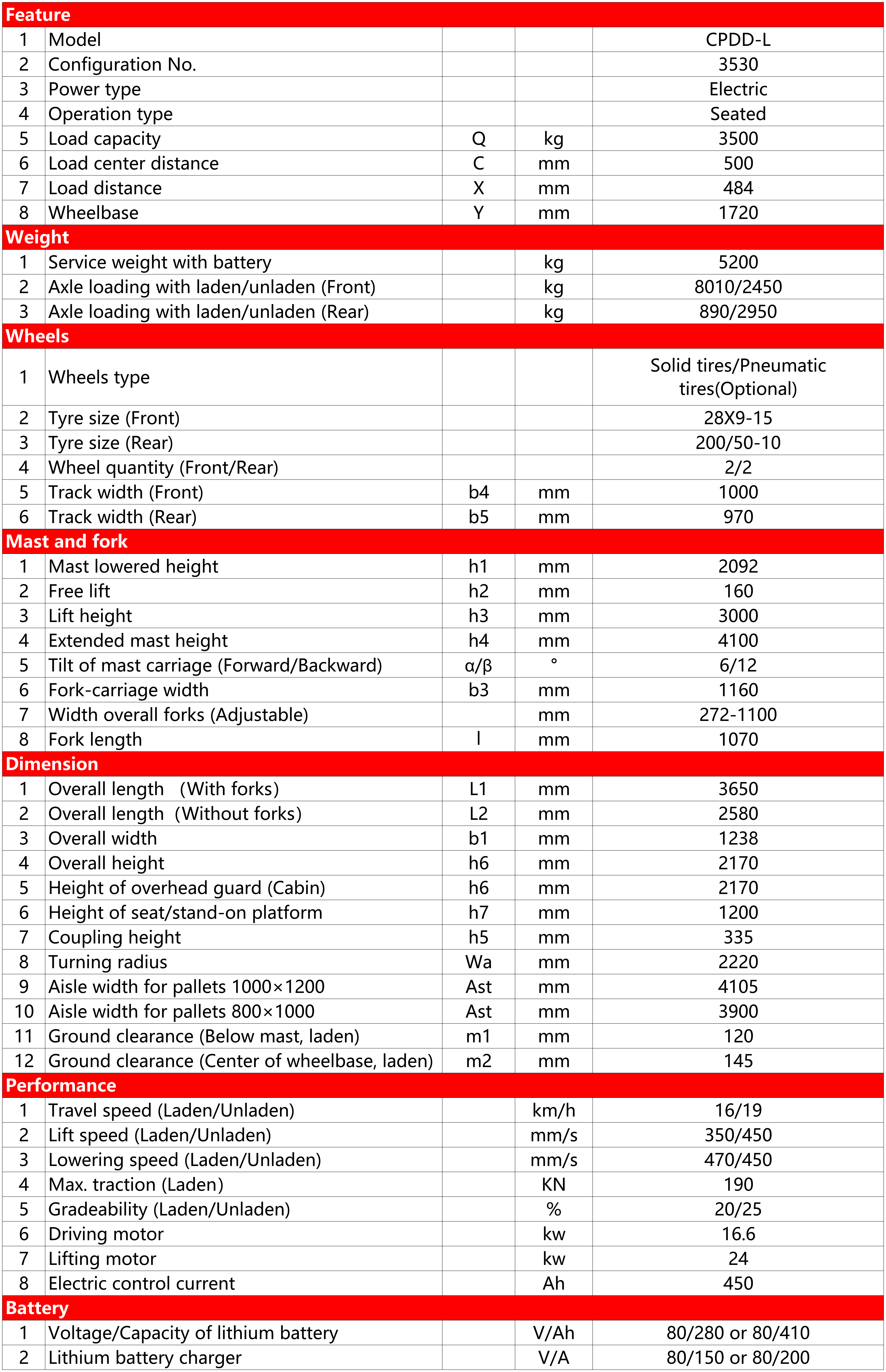

| FEATURE | |||||
| 1 | Model | CPDD-L | |||
| 2 | Configuration No. | 3530 | |||
| 3 | Power type | Electric | |||
| 4 | Operation type | Seated | |||
| 5 | Load capacity | Q | kg | 3500 | |
| 6 | Load center distance | C | mm | 500 | |
| 7 | Load distance | X | mm | 484 | |
| 8 | Wheelbase | Y | mm | 1720 | |
| WEIGHT | |||||
| 1 | Service weight with battery | kg | 5200 | ||
| 2 | Axle loading with laden/unladen (Front) | kg | 8010/2450 | ||
| 3 | Axle loading with laden/unladen (Rear) | kg | 890/2950 | ||
| WHEELS | |||||
| 1 | Wheels type | Solid tires/Pneumatic tires(Optional) | |||
| 2 | Tyre size (Front) | 28X9-15 | |||
| 3 | Tyre size (Rear) | 200/50-10 | |||
| 4 | Wheel quantity (Front/Rear) | 2/2 | |||
| 5 | Track width (Front) | b4 | mm | 1000 | |
| 6 | Track width (Rear) | b5 | mm | 970 | |

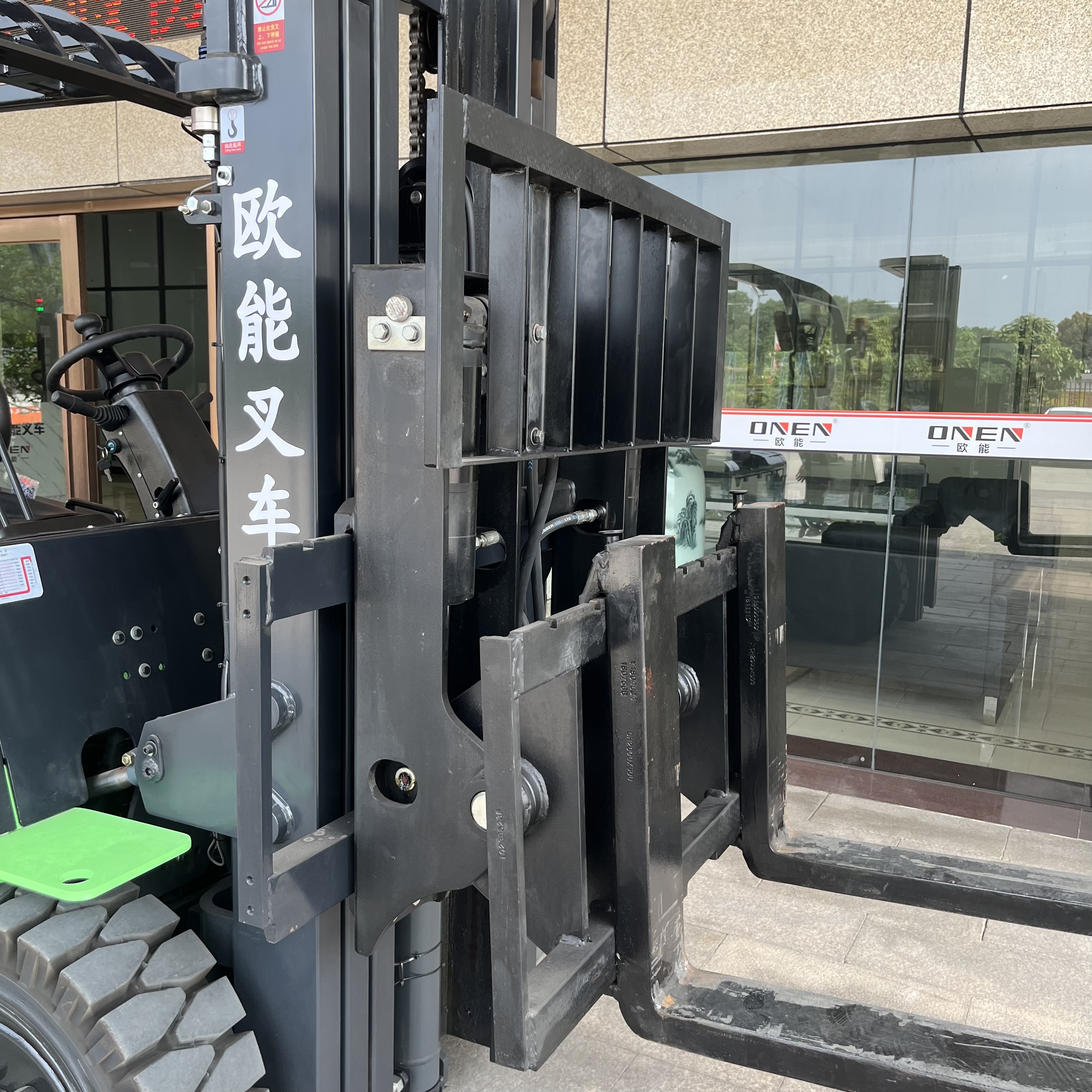

| MAST AND FORK | |||||
| 1 | Mast lowered height | h1 | mm | 2092 | |
| 2 | Free lift | h2 | mm | 160 | |
| 3 | Lift height | h3 | mm | 3000 | |

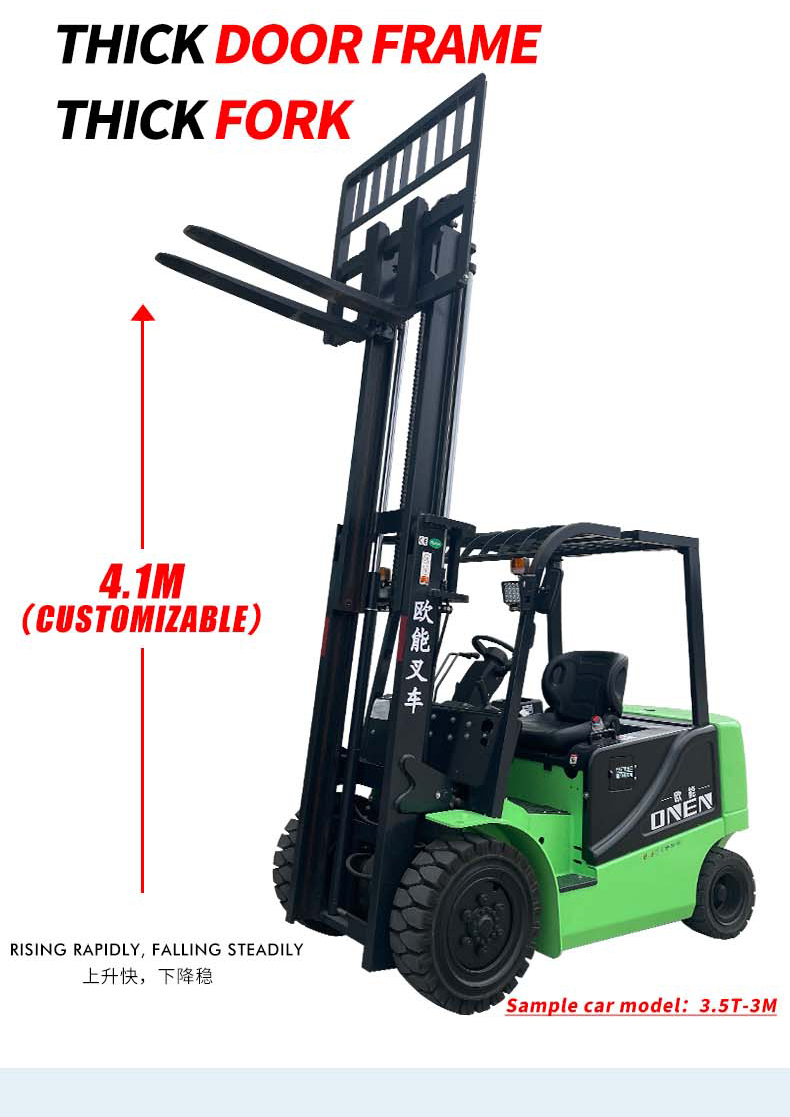

| 4 | Extended mast height | h4 | mm | 4100 | |
| 5 | Tilt of mast carriage (Forward/Backward) | α/β | ° | 6/12 | |
| 6 | Fork-carriage width | b3 | mm | 1160 | |
| 7 | Width overall forks (Adjustable) | mm | 272-1100 | ||
| 8 | Fork length | l | mm | 1070 | |
| DIMENSION | |||||
| 1 | Overall length （With forks） | L1 | mm | 3650 | |
| 2 | Overall length（Without forks） | L2 | mm | 2580 | |
| 3 | Overall width | b1 | mm | 1238 | |
| 4 | Overall height | h6 | mm | 2170 | |
| 5 | Height of overhead guard (Cabin) | h6 | mm | 2170 | |
| 6 | Height of seat/stand-on platform | h7 | mm | 1200 | |
| 7 | Coupling height | h5 | mm | 335 | |
| 8 | Turning radius | Wa | mm | 2220 | |
| 9 | Aisle width for pallets 1000×1200 | Ast | mm | 4105 | |
| 10 | Aisle width for pallets 800×1000 | Ast | mm | 3900 | |
| 11 | Ground clearance (Below mast, laden) | m1 | mm | 120 | |
| 12 | Ground clearance (Center of wheelbase, laden) | m2 | mm | 145 | |
| PERFORMANCE | |||||
| 1 | Travel speed (Laden/Unladen) | km/h | 16/19 | ||
| 2 | Lift speed (Laden/Unladen) | mm/s | 350/450 | ||
| 3 | Lowering speed (Laden/Unladen) | mm/s | 470/450 | ||
| 4 | Max. traction (Laden） | KN | 190 | ||
| 5 | Gradeability (Laden/Unladen) | % | 20/25 | ||
| 6 | Driving motor | kw | 16.6 | ||
| 7 | Lifting motor | kw | 24 | ||
| 8 | Electric control current | Ah | 450 | ||
| BATTERY | |||||
| 1 | Voltage/Capacity of lithium battery | V/Ah | 80/280 或or 80/410 或or 80/560 | ||
| 2 | Lithium battery charger | V/A | 80/150 或or 80/200 | ||
High Quality Stacker

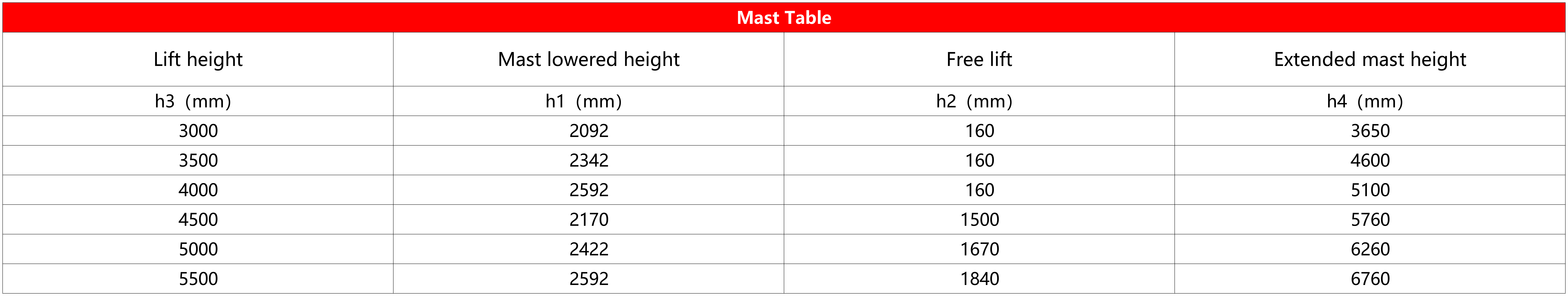

| 附表1 Mast Table | |||
| Lift height | Mast lowered height | Free lift | Extended mast height |
| h3（mm） | h1（mm） | h2（mm） | h4（mm） |
| 3000 | 2092 | 160 | 3650 |
| 3500 | 2342 | 160 | 4600 |
| 4000 | 2592 | 160 | 5100 |
| 4500 | 2170 | 1500 | 5760 |
| 5000 | 2422 | 1670 | 6260 |
| 5500 | 2592 | 1840 | 6760 |
For customization or more information, please consult our online customer service~~
National after-sales service
Meet diverse needs and after-sales support
Give you a worry free and effortless guarantee
Sales Hotline：0750-6163077
After-Sale Service Hotline：0750-8233951
Warranty for one year or 2000 hours, whichever comes first / Free on-site service/replacement of parts during the warranty period .
(Lithium battery warranty for 5 years)
