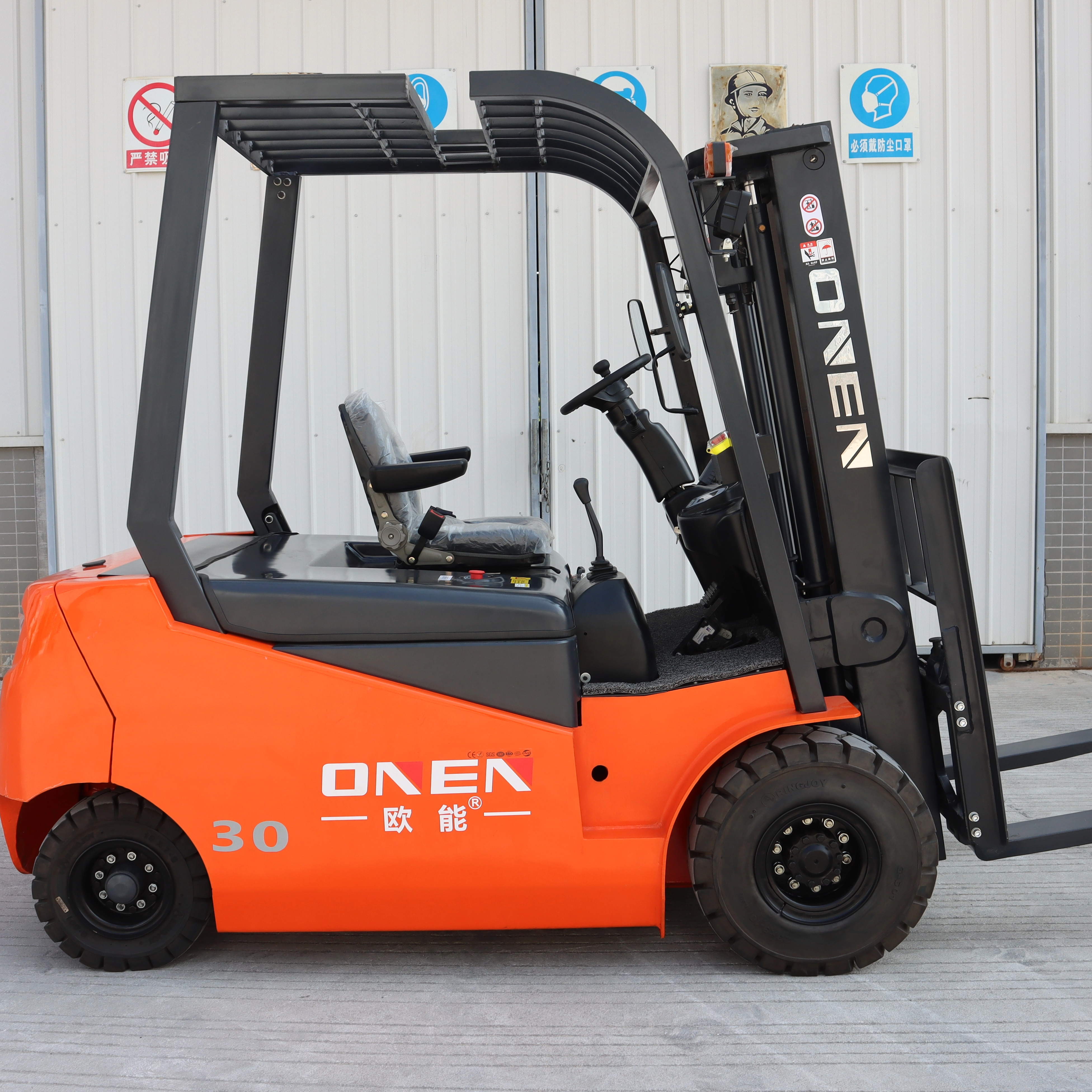

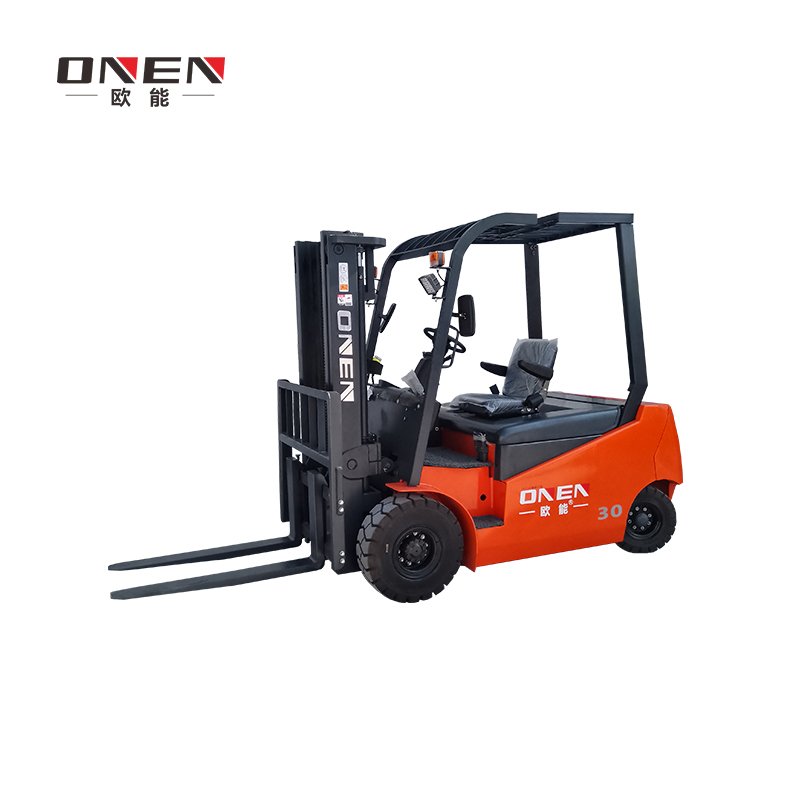

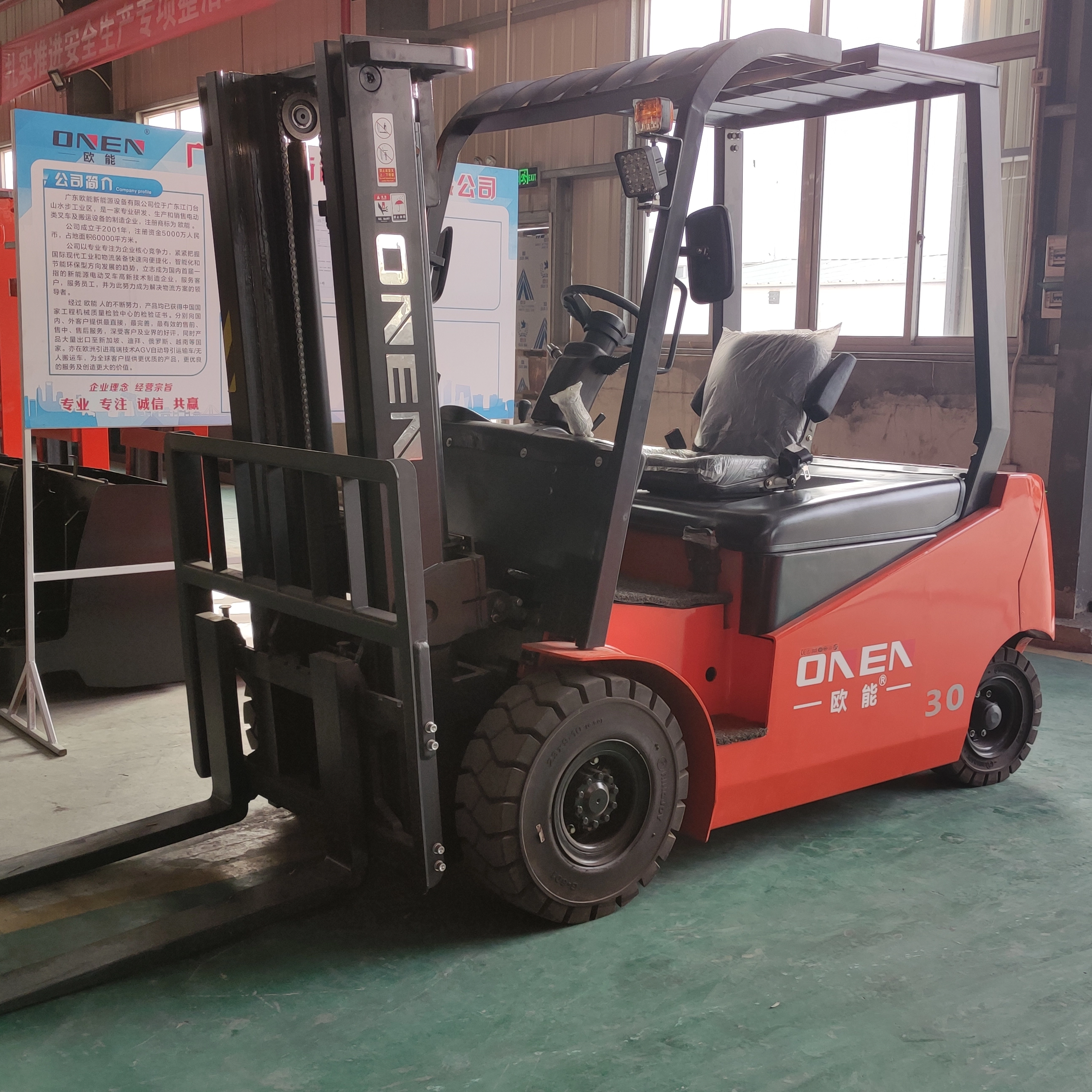

ONEN CPDD Forklifts Four Wheels Counterbalance Electric Forklift Truck for Sales with 48V Lead Acid Battery

Advantages of ONEN Electric Forklift

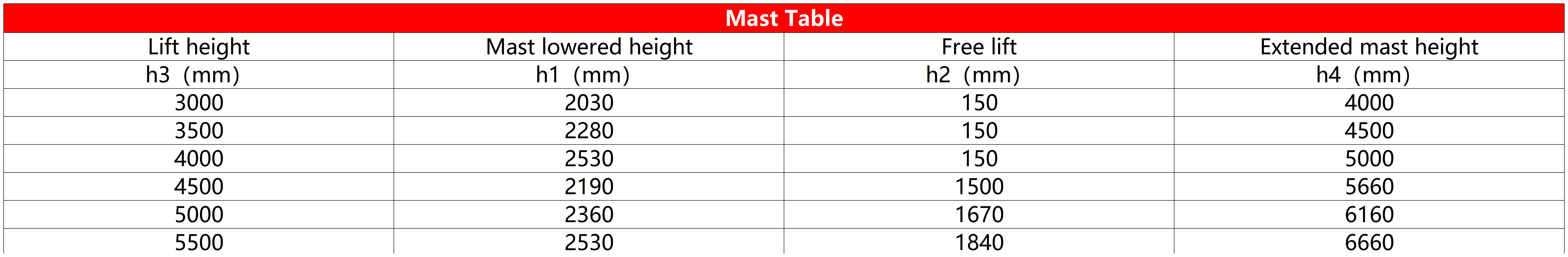

1. Multiple gantry height options, 3-6 meters, suitable for various scenarios
2. Free lifting height of 1.5 meters, capable of loading and unloading goods inside containers
3. Seven piece composite chain, sturdy and durable
4. Flexible turning and simple operation
5. Can be matched with various accessories
6. Long battery life and short charging time
7. No pollution, low noise, strong climbing ability
  • CPDD

  • 欧能

  • steels

  • drive

  • 2.0/2.5/3.0T

  • 4

  • Solid core tires

  • orange+black

  • 500mm

  • Adjustable

  • Heavy Forklift

  • AC Motor

  • Electric

  • 3.0-5.0m

  • completely new

  • 1 year or 2000 hours

  • provided

  • Surface painting

  • support

  • CPDD

  • ONEN

  • Italian brand


  • 2.0-3.0T

China Factory Price 48V Battery Operated 2 tons 3 tons Compact Small Size 4 Wheels Counterbalance Electric Forklift for Narrow-aisle Warehouse with CE RoHS

* Wide view mast, clear visibility.
* Low height access step with wide steel non-slip plate for easy entry and exit.
* Cowl-mounted hydraulic levers design offers big operation space.
* An adjustable tilt steering column offers the most comfortable operator position.
* Seat with safety belt and armrest.
* High-friction brake shoes are a fee for asbestos.


Product Description

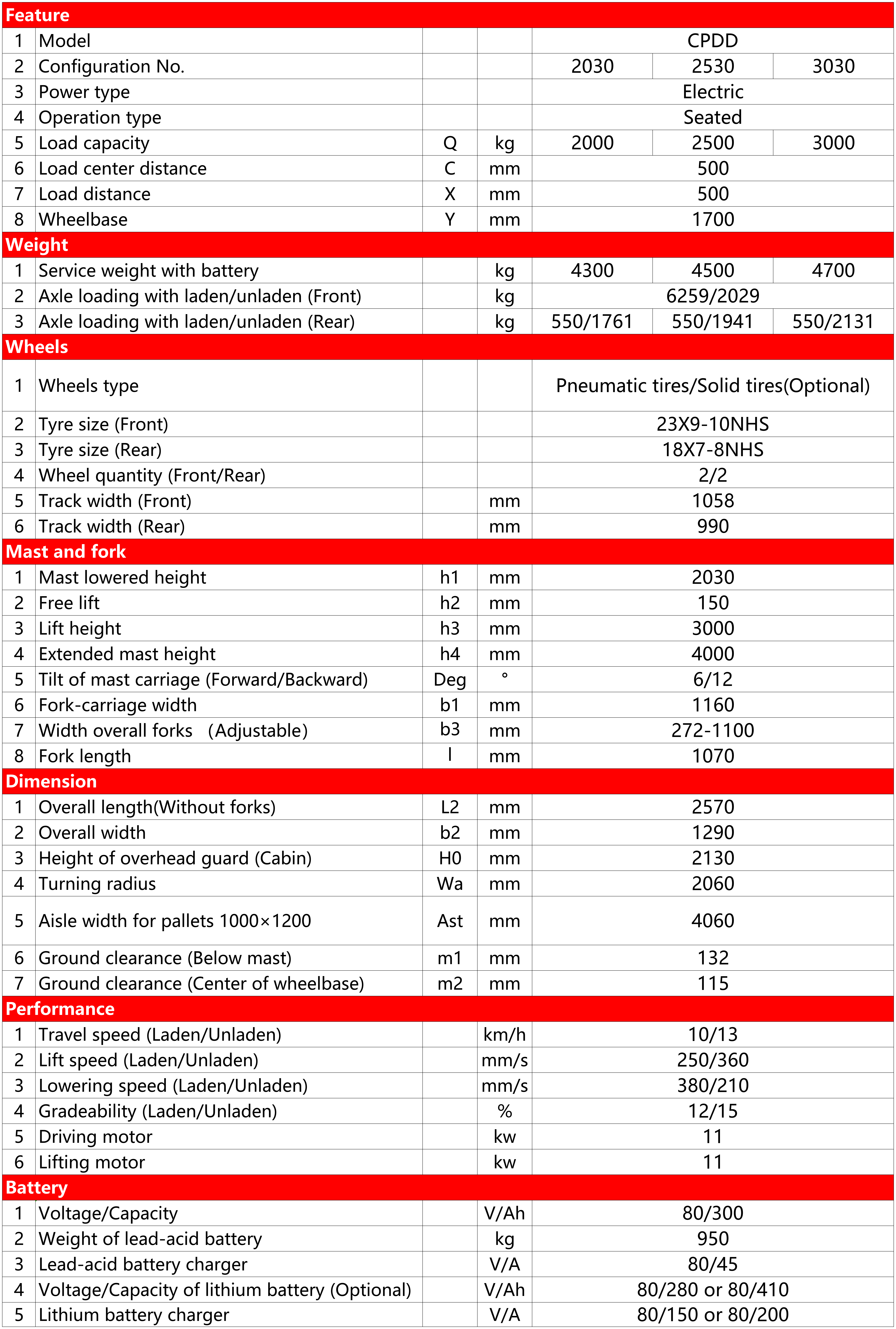

Technical Parameter
Model: CPDD2030 CPDD3030
Power: Electric Electric
Rated Load: 2000 kg 3000 kg
Load Center Distance: 500 mm 500 mm
Maximum Lifting Height: 3000 mm 3000 mm
Mast Height (closed/ extended) 2030/4000 mm 2030/4000 mm
Number of Wheels: 2/2 2/2
Tire Type: Solid / Pneumatic tire Solid / Pneumatic tire
Tire Size (front/ rear): 23*9-10NHS/ 18*7-8NHS 23*9-10NHS/ 18*7-8NHS
Mast Tilt Angle (Front/ Rear): 6°/12° 6°/12°
Fork Arm Carrier (DIN standard): 1100 mm 1100 mm
Fork Outer Width (Adjustable): 272-1072 mm 272-1072 mm
Fork Size (s/e/l): 45/125/1070 mm 45/125/1070 mm
Overall Length:  3640 mm 3640 mm
Overall Width:  1290 mm 1290 mm
Overhead Guard Height: 2130 mm 2130 mm
Turning Radius: 2060 mm 2060 mm
Aisle Width: 4060 mm 4060 mm
Travel Speed (laden/ unladen): 10/13 km/h 10/13 km/h
Lifting Speed (laden/ unladen): 0.25/0.36 m/s 0.25/0.36 m/s
Max. Gradeablility (laden/ unladen): 12% /15% 12% /15%
Battery: 48V /600Ah Lead-Acid Battery 48V /600Ah Lead-Acid Battery
Self Weight: 4300 kg 4700 kg


Why Choose ONEN

Q1. Are you a factory or trading company?
A: We are a professional manufacturer of warehouse material handling equipment for more than 20 years, our factory Guangdong Onen New-resource Equipments Co., Ltd. Locates in Taishan City of Guangdong province.

Q2. Can I buy samples?
A: Sure, please feel free to contact with us for samples.

Q3. What is your lead time?
A: It depends on the order quantity and the season you place order. Usually we can ship within 7-15 days for small quantity, and about 30 days for large quality.

Q4. What is your payment term?
A: T/T, Western Union, MoneyGram, Paypal, L/C. Payment term is negotiable.

Q5. What is the shipping method?
A: Goods can be shipped by sea, by air, by railway, or by express. Please confirm with us before place order.

Q6: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers' benefit, Furthermore, we respect every customer as our friend and we sincerely do business with them, no matter where they are.
