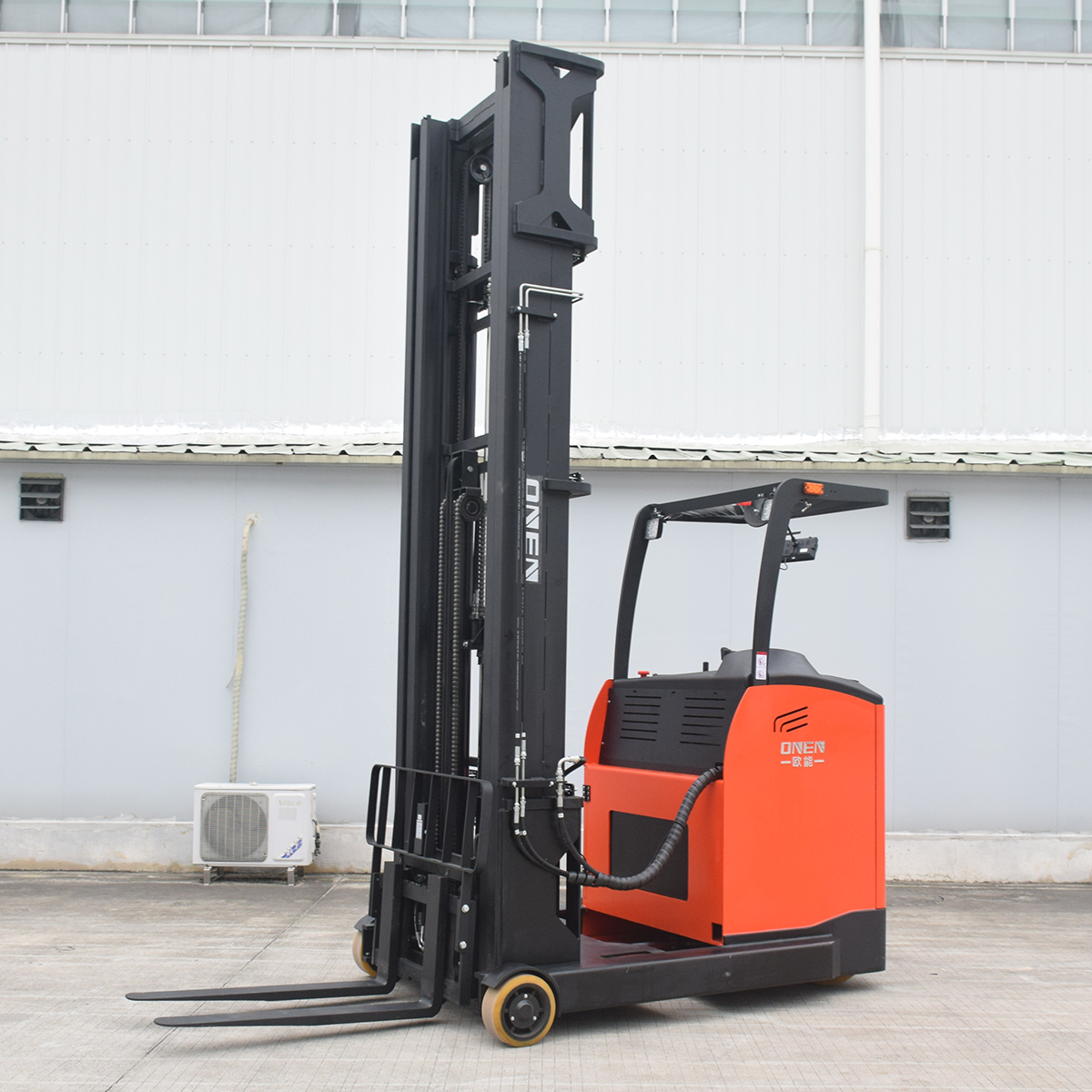

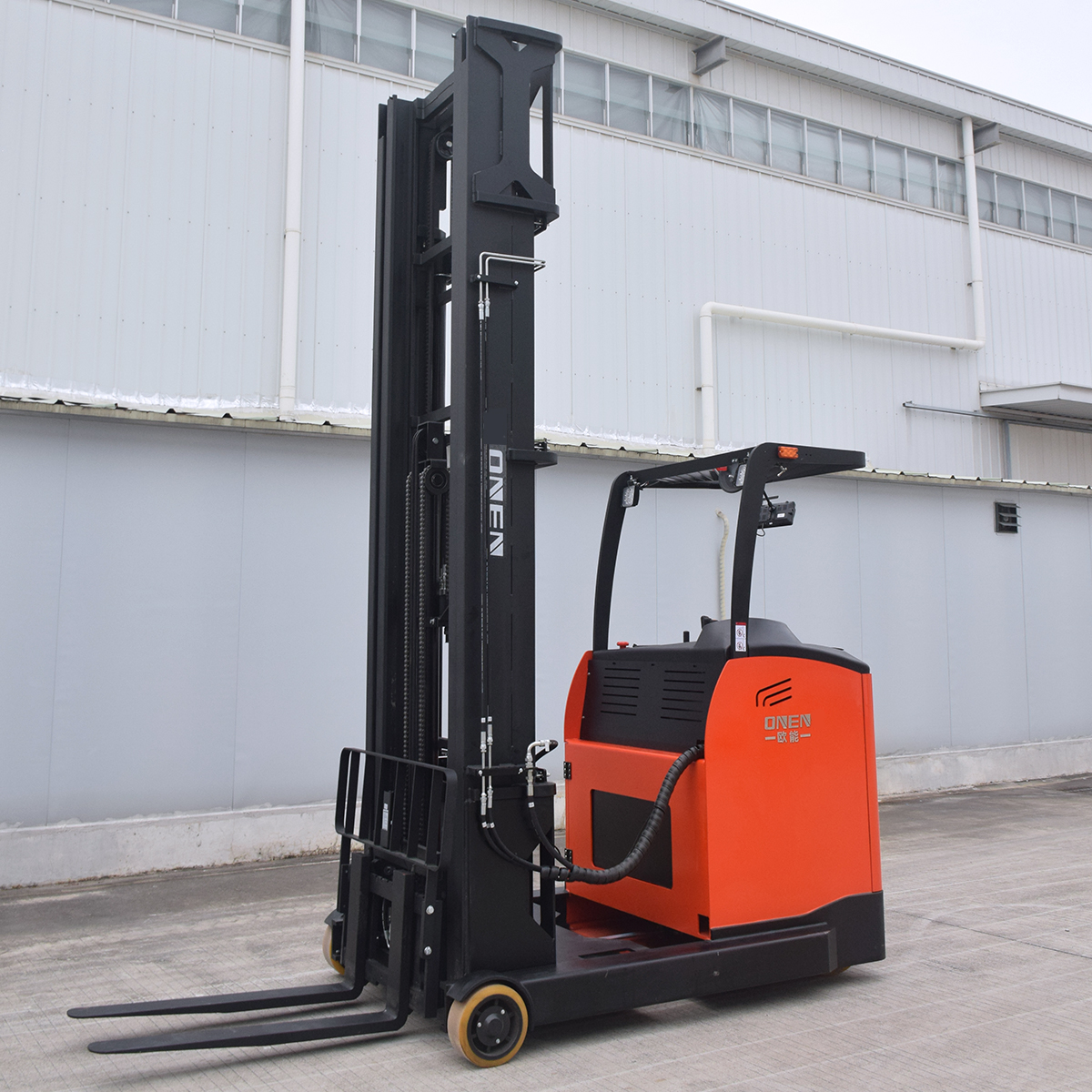

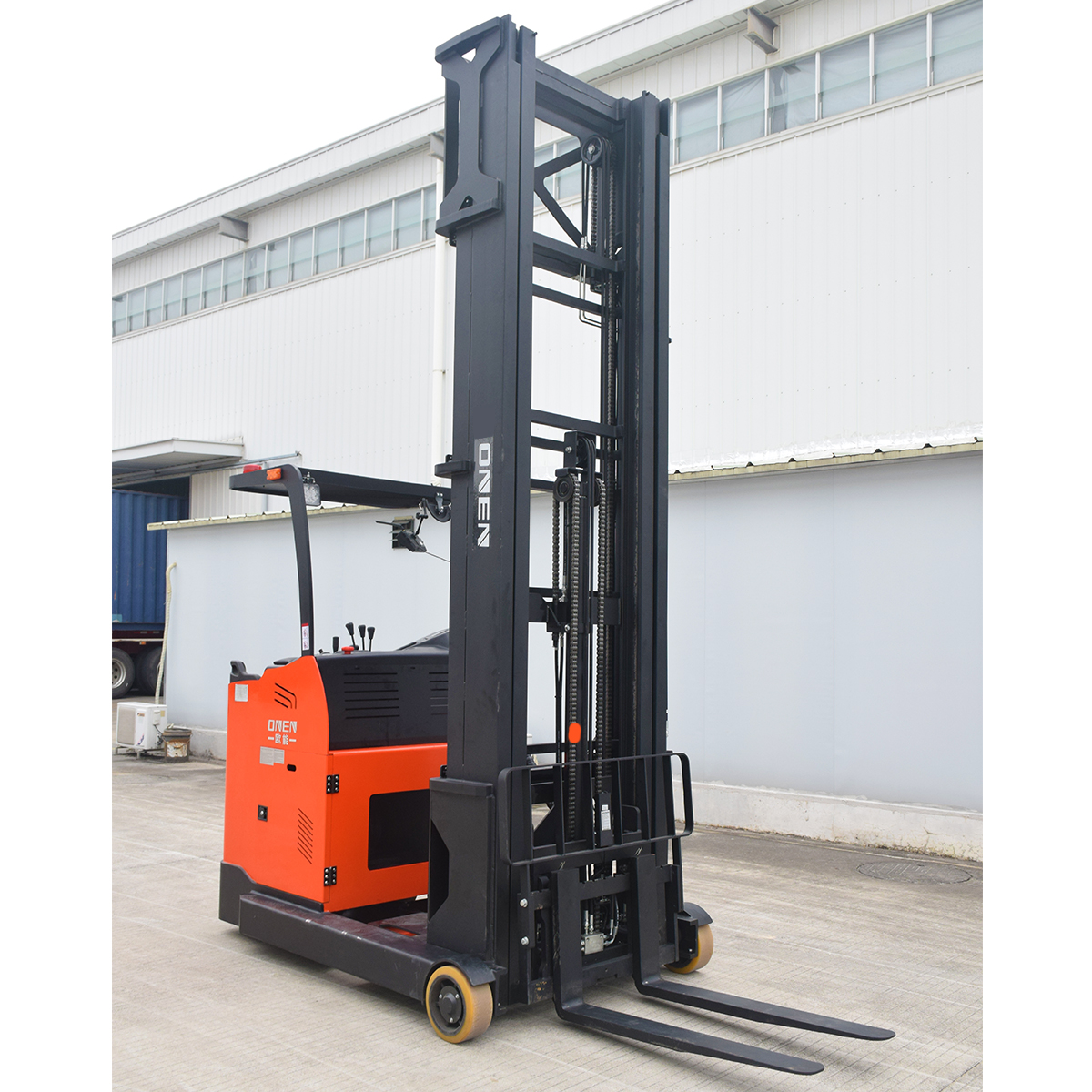

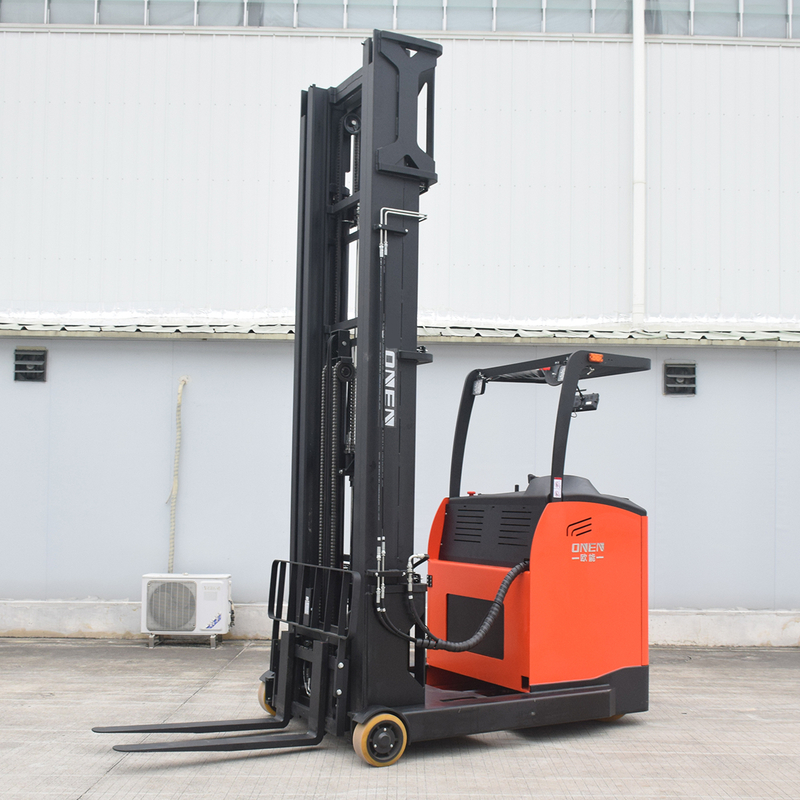

CQD-B-1540-Q Electric Reach Truck

Name: CQD-B-1540-Q Electric Reach Truck
Brand: ONEN
Rating: 5.0 (10 reviews)

ONEN CQD-B ride-on stacker truck has a rated load capacity of 1.5 tons and a maximum lifting height of up to 4 meters (4000mm). The forklift features a ride-on design and an electronic steering system, providing comfortable and flexible operation. With its compact body, it is particularly suitable for working in narrow warehouse aisles. The vehicle is equipped with a multi-valve hydraulic control system, which supports the forward and backward tilting and movement of the forks. It boasts a good view of the mast and stable lifting performance. Optional lithium batteries provide strong power while being energy-saving and environmentally friendly, making it an ideal choice for efficient warehouse stacking.

Availability:



Inquire Add to Basket

Model:
CQD-B-1540-Q
Brand:
ONEN
Name:
Electric Reach Truck
Power form:
Electric
Load Capacity:
1500kg
Driving Style:
Seated
Load Center:
500mm
Wheel Type:
PU
lift height:
4000mm
Fork Length:
1070mm
Turning Radius:
1800mm
Battery:
Lead-acid / Lithium
Use Tray Type:
Single Sided Tray, Double Sided Tray
Voltage/Capacity:
48V/300Ah【Lead-acid】、48V/280Ah【Lithium】
Charger:
24V/40A【Lead-acid】、24V/50A【Lithium】
Customization:
Support
After-Sales Service:
Warranty for one year or 1000 hours (lithium battery warranty for three years)
Certification:
CE/RoHS/SGS

The CQD-B stacking truck (1.5 tons/4 meters) is suitable for medium-density high-level warehousing. With a forklift-style front-moving design, it can easily handle stacking of goods up to a height of 4000mm and operate flexibly in narrow shelf aisles.

CQD-B is powered by an electric motor, which is energy-saving, environmentally friendly, and low-noise, with stable performance. It can be widely used in warehouse loading and unloading, workshop circulation, and material handling, improving space utilization while ensuring operational comfort. It is an efficient tool for upgrading warehousing.

ONEN CQD-B 1.5-ton seated reach truck 4-meter lift electric forklift 1.5-ton electric forklift price warehouse stacking and unloading electric reach truck Reach Truck reach truck Manufacturer China reach truck Reach Truck Forklift

Related News

Related Products

ONEN CQD-A Factory Wholesale Stand-up Compact Electric Reach Truck Forklift

ONEN CQD-B Wholesale Car Type High Lift Electric Reach Forklift Truck

CQD-B-1530-Q Electric Reach Truck

CQD-B-1535-Q Electric Reach Truck

1	Model		CQD-B
2	Configuration No.		1540-Q
3	Power type		Electric
4	Steering type		Electric steering
5	Operation type		Seated
6	Load capacity	kg	1500
7	Load center distance	mm	500
8	Reach Distance	mm	505
9	Wheels type		PU
10	Driving wheel size	mm	Ф382×142
11	Bearing wheel size	mm	Ф267×114
12	Overall Length (With Fork)	mm	2477
13	Overall Width	mm	1270
14	Mast lowered height	mm	2600
15	Lift height	mm	4000
16	Extended mast height	mm	4577.5
17	Fork dimensions	mm	35/100/1070
18	Turning radius	mm	1800
19	Travel speed (Laden/Unladen)	km/h	6.8/7.8
20	Lift speed (Laden/Unladen)	mm/s	120/240
21	Lowering speed (Laden/Unladen)	mm/s	315/260
22	Gradeability (Laden/Unladen)	%	≤10
23	Driving motor	kw	6.5
24	Lifting motor	kw	4.5
25	Voltage/Capacity of lead-acid battery	V/Ah	48/300
26	Lead-acid battery charger	V/A	24/40
27	Voltage/Capacity of lithium battery (Optional)	V/Ah	48/280
28	Lithium battery charger	V/A	24/50
29	Sound level at driver's ear	dB(A)	<70

Mast Table
Lift height	Mast lowered height	Free lift	Extended mast height
h3（mm）	h1（mm）	h2（mm）	h4（mm）
3000	2100	‐	3577.5
3500	2350	‐	4077.5
4000	2600	‐	4577.5
4500	2100	1500	5465
5000	2280	1660	5965
5500	2450	1820	6465
6000	2620	1980	6965
6500	2790	2140	7465
7000	3210	2320	7965
