1T - 5T
>500mm
Adjustable
Reach Forklift
AC Motor
Electric
Guangdong ONEN New-resource Equipments Co., Ltd.

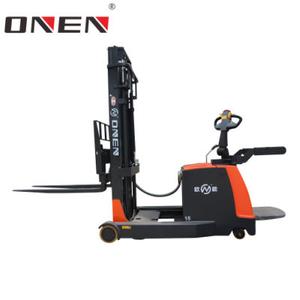

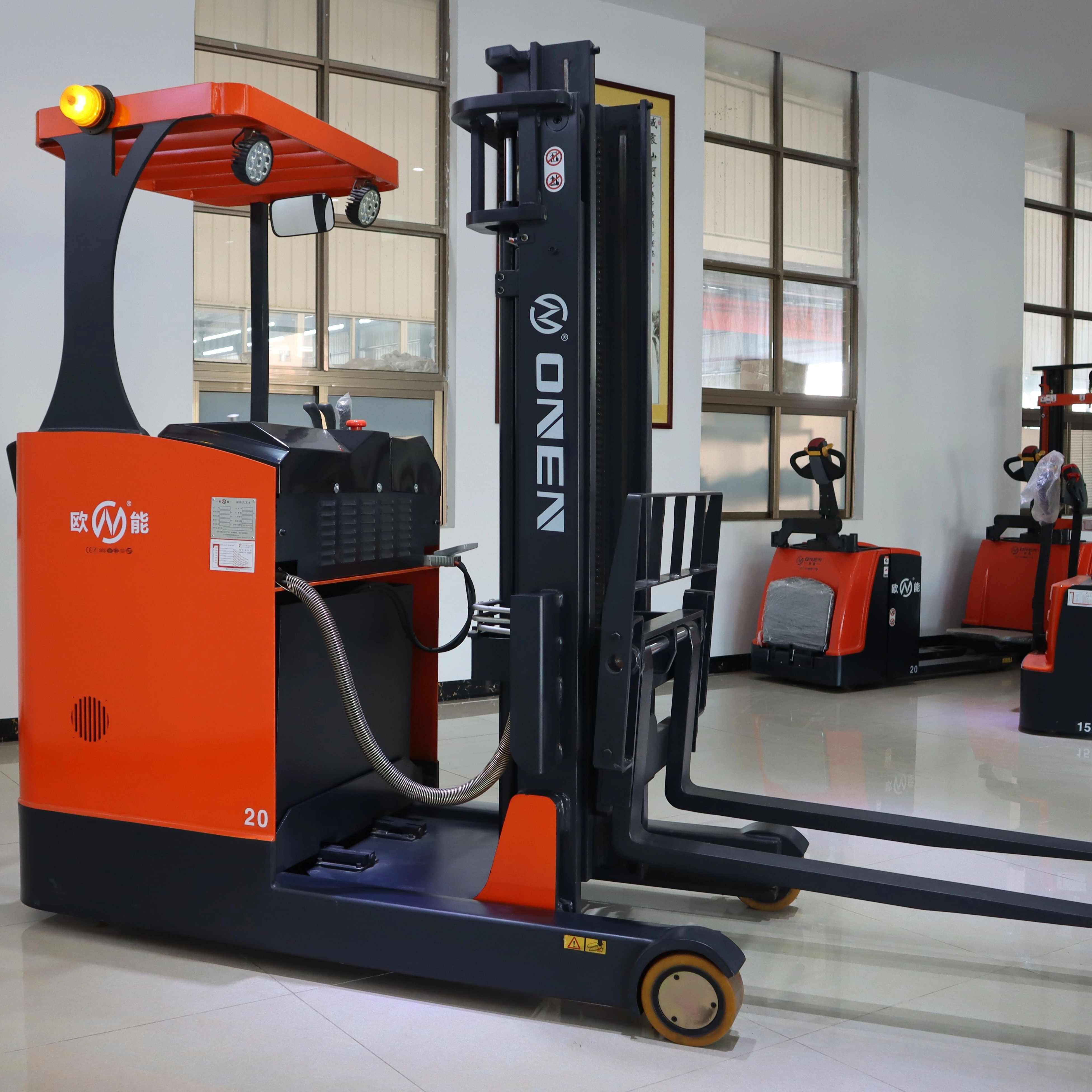

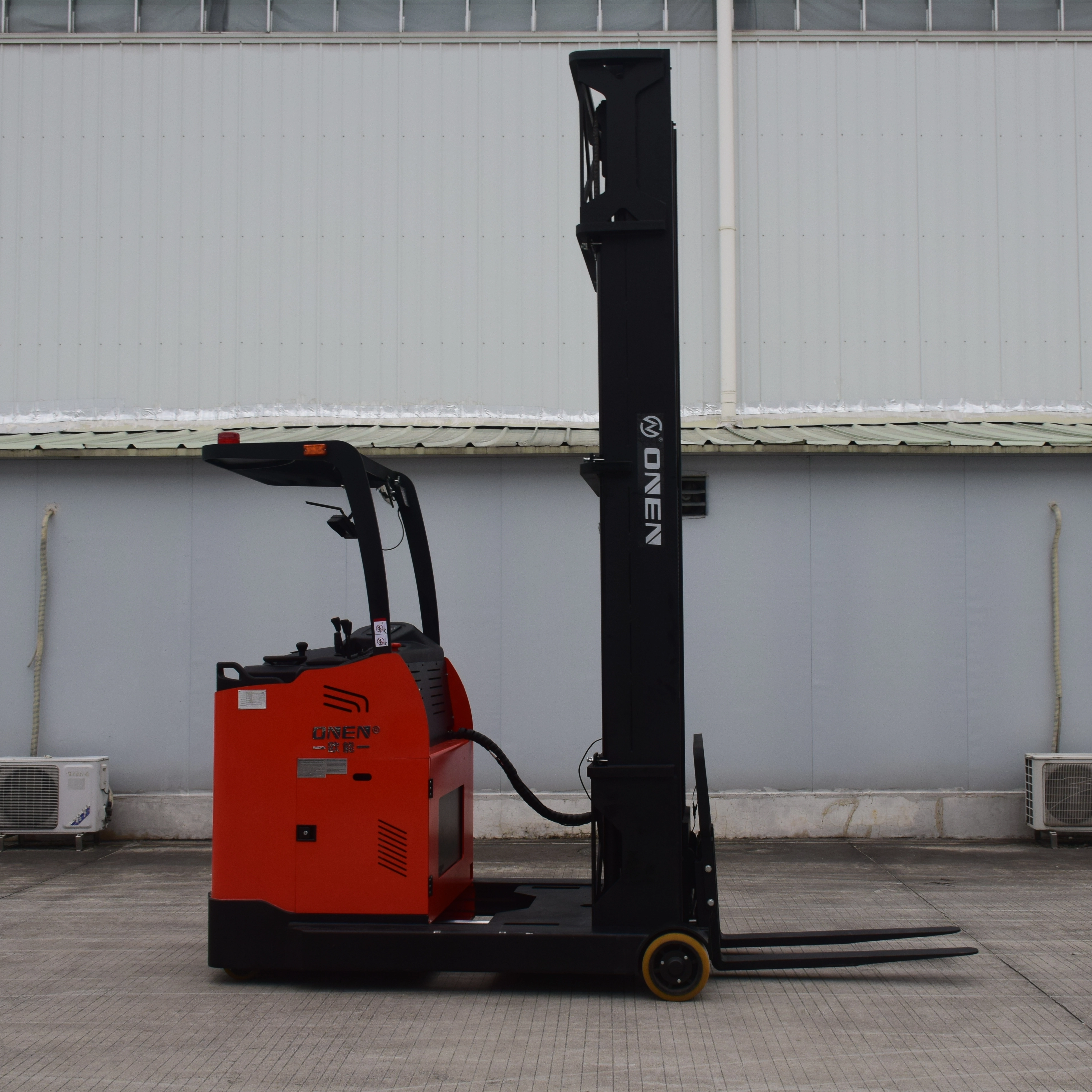

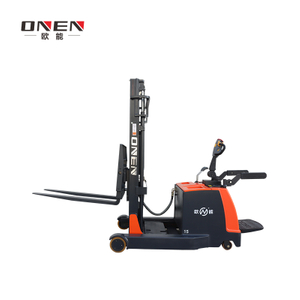

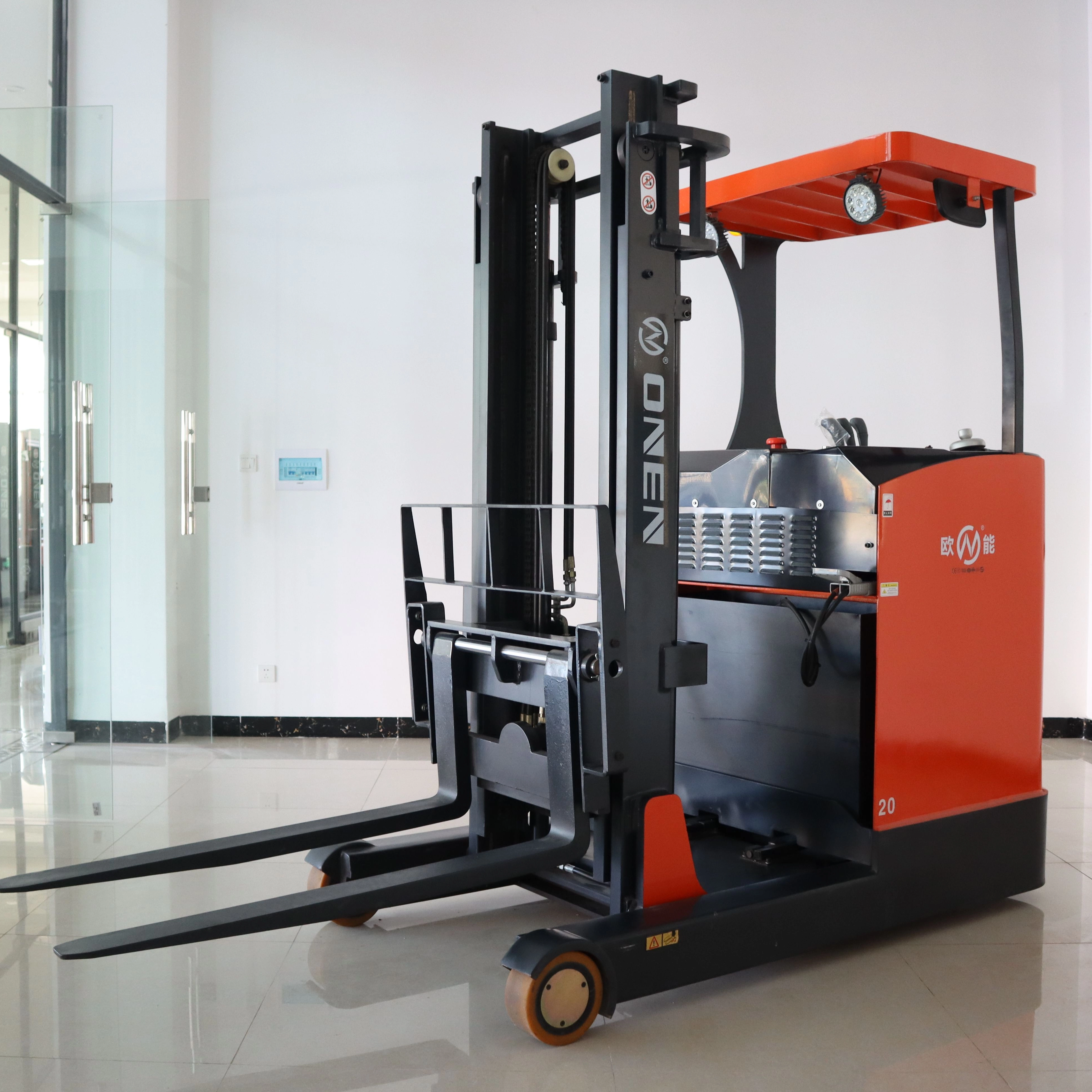

1500kg Stacking Height Electric Sit-Down Reach Truck Forklift
| Power type | Electric | ||
| Steering type | Electric steering | ||
| Operation type | Seated | ||
| Load capacity | Q | kg | 1500 |
| Load center distance | C | mm | 500 |
| Load distance | X | mm | 490 |
| Wheelbase | Y | mm | 1400 |
| Service weight with battery | kg | 1930 | |
| Wheels type | PU | ||
| Driving wheel size | mm | Ф255×100 | |
| Bearing wheel size | mm | Ф210×85 | |
| Wheel quantity (Driving wheel/Bearing wheel) | 1/2 | ||
| Track width (Bearing wheel) | mm | 990 | |
| Overall Length（Mast retracted/extended) | L1 | mm | 2360/2860 |
| Overall Width | b1 | mm | 1090 |
| Mast lowered height | h1 | mm | 2030 |
| Free lift | h2 | mm | ‐ |

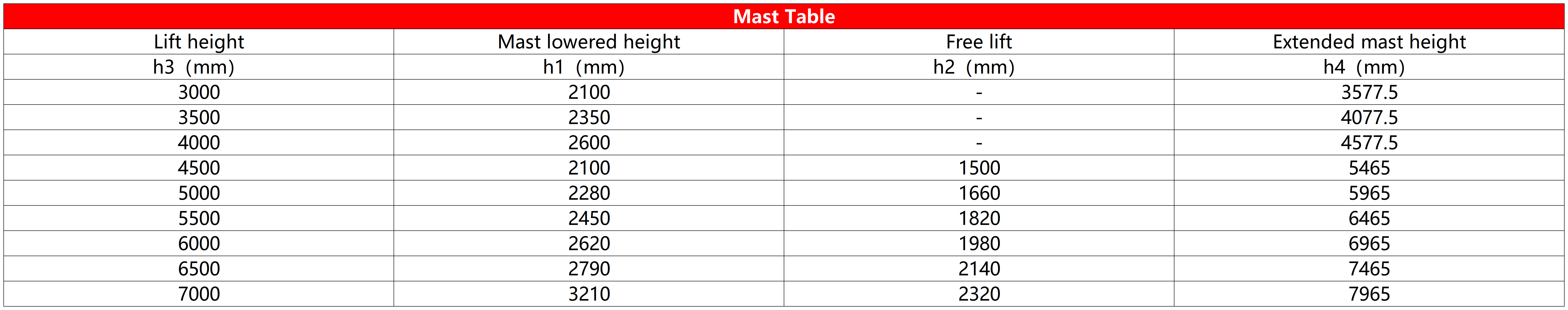

| Lift height | h3 | mm | 3000 |
| Extended mast height | h4 | mm | 3940 |
| Lowered fork height | S | mm | 45 |
| Lenght to face of forks | L2 | mm | 1185 |
| Fork dimensions | s/e/l | mm | 40/100/1070 |
| Width overall forks | b3 | mm | 220-600 |
| Reach distance | mm | 500 | |
| Ground clearance | m2 | mm | 55 |
| Aisle width for pallets 1000×1200 | Ast | mm | 2650 |
| Turning radius | Wa | mm | 1700 |
| Inner width between tracks | b4 | mm | 770 |
| Tilt of fork carriage forward/backward | ° | 6/9 | |
| Travel speed (Laden/Unladen) | km/h | 8/10 | |
| Lift speed (Laden/Unladen) | mm/s | 135/220 | |
| Lowering speed (Laden/Unladen) | mm/s | 220/185 | |
| Gradeability (Laden/Unladen) | % | 5/8 | |
| Brake | Electric steering | ||
| Driving motor | kw | AC 2.5 | |
| Lifting motor | kw | 4.5 | |

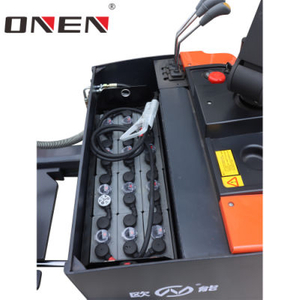

| Voltage/Capacity of lead-acid battery | V/Ah | 24/320 | |
| Weight of lead-acid battery | kg | 300 | |
| Voltage/Capacity of lithium battery (Optional) | V/Ah | 24/150 | |
| Sound level at driver's ear | dB(A) | <70 | |
Q1. Are you a factory or trading company?
A: We are a professional manufacturer of warehouse material handling equipment for more than 30 years, our factory Guangdong Onen New-resource Equipments Co., Ltd. Locates in Taishan City of Guangdong province.
Q2. Can I buy samples?
A: Sure, please feel free to contact with us for samples.
Q3. What is your lead time?
A: It depends on the order quantity and the season you place order. Usually we can ship within 7-15 days for small quantity, and about 30 days for large quality.
Q4. What is your payment term?
A: T/T, Western Union, MoneyGram, Paypal, L/C. The payment term is negotiable.
Q5. What is the shipping method?
A: Goods can be shipped by sea, by air, by railway, or by express. Please confirm with us before place order.
Q6: How do you make our business long-term and good relationship?
A: We keep good quality and competitive prices to ensure our customers' benefit, Furthermore, we respect every customer as our friend and we sincerely do business with them, no matter where they are.
