CQD-A
欧能
steels
drive
1.0/1.5/2.0T
5
PU
orange+black
500mm
Standing and driving style
forklift
AC Motor
Electric
1.6-4.5m
completely new
1 year or 1000 hours
provided
Surface painting
support
CQD-A
ONEN
Italian brand
CE/RoHS/SGS
1.0-2.0T

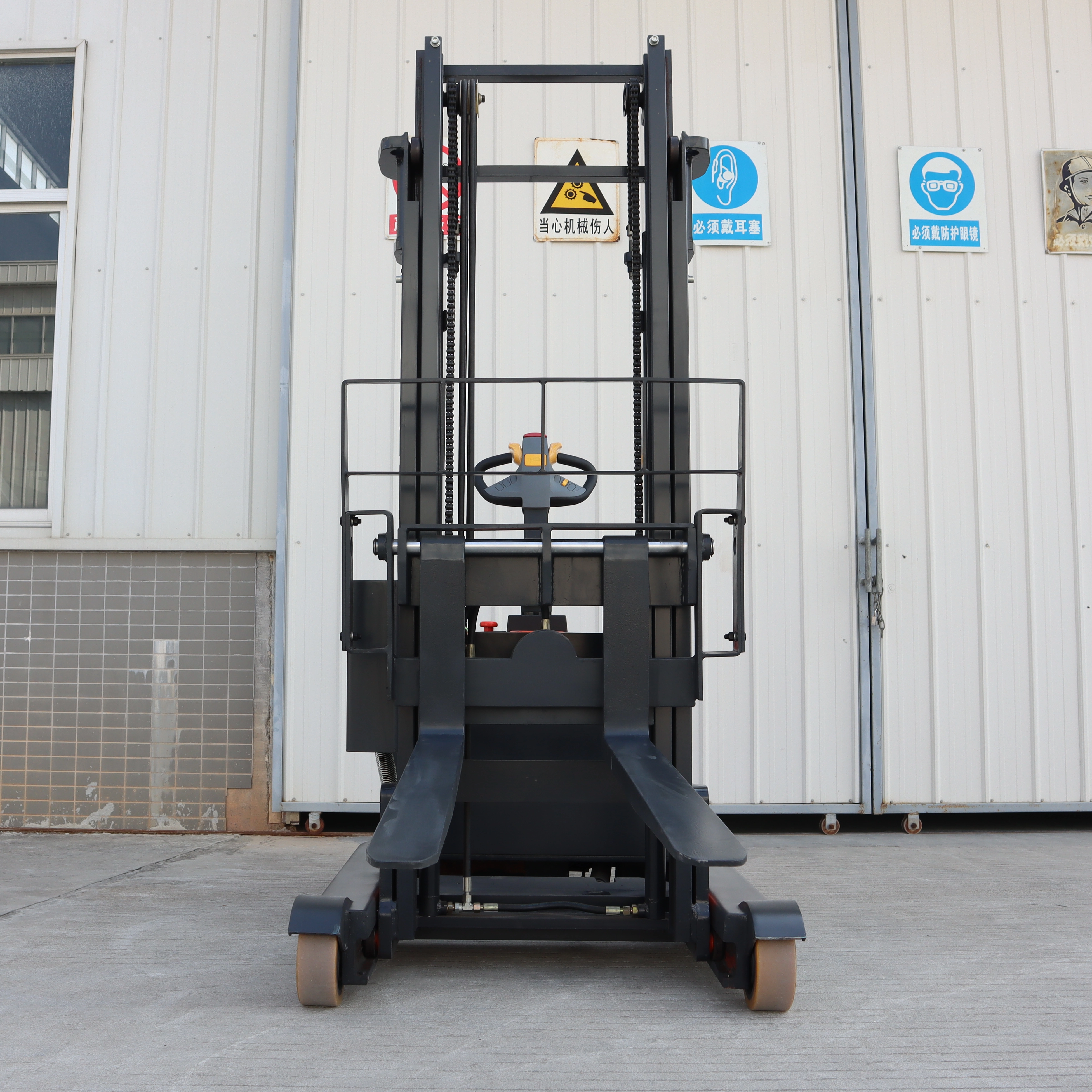

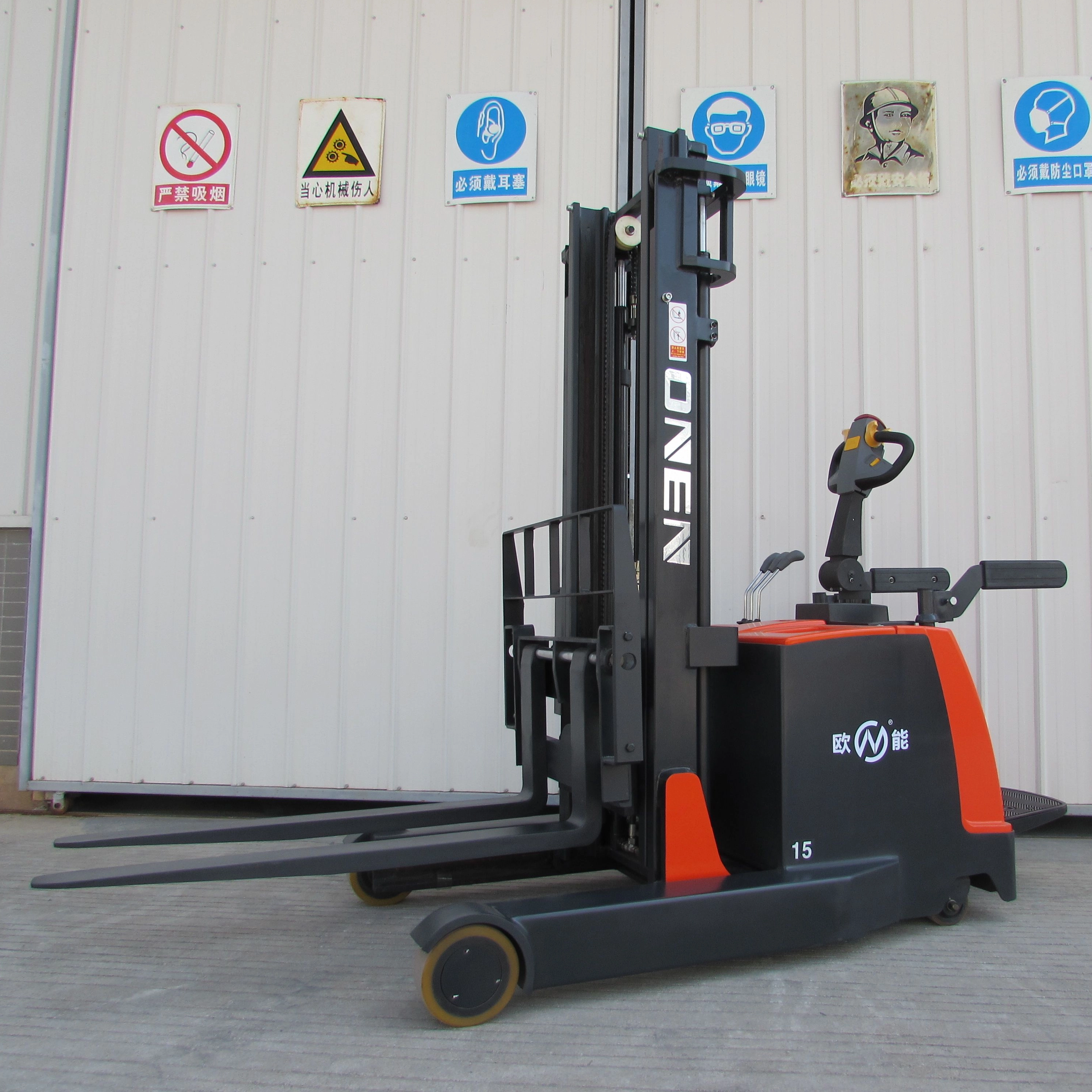

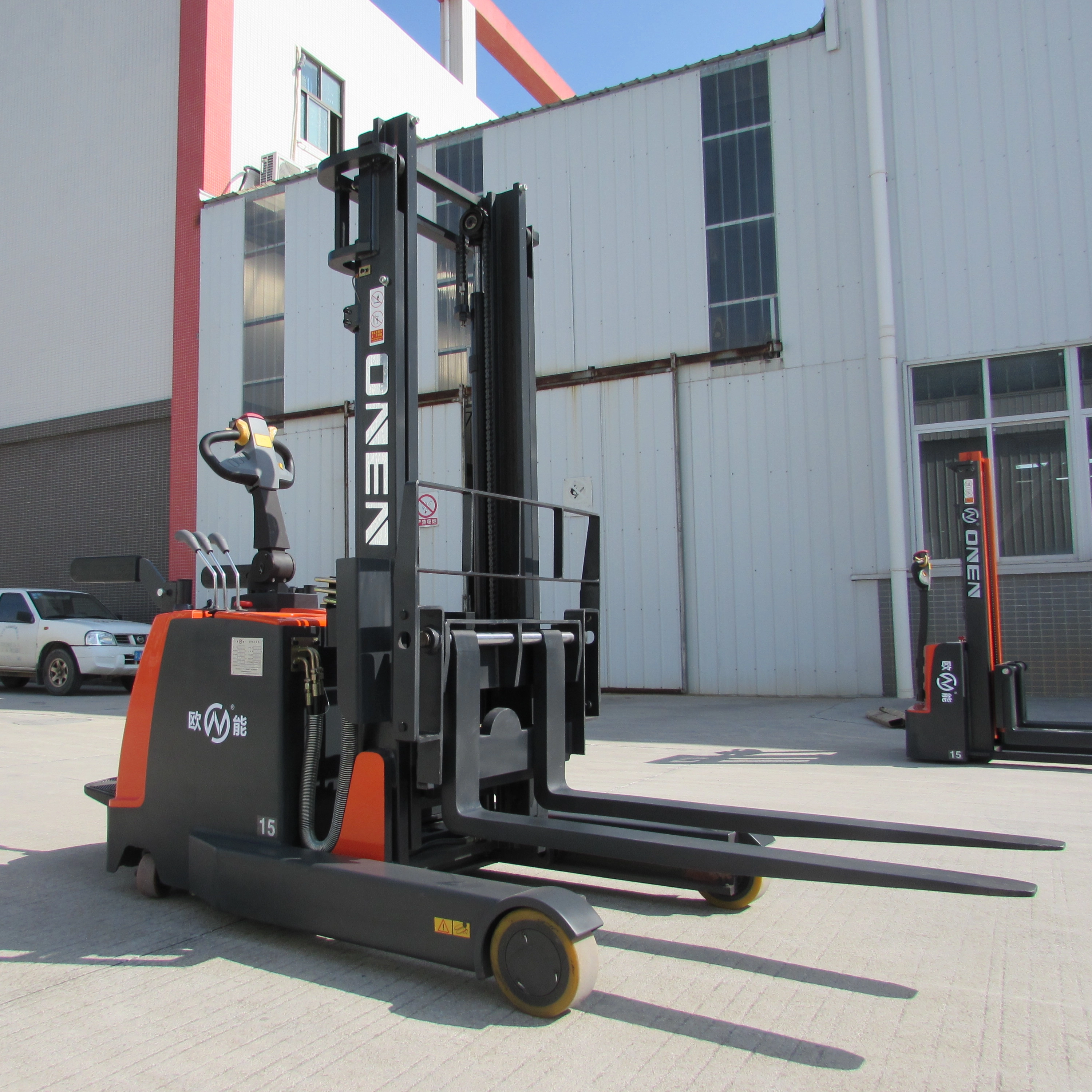

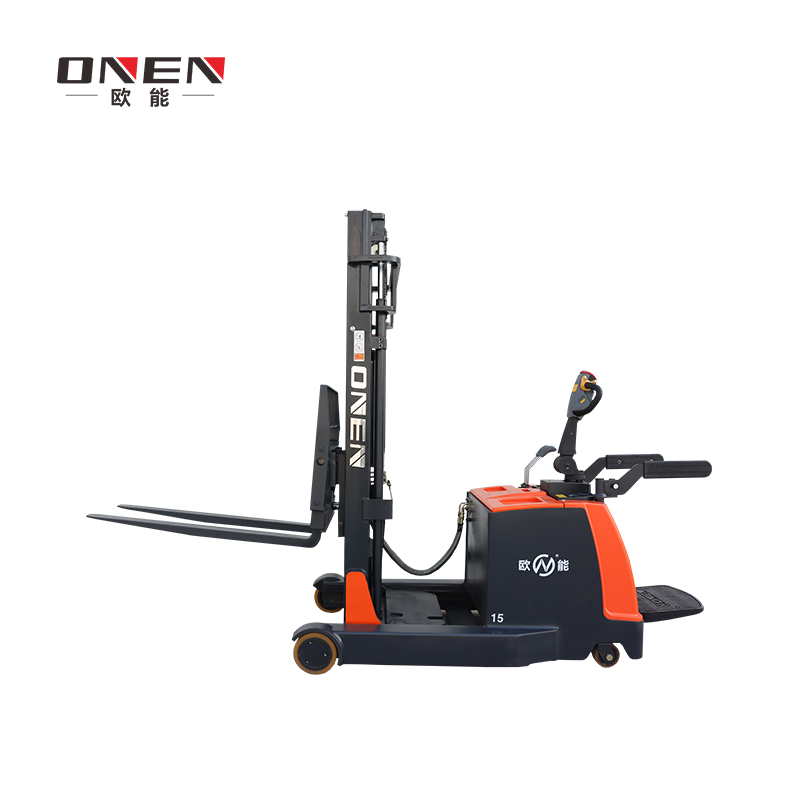

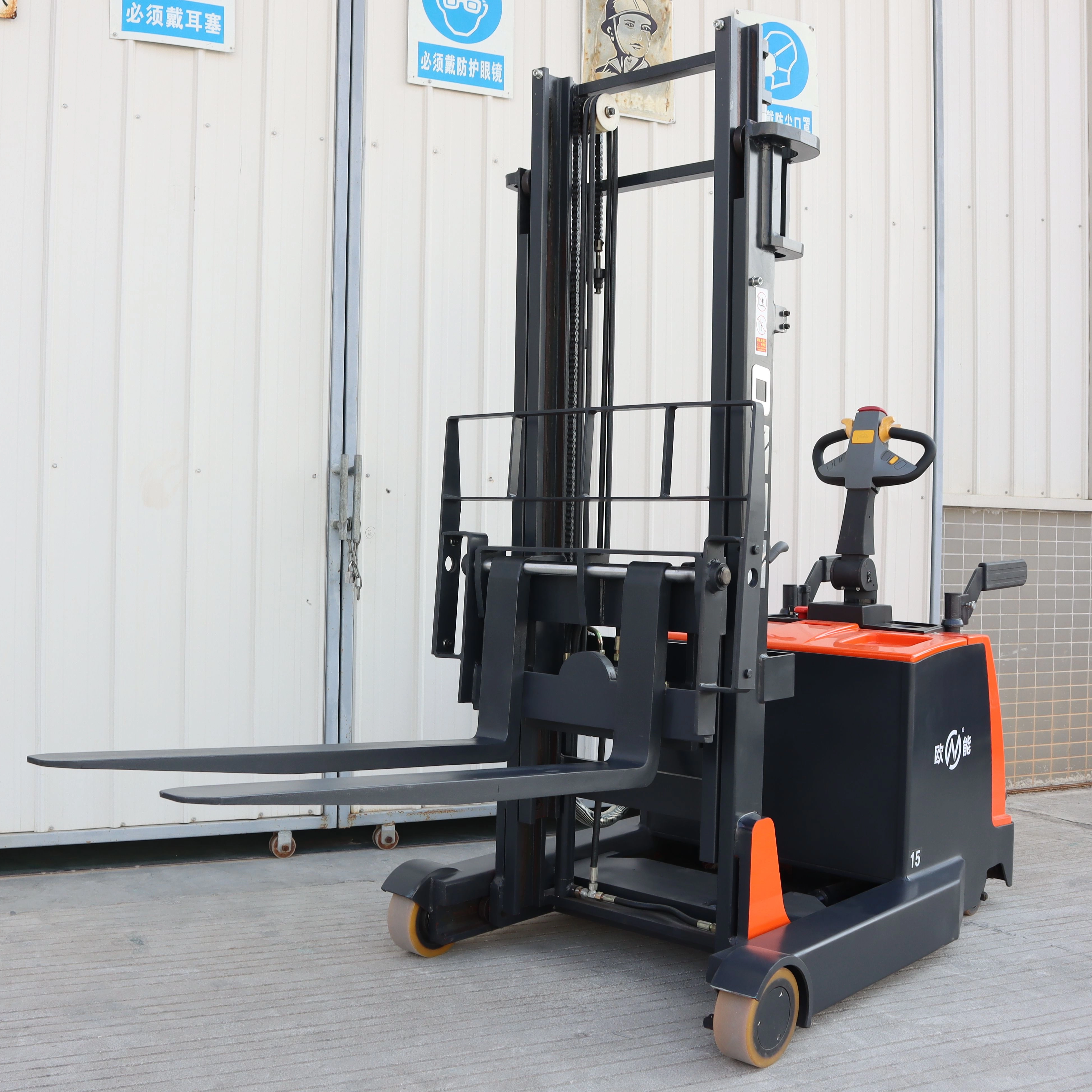

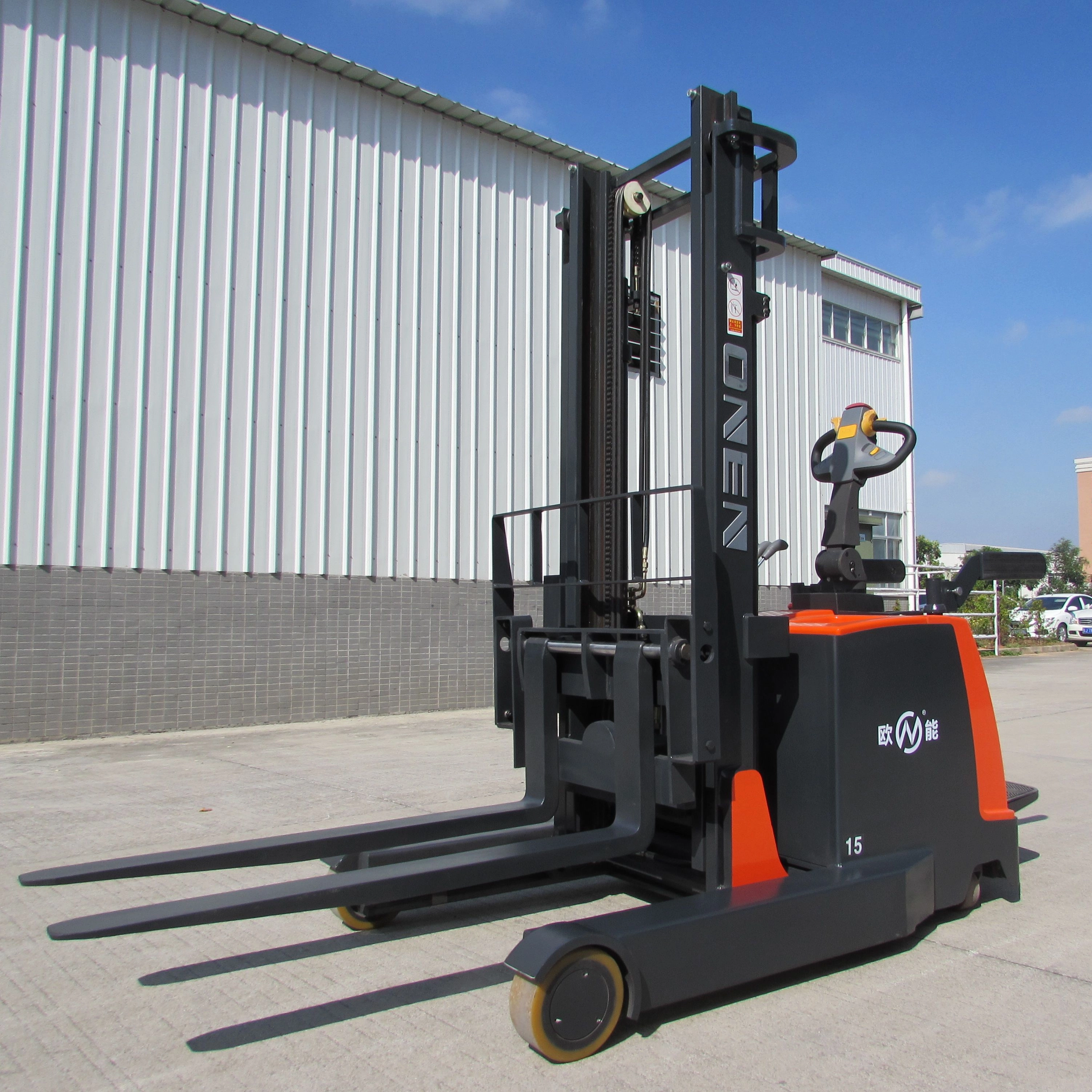

ONEN CQD-A Factory Wholesale Stand-up Compact Electric Reach Truck Forklift
| CQD-A STAND-ON ELECTRIC REACH FORKLIFT TECHNICAL PARAMETERS | ||||||
| Feature | 1 | Model | CQD-A | |||
| 2 | Configuration No. | 1530-A | 2030-A | |||
| 3 | Drive | electric | ||||
| 4 | Steering mode | electronic steering | ||||
| 5 | Type of operation | stand-on | ||||
| 6 | Load capacity | Q | kg | 1500 | 2000 | |
| 7 | Load center distance | C | mm | 500 | ||
| 8 | Load distance | X | mm | 130 | ||
| 9 | Wheelbase | Y | mm | 1370 | ||
| Weight | 1 | Service weight with battery | kg | 1925 | 2100 | |
| Wheels | 1 | Wheels type | PU | |||
| 2 | Driving wheel size | mm | Ф230×75 | |||
| 3 | Balance wheel size | mm | Ф125×60 | |||
| 4 | Bearing wheel size | mm | Ф210×85 | |||
| 5 | Wheel quantity (Driving wheel/Balance wheel/Bearing wheel) | 1/2/2 | ||||
| 6 | Track width (Balance wheel) | mm | 700 | |||
| 7 | Track width (Bearing wheel) | mm | 985 | |||
| Dimension | 1 | Overall length(mast closed/extended) | L1 | mm | 2325/2830 | 2525/3030 |
| 2 | Overall width | b1 | mm | 1090 | ||
| 3 | Mast lowered height | h1 | mm | 2030 | ||
| 4 | Free lift | h2 | mm | - | ||
| 5 | Lift height | h3 | mm | 3000 | ||
| 6 | Extended mast height | h4 | mm | 3940 | ||
| 7 | Lowered fork height | S | mm | 40 | ||
| 8 | Handle ground clearance(Max/Min) | h6 | mm | 1487/1070 | ||
| 9 | Fork size | s/e/l | mm | 40/100/1070 | ||
| 10 | Fork outer width | b3 | mm | 220-610 | ||
| 11 | Reach distance | 500 | ||||
| 12 | Min.ground clearance | m2 | mm | 55 | ||
| 13 | Min.Aisle width for pallets 1000×1200 | Ast | mm | 2650 | 2850 | |
| 14 | Turning radius | Wa | mm | 1670 | ||
| 15 | Inner width between tracks | b4 | mm | 770 | ||
| Performance | 1 | Fork tilt Angle | ° | 5/3 | ||
| 2 | Travel speed(laden/unladen) | km/h | 6/6.2 | |||
| 3 | Lift speed(laden/unladen) | mm/s | 105/150 | |||
| 4 | Lowering speed(laden/unladen) | mm/s | 220/105 | |||
| 5 | Gradeability(laden/unladen) | % | 5/8 | |||
| 6 | Brake | electromagnetic | ||||
| 7 | Drive motor | kw | 1.5（AC） | |||
| 8 | Lift motor | kw | 3.0 | |||
| Battery | 1 | Voltage/Capacity of lead-acid battery | V/Ah | 24/240 | ||
| 2 | Lead-acid battery charger | V/A | 24/30 | |||
| 3 | Voltage/Capacity of lithium battery (Optional) | V/Ah | 24/150 or 24/200 | |||
| 4 | Lithium battery charger | V/A | 24/50 or 24/100 | |||
| Other | 1 | Sound leave at driver's ear | dB(A) | <70 | ||
| Height Parameters | ||||||
| Mast lowered height | Free lift | Lift height | Extended mast height | |||
| h1(mm) | h2(mm) | h3(mm) | h4(mm) | |||
| 2130 | 1600 | 1600 | 2540 | |||
| 1780 | - | 2500 | 3440 | |||
| 2030 | - | 3000 | 3940 | |||
| 2310 | - | 3500 | 4440 | |||
| 2590 | - | 4000 | 4940 | |||
| 2060 | 1500 | 4500 | 5340 | |||
GOOD QUALITY
ONEN Forklifts is the top rank material handling equipment manufacturer in Jiangmen City of Guangdong Province, China.
Main products includes electric pallet jack, electric pallet stacker, electric forklift, diesel forklift, etc.
Our key technology was originated from EUR-Italy, 20+ years manufacturing experience make ONEN Forklifts can provide customers high qaulity equipment.
COMPETITIVE PRICE
As a professional manufacturer, ONEN Forklifts uses mature standardized manufacturing techonlogy and insists on innovation to privde customers warehouse equipment with reasonable price.
FAQ:
1, How can I get the price:
We usually reply within 24 hours after receive your inquiry.
If you are urgent to get the price please contact us by email or Mobilephone.
2, Can I buy a sample?
Sure, sample orders are always welcome.
3, What is your lead time?
It depends on the order quantity and season you place order. Normally we can delivery goods in 7-15 days for small quantity, 30 days for large quantity.
4, What's your payment term?
T/T, L/C, Western Union, Cash, etc.
5, What is the shipment method?
It can be shipped by sea, by air, by train, or even by express, you can discuss with us.
