CDD-A
欧能
steels
Suitable for factory workshop, square lobby airport, park and other high-altitude work needs of customers.
1.0-1.5T
PU
6
orange+black
500mm
Walking style

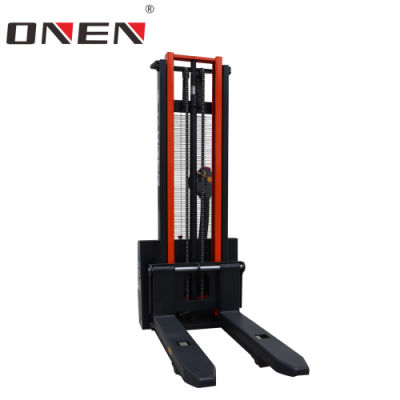

Electric Pallet Stacker
AC Motor
Electric
1.6-3.5m
completely new
1 year or 1000 hours
provided
Surface painting
Support
CDD-A
ONEN
Italian brand
CE/RoHS/SGS
1.0/1.2/1.5T
Shipping, land carriage, railway
| CDD-A ELECTRIC WALKIE PALLET STACKER TECHNICAL PARAMETERS | |||||
| Feature | 1 | Model | CDD | ||
| 2 | Configuration No. | 15-A | |||
| 3 | Drive | electric | |||
| 4 | Steering mode | Mechanical steering | |||
| 5 | Type of operation | Walkie | |||
| 6 | Load capacity | Q | kg | 1500 | |
| 7 | Load center | C | mm | 500 | |
| 8 | Wheel base | Y | mm | 1115 | |
| Weight | 1 | Service weight with battery | kg | 600 | |
| Wheels | 1 | Wheels type | PU | ||
| 2 | Driving wheel size | mm | Φ210×75 | ||
| 3 | Balance wheel size | mm | Φ125×50 | ||
| 4 | Bearing wheel size | mm | Φ80×70 | ||
| 5 | Wheel quantity(front /rear)(x=Driving wheel) | 1x-4/1 | |||
| 6 | Wheel span,front | mm | 400/520 | ||
| 7 | Wheel span,rear | mm | 530 | ||
| Dimension | 1 | Mast lowered height | h1 | mm | Appendix 1 for details |
| 2 | Free lift | h2 | mm | ||
| 3 | Lift height | h3 | mm | ||
| 4 | Extended mast height | h4 | mm | ||
| 5 | Overall size(lenght x width) | L1×b1 | mm | 1727×800 | |
| 5 | Lowered fork height | h5 | mm | 85 | |
| 6 | Handle ground clearance(Max/Min) | h6 | mm | 1300/700 | |
| 7 | Length to face of forks | L2 | mm | 577 | |
| 8 | Fork size | s/e/l | mm | 160/60/1150 | |
| 9 | Overall fork width | b3 | mm | 560/680 | |
| 10 | Min.ground clearance | m | mm | 30 | |
| 11 | Min.Aisle width for pallets 1000×1200 | Ast | mm | 2200 | |
| 12 | Turning radius | Wa | mm | 1296 | |
| Performance | 1 | Travel speed(laden/unladen) | km/h | 4/4.5 | |
| 2 | Lift speed(laden/unladen) | m/s | 95/165 | ||
| 3 | Lowering speed(laden/unladen) | m/s | 100/110 | ||
| 4 | Gradeability(laden/unladen) | % | 5/8 | ||
| 5 | Brake | electromagnetic | |||
| Electrical configuration | 1 | Drive motor | kw | 0.65 | |
| 2 | Lift motor | kw | 2.5 | ||
| 1 | Battery voltage/capacity | V/Ah | 2×12/2×80 | ||
| 2 | Battery weight | kg | 2×27 | ||
| Other Details | 1 | Type of drive control | DC | ||
| 2 | Sound leave at driver's ear to EN 12053 | dB(A) | <70 | ||
| Appendix 1 | |||
| Lift height | Mast lowered height | Free lift | Extended mast height |
| h3(mm) | h1(mm) | h2(mm) | h4(mm) |
| 1600 | 2050 | 1600 | 2050 |
| 2000 | 1600 | - | 2870 |
| 2500 | 1850 | - | 3120 |
| 3000 | 2100 | - | 3370 |
| 3500 | 2350 | - | 3620 |
Q1. Are you a factory or trading company?
A: We are a professional manufacturer of warehouse material handling equipment for more than 30 years, our factory Guangdong Onen New-resource Equipments Co., Ltd. Locates in Taishan City of Guangdong province.
Q2. Can I buy samples?
A: Sure, please feel free to contact with us for samples.
Q3. What is your lead time?
A: It depends on the order quantity and the season you place order. Usually we can ship within 7-15 days for small quantity, and about 30 days for large quality.
Q4. What is your payment term?
A: T/T, Western Union, MoneyGram, Paypal, L/C. Payment term is negotiable.
Q5. What is the shipping method?
A: Goods can be shipped by sea, by air, by railway, or by express. Please confirm with us before place order.
Q6: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers' benefit, Furthermore, we respect every customer as our friend and we sincerely do business with them, no matter where they are.
