ONEN Electric stacker truck is a device used for transporting and lifting goods. This machine is driven by electricity and has the characteristics of strong power, easy operation, and adjustable lifting height. Electric carts typically consist of a vehicle body, an electric drive system, a lifting device, and a control system. The body of electric stacker trucks is usually made of solid steel, which has good load-bearing capacity and stability. The electric drive system uses an electric motor as the power source and is powered by a battery to drive the vehicle forward and backward. The lifting device is usually a hydraulic system that can lift and lower goods through control buttons or handles, and the lifting height can be adjusted as needed.
1. Dual tray design, capable of picking up two trays simultaneously, improving work efficiency 2. Vertical drive wheel, AC motor, strong power, small turning radius 3. The lifting function of the bottom legs increases the ground clearance, resulting in higher passability and more flexible operation 4. High strength anti torsion gantry design, ensuring a payload of 2 tons 5. Equipped with a 24V fast charging charger, with short charging time

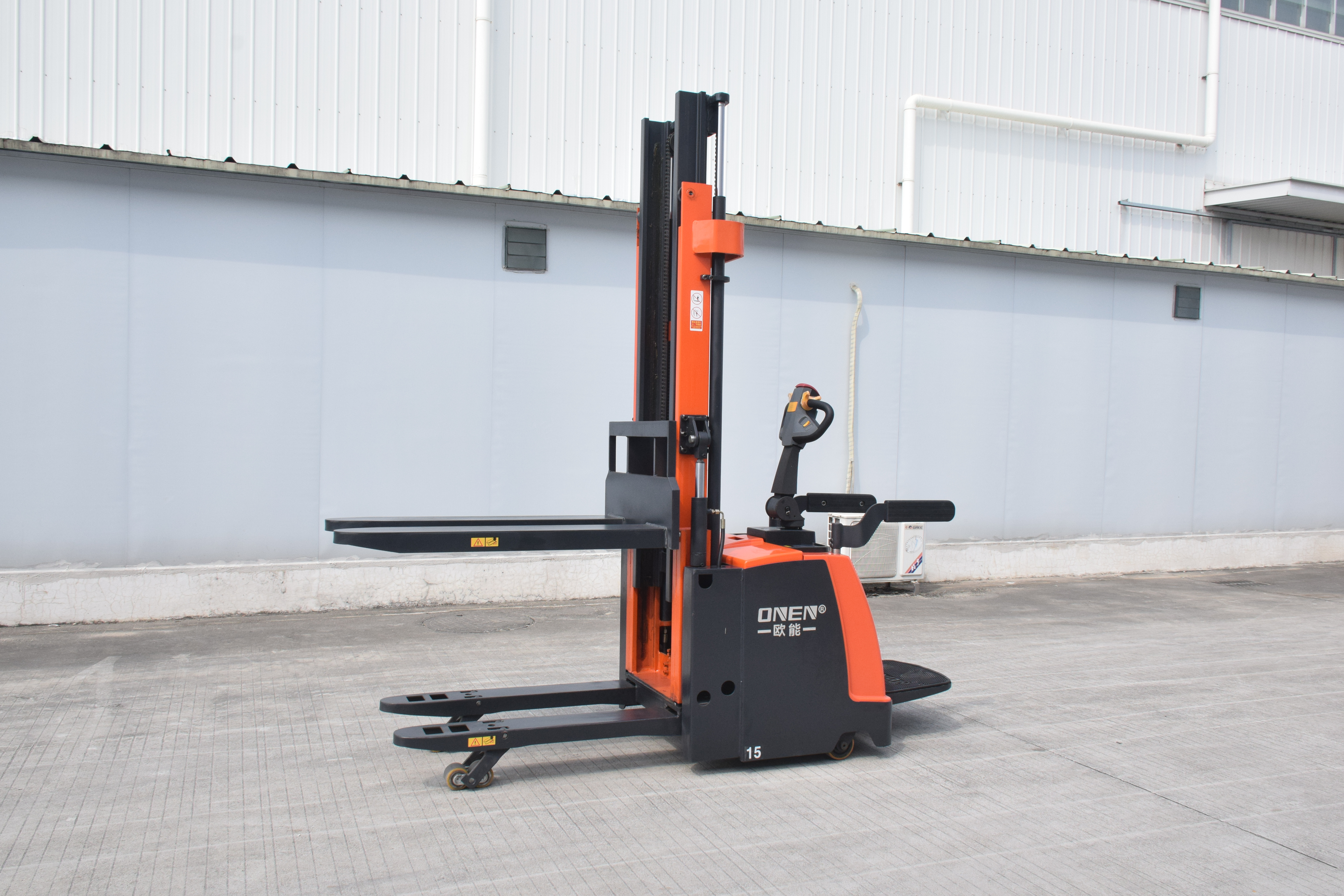

When every aisle cycle counts, moving one pallet at a time is a cost you don't have to pay. The ONEN CDD-D stand-on double-lift stacker rethinks the standard pallet stacker from the ground up: two independent fork levels let the operator pick, transport and stack two pallets in a single trip — doubling per-cycle throughput without doubling machine size, aisle width or energy use.
Rated at 1,500 kg with a 500 mm load center, the CDD-D is built around a rigid welded steel chassis engineered for load-bearing capacity and stability. The electric drive system — a 1.5 kW AC motor fed by a 24 V battery — delivers smooth, quiet propulsion in both directions, while a 2.5 kW hydraulic power unit raises and lowers loads precisely through fingertip controls on the tiller head. A full series of mast options, from 1.6 m lift height up to 4.5 m, allows the CDD-D to be matched to floor-level shuttle work, standard racking or high-bay storage alike.
The stand-on platform folds away for walk-behind precision at the rack face and deploys instantly for riding travel across long warehouse distances. Add liftable bottom outriggers that raise ground clearance when needed, and you get a truck that slips through low doorways and dock levelers yet still clears uneven floors and ramp transitions with ease. Every unit is manufactured by Guangdong ONEN New-resource Equipments Co., Ltd. — 30 years of material-handling production behind every weld.
5 Core Advantages
1. Dual-Pallet Design — Two Pallets, One Trip, Twice the Productivity
The double-fork configuration lifts two pallets simultaneously: transport a full load inbound while carrying an empty pallet or return load outbound. In picking, cross-docking and loading operations, this effectively doubles cycle capacity and cuts travel time per pallet moved — the fastest way to raise throughput without adding trucks or staff.
2. Vertical AC Drive Wheel — Strong Power, Tight Turning
A vertically mounted drive wheel powered by a 1.5 kW AC brushless motor delivers strong, responsive traction with minimal maintenance — no carbon brushes to replace. The compact drive unit enables a tight turning radius, keeping the CDD-D agile in narrow aisles and congested dock areas where larger trucks simply can't maneuver.
The bottom support legs raise together with the mast, lifting ground clearance when the truck is under way. The result is superior passability over thresholds, dock plates and uneven concrete, plus more flexible operation around ramps and floor transitions — obstacles that stop conventional low-clearance stackers.
4. High-Strength Anti-Torsion Mast — Engineered for Heavy Payloads
The gantry mast is designed with a high-strength anti-torsion structure that resists flexing and racking under full load, even with the carriage raised. This rigid architecture — proven on ONEN's 2-ton platforms — ensures stable, wobble-free lifting at every height and protects both operator and cargo.
5. 24 V Fast-Charging System — Shorter Charging, Longer Working
Equipped with a 24 V fast-charge charger and optional lithium battery packs, the CDD-D spends less time plugged in and more time on the floor. Opportunity charging during breaks keeps multi-shift fleets running, and electromagnetic braking — completely wear-free — keeps scheduled downtime to a minimum.
Where the Double-Lift Advantage Pays Off
High-Turnover Distribution Centers Double-pallet cycles mean half the trips for the same tonnage. Ideal for cross-docking, replenishment runs and dock-to-rack shuttle work where travel distance is long and cycle time is money.
Manufacturing & Production Logistics Feed two lines at once: carry raw materials to assembly stations on one level and return empty pallets or finished goods on the other — one truck replacing two in plant-internal logistics.
Retail & Supermarket Backrooms Quiet (< 70 dB(A)), emission-free and compact, the CDD-D restocks two pallet positions per trip during opening hours — fast enough for peak trading days, clean enough for customer-adjacent areas.
Logistics Terminals, Stations & Ports Liftable outriggers shrug off dock plates and ramp transitions, while the robust welded chassis tolerates the dust, humidity and relentless multi-shift cycles of terminals and port sheds.
Factory Profile & Certifications
Manufactured by Guangdong ONEN New-resource Equipments Co., Ltd. — 30 years of production experience — our plant runs the complete production chain in-house: steel cutting, robotic welding, painting, assembly and 100% load testing. Every CDD-D ships export-ready with:
ISO 9001 Quality Management
ISO 14001 Environmental Management
ISO 45001 Occupational Health & Safety
CE Attestation of Compliance
RoHS Environmental Compliance
SGS Supplier Audit
Special Equipment Production License
Canton Fair Design Award Recognition
We welcome on-site factory inspections, live video audits and third-party pre-shipment testing for volume partners.
Frequently Asked Questions
Q: How does the double-lift design actually save time?
A: The CDD-D carries two pallets per cycle — for example, a full pallet plus an empty one for swap-out, or two full pallets in shuttle operations. In most workflows this roughly doubles pallets moved per hour without increasing fleet size.
Q: What lift heights and mast options are available?
A: The CDD-D series covers lift heights from 1.6 m up to 4.5 m with multiple mast configurations, including full free lift options for working under low ceilings, mezzanines or inside containers and trailers.
Q: What batteries are available? Is fast charging supported?
A: Both lead-acid (24 V / 210 Ah or 240 Ah) and lithium (24 V / 150 Ah or 200 Ah) are available. The lithium option ships with a 24 V fast charger (50 A or 100 A), enabling opportunity charging during breaks for multi-shift operation.
Q: What aisle width do I need?
A: For standard 1,000 × 1,200 mm pallets, the right-angle stacking aisle is approximately 2,335 mm. Share your pallet and rack layout and we'll verify the exact working aisle for your configuration.
Q: Can the outriggers handle ramps and dock levelers?
A: Yes — the liftable bottom legs raise ground clearance when traveling, improving passability over thresholds, dock plates and uneven floors. Confirm your floor conditions with our sales engineers for the optimal setup.
Q: Do you offer OEM / custom configurations?
A: Yes — custom colors, branding, fork dimensions, battery options, mast heights and regional voltage standards are all available for OEM/ODM partners.
