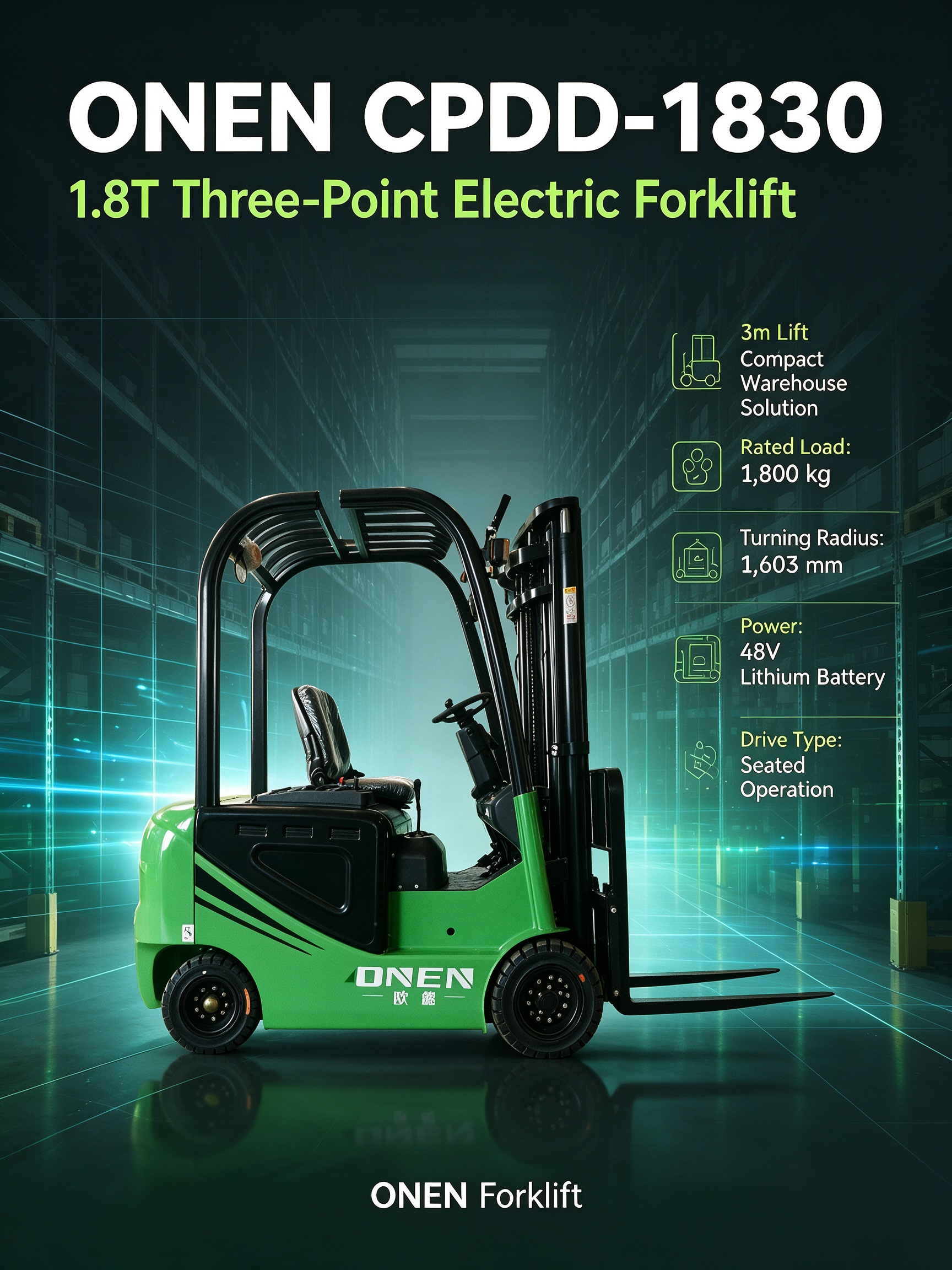

ONEN 1.8T Three-Point Electric Forklift, Lift 3m (CPDD-1830)

ONEN Three-Point Electric Forklift

CPDD-1830 1.8T Three-Point Electric Forklift – 3M Lift Compact Warehouse Solution

Model: CPDD-1830

Rated Load: 1,800 kg

Max. Lift Height: 3,000 mm (10 ft)

Drive Type: 2WD Seated Operation

Product Overview – Agile Power for Space-Constrained Operations

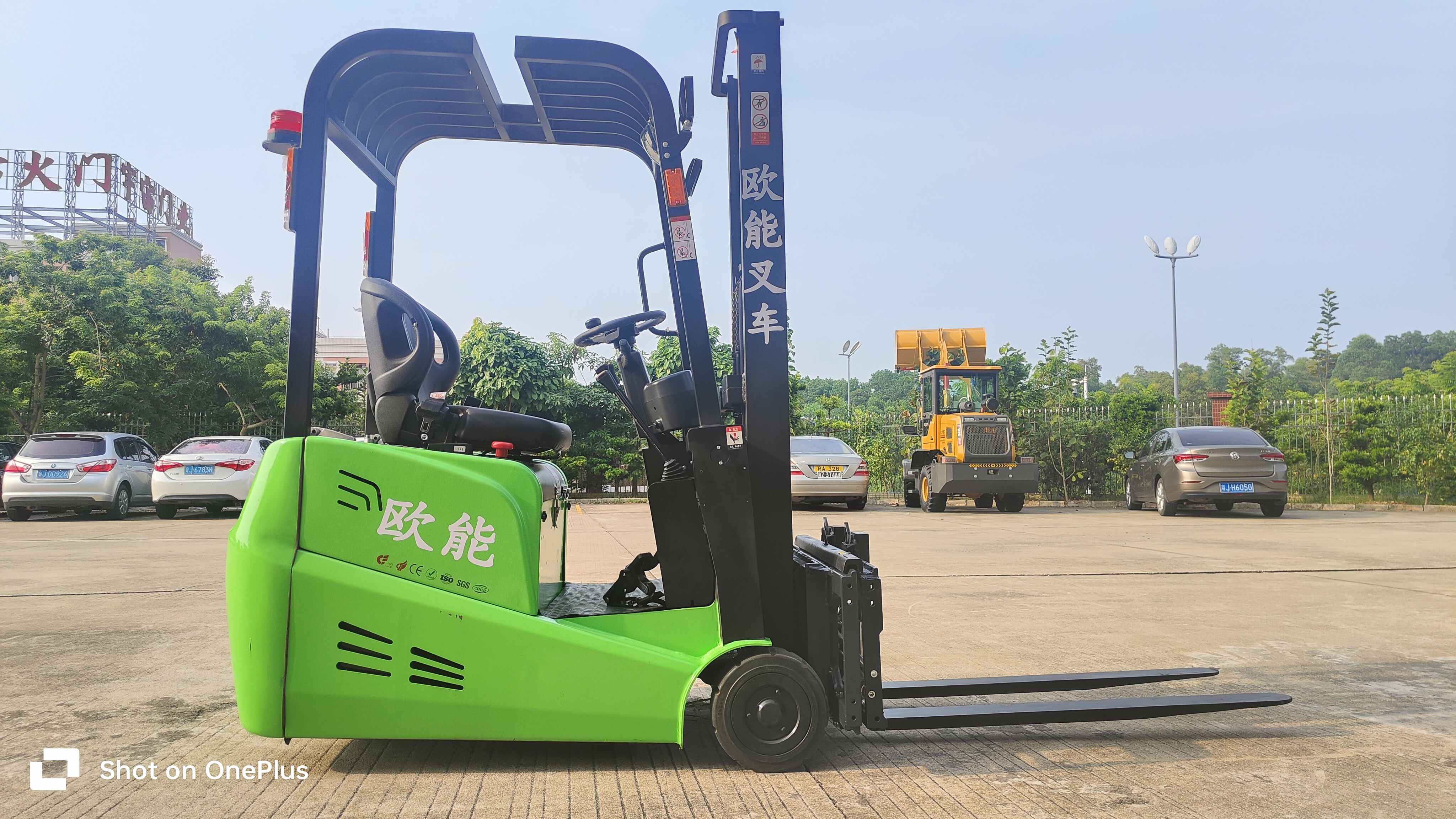

The ONEN CPDD-1830 is a fully electric, counterbalanced three-point forklift engineered for facilities where every inch of floor space matters. With a 1.8-ton rated load capacity and a 3-meter lift height, this lithium-powered warehouse workhorse delivers the muscle of a traditional counterbalance truck in a footprint roughly two-thirds the size of a standard four-wheel equivalent.

Unlike conventional sit-down forklifts that demand wide turning arcs, the CPDD-1830 leverages its three-wheel chassis and 1,603 mm turning radius to maneuver comfortably in narrow passageways, tight dock areas, and high-density racking systems. Whether you are stacking pallets in a small-to-medium warehouse, feeding production lines in a factory, or shuttling goods between indoor storage and outdoor loading bays, the CPDD-1830 adapts seamlessly to long-duration working conditions without the emissions, noise, or maintenance burden of internal-combustion units.

Why Choose the CPDD-1830 Three-Point Design?

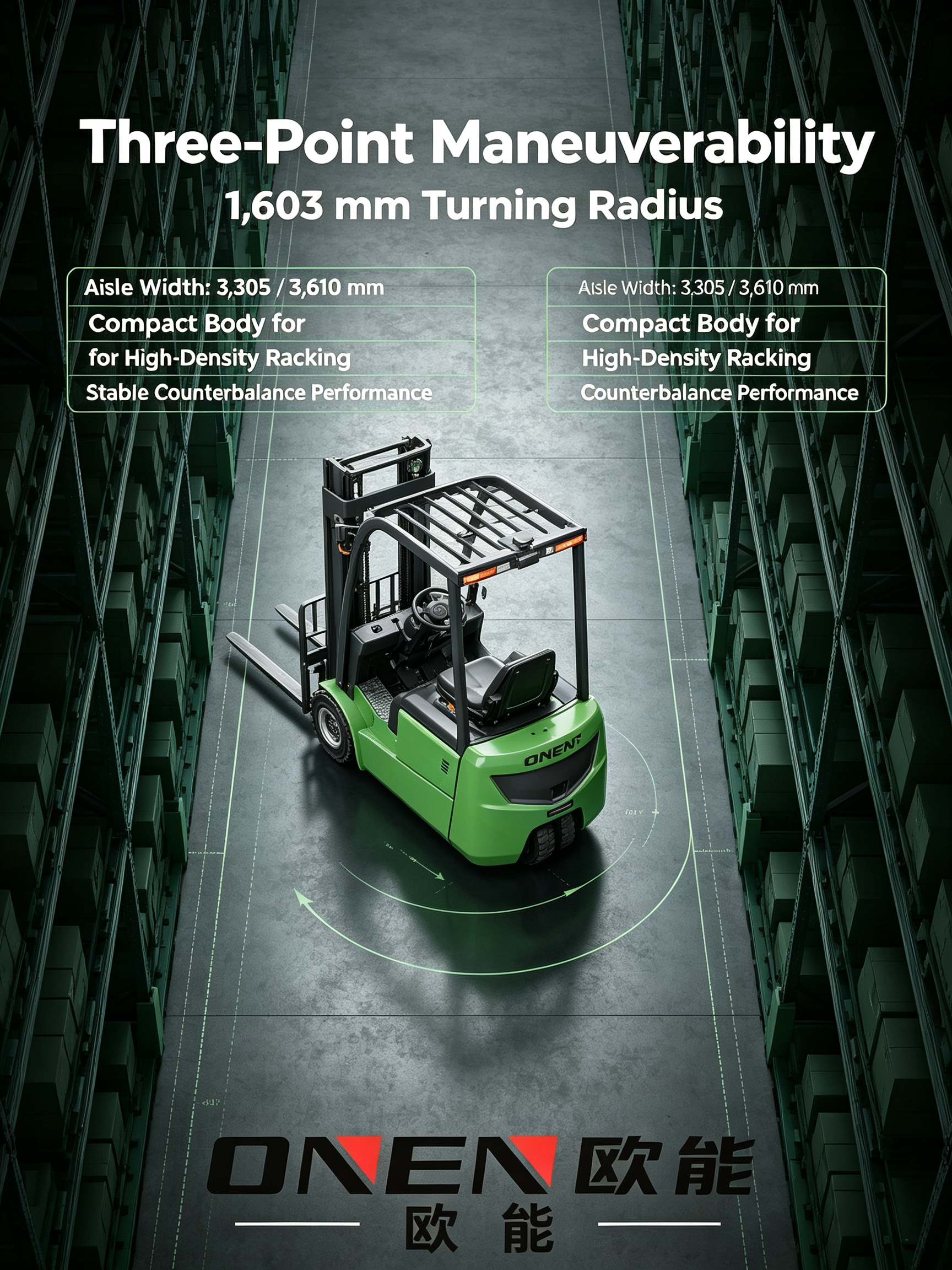

1. Narrow-Aisle Mastery Without Reach-Truck Complexity The CPDD-1830’s three-point configuration (dual front drive wheels + single rear steer wheel) combines the stability of a counterbalanced forklift with the maneuverability of an order picker. The result is a turning radius of just 1,603 mm and an overall width of 1,078 mm, allowing operators to work in aisle widths as tight as 3,305 mm (with 800×1,000 mm pallets) or 3,610 mm (with 1,000×1,000 mm pallets). You gain valuable storage density without investing in expensive guided rail systems.

2. True Counterbalance Versatility Thanks to its fully electric counterbalanced structure, the truck handles both single-face and double-face pallets with equal confidence. The 500 mm load center and 2,865 kg service weight (including battery) provide the low center of gravity needed for stable lifting at full height, while the 3° forward / 5° backward mast tilt ensures precise fork positioning when loading trucks or placing pallets on elevated racks.

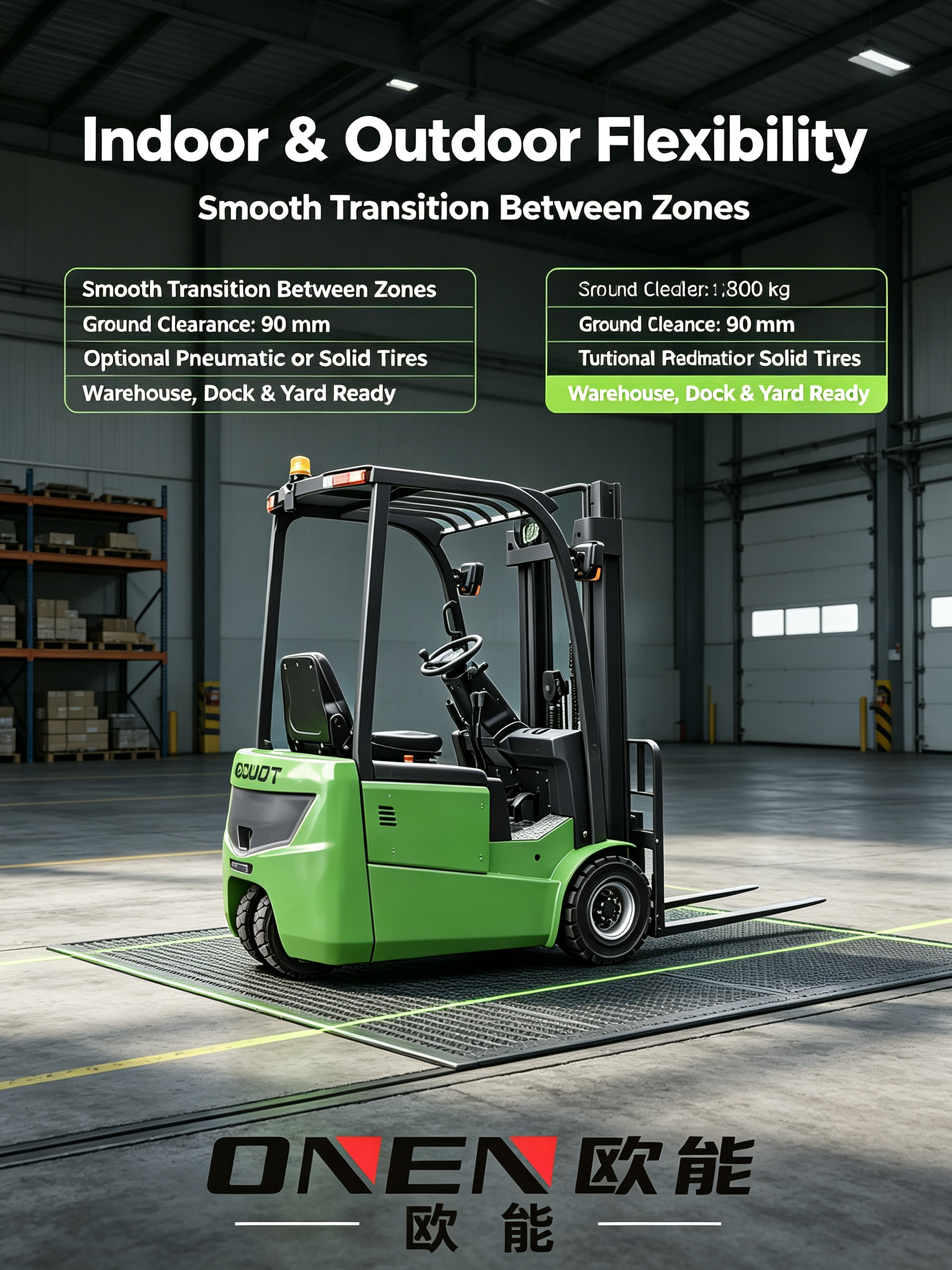

3. Indoor & Outdoor Flexibility While many compact electrics are confined to polished concrete, the CPDD-1830 is equipped for indoor/outdoor interchangeability. With 90 mm ground clearance and optional pneumatic or solid tires (18×7-8 front, 140/55-9 rear), it transitions smoothly from warehouse floors to asphalt yards, making it ideal for cross-dock operations and manufacturing campuses where indoor storage meets outdoor loading.

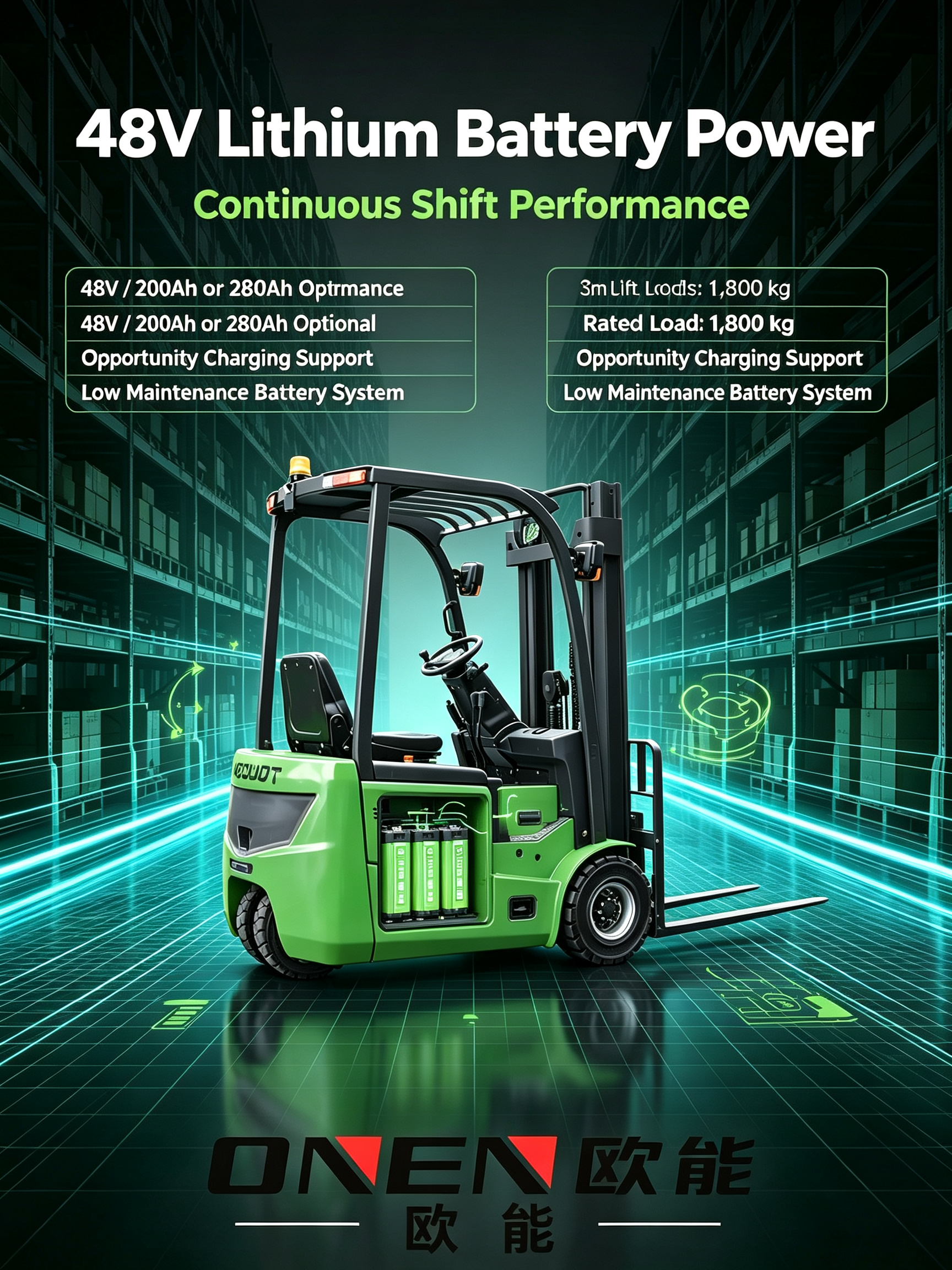

4. Lithium-Ion Ready for Continuous Shifts Power comes from a maintenance-free 48V lithium battery (200 Ah or 280 Ah optional), paired with a high-efficiency charger (48V/50A or 48V/100A). Compared to traditional lead-acid packs, the lithium system supports opportunity charging, extends cycle life, and eliminates watering or acid-leak hazards—keeping your fleet running across double shifts with minimal downtime.

Performance That Matches Your Pace

Speed and precision define the operator experience. The CPDD-1830 is driven by a 6 kW travel motor and a 4 kW lift motor, delivering:

• Travel Speed: 8.0 km/h laden / 9.0 km/h unladen

• Lift Speed: 184 mm/s laden / 194 mm/s unladen

• Lowering Speed: 186 mm/s laden / 179 mm/s unladen

• Gradeability: 10% (full load), ensuring confident ramp and dock plate transitions

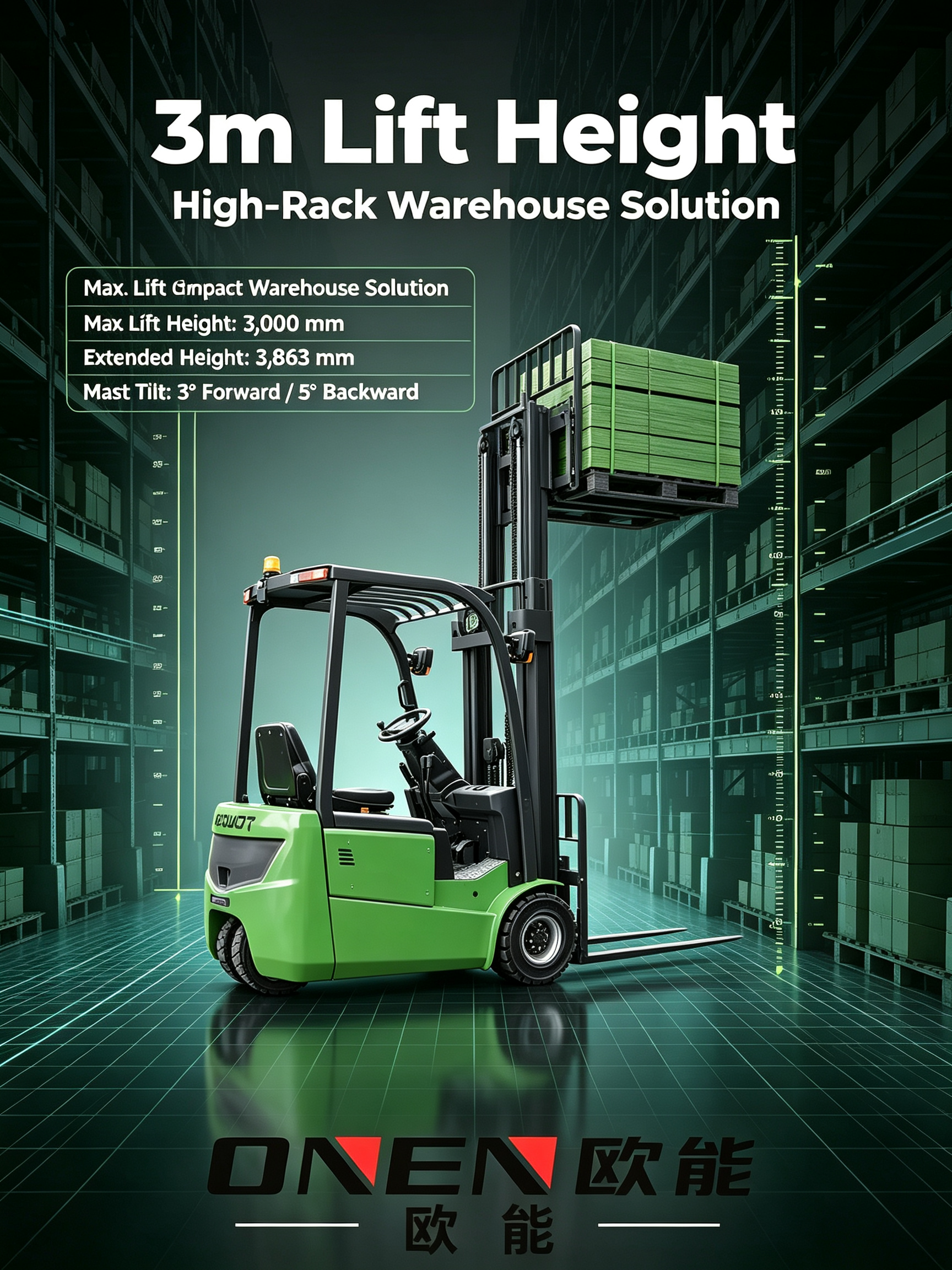

The seated operator station features an ergonomic suspension seat, intuitive hydraulic controls, and an overhead guard height of 1,992 mm—providing ample headroom while maintaining a maximum overall height of 2,075 mm for standard doorway and container clearance. The mast reaches a maximum extended height of 3,863 mm when the forks are at full lift, giving you the vertical reach to service high-rack warehouses without compromising overhead space.

Application Scenarios – Where the CPDD-1830 Excels

High-Rack Warehousing & Distribution Centers In facilities with limited aisle width but tall racking, the CPDD-1830’s compact body and 3 m lift height let you maximize vertical storage density without expanding your warehouse footprint.

Factory Floors & Production Lines The smooth electric drive and zero emissions make it perfect for just-in-time manufacturing environments. Transport raw materials to assembly stations or move finished goods to shipping docks with minimal noise and no exhaust contamination.

Retail & Wholesale Backrooms From supermarket distribution hubs to furniture showrooms, the truck’s tight turning radius navigates congested loading bays and narrow stockrooms where larger forklifts simply cannot operate.

Indoor/Outdoor Logistics Yards Use the same truck inside the warehouse and outside at the loading dock. The robust mast structure and weather-resistant electrical components handle the transition between climate-controlled storage and open-air yards with ease.

Built by a Manufacturer You Can Trust

When you source the CPDD-1830 from Guangdong ONEN New-resource Equipments Co., Ltd., you partner with a factory backed by 30 years of professional forklift production experience. Our commitment to quality is certified by:

• ISO 9001 Quality Management

• ISO 14001 Environmental Management

• ISO 45001 Occupational Health & Safety

• CE, RoHS, and SGS Compliance

• China Special Equipment Production License

• TX Type-Test Certificates

• Canton Fair Design Award recognition

Beyond three-point electrics, ONEN manufactures a full ecosystem of material handling equipment—including four-wheel electric forklifts, diesel forklifts, scissor lifts, reach trucks, pallet stackers, and walkie pallet trucks—allowing you to standardize your entire fleet under one trusted supplier.

Ready to Optimize Your Warehouse Density?

Stop compromising between lifting capacity and aisle space. The ONEN CPDD-1830 1.8T three-point electric forklift gives you 3-meter vertical reach, true counterbalance stability, and the compact agility to work where larger trucks cannot.

Factory-direct inquiries welcome. We offer customizable mast heights, battery capacities, tire configurations, and OEM branding to match your local market requirements. Contact Guangdong ONEN New-resource Equipments Co., Ltd. today for competitive volume pricing, shipping logistics, and after-sales support.
