ONEN 3T Electric Forklift, Lift 5.5m (CPDD-V-3055)
Advantages of ONEN 3-ton electric forklift 1.5.5-meter gantry height, suitable for various scenarios, with multiple gantry heights to choose from. 2. Free lifting height of 1779mm. 3. Low energy consumption and reduced maintenance costs. 4. Zero emissions, in line with environmental trends. 5. Low noise and vibration. 6. High performance lithium battery, supporting fast charging mode.
3.5-Ton Lithium Battery Forklift | 5.5 m Triplex Mast | 80V Fast-Charging System
Model: CPDD-V 3055 Rated Load: 3,500 kg (7,700 lb) Max. Lift Height: 5,500 mm (18 ft) Power Source: 80 V / 205 Ah Li-Ion Battery
Overview: Diesel Muscle, Electric Intelligence

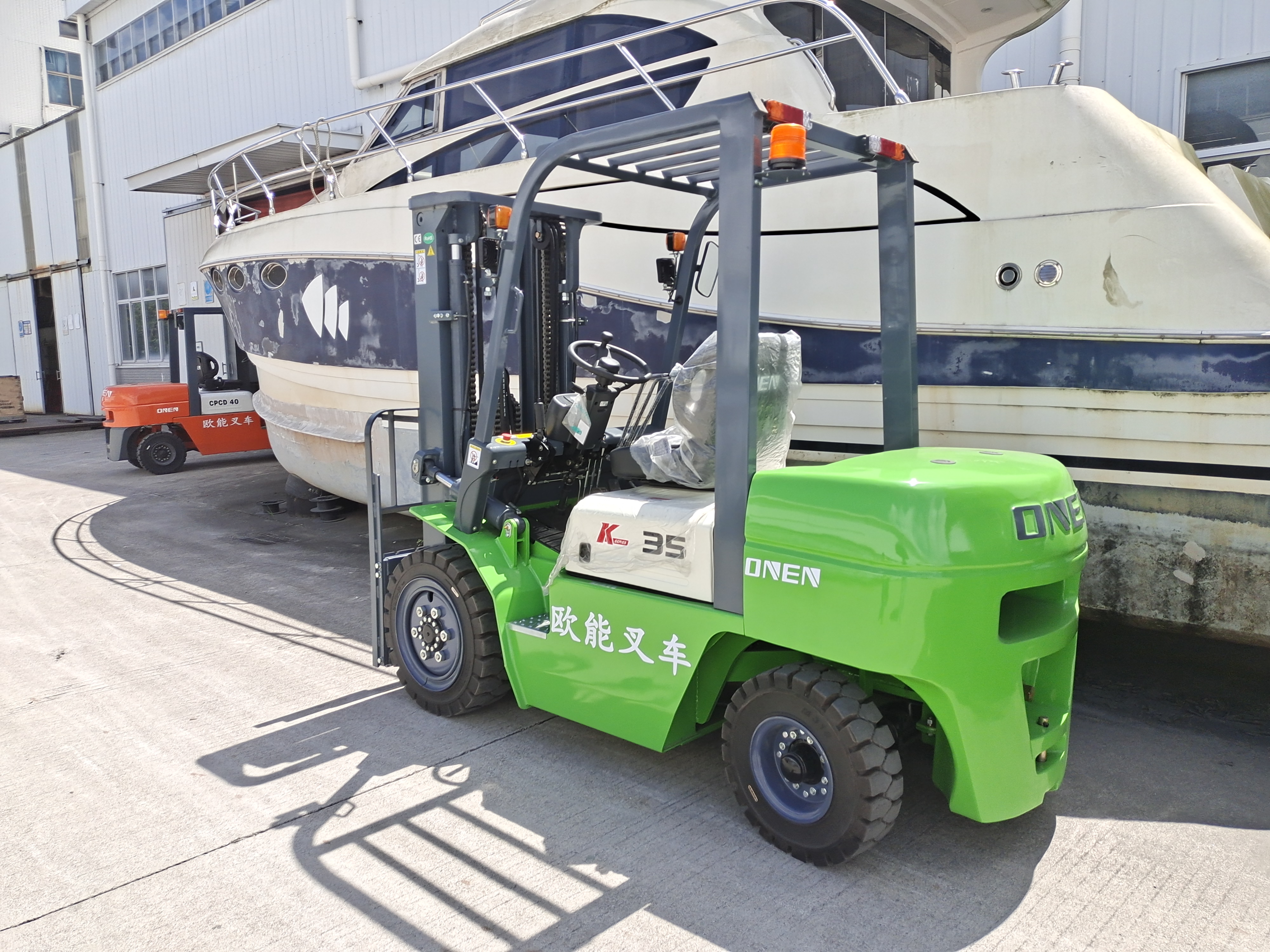

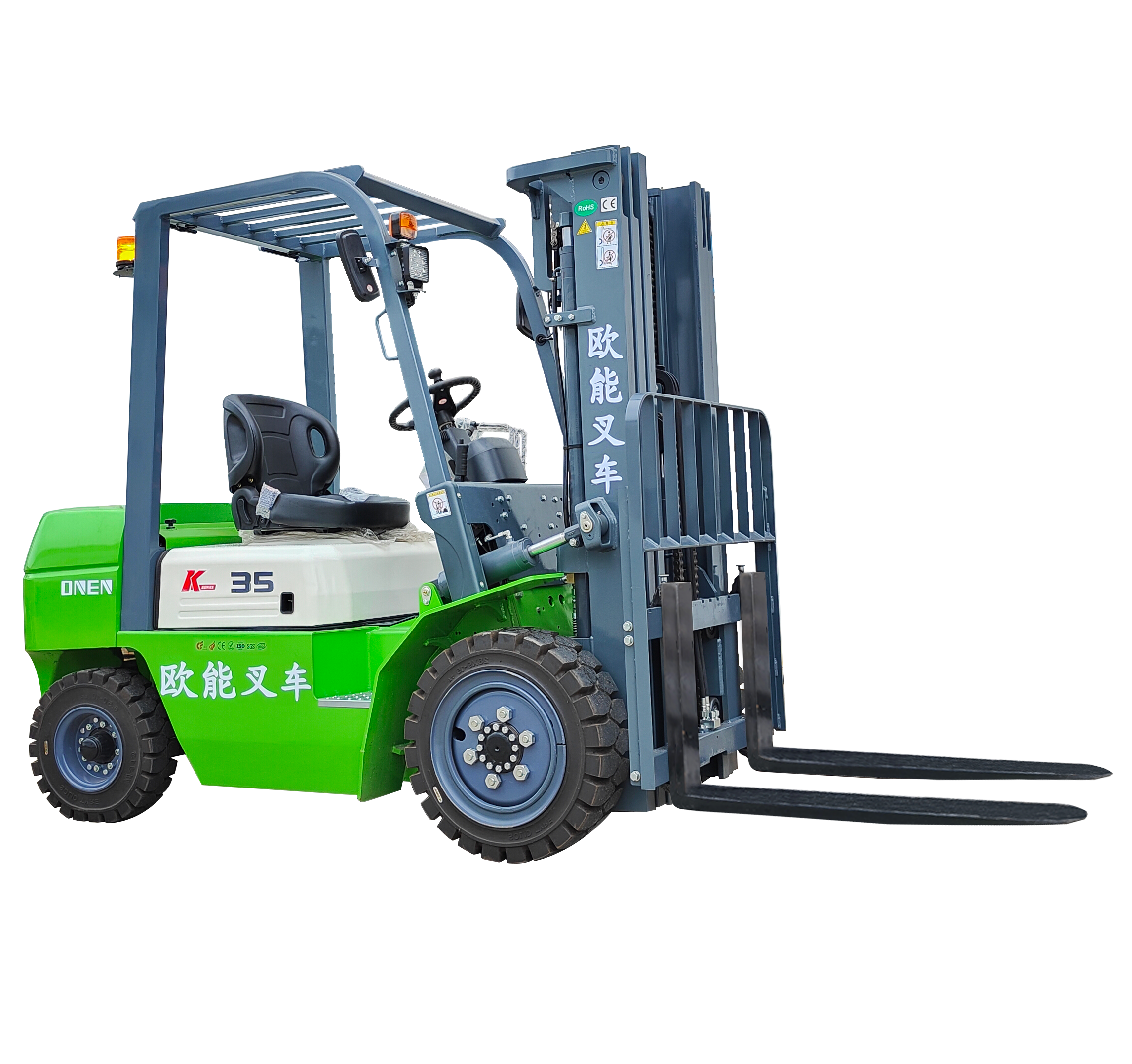

The ONEN CPDD-V 3055 is a heavy-duty counterbalanced electric forklift built for facilities that refuse to compromise on power or sustainability. With a 3.5-ton rated capacity and a 5.5-meter triplex mast, it handles full-size shipping containers, high-bay racking, and outdoor yard work with zero exhaust emissions and minimal noise. Whether you operate in a port terminal, a busy logistics park, or a manufacturing plant with indoor/outdoor cross-docking, the CPDD-V delivers the torque and runtime of an IC truck—without the fuel bills or maintenance headaches.
What Makes the CPDD-V 3055 Stand Out
1. High-Voltage Lithium Powertrain — Work Longer, Charge Faster At the heart of the CPDD-V is an 80 V / 205 Ah automotive-grade lithium battery with an intelligent BMS. Unlike traditional lead-acid packs, this system supports fast charging via an 80 V / 100 A charger, allowing opportunity charging during lunch or shift breaks. The battery is completely sealed and maintenance-free—no watering, no acid leaks, no fumes. A side-pull battery compartment (visible when the rear hood is opened) also enables quick swap-outs for true 24/7 multi-shift operations.

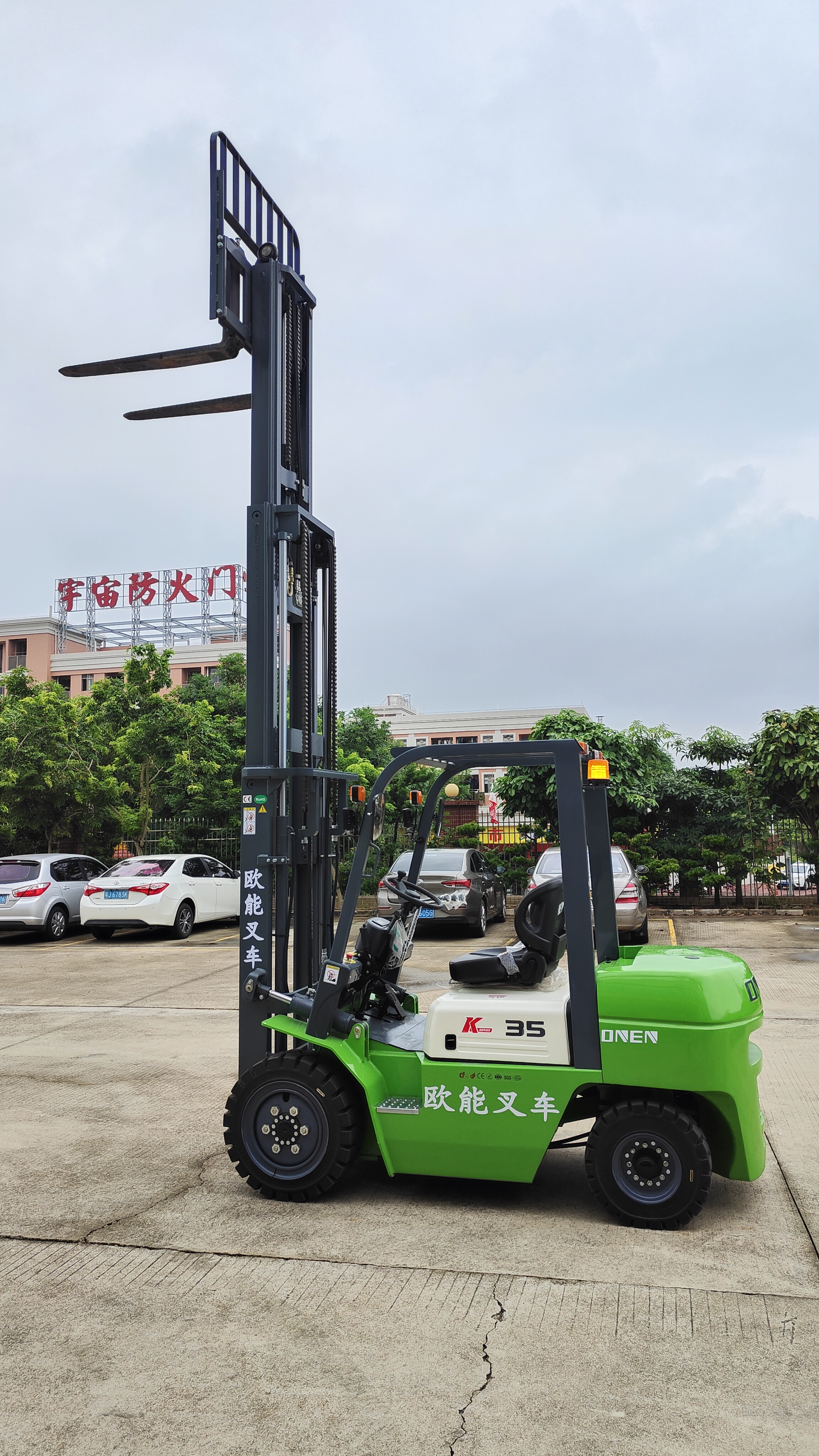

2. 5.5 m Mast with Free Lift — Built for Vertical Density The triplex full-free lift mast reaches 5,500 mm while offering a 130 mm free-lift stage, letting you raise loads just enough to clear container door frames or low-clearance entrances before deploying the full outer stages. The mast carriage tilts 6° forward and 12° backward, giving operators precise control when picking uneven palletized goods or driving across sloped yards. A reinforced plate-chain lifting system and thick forged fork carriages ensure the mast remains stable even at maximum extension under full rated load.
3. All-Terrain Versatility — Pavement, Concrete, or Packed Gravel Thanks to its counterbalanced chassis and four-wheel support layout, the CPDD-V maintains excellent traction on paved port surfaces and factory concrete alike. Choose between solid rubber tires (puncture-proof for debris-heavy environments) or pneumatic tires (smoother ride over uneven outdoor yards). With 15% gradeability and a high ground-clearance design, it transitions easily from warehouse floors to loading ramps and outdoor storage yards.
4. Agile for Its Class — 2,500 mm Turning Radius Despite its 3.5-ton capacity, the CPDD-V offers a tight 2,500 mm turning radius—comparable to many 2.5-ton units. That means fewer three-point turns in narrow aisles, better maneuverability inside standard shipping containers, and safer operation in congested loading bays.

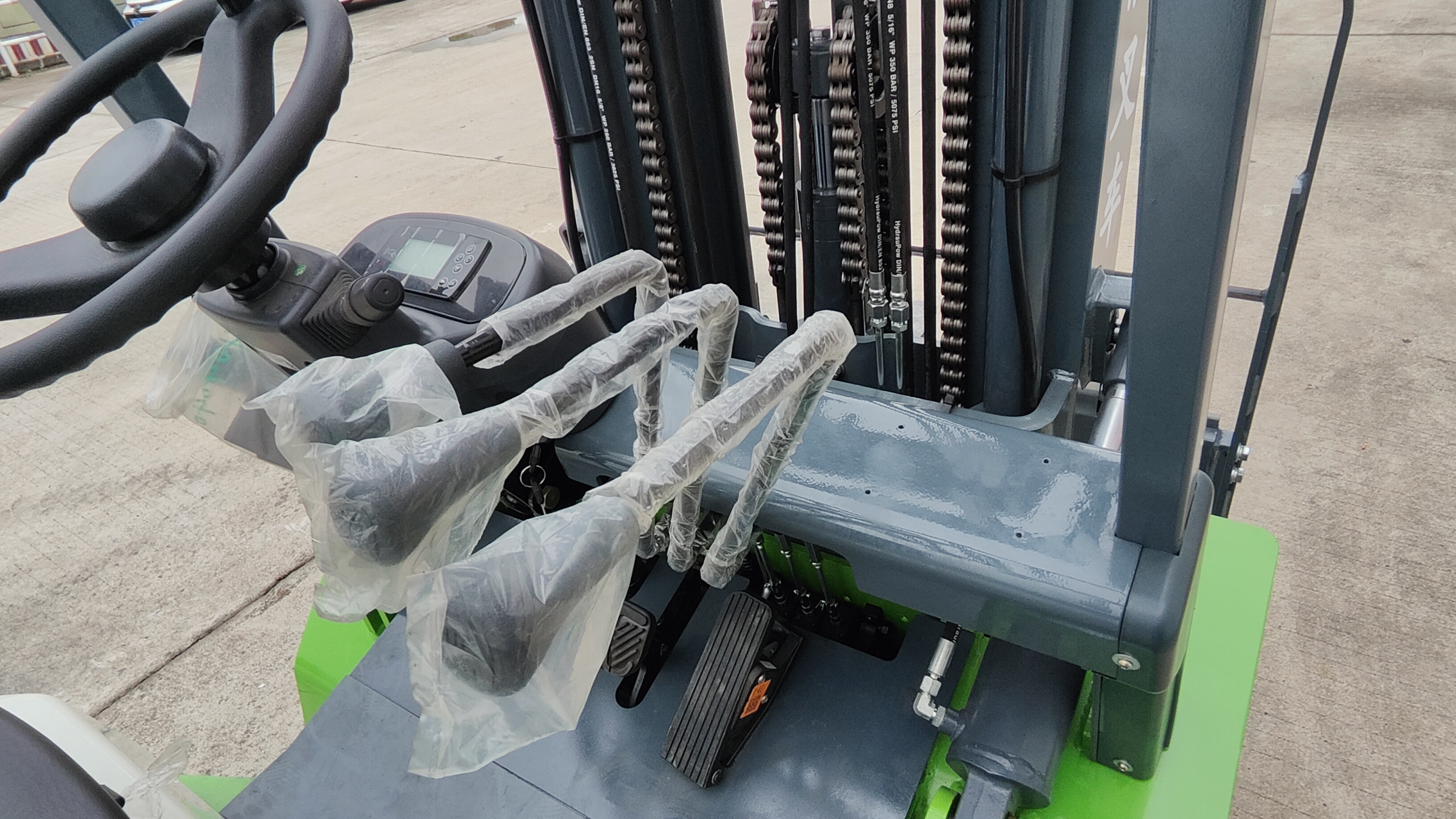

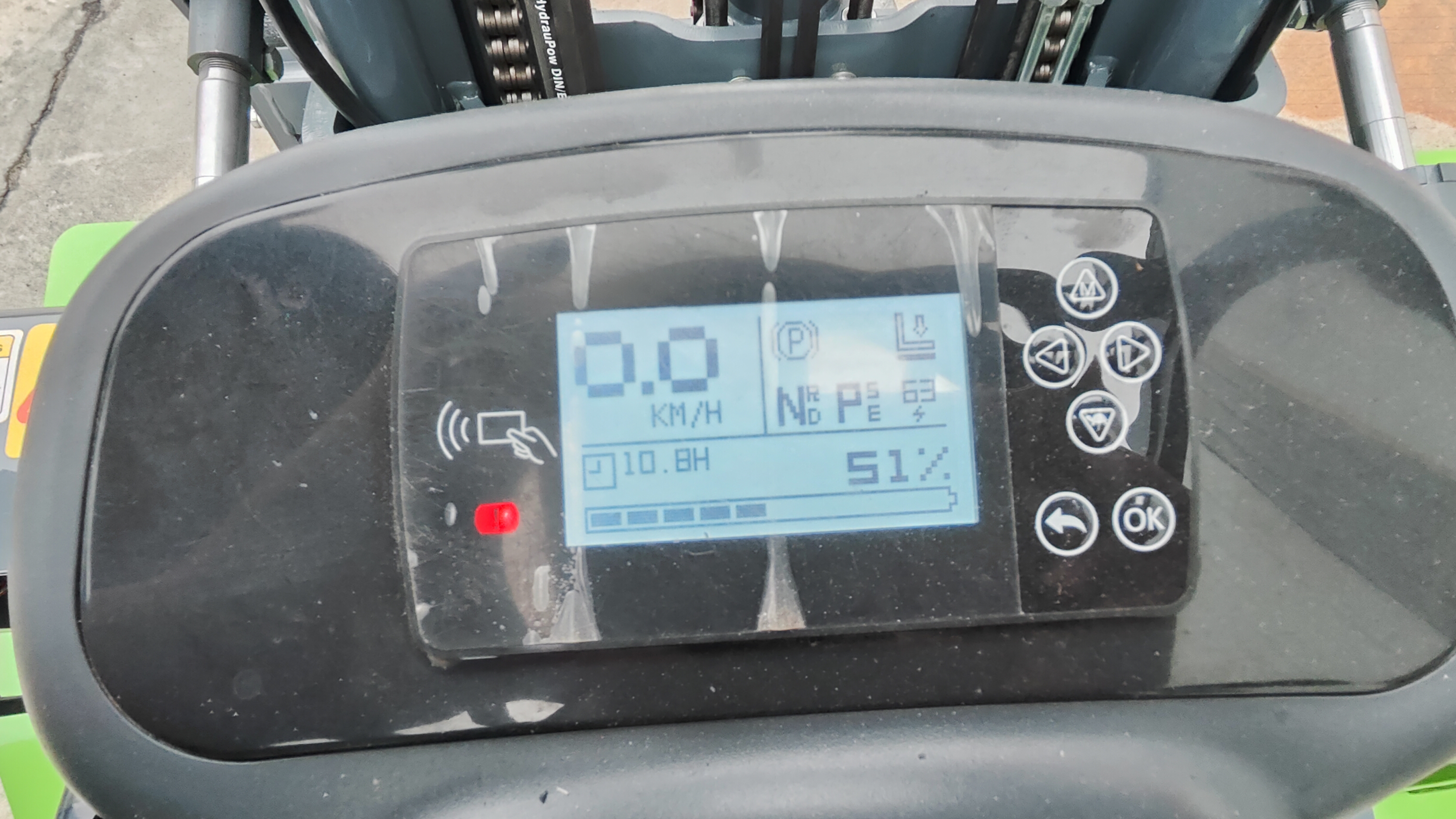

5. Operator-Centric Cockpit The seated operator station features an ergonomic steering wheel, fingertip hydraulic controls, and a digital LCD instrument cluster that displays real-time speed, battery state-of-charge, hour meter, and fault codes at a glance. An emergency-stop button is positioned within immediate reach, and the low-step entry design reduces operator fatigue during repeated on/off cycles.
Technical Specifications
Item
Specification
Model
CPDD-V 3055
Configuration No.
3055
Power Type
Electric (Li-Ion)
Operation Type
Seated
Load Capacity
3,500 kg
Load Center Distance
500 mm
Wheelbase
1,700 mm
Tire Type
Solid Tires / Pneumatic Tires (Optional)
Front Tire Size
28×9-15-14PR
Rear Tire Size
6.5-10-10PR
Mast Lowered Height
≈ 2,670 mm (varies by mast spec)
Free Lift
130 mm
Lift Height
5,500 mm
Full Height at Max. Lifting
≈ 6,674 mm
Mast Tilt (Forward / Backward)
6° / 12°
Overall Length (Without Forks)
2,760 mm
Overall Width
1,220 mm
Turning Radius
2,500 mm
Aisle Width (1,000×1,200 mm Pallet)
4,080 mm
Max. Travel Speed (Laden / Unladen)
13 / 14 km/h
Max. Lift Speed (Laden / Unladen)
280 / 400 mm/s
Max. Lowering Speed (Laden / Unladen)
390 / 380 mm/s
Gradeability (Laden / Unladen)
15% / 15%
Battery Voltage / Capacity
80 V / 205 Ah
Battery Charger
80 V / 100 A
Where the CPDD-V Excels
Application
Why It Fits
Port & Container Yards
High ground clearance, solid-tire option, and 5.5 m lift allow stacking and destuffing in open-air terminals.
Logistics & Distribution Centers
Zero emissions enable indoor/outdoor cross-docking; fast charging keeps fleets running through multiple shifts.
Factory Workshops & Manufacturing
Low noise and no exhaust protect clean production environments; thick forks handle raw materials and finished goods.
Warehouse & High-Bay Storage
5.5 m reach plus mast tilt provides safe, precise placement on elevated racking systems.
Built by a Manufacturer You Can Trust
ONEN (Guangdong ONEN New-resource Equipments Co., Ltd.) operates under the Zhonghu Group with 30 years of dedicated forklift production experience. The CPDD-V series is manufactured in an ISO 9001, ISO 14001, and ISO 45001 certified facility, and carries CE, RoHS, and SGS approvals alongside China Special Equipment Production Licenses. From electric counterbalanced trucks to diesel forklifts, reach trucks, scissor lifts, and pallet stackers, ONEN offers a full spectrum of material handling solutions—backed by in-house R&D, robotic welding lines, and a global parts-support network.
Ready to Electrify Your Fleet?
Get a tailored quote for the CPDD-V 3055 lithium battery forklift today. We welcome factory inspections, offer OEM/ODM color and branding options, and can configure mast heights, fork lengths, and attachments to match your exact operational requirements.
