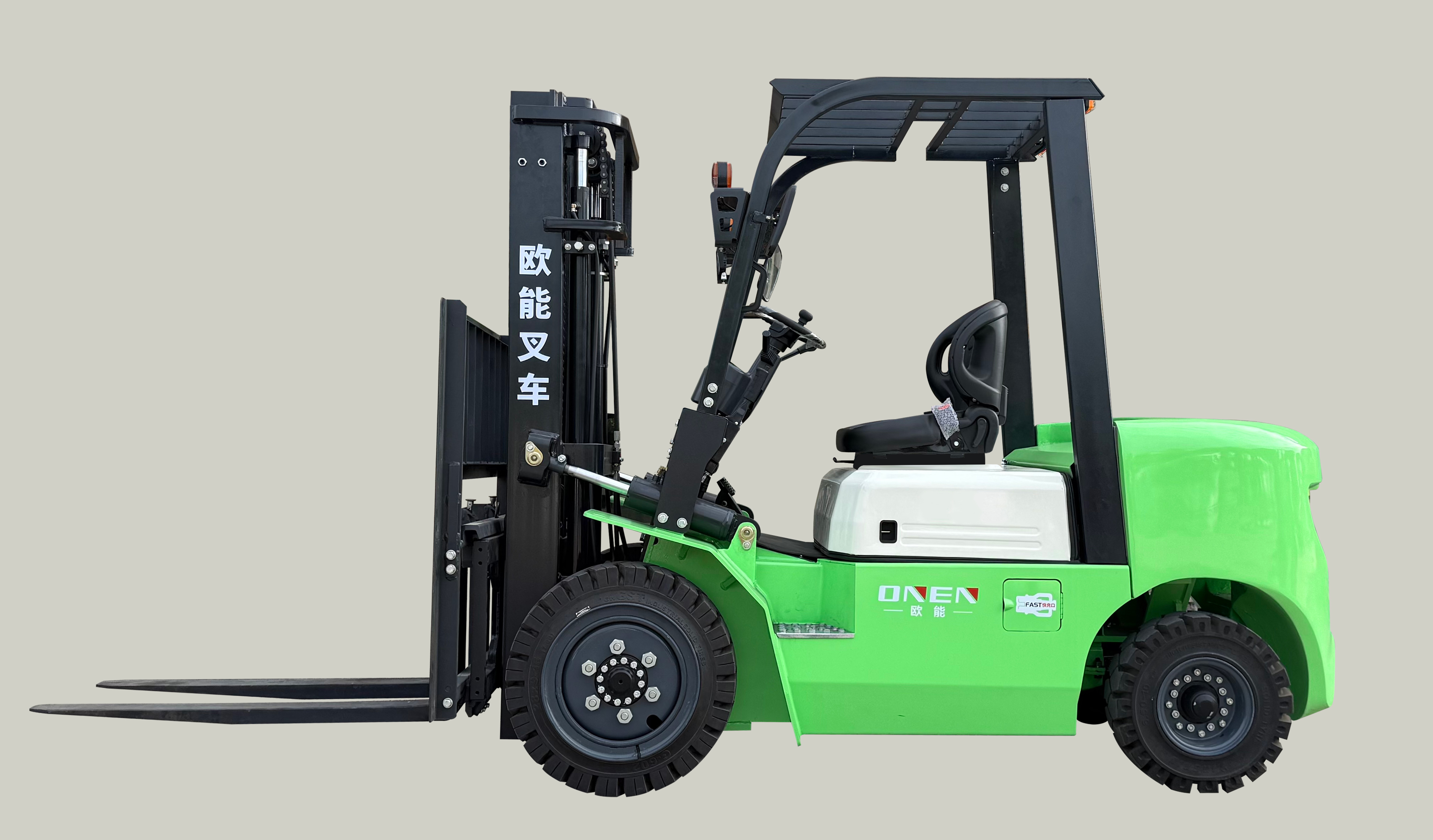

Counterbalanced Electric Forklift CPDD-V 3550, 3500kg, 5000mm, 80VLi-Ion

Share to:

Counterbalanced Electric Forklift CPDD-V 3550, 3500kg, 5000mm, 80VLi-Ion

Name: Counterbalanced Electric Forklift CPDD-V 3550, 3500kg, 5000mm, 80VLi-Ion
Brand: ONEN
Rating: 5.0 (8 reviews)

Application

The CPDD-V forklift (with a load capacity of 3.5 tons and a lifting capacity of 5 meters) is particularly suitable for indoor and outdoor use scenarios such as warehousing and logistics, manufacturing workshops, and ports due to its compact design.
The overall width of the vehicle is only 1220mm, and with a small turning radius of 2500mm, it can flexibly shuttle between narrow shelves or limited factory passages for high-level stacking. The vehicle is equipped with an 80V/205Ah high-capacity lithium battery, which not only has zero emissions and low noise, but also meets the high environmental requirements of workshop operations. It also has fast charging and maintenance free characteristics, making it suitable for multiple shifts of continuous operation. In addition, its 15% climbing ability and solid tire options can also handle slopes within the factory area and some rough outdoor ground conditions with ease.

Availability:



Inquire Add to Basket

Model:
CPDD-V-3550
Brand:
ONEN
Name:
Lithium forklift
Power form:
Electric
Load Capacity:
3.5T
Driving Style:
Seated
Load Center:
500mm
Wheel Type:
Pneumatic Tire / Solid Core Tire
lift height:
5m
Fork Length:
1070mm
Turning Radius:
2500mm
Battery:
Lithium Battery
Use Tray Type:
Single Sided Tray, Double Sided Tray
Voltage/Capacity:
80V/205Ah
Charger:
80V/100A
Customization:
support
After-Sales Service:
Warranty for one year or 2000 hours (5-year warranty for lithium batteries)
Certification:
CE/RoHS/SGS

Product Description

CPDD-V-3550

About the CPDD-V-3550

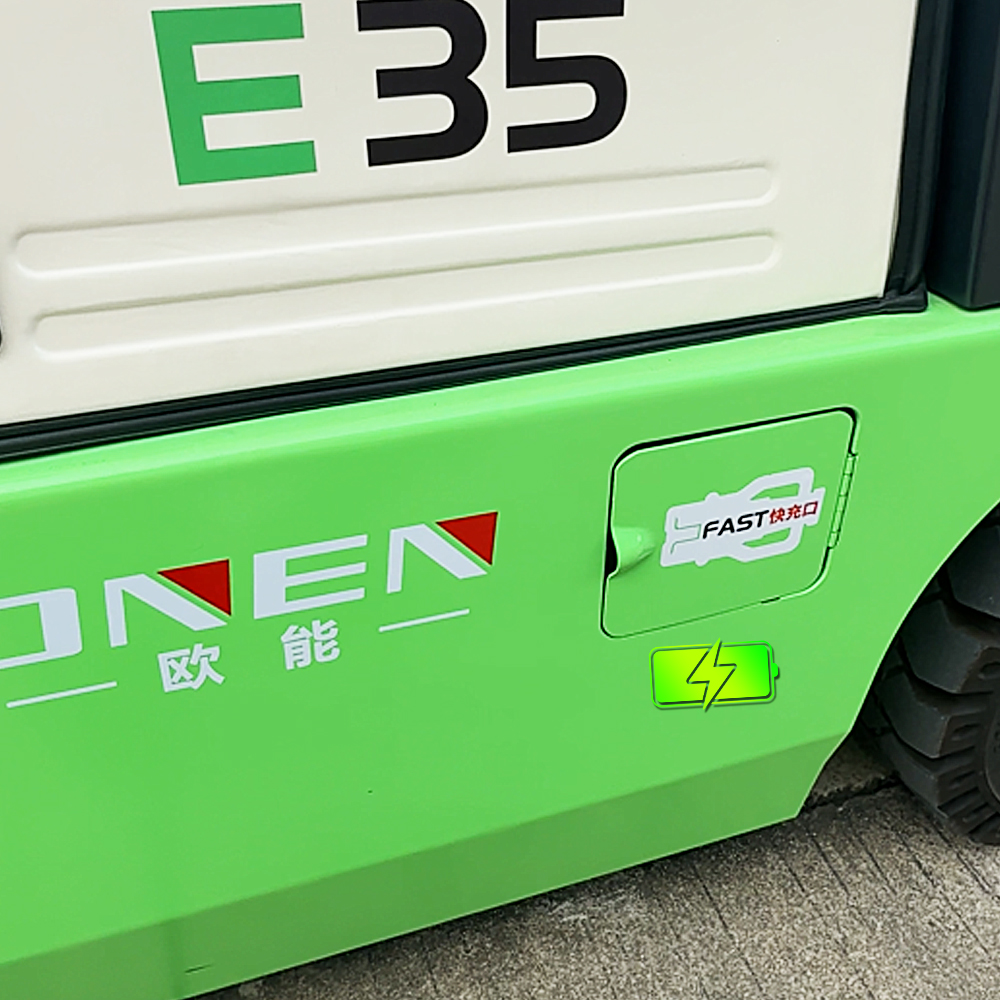

CPDD-V-3550 is a 3.5-ton balanced electric forklift with a vehicle mounted design and an 80V/205Ah lithium battery system. It has long endurance and fast charging capabilities, and is maintenance free, effectively reducing maintenance costs.

The forklift is equipped with a 5-meter gantry as standard, with a maximum lifting height of 5000mm, a full load driving speed of 13km/h, and a climbing ability of 15%, capable of performing slope operations under heavy load conditions. Its turning radius is 2500mm, the vehicle width is 1220mm, the structure is compact, and it has good turning flexibility in narrow warehouses and logistics parks. In addition, this model supports the selection of solid core tires to cope with complex ground environments, making it an efficient and environmentally friendly material handling equipment.

Specs

Core specifications for the CPDD-V-3550.

1	Model		CPDD-V
2	Configuration No.		3550
3	Power type		Electric
4	Operation type		Seated
5	Load capacity	kg	3500
6	Load center distance	mm	500
7	Wheels type		Pneumatic tires/Solid tires(Optional)
8	Tyre size (Front)		28×9-15-14PR
9	Tyre size (Rear)		6.5-10-10PR
10	Mast lowered height	mm	2420
11	Free lift	mm	1629
12	Lift height	mm	5000
13	Full height at maximum lifting	mm	6174
14	Tilt of mast carriage (Forward/Backward)	°	6/12
15	Overall length（Without forks）	mm	2760
16	Overall width	mm	1220
17	Turning radius	mm	2500
18	Aisle width for pallets 1000×1200	mm	4080
19	Maximum Travel speed (Laden/Unladen)	km/h	13/14
20	Maximum Lift speed (Laden/Unladen)	mm/s	280/400
21	Maximum Lowering speed (Laden/Unladen)	mm/s	390/380
22	Gradeability (Laden/Unladen)	%	15/15
23	Voltage/Capacity of lithium battery	V/Ah	80/205
24	Lithium battery charger	V/A	80/100
