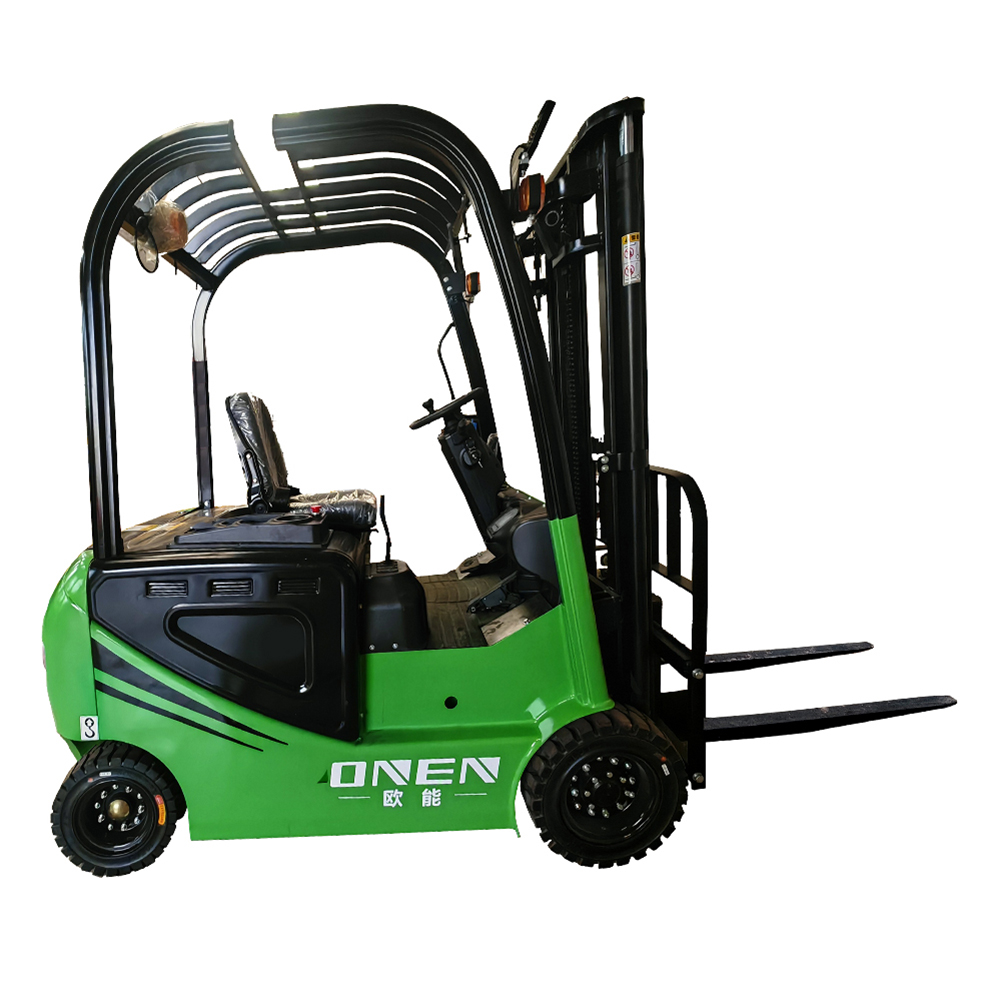

CPDD-2030 2 Ton Electric Forklift | 3m Lift Lithium Counterbalance Forklift
Model: CPDD-2030 Rated Load: 2,000 kg (4,400 lb) Max. Lift Height: 3,000 mm (10 ft) Drive Type: 2WD Seated Operation Power: 80V / 230Ah Lithium Battery Tires: Solid or Pneumatic (18×7-10 Front / 16×6-8 Rear)
Product Overview
When indoor material handling demands zero emissions, whisper-quiet operation, and aisle agility, the ONEN CPDD-2030 delivers a clean, powerful solution. This 2-ton lithium electric counterbalanced forklift is purpose-engineered for confined spaces—thriving on factory floors, in small-to-medium warehouses, and throughout high-density racking systems where every inch of aisle width matters.
Unlike bulky IC forklifts, the CPDD-2030 produces no exhaust and minimal noise, making it ideal for food processing, pharmaceutical storage, retail distribution, and any environment with strict air-quality standards. Its compact footprint and tight turning circle translate to faster cycle times in narrow corridors, while the 3-meter three-stage mast unlocks full vertical storage potential.
Key Features & Competitive Advantages

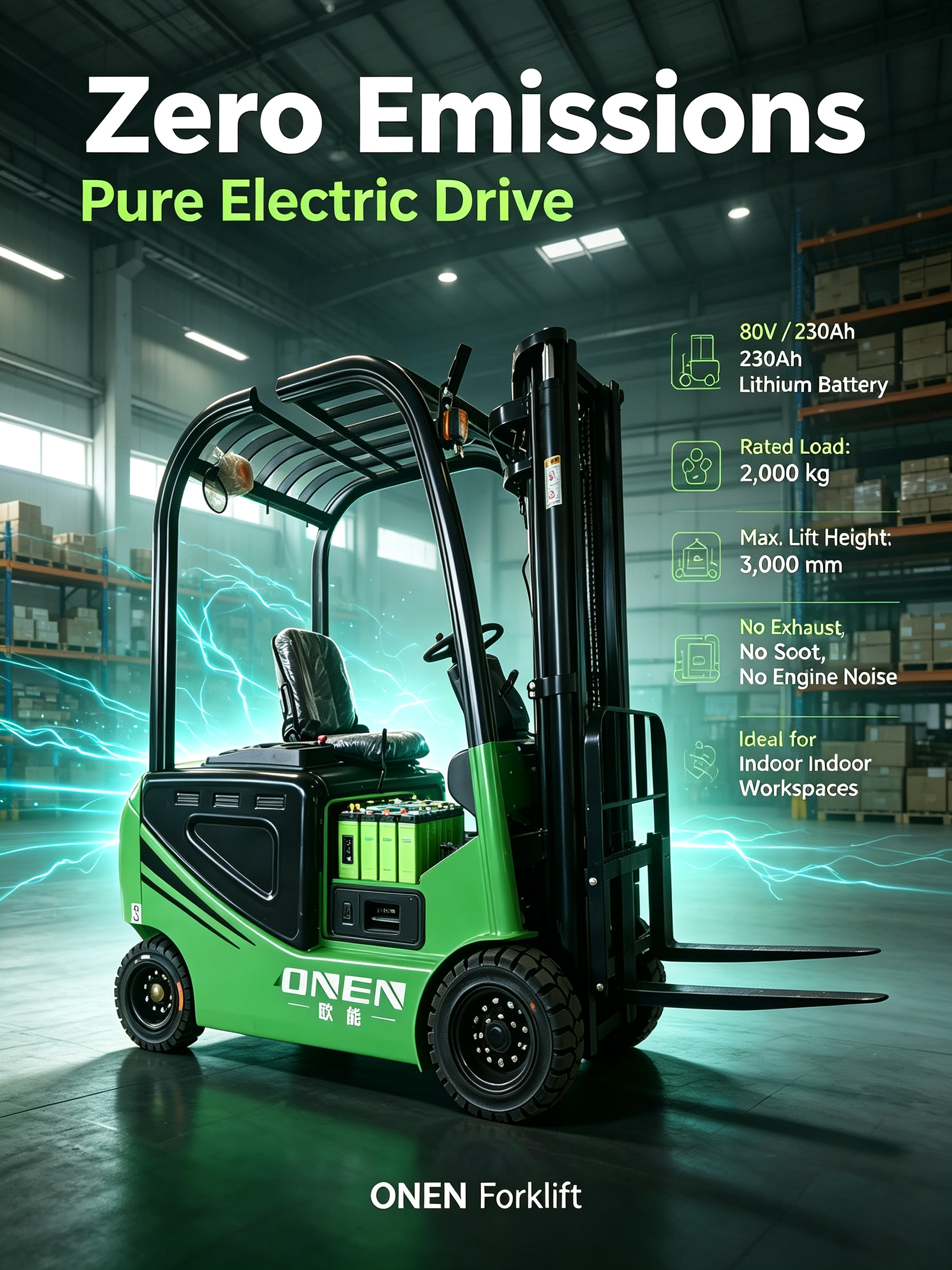

1. Pure Electric Drive – Zero Emissions, Zero Compromise
Powered by an 80V / 230Ah lithium battery pack, the CPDD-2030 eliminates fumes, soot, and engine noise from your workspace. The sealed electric drivetrain is perfect for:
Indoor manufacturing lines where air quality is regulated
Cold-storage and food-handling facilities
Multi-shift operations with opportunity charging
With a matched 80V / 100A charger, the battery supports fast turnaround between shifts, reducing downtime compared to traditional lead-acid setups.

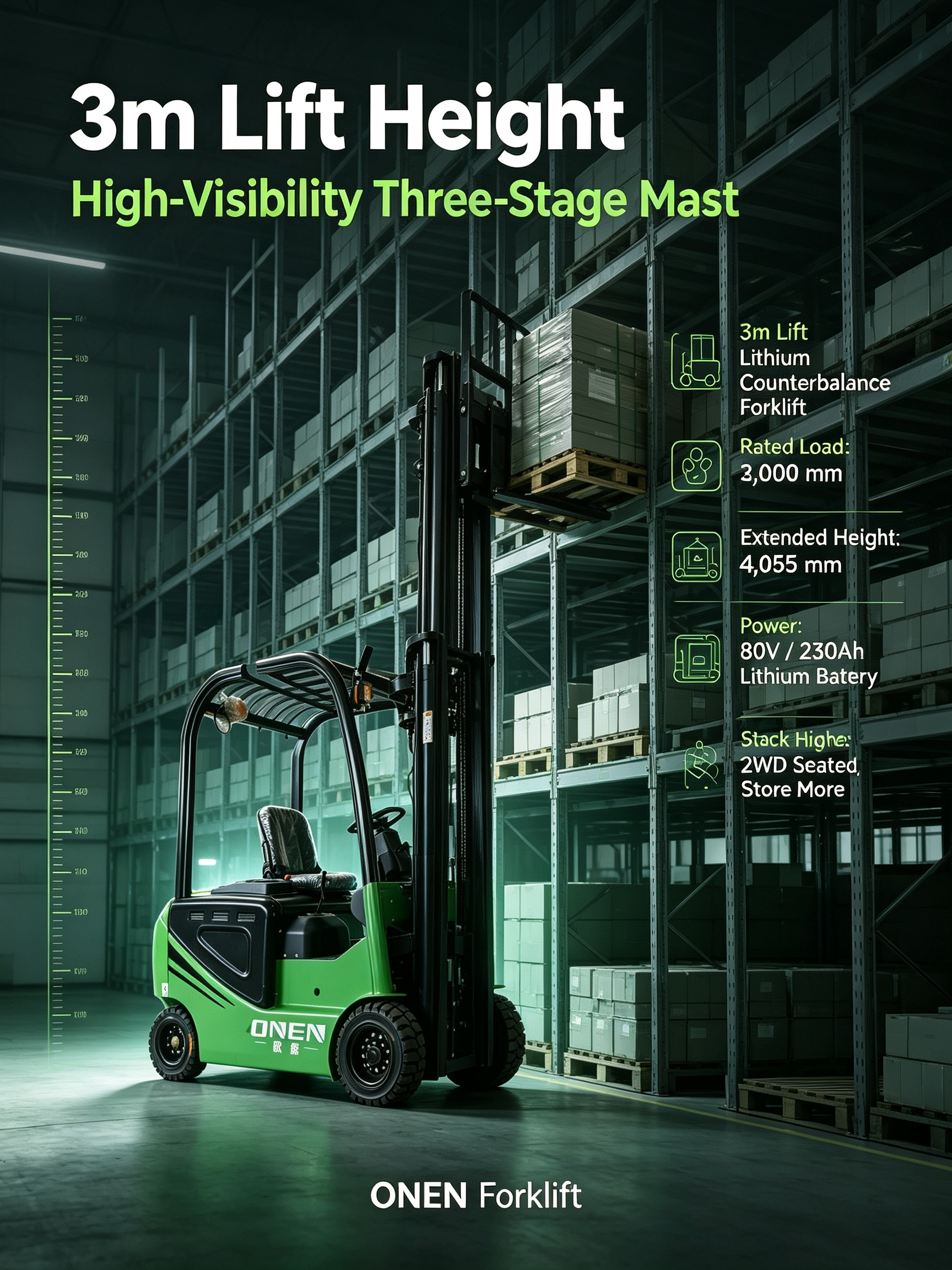

2. 3-Meter Mast for Maximum Vertical Utilization
The high-visibility three-stage mast reaches 3,000 mm (H1) with an extended height of 4,055 mm (H2), allowing operators to stack two standard pallets high or access elevated shelving with confidence. The mast lowered height of 2,030 mm ensures the truck can pass through standard doorways and low-clearance areas when retracted.

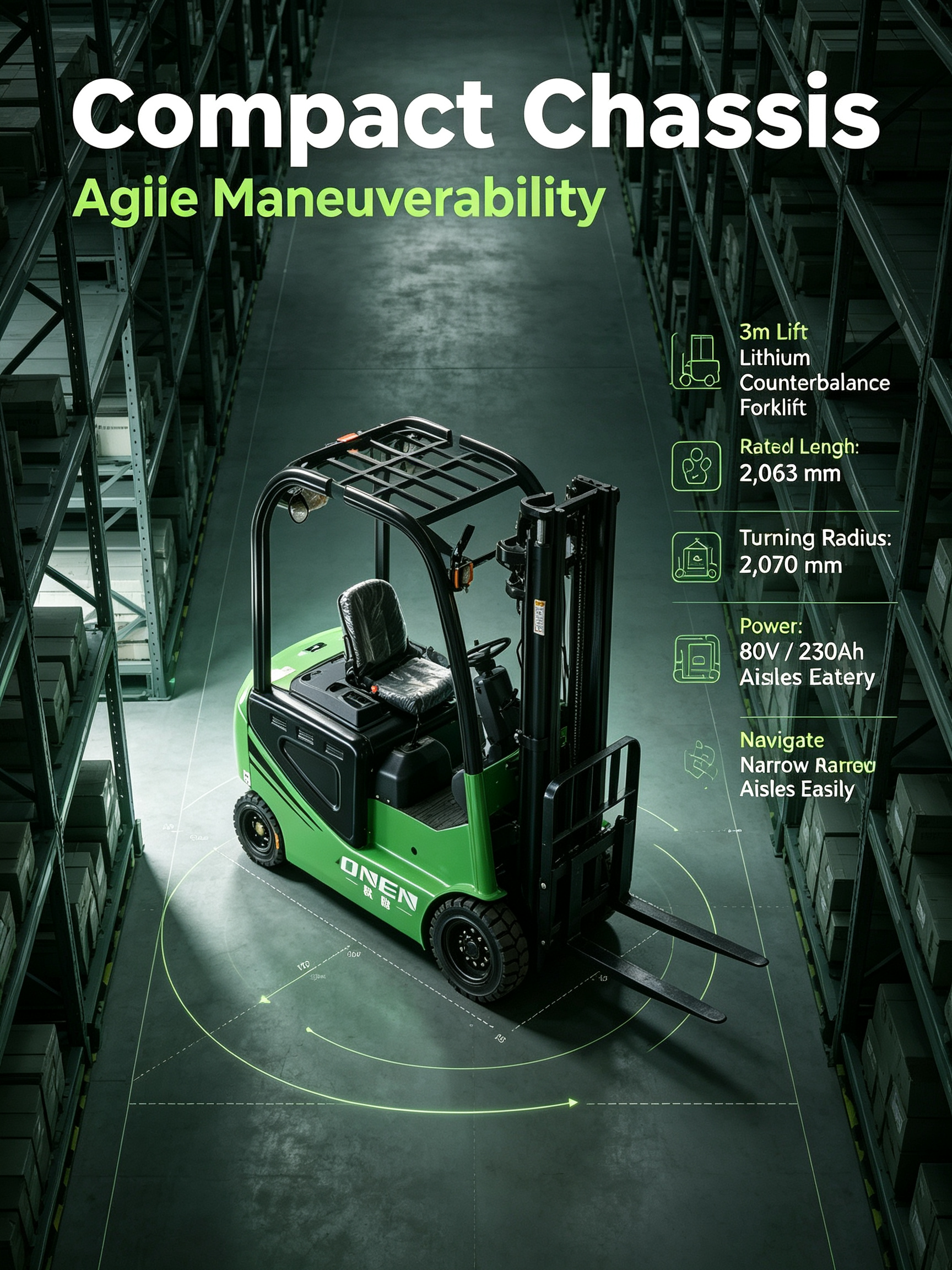

3. Compact Chassis & Agile Maneuverability
With an overall length of just 2,063 mm (without forks) and a turning radius of 2,070 mm, the CPDD-2030 navigates narrow aisles and congested loading bays that would stop larger trucks. The 1,430 mm wheelbase and balanced weight distribution (2,710 kg service weight) provide stable cornering without sacrificing the tight footprint essential for space-constrained facilities.

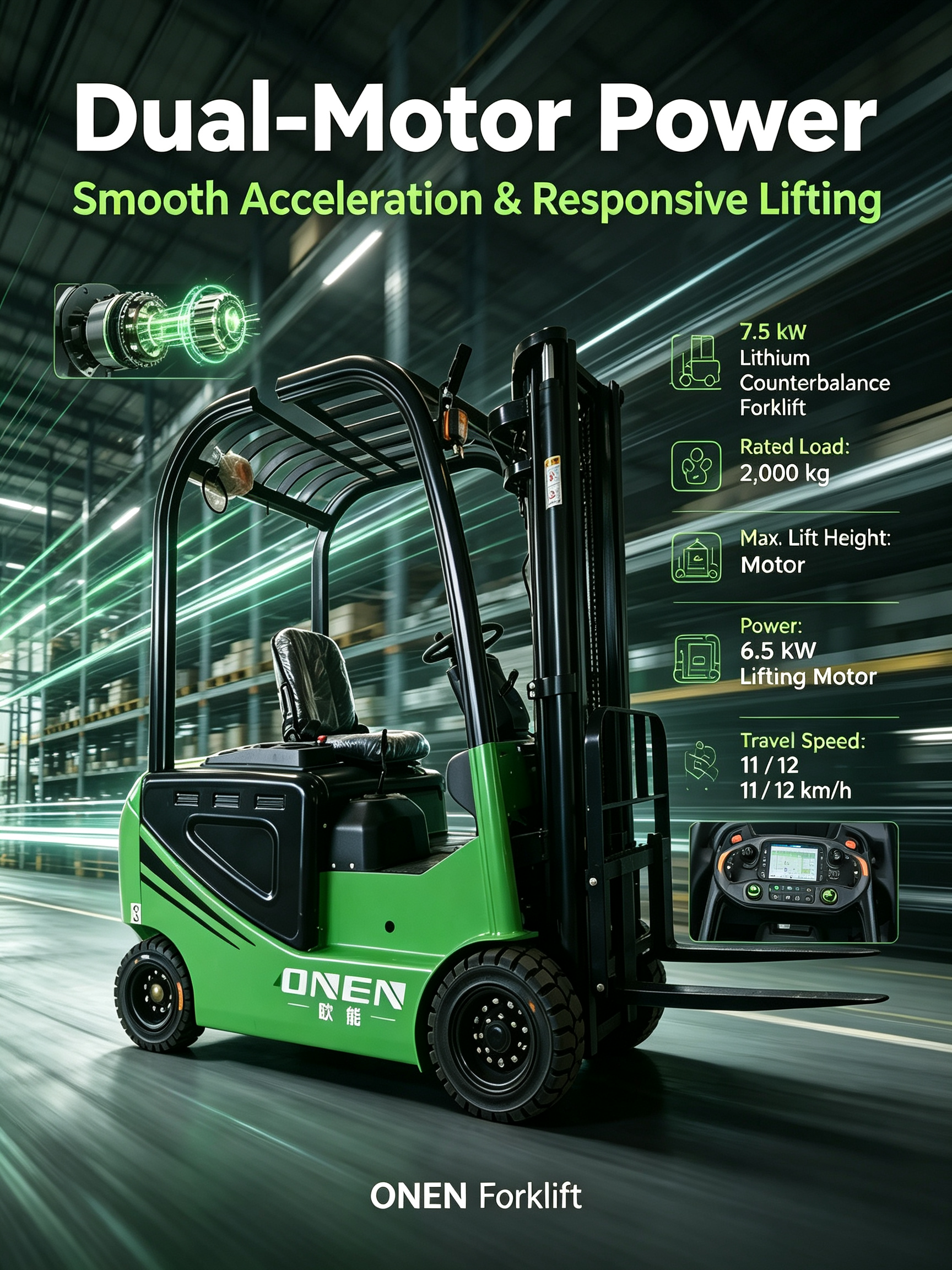

4. Dual-Motor Performance for Precise Control
The CPDD-2030 is driven by a 7.5 kW traction motor and a 6.5 kW lifting motor, delivering smooth acceleration and responsive hoisting. Travel speeds of 11 km/h laden / 12 km/h unladen keep productivity high, while a gradeability of 12% laden / 15% unladen handles ramp transitions between dock and warehouse floor.

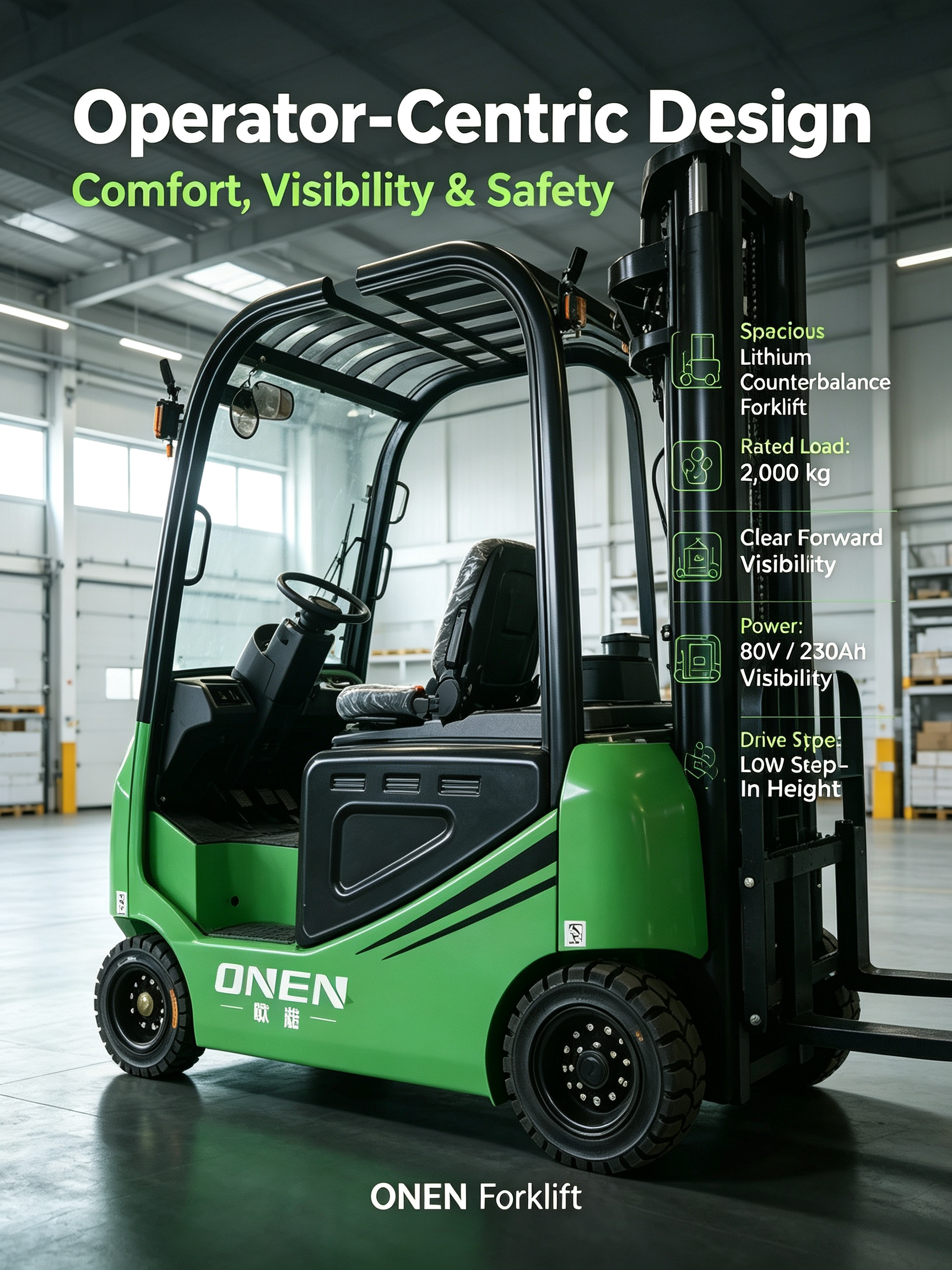

5. Operator-Centric Ergonomics & Safety
The ergonomically designed seated cabin features an overhead guard height of 2,110 mm and excellent forward visibility through the mast. Intuitive controls, a low step-in height, and a compact steering wheel reduce operator fatigue during repetitive loading, unloading, stacking, and short-distance transfer tasks.

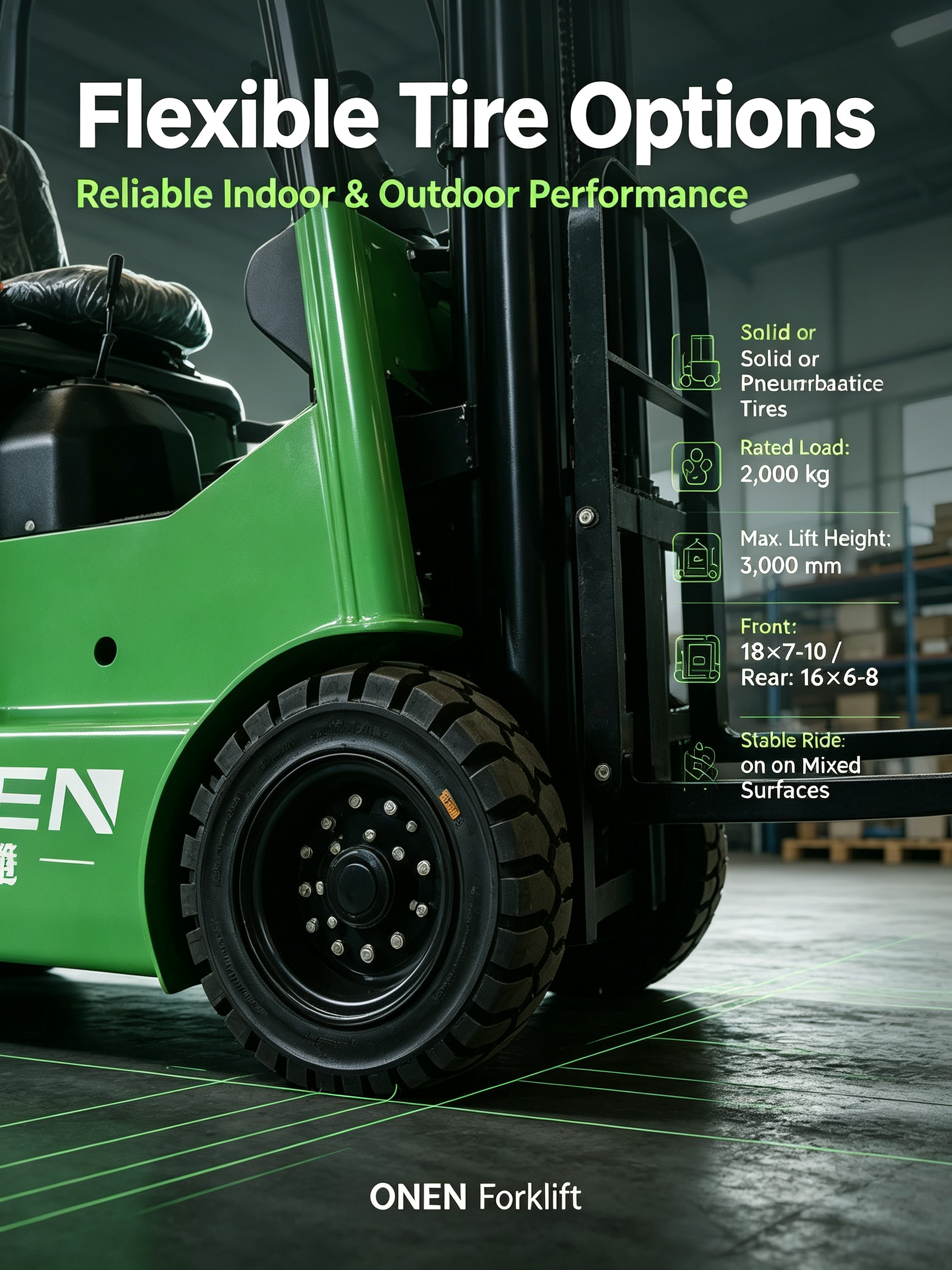

6. Flexible Tire Options for Mixed Surfaces
Choose solid rubber tires for puncture-proof indoor reliability, or pneumatic tires for operations that occasionally transition to outdoor paved yards. Front tire spec 18×7-10 and rear 16×6-8 provide a stable, cushioned ride while maintaining the low ground clearance (88 mm below mast) needed for smooth dock plate entry.

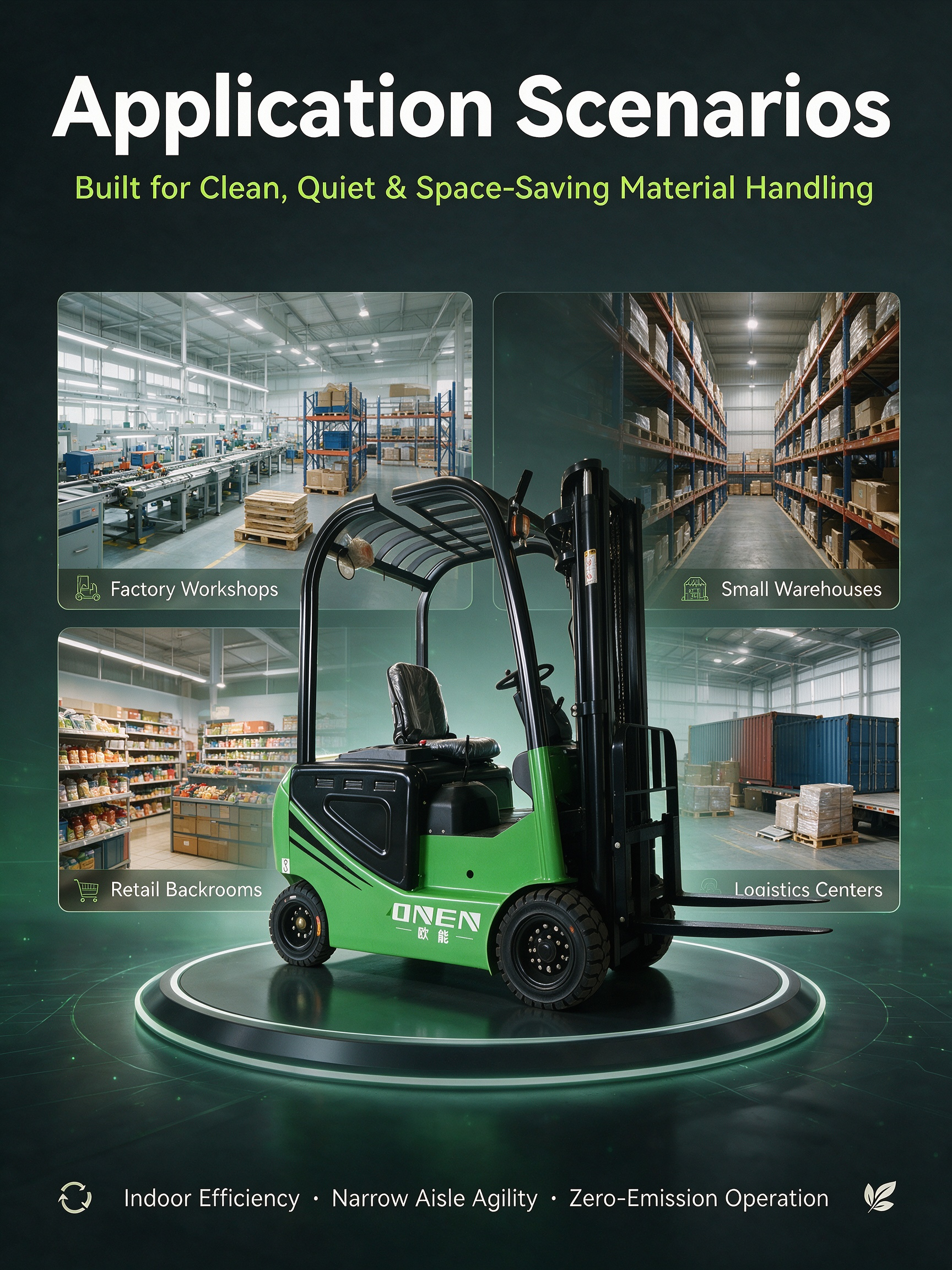

Application Scenarios
The CPDD-2030 is the go-to electric forklift for facilities where space, silence, and cleanliness are priorities:
Factory Workshops & Assembly Lines – Transport components between production stations without noise or exhaust interference.
Small & Medium Warehouses – Maneuver narrow aisles and maximize vertical storage with the 3m lift.
Retail & Supermarket Backrooms – Handle palletized inventory in enclosed spaces near customers and staff.
Logistics & Distribution Centers – Execute rapid loading, unloading, and short-distance transfers in congested dock areas.
Food, Pharma & Cold Storage – Meet strict indoor environmental standards with zero-emission electric power.
Why Source from ONEN?
Guangdong ONEN New-resource Equipments Co., Ltd. has spent three decades refining forklift design and manufacturing. When you partner with ONEN, you gain:
Complete Certifications: ISO 9001, ISO 14001, ISO 45001, CE, RoHS, and SGS.
Licensed Manufacturing: China Special Equipment Production License and TX type-test certificates.
Award-Winning Design: Recognized with the Canton Fair Design Award.
Full Product Ecosystem: From electric and diesel forklifts to scissor lifts, reach trucks, pallet stackers, and walkie pallet trucks—standardize your entire fleet with one trusted supplier.
Ready to Electrify Your Fleet?
Get a factory-direct quotation for the ONEN CPDD-2030 2-ton electric forklift today. We welcome factory inspections and can customize fork lengths, mast heights, tire types, and battery configurations to match your operational needs and local regulations.
Contact Guangdong ONEN New-resource Equipments Co., Ltd. now to discuss volume pricing, shipping logistics, dealer partnerships, and after-sales support for your market.
