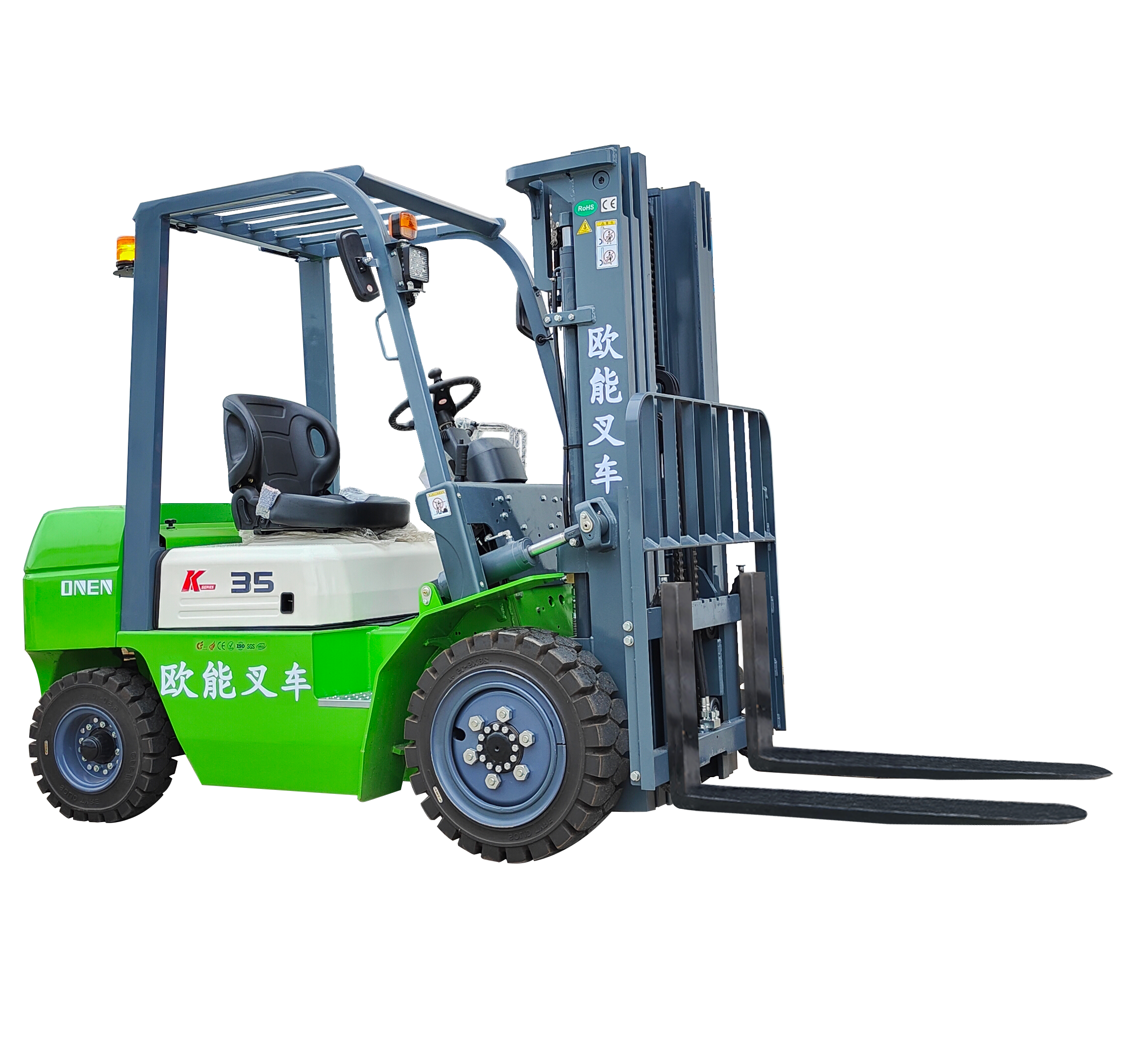

ONEN 3.5T Electric Forklift, Lift 3.5m (CPDD-V-3535)
Application
ONEN CPDD-V 3.5-ton electric forklift (with a height of 3.5 meters) is suitable for various application environments due to its compact design and strong performance In plant logistics and warehousing: The vehicle width is only 1220mm, the turning radius is 2500mm, and with a lifting height of 3.5 meters, it is very suitable for loading, unloading, and stacking heavy materials in narrow shelf passages and workshops. Outdoor and complex working conditions: equipped with high-power motors, with a climbing degree of up to 15%, and lithium batteries supporting stable discharge at a wide temperature range of -10 ℃ to 50 ℃, it can smoothly cope with outdoor storage yards, cold chain warehousing, and building materials handling scenarios. Multi shift manufacturing industry: equipped with 80V/205Ah lithium batteries, it can operate continuously for 7 hours after charging for 1 hour, meeting the high-intensity continuous operation needs.
3.5-Ton Lithium Battery Forklift | 3.5 m Lift | 80V Fast-Charging Power
Model: CPDD-V 3535 Load Capacity: 3,500 kg Max. Lift Height: 3,500 mm Battery: 80V / 205Ah Li-Ion with Fast Charger (80V/100A)
Product Overview: Heavy-Duty Performance, Zero Emissions
The ONEN CPDD-V 3555 is a high-reach counterbalanced electric forklift engineered for facilities that refuse to compromise on lifting power or environmental compliance. With a robust 3.5-ton load capacity and an impressive 3.5-meter mast, it bridges the gap between indoor high-rack warehousing and outdoor heavy-load handling.
Powered by an 80V / 205Ah lithium battery system with fast-charging support, the CPDD-V 3555 eliminates the downtime and maintenance headaches of traditional lead-acid or diesel units. Its compact footprint and tight turning radius make it equally effective in narrow warehouse aisles and busy loading yards.
Why Choose the CPDD-V 3555?
1. High-Rack Dominance — Stack Higher, Store Denser
When floor space is expensive, the only way is up. The CPDD-V 3535 delivers a maximum lift height of 3,500 mm and a free lift of 1,779 mm, allowing operators to position pallets on high-density racking without the mast over-height restricting movement in low-ceiling zones. While the lowered mast height of 2,570 mm keeps the truck stable during transport.
2. 80V Lithium-Ion Power — Opportunity Charging, All-Day Endurance
Forget battery swaps and 8-hour charge cycles. The integrated 80V / 205Ah lithium battery supports fast charging via the onboard FAST charge port. Plug in during breaks or shift changes and keep the truck running across multi-shift operations. With zero emissions and near-silent operation, it is ideal for food processing, cold storage, and clean manufacturing environments.
3. Compact Agility in a 3.5-Ton Package
Despite its heavy-duty rating, the CPDD-V 3555 is surprisingly maneuverable. A turning radius of just 2,500 mm and an overall width of 1,220 mm allow it to navigate tight corners. The right-angle stacking aisle width of 4,080 mm (for 1,000 × 1,200 mm pallets) means you can design denser warehouse layouts without sacrificing accessibility.
4. All-Terrain Tires & Stable Mast Geometry

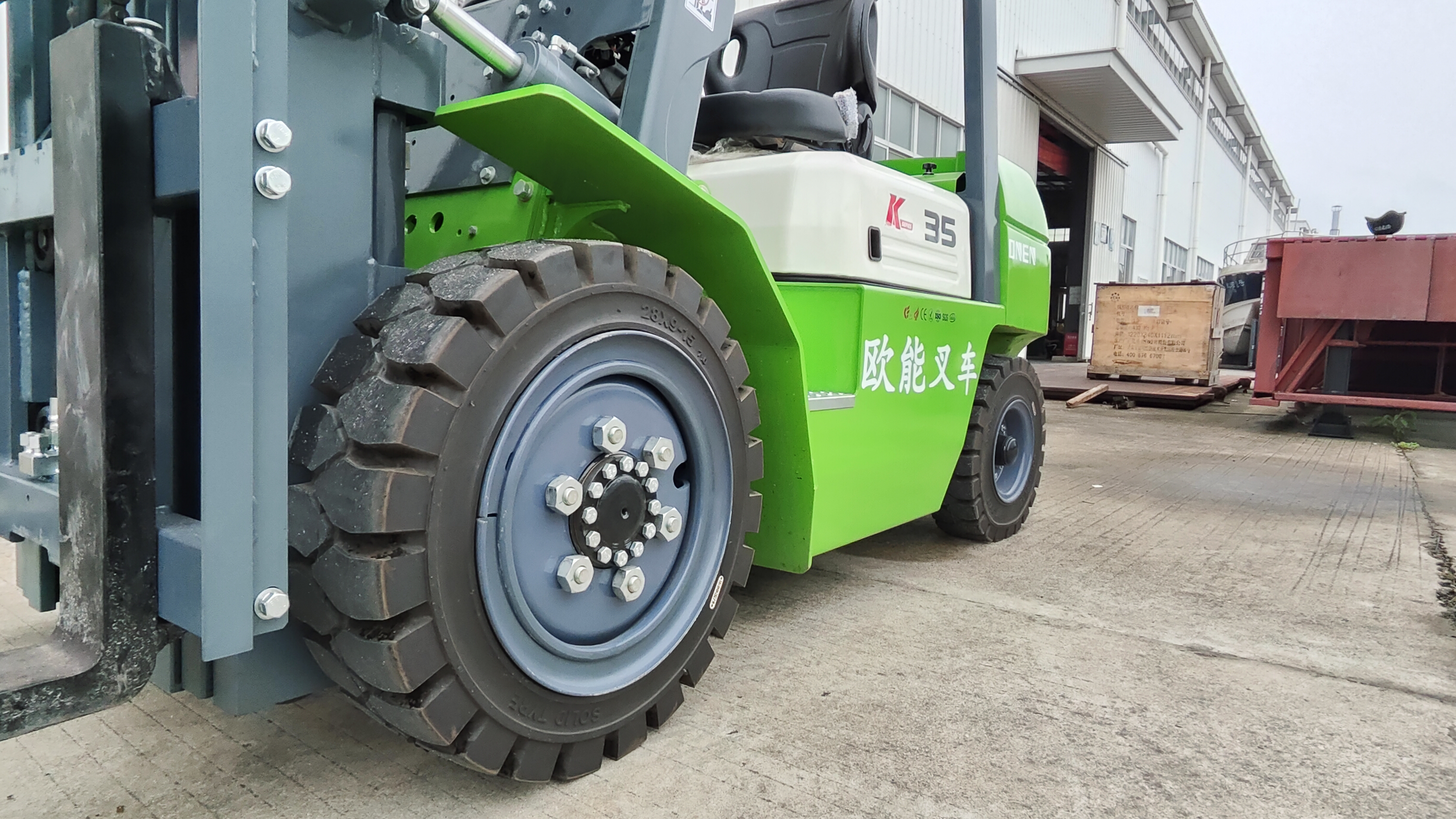

Choose between pneumatic or solid tires to match your floor conditions. The large front tires (28×9-15-14PR) and rear tires (6.5-10-10PR) provide excellent ground clearance (135 mm) and shock absorption. The mast carriage tilts 6° forward / 12° backward, ensuring secure load handling on ramps and uneven yards.
5. Operator-Centric Design

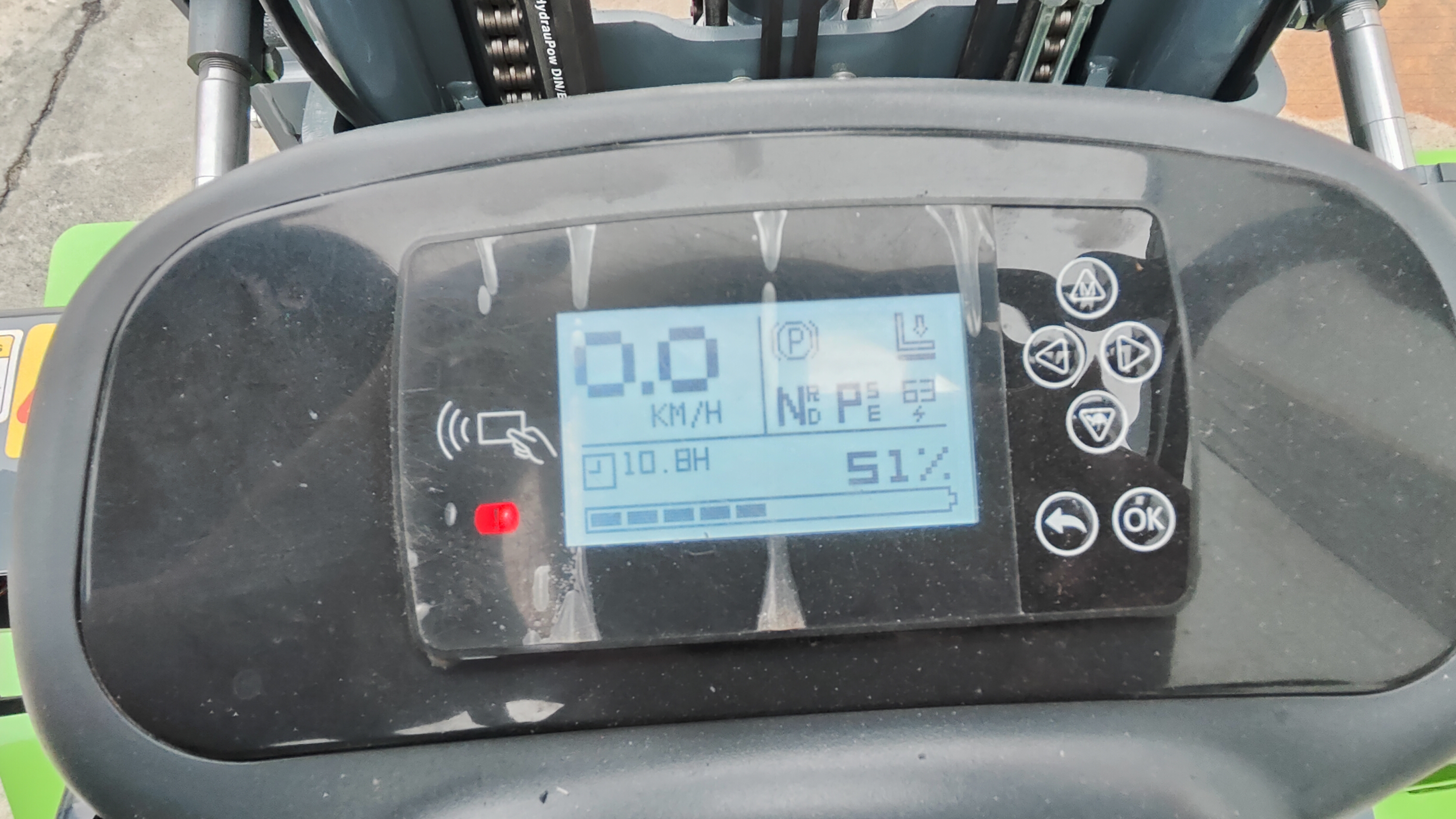

The spacious seated cabin features an ergonomic steering wheel, intuitive hydraulic levers, and a digital LCD display that provides real-time battery status, speed, and fault codes at a glance. The emergency stop button and overhead guard (2,160 mm height) prioritize safety during intensive work cycles.
Application Scenarios
The CPDD-V 3555 is built for composite logistics environments where reach, reliability, and clean power are non-negotiable:
High-Bay Warehousing — 3.5 m lift unlocks vertical storage space in distribution centers.
Container Loading / Unloading — 3.5-ton capacity handles heavy palletized goods at docks.
Manufacturing Workshops — Smooth, quiet operation integrates into production lines without noise pollution.
Cold Storage & Food Logistics — Lithium battery performance remains stable in low temperatures; zero emissions meet hygiene standards.
Retail & Wholesale Logistics — Fast charging supports just-in-time replenishment and multi-shift schedules.
The ONEN Advantage: 30 Years of Material Handling Expertise
Guangdong ONEN New-resource Equipments Co., Ltd. brings three decades of forklift manufacturing excellence to every CPDD-V unit. When you partner with us, you gain:
Certified Quality — CE, ISO 9001, ISO 45001, ISO 14001, SGS, and RoHS compliant.
Special Equipment Production License — Fully certified for industrial vehicle manufacturing in China.
Comprehensive Product Range — From electric counterbalanced trucks and reach trucks to scissor lifts and pallet stackers, we offer full fleet solutions.
Global Support — Proven export experience with customers across logistics, manufacturing, and retail sectors worldwide.
Ready to Upgrade Your Fleet?
Get a quote today for the CPDD-V 3535 Lithium Battery Forklift. Whether you need a single unit for high-rack warehousing or a fleet for heavy-load logistics, our team will configure the mast, fork length, and tire package to match your operation.
[Request a Quote] | [Download Full Catalog] | [Schedule a Factory Tour]
