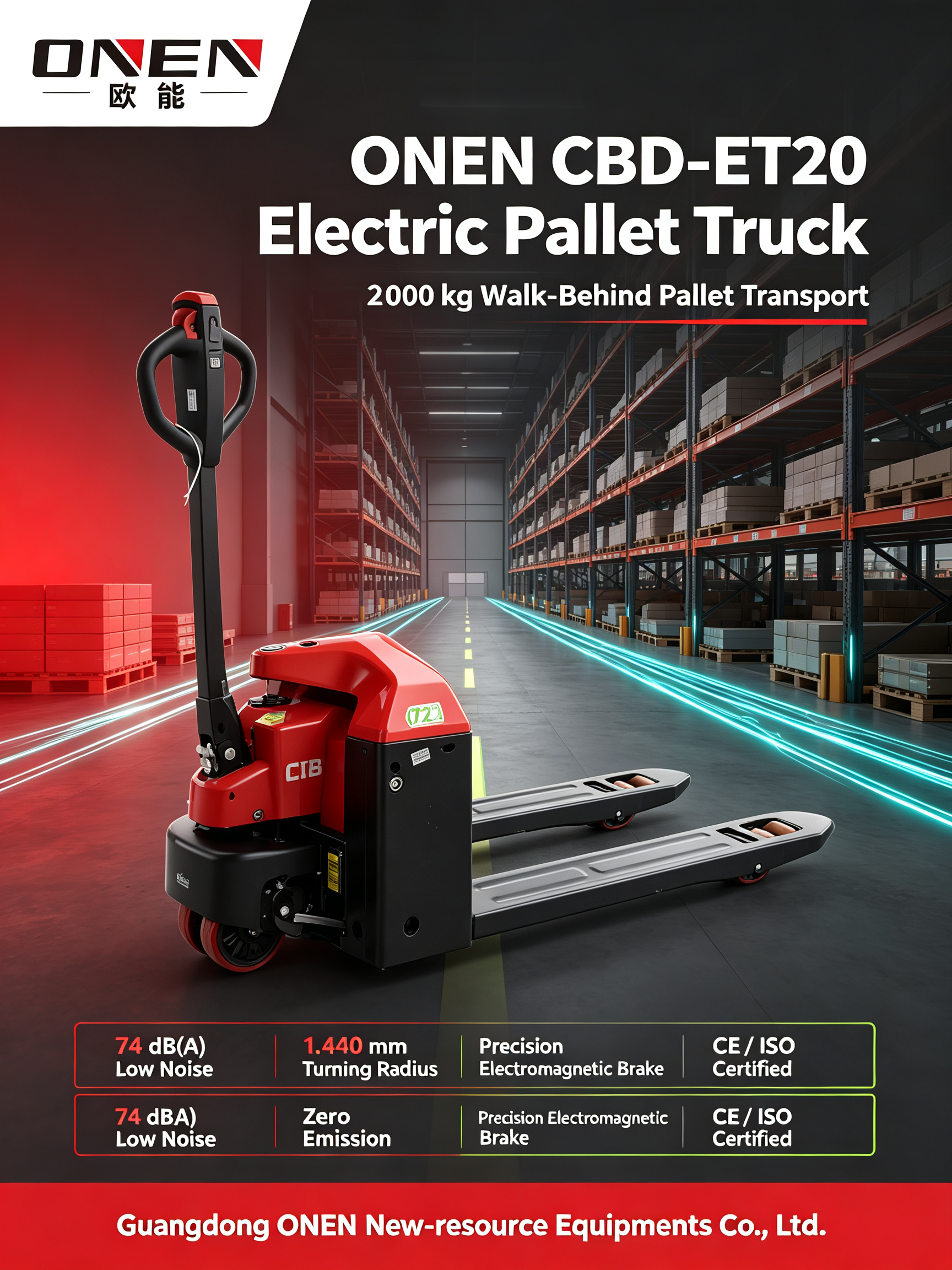

When your warehouse, retail floor, or manufacturing cell demands reliable horizontal transport without the bulk of a ride-on unit, the ONEN CBD-ET20 Electric Walking Pallet Truck delivers zero-emission efficiency in a compact, pedestrian-operated package. Built around a 154 kg precision-formed chassis and a maintenance-free 0.75 kW AC drive system, this 2-ton walkie pallet jack is engineered for facilities where aisle width is tight, noise must be minimal, and operator fatigue directly impacts throughput.
Manufactured by Guangdong ONEN New-resource Equipments Co., Ltd. with 30 years of material-handling expertise, every CBD-ET20 ships export-ready with full CE, ISO 9001, ISO 14001, ISO 45001, and SGS documentation. The standard 24V / 72Ah maintenance-free lead-acid battery configuration keeps upfront investment low, while optional lithium upgrades are available for operations requiring opportunity charging and extended cycle life.
4 Core Advantages
1. Ultra-Compact Body for Tight-Aisle Maneuverability

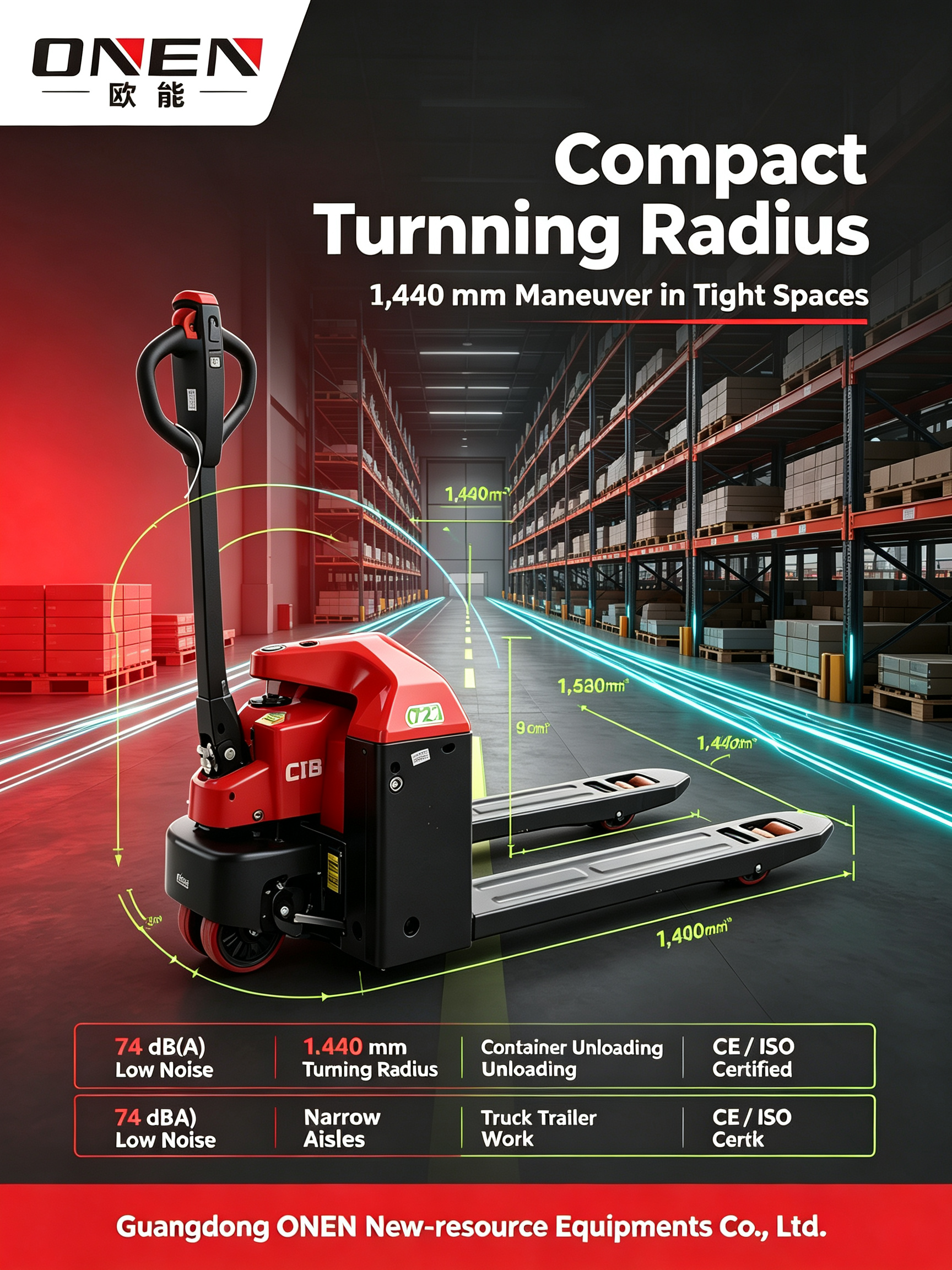

Space-constrained environments are where the CBD-ET20 excels. With an overall length of just 1,618 mm and a turning radius of 1,440 mm, this truck navigates narrow warehouse aisles, congested retail backrooms, and single-layer pallet staging areas that bulkier equipment cannot access. The variable overall width (620 / 685 mm) and fork spread options (685 / 560 mm) let you match the truck precisely to your standard pallet footprint, eliminating the "too wide, too slow" bottleneck common with larger alternatives.

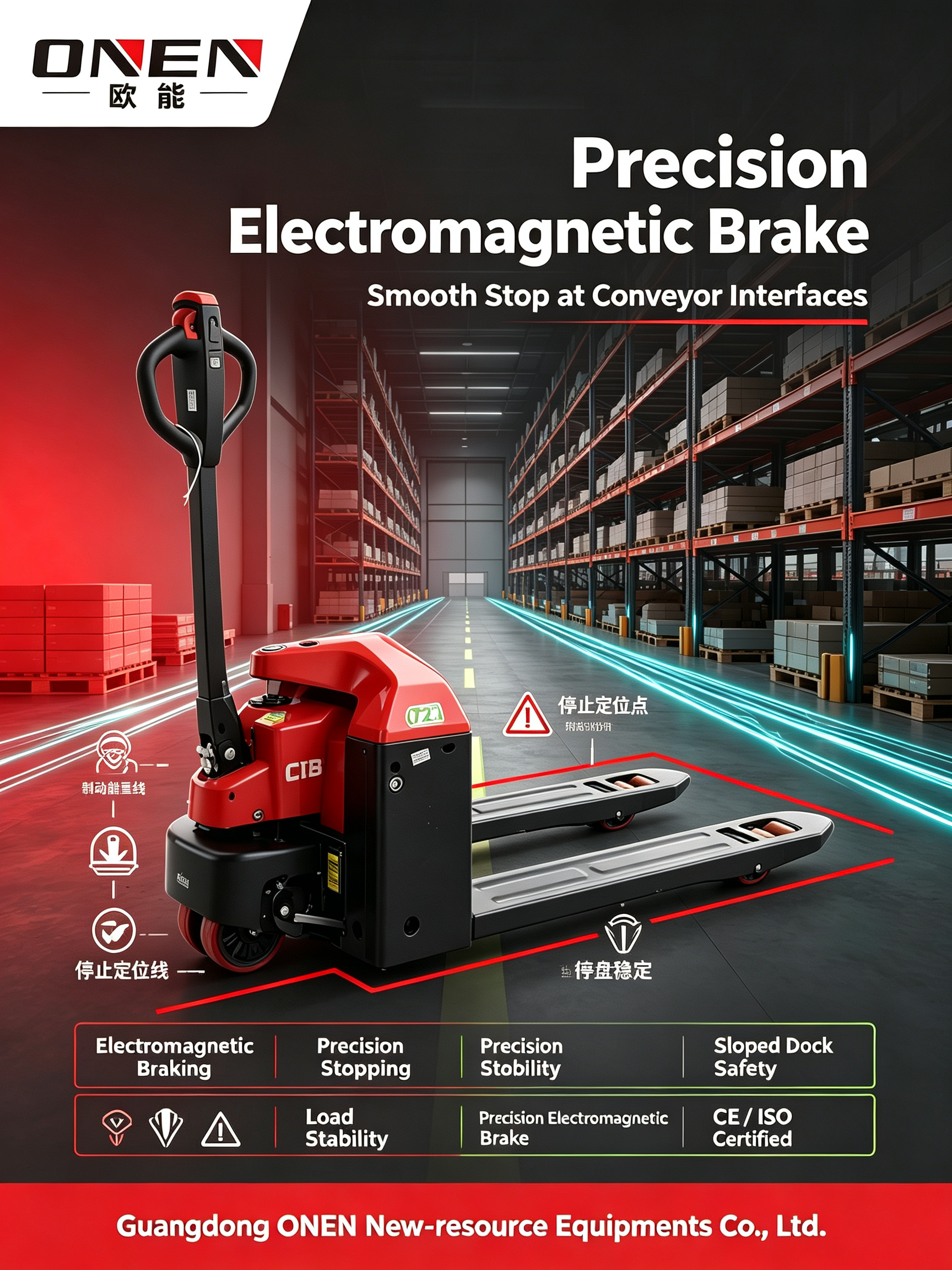

2. Electromagnetic Safety Braking with Automatic Engagement
Unlike mechanical foot brakes that wear, fade, and demand constant adjustment, the CBD-ET20 uses an electromagnetic brake for instant, reliable stopping power—even on 5 % loaded gradients. The system engages automatically when the tiller returns to neutral, giving operators one less variable to manage during high-cycle shifts. Combined with a 1,249 mm wheelbase and optimized 600 mm load center, the truck maintains stable handling whether moving a full 2-ton load or traveling unladen between picks.
Fatigue is the enemy of accuracy. The CBD-ET20 features a multi-function tiller handle with an operating height range of 700–1,250 mm, accommodating operators of varying statures while keeping forward/reverse, lift, and lower controls within natural thumb reach. The forks lower to just 80 mm, enabling effortless entry under partially loaded pallets and closed-bottom containers. A maximum lift height of 105 mm provides adequate clearance for standard dock plates and conveyor transfers without excessive mast travel that slows cycle times.
4. Quiet, Floor-Friendly PU Wheel Operation

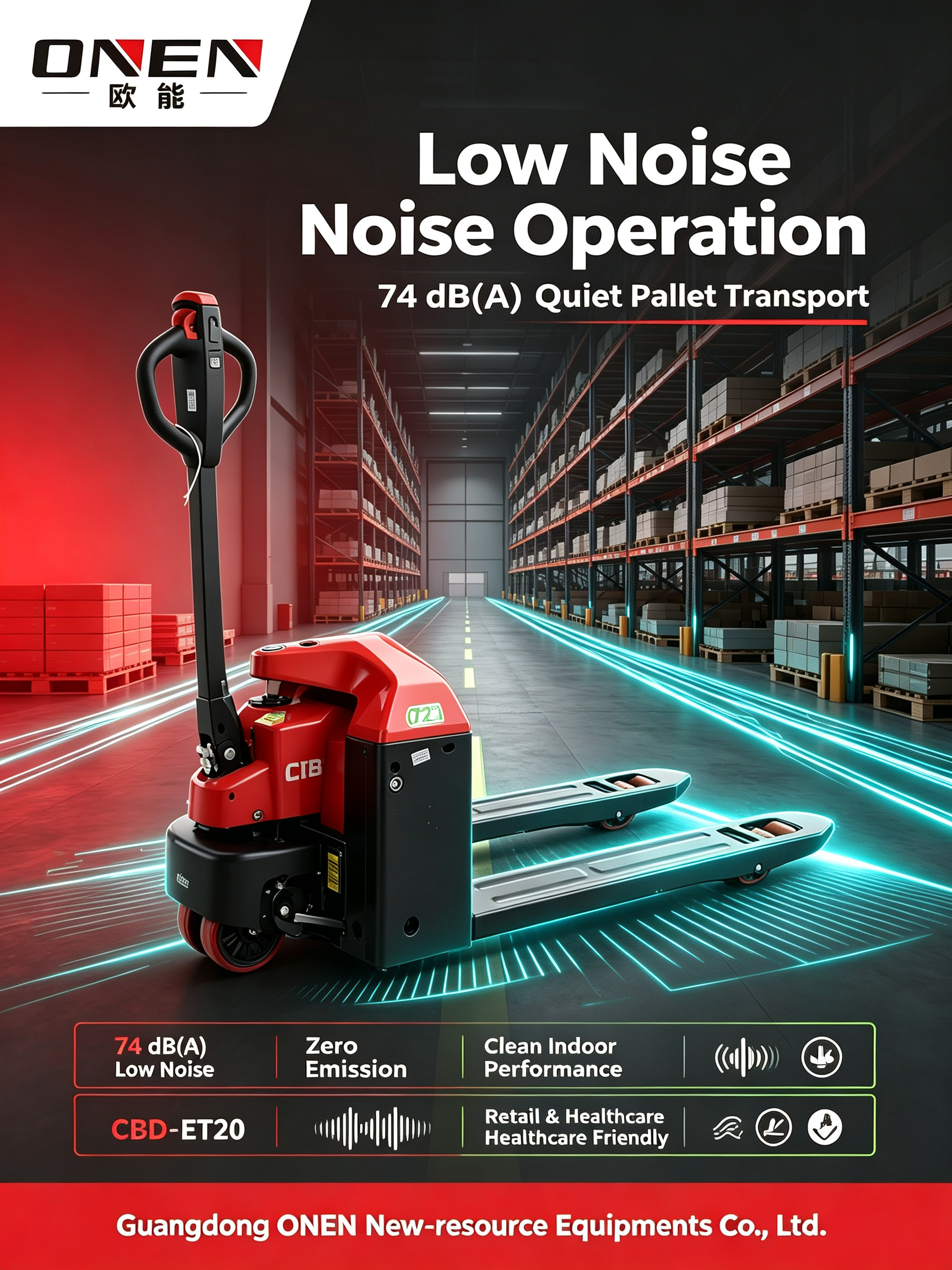

The special-formula polyurethane wheel set—including a Ø210 × 70 mm drive wheel, Ø80 × 61 mm rear balance wheels, and Ø74 × 30 mm load rollers—absorbs shocks and rolls silently across epoxy, tile, and sealed concrete surfaces. At just 74 dB(A) at the operator's ear, the CBD-ET20 is quiet enough for supermarket floor replenishment, pharmaceutical clean rooms, and night-shift operations without disrupting adjacent work zones or customer experiences.

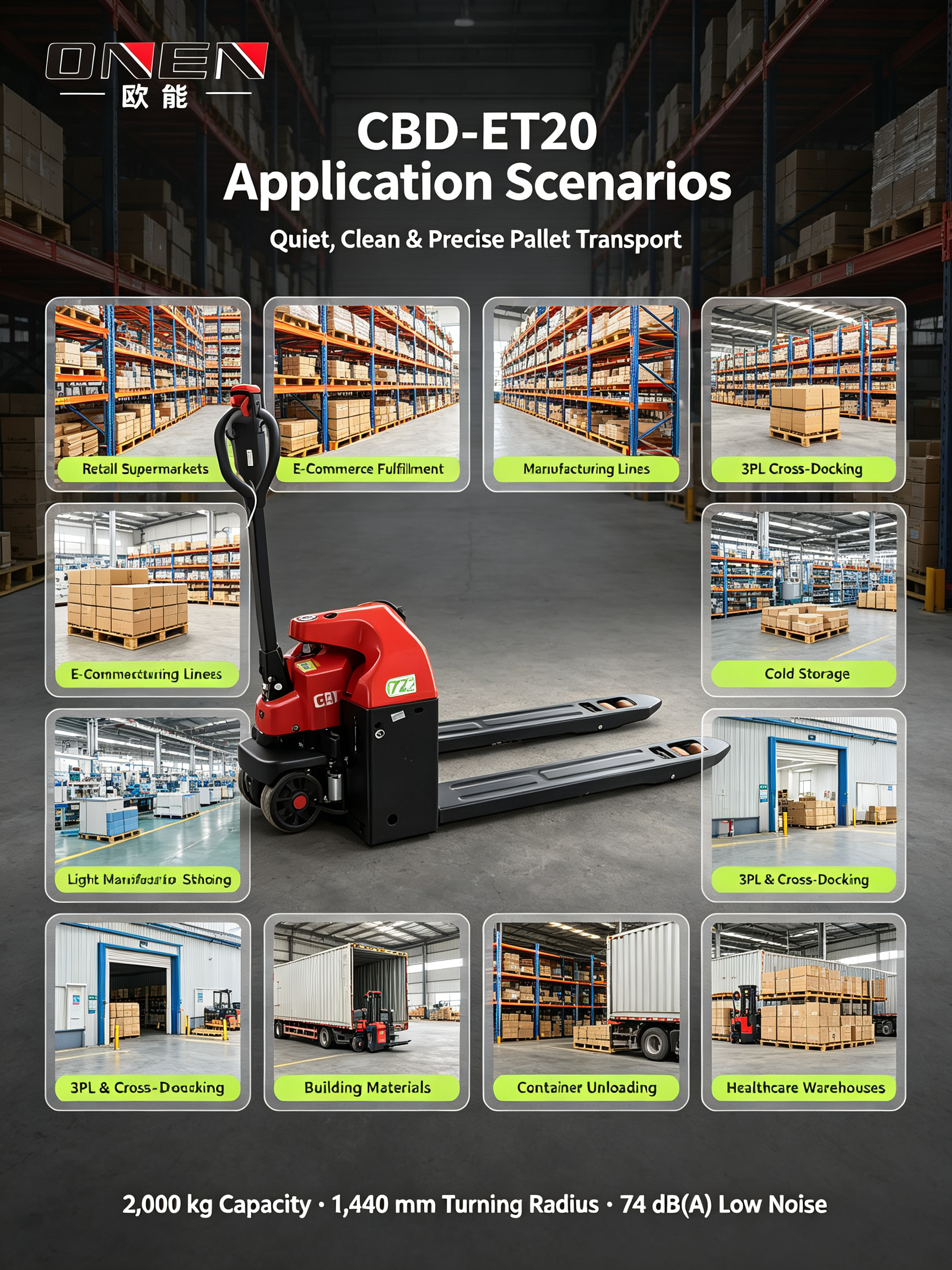

Where the CBD-ET20 Performs Best
Retail & Shopping Supermarkets Glide between narrow shelving and point-of-sale stockrooms with zero exhaust and minimal noise. The compact footprint keeps aisle-ends clear for customer traffic, while the electromagnetic brake adds safety in busy, pedestrian-rich environments.

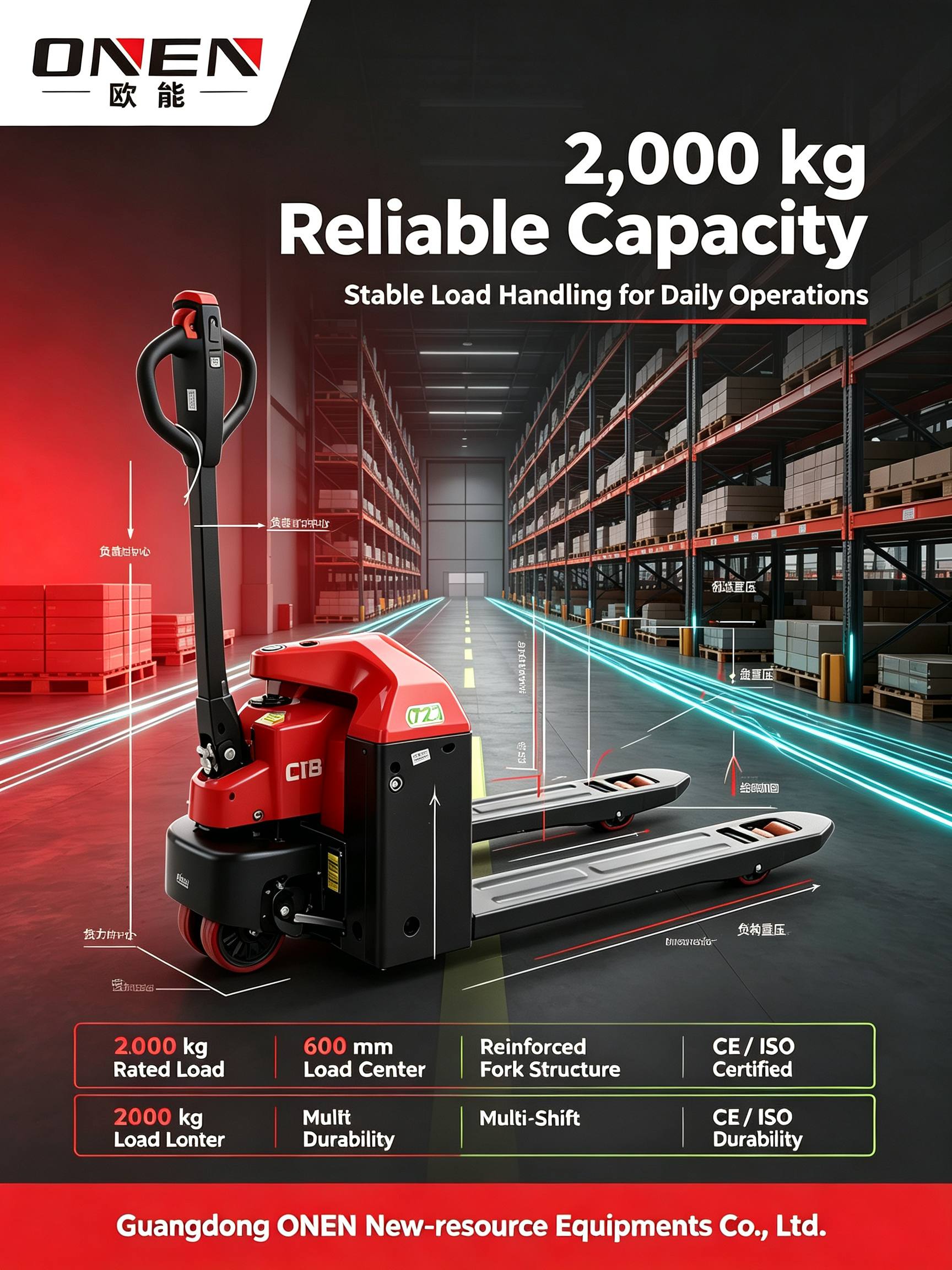

Light Manufacturing & Assembly Lines Feed production cells with raw-material pallets on a just-in-time basis. The 2,000 kg rated load and 600 mm load center handle standard Euro and CHEP pallets without fork deflection, and the tight 1,440 mm turning radius navigates plant aisles congested with machinery.
E-Commerce Fulfillment & Distribution Centers Execute rapid dock-to-staging pallet shuttling in facilities where stand-on trucks are too large or too costly. The lightweight 154 kg chassis (including battery) minimizes floor loading, making the ET20 suitable for mezzanine floors and elevated platforms where heavier equipment is restricted.
Cold Storage & Food Processing Rely on smooth, contamination-free electric operation in temperature-controlled environments. The AC drive system starts reliably in chilled conditions, and PU wheels maintain traction on condensation-prone floors where harder compounds often slip.
3PL & Cross-Docking Terminals Move palletized freight from inbound trailers to outbound staging efficiently. The 4.0 km/h laden travel speed strikes the right balance between rapid transit and safe pedestrian coexistence in shared dock spaces.
Why Source from ONEN?
Guangdong ONEN New-resource Equipments Co., Ltd. delivers more than material handling equipment—we deliver a complete warehouse productivity partnership backed by three decades of engineering excellence.
Complete International Certifications: ISO 9001, ISO 14001, ISO 45001, CE, RoHS, and SGS for seamless global importation and customs clearance.
Licensed Manufacturing: Fully certified with China Special Equipment Production License and TX type-test certificates, ensuring regulatory compliance in demanding markets.
Award-Winning Innovation: Recognized with the Canton Fair Design Award for excellence in industrial equipment engineering and ergonomics.
Full Product Ecosystem: Standardize your fleet with one trusted supplier. Beyond electric pallet trucks, ONEN manufactures diesel forklifts, electric forklifts, scissor lifts, reach trucks, and pallet stackers.
Flexible Power Solutions: Choose between economical 24V / 72Ah lead-acid batteries or advanced lithium configurations with fast-charging capability to match your shift patterns and total cost of ownership goals.
Factory-Direct Customization: We welcome on-site factory inspections and offer transparent customization of fork dimensions (50/150/1,150 mm standard, others available), battery chemistry, controller programming, brand livery, and regional voltage standards to match your local market requirements.
Frequently Asked Questions
Q: Is the CBD-ET20 a stand-on riding or walk-behind truck? A: The CBD-ET20 is a pedestrian-operated (walk-behind) electric walking pallet truck. The operator walks behind the unit and controls it via the tiller handle, making it ideal for tight spaces and applications where a stand-on platform would be too bulky.
Q: Can I use the CBD-ET20 in a supermarket with narrow aisles? A: Yes. With a 1,440 mm turning radius and 1,618 mm overall length, the ET20 is specifically designed for retail backrooms, supermarket replenishment, and any environment where aisle width is limited.
Q: What is the difference between the standard lead-acid battery and the optional lithium upgrade? A: The standard 24V / 72Ah lead-acid battery offers proven reliability and lower upfront cost, paired with a 24V / 10A charger. The optional lithium battery provides opportunity charging (fast partial recharges during breaks), significantly longer cycle life, zero maintenance, and consistent power output until depletion—ideal for multi-shift operations.
Q: What floor types are suitable for the CBD-ET20? A: The polyurethane (PU) wheel set is engineered for epoxy, tile, sealed concrete, and coated warehouse floors. The compound offers excellent abrasion resistance and shock absorption while protecting sensitive flooring from marks and gouges.
Q: Do you offer OEM/ODM, voltage customization, and fork size variations? A: Absolutely. We customize controllers, chargers (110V / 220V / 380V regional standards), paint schemes, branding, and fork geometries—including the standard 50 × 150 × 1,150 mm forks as well as 560 mm or 685 mm overall fork widths—to match your specific pallet and operational requirements.
