CPDD-2030
ONEN
Single Sided Tray, Double Sided Tray

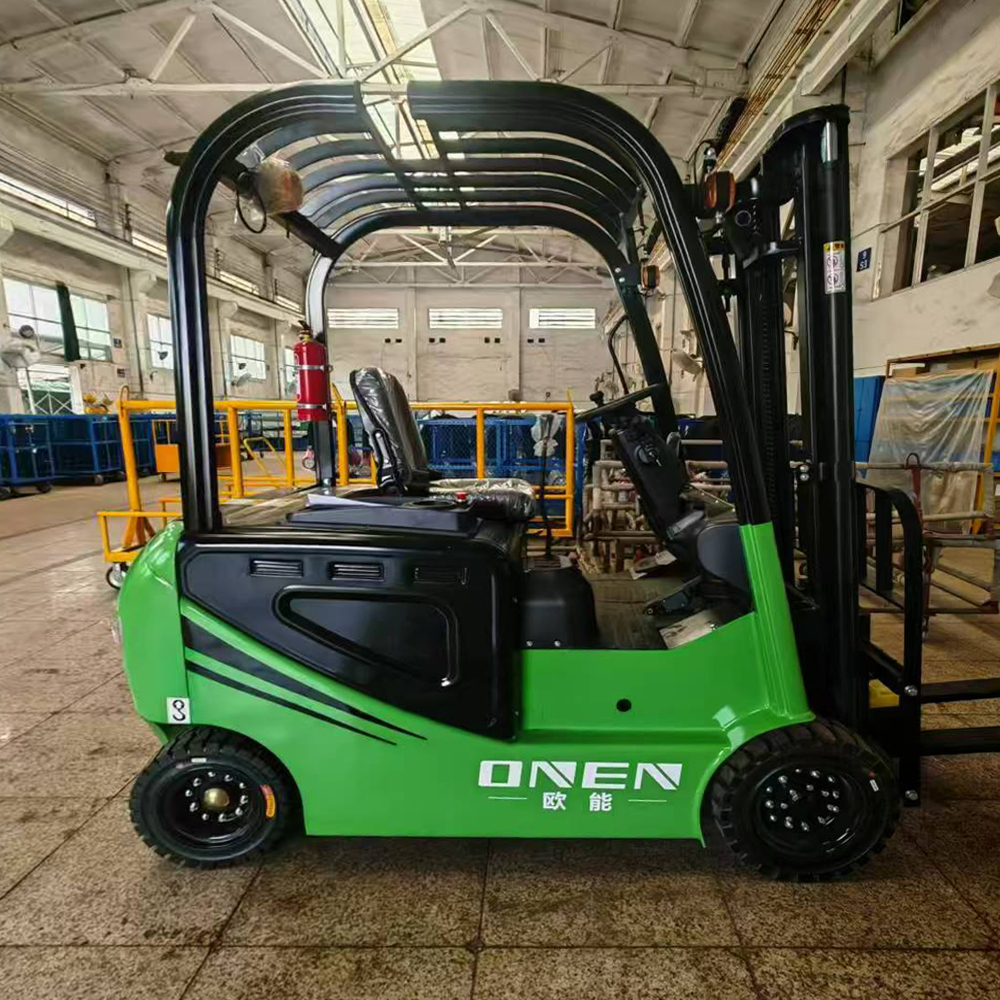

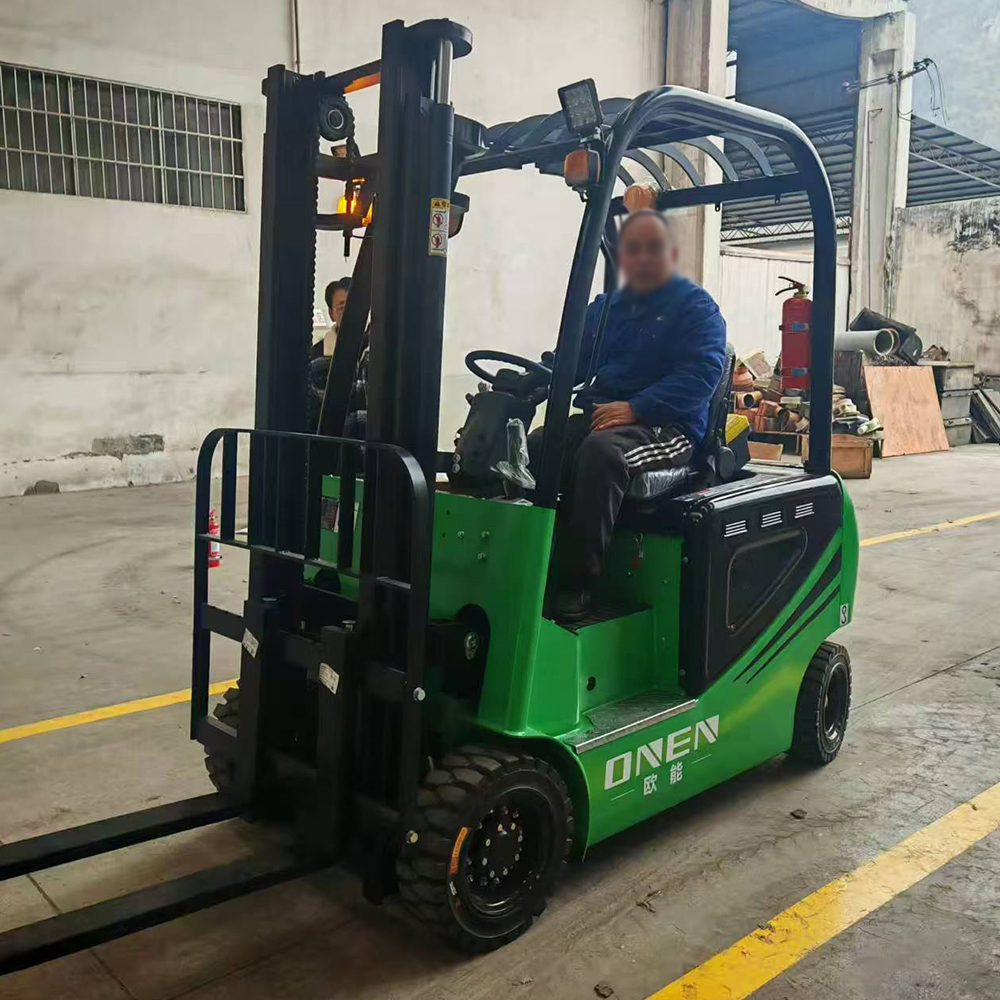

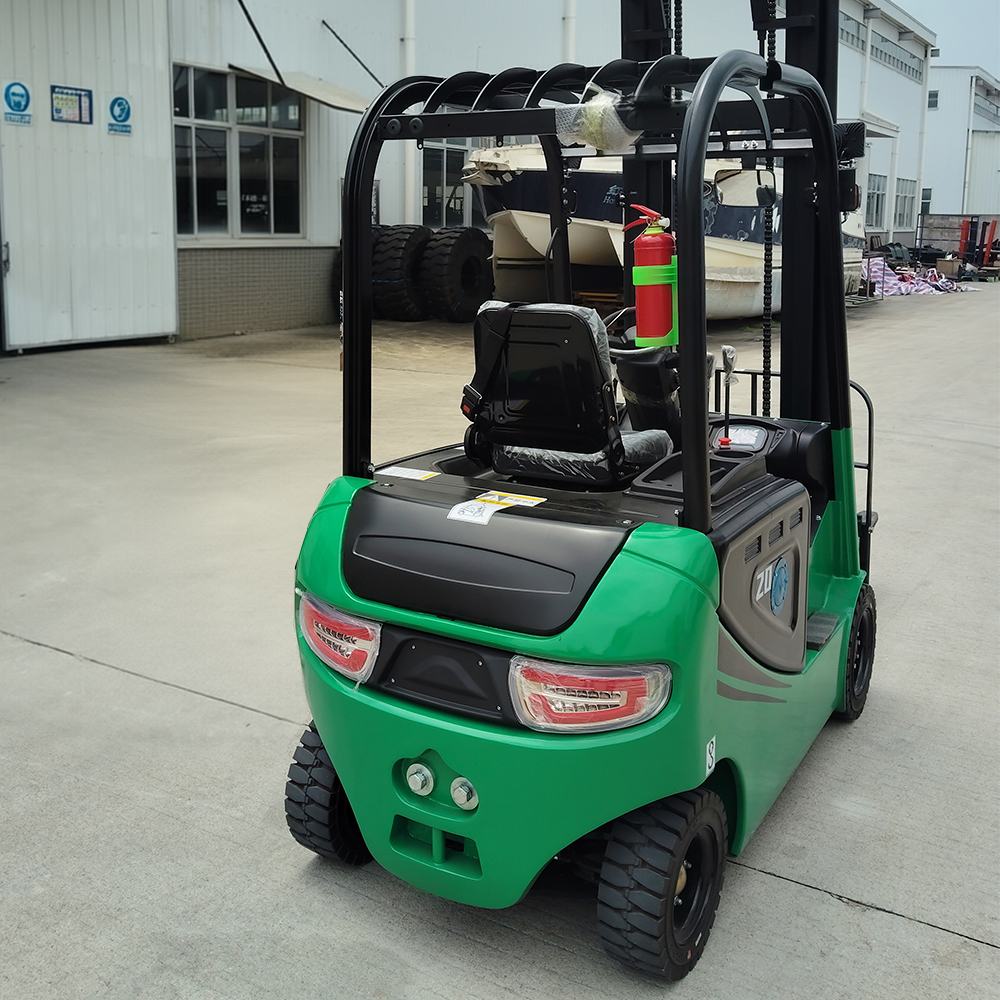

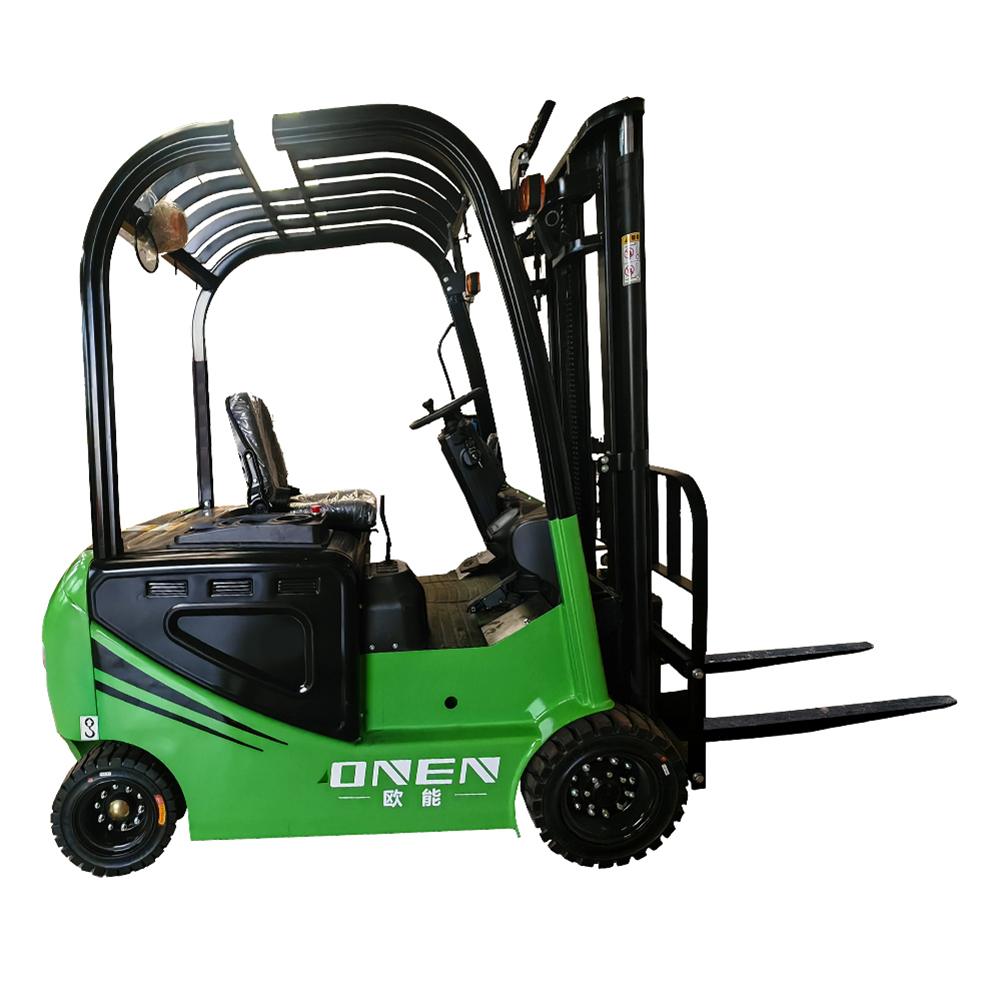

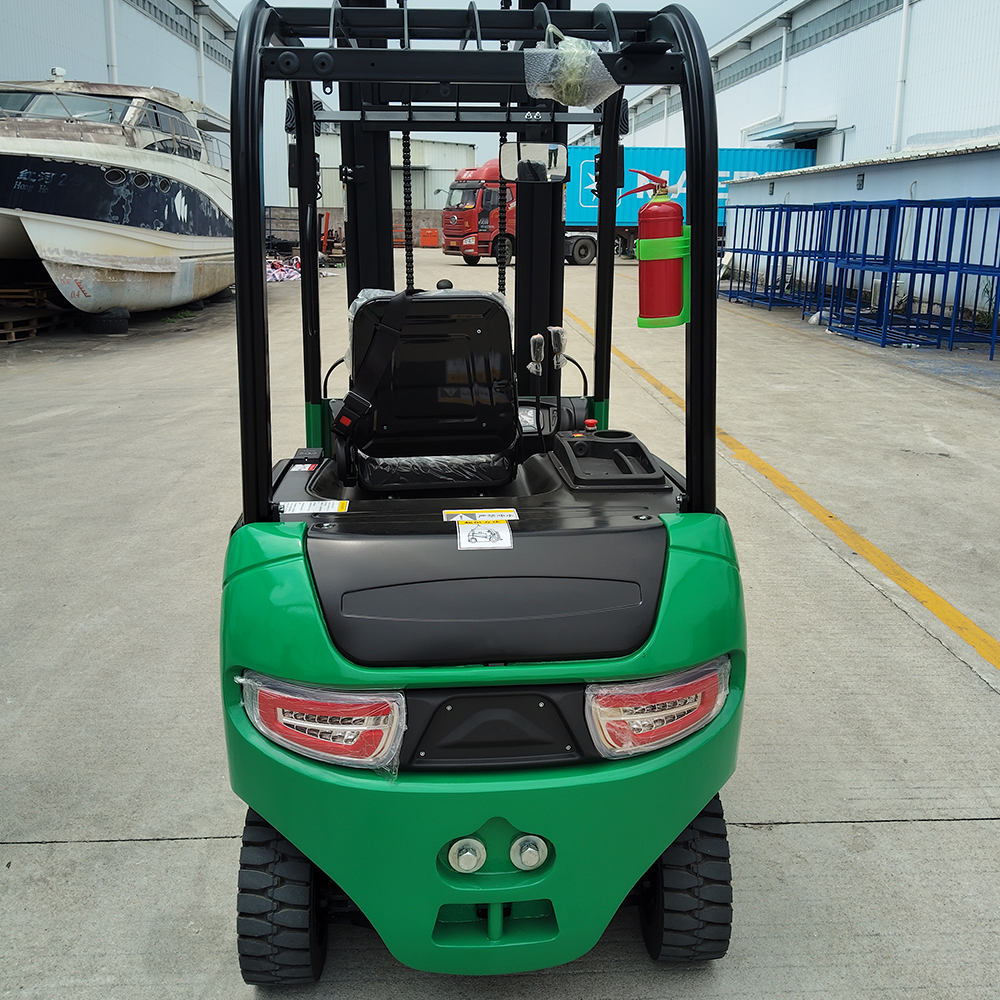

CPDD-2030 electric counterbalanced forklift is specifically designed for efficient operations in confined spaces. It is ideal for factory floors, small and medium-sized warehouses, and racking areas, particularly excelling in narrow aisles. With a 3-meter lifting height, the forklift fully utilizes vertical space, and its 2-ton capacity meets most pallet handling needs.
Pure electric drive produces low noise and emits no exhaust, making it suitable for indoor settings with high environmental requirements. Its compact body and flexible steering enable it to handle loading, unloading, stacking, and short-distance transfer with ease. | 1 | Model | CPDD | |
| 2 | Configuration No. | 2030 | |
| 3 | Power type | Electric | |
| 4 | Operation type | Seated | |
| 5 | Load capacity | kg | 2000 |
| 6 | Load center distance | mm | 500 |
| 7 | Wheelbase | mm | 1430 |
| 8 | Service weight with battery | kg | 2710 |
| 9 | Wheels type | Pneumatic tires/Solid tires(Optional) | |
| 10 | Tyre size (Front) | 18x7-10 | |
| 11 | Tyre size (Rear) | 16x6-8 | |
| 12 | Mast lowered height | mm | 2030 |
| 13 | Free lift | mm | / |
| 14 | Lift height | mm | 3000 |
| 15 | Extended mast height | mm | 4055 |
| 16 | Tilt of mast carriage (Forward/Backward) | ° | 5/10 |
| 17 | Fork length | mm | 1070 |
| 18 | Overall length(Without forks) | mm | 2063 |
| 19 | Overall width | mm | 1096 |
| 20 | Turning radius | mm | 2070 |
| 21 | Aisle width for pallets 1000×1200 | mm | 3655 |
| 22 | Ground clearance (Center of wheelbase) | mm | 110 |
| 23 | Travel speed (Laden/Unladen) | km/h | 11/12 |
| 24 | Lift speed (Laden/Unladen) | mm/s | 220/250 |
| 25 | Lowering speed (Laden/Unladen) | mm/s | 450 |
| 26 | Gradeability (Laden/Unladen) | % | 12/15 |
| 27 | Driving motor | kw | 7.5 |
| 28 | Lifting motor | kw | 6.5 |
| 29 | Voltage/Capacity of lithium battery | V/Ah | 80/230 |
| 30 | Lithium battery charger | V/A | 80/100 |
