CQD-B-1530-Q Electric Reach Truck

Name: CQD-B-1530-Q Electric Reach Truck
Brand: ONEN
Rating: 5.0 (18 reviews)

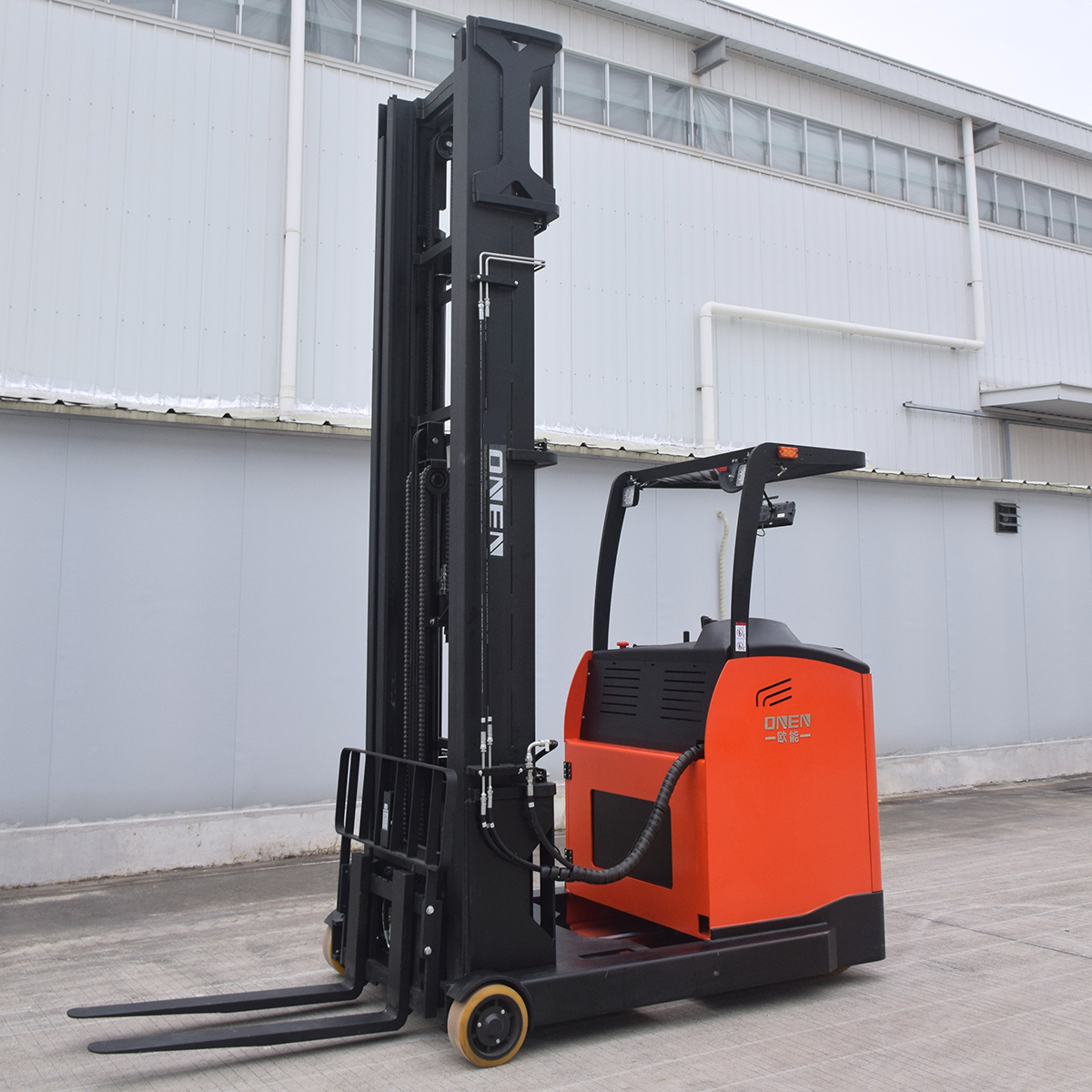

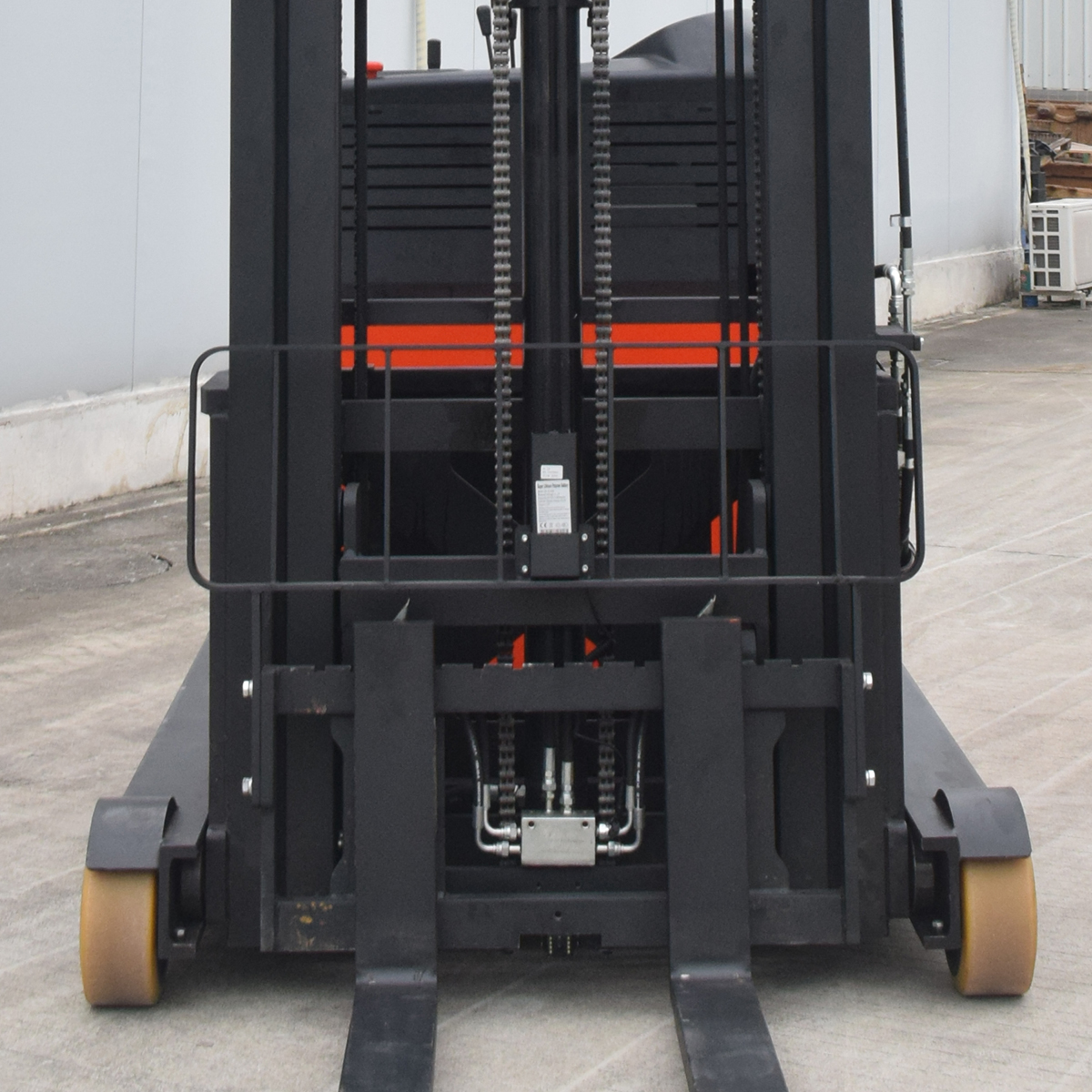

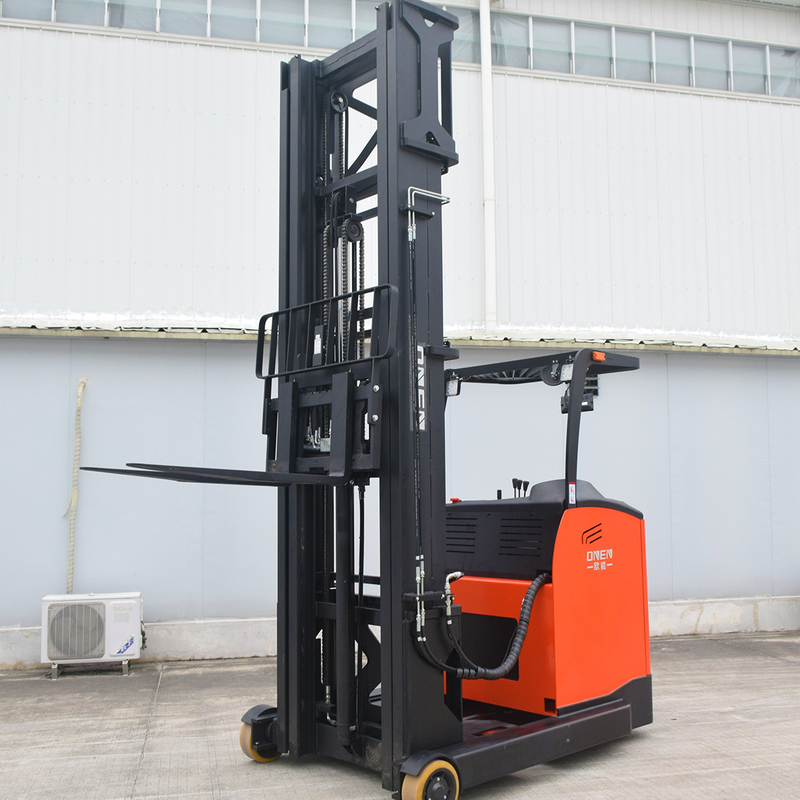

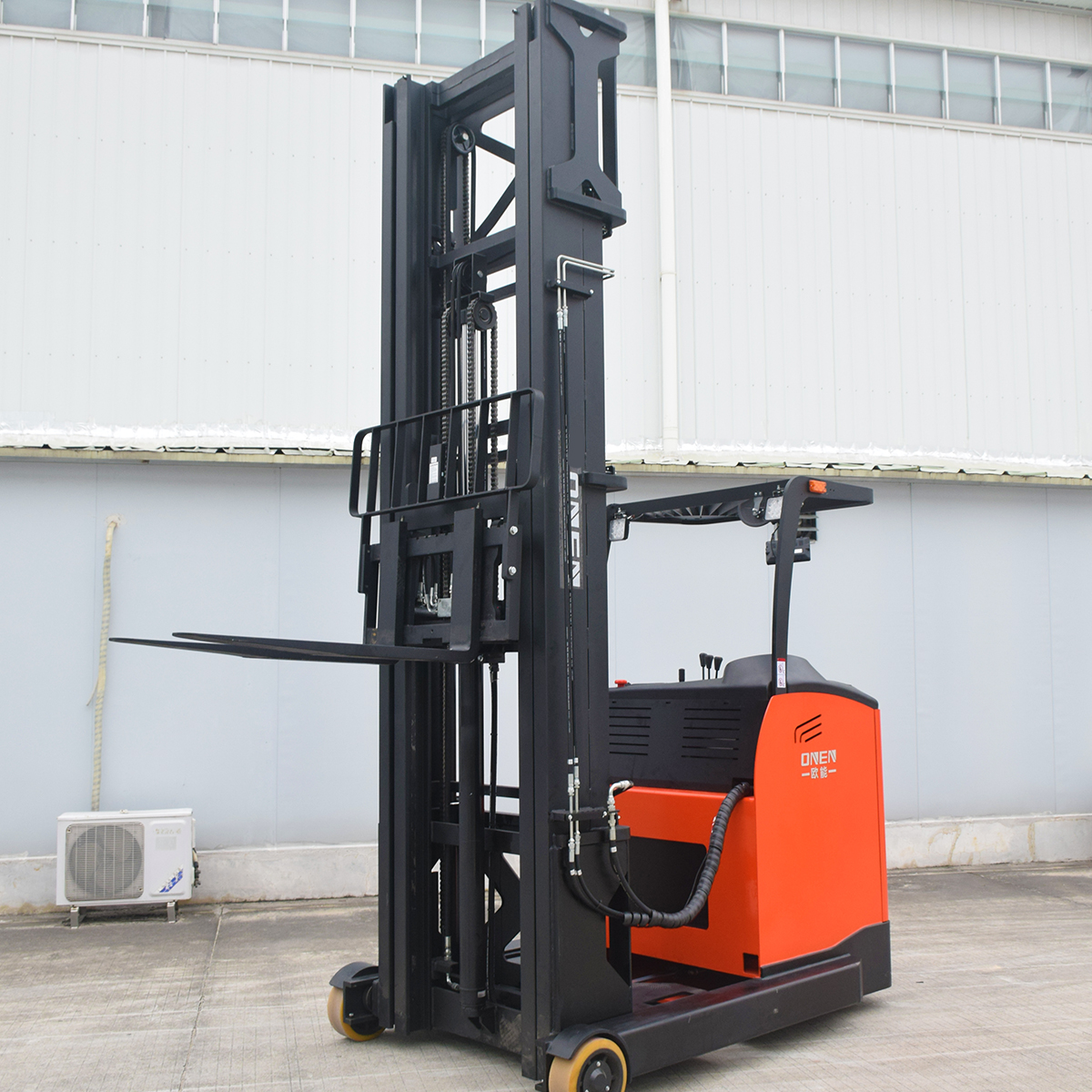

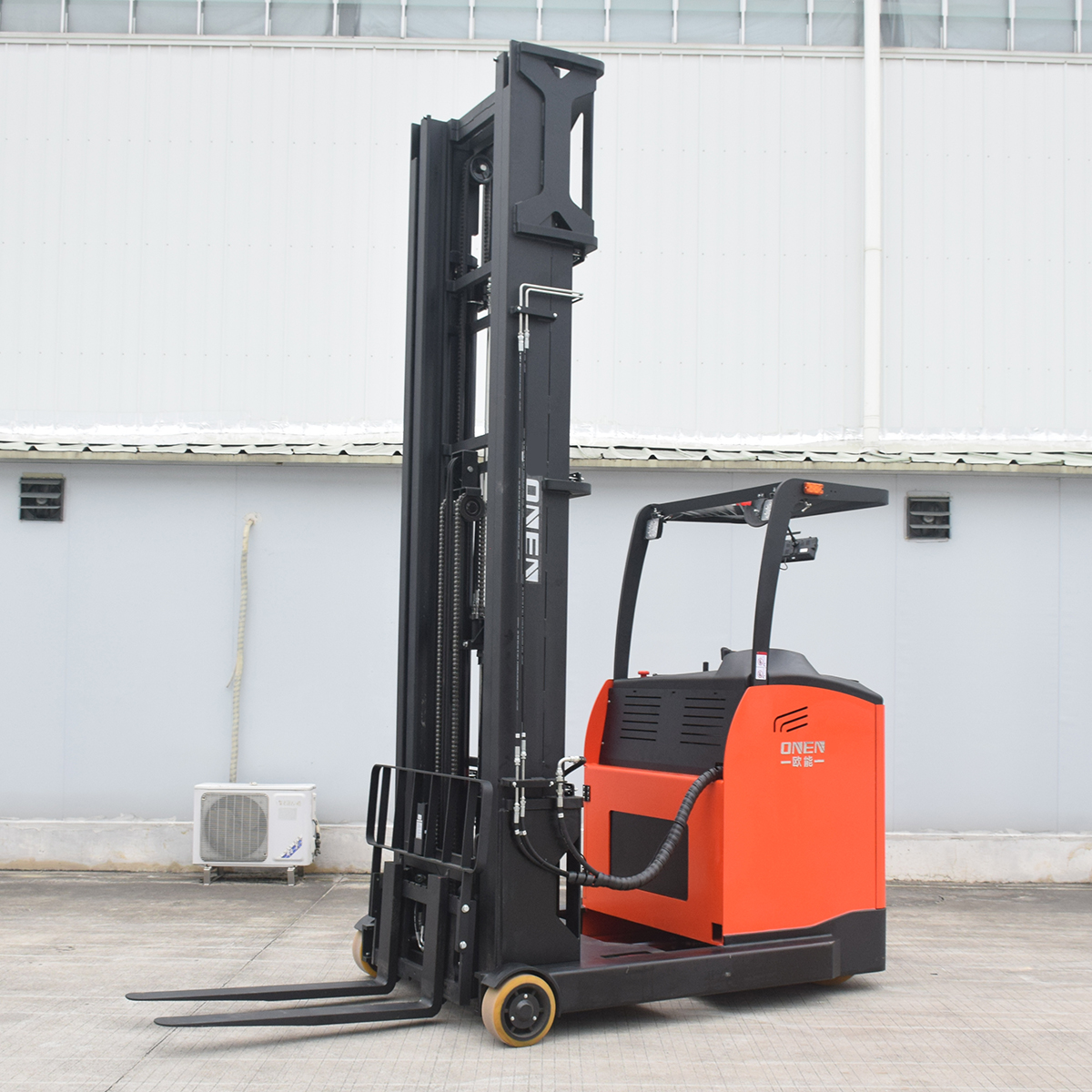

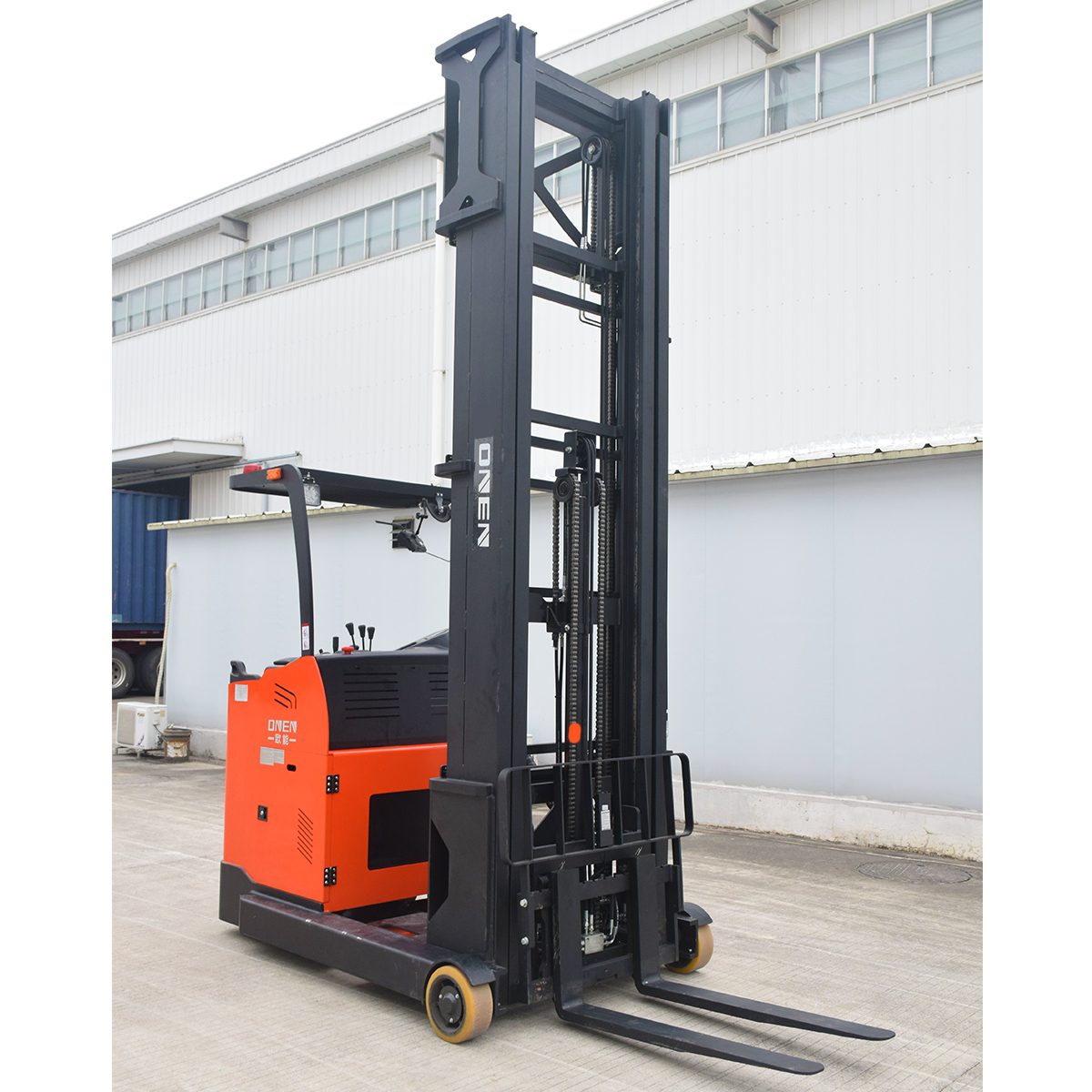

The CQD-B stacking vehicle has a load capacity of 1.5 tons and can be raised up to 3 meters. As a sit-down reach truck, it is specifically designed for narrow aisle warehouse operations. The vehicle features electronic steering and electromagnetic braking, providing lightweight and precise control. Equipped with a multi-valve hydraulic system, the mast can achieve forward movement and tilting functions. The robust body structure, coupled with polyurethane tires, ensures stable and wear-resistant operation, effectively enhancing the space utilization and material circulation efficiency

Availability:



Inquire Add to Basket

Model:
CQD-B-1530-Q
Brand:
ONEN
Name:
Electric Reach Truck
Power form:
Electric
Load Capacity:
1500kg
Driving Style:
Seated
Load Center:
500mm
Wheel Type:
PU
lift height:
3000mm
Fork Length:
1070mm
Turning Radius:
1800mm
Battery:
Lead-acid / Lithium
Use Tray Type:
Single Sided Tray, Double Sided Tray
Voltage/Capacity:
48V/300Ah【Lead-acid】、48V/280Ah【Lithium】
Charger:
24V/40A【Lead-acid】、24V/50A【Lithium】
Customization:
Support
After-Sales Service:
Warranty for one year or 1000 hours (lithium battery warranty for three years)
Certification:
CE/RoHS/SGS

CQD-B stacking vehicle, with its reach-forward structure, serves as an ideal choice for high-level stacking of heavy goods in narrow aisles. The compact body of CQD-B allows for flexible maneuvering within a mere 2.96-meter aisle, accurately stacking 1.5-ton loads onto 3-meter high racks.

The driving design enhances comfort for medium-to-long-distance handling, making it suitable for high-level automated warehouses, production line side warehouses, and intensive storage and loading/unloading in industries such as building materials.

ONEN 1.5-ton electric forklift 3-meter lifting stacker 1.5-ton reach forklift price narrow aisle stacker 1.5-ton reach forklift supplier electric reach truck Reach Truck reach truck Manufacturer China reach truck Reach Truck Forklift

Related News

Related Products

ONEN CQD-A Factory Wholesale Stand-up Compact Electric Reach Truck Forklift

ONEN CQD-B Wholesale Car Type High Lift Electric Reach Forklift Truck

1	Model		CQD-B
2	Configuration No.		1530-Q
3	Power type		Electric
4	Steering type		Electric steering
5	Operation type		Seated
6	Load capacity	kg	1500
7	Load center distance	mm	500
8	Reach Distance	mm	505
9	Wheels type		PU
10	Driving wheel size	mm	Ф382×142
11	Bearing wheel size	mm	Ф267×114
12	Overall Length (With Fork)	mm	2477
13	Overall Width	mm	1270
14	Mast lowered height	mm	2100
15	Lift height	mm	3000
16	Extended mast height	mm	3577
17	Fork dimensions	mm	35/100/1070
18	Turning radius	mm	1800
19	Travel speed (Laden/Unladen)	km/h	6.8/7.8
20	Lift speed (Laden/Unladen)	mm/s	120/240
21	Lowering speed (Laden/Unladen)	mm/s	315/260
22	Gradeability (Laden/Unladen)	%	≤10
23	Driving motor	kw	6.5
24	Lifting motor	kw	4.5
25	Voltage/Capacity of lead-acid battery	V/Ah	48/300
26	Lead-acid battery charger	V/A	24/40
27	Voltage/Capacity of lithium battery (Optional)	V/Ah	48/280
28	Lithium battery charger	V/A	24/50
29	Sound level at driver's ear	dB(A)	<70

Mast Table
Lift height	Mast lowered height	Free lift	Extended mast height
h3（mm）	h1（mm）	h2（mm）	h4（mm）
3000	2100	‐	3577.5
3500	2350	‐	4077.5
4000	2600	‐	4577.5
4500	2100	1500	5465
5000	2280	1660	5965
5500	2450	1820	6465
6000	2620	1980	6965
6500	2790	2140	7465
7000	3210	2320	7965
