4.5-meter driver-operated stacking truck

Share to:

CQD-B-1545-Q Electric Reach Truck

Name: CQD-B-1545-Q Electric Reach Truck
Brand: ONEN
Rating: 5.0 (39 reviews)

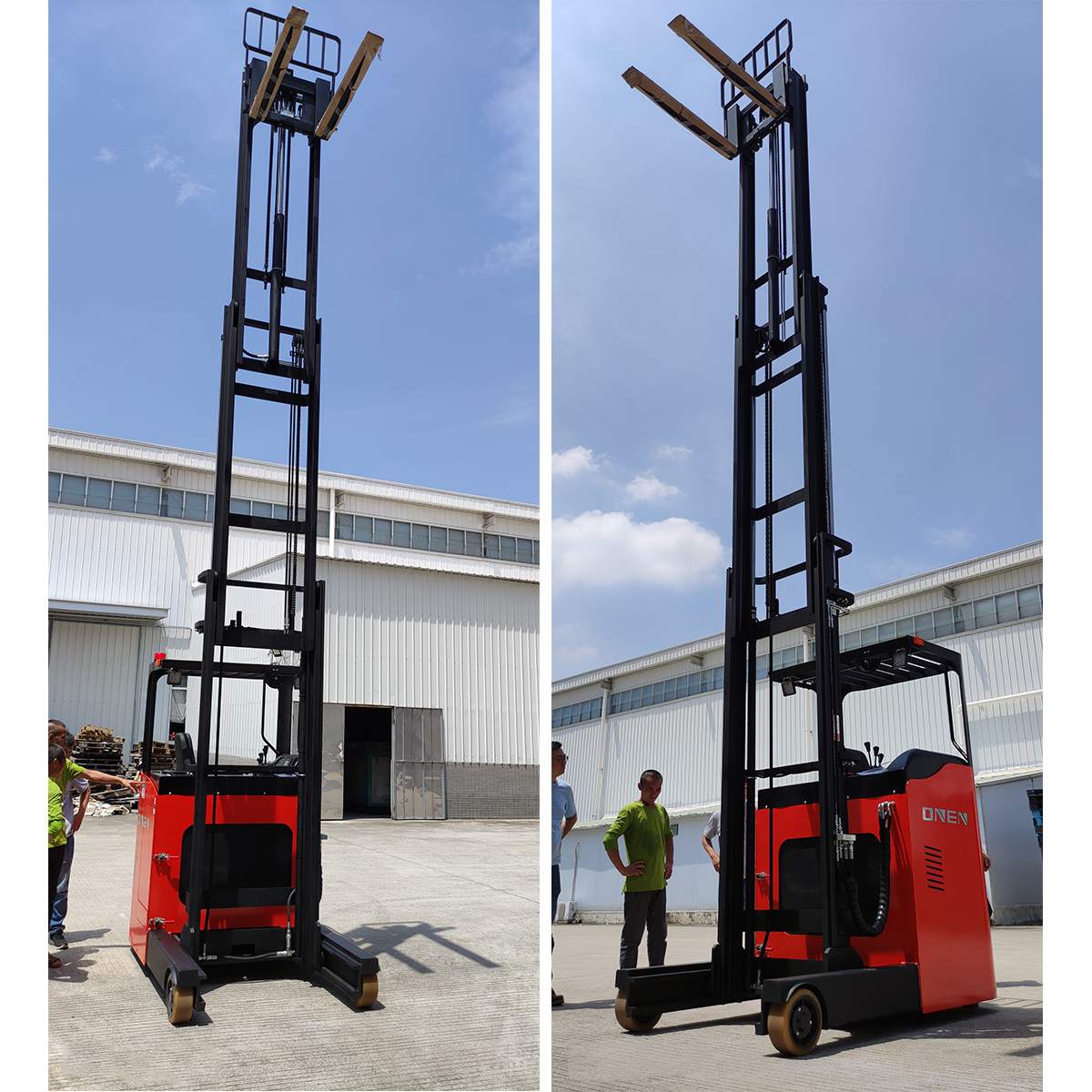

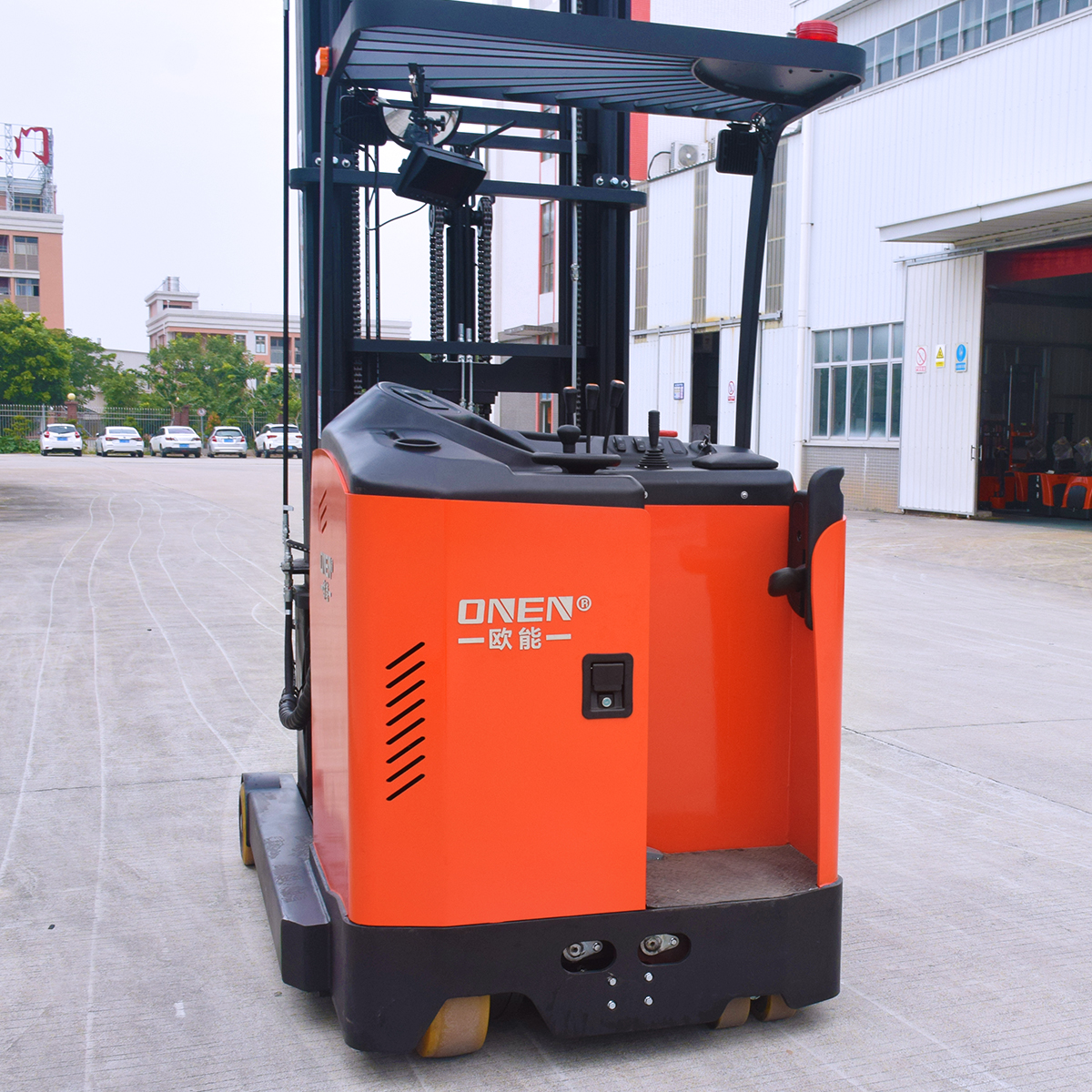

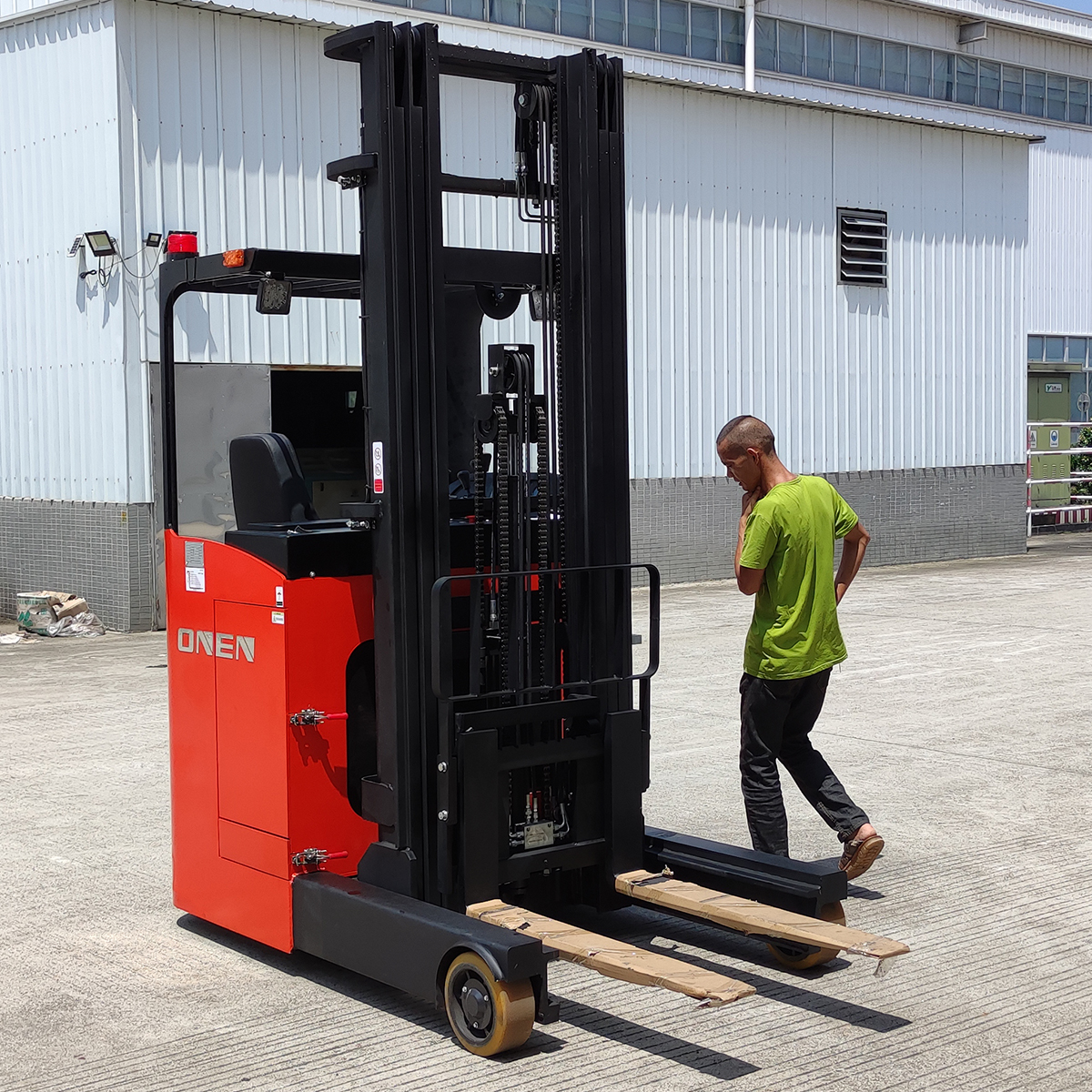

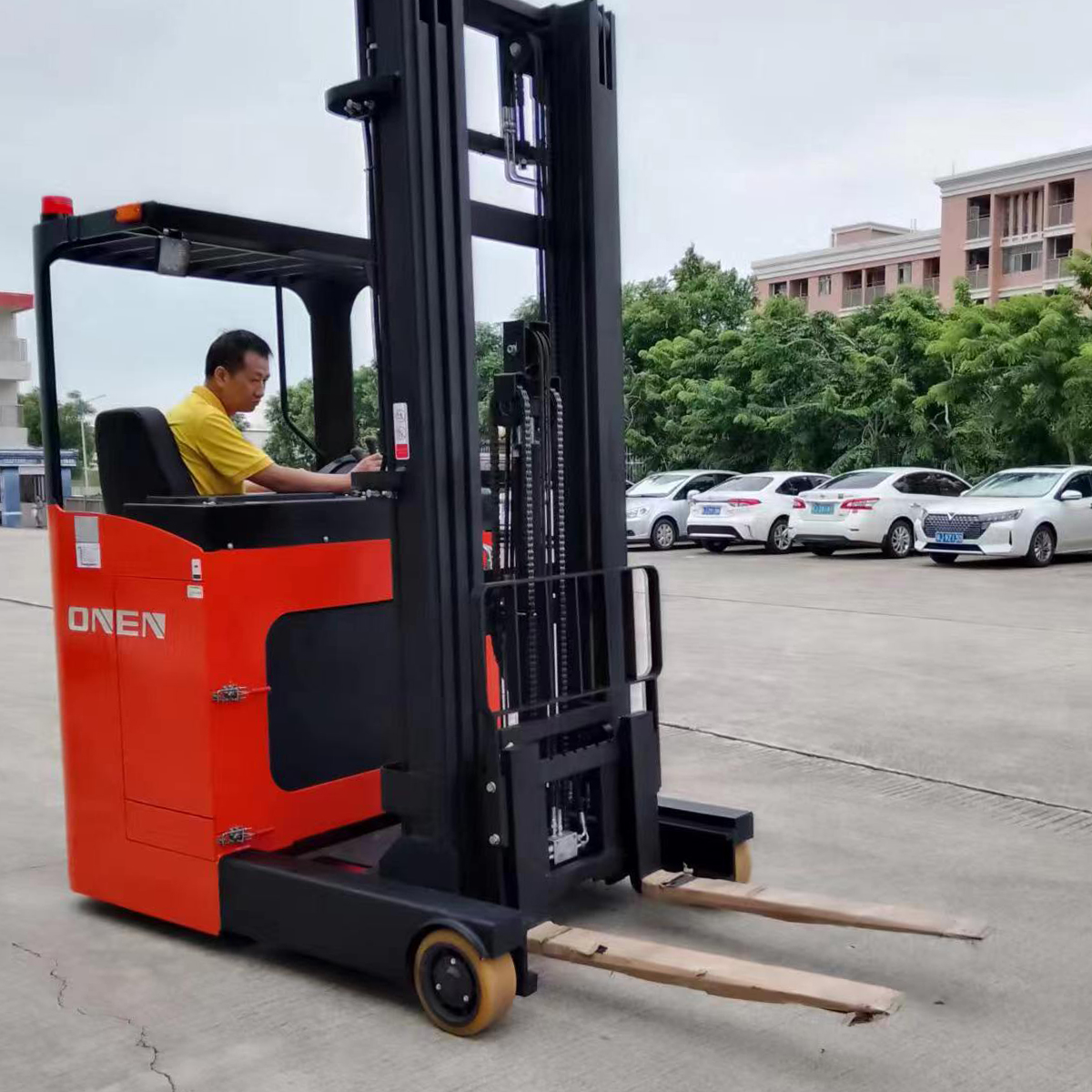

ONEN CQD-B is a seated reach truck with a rated load capacity of 1.5 tons and a maximum lifting height of 4.5 meters. Equipped with polyurethane wheels and electronic steering, this vehicle boasts a wide chassis that maintains stability even at a height of 4.5 meters. With its compact body and forward-moving function, it is ideal for high-level rack storage in narrow aisles. Powered by an AC drive system, it offers comfortable operation, energy efficiency, and low maintenance costs, effectively enhancing warehouse space utilization.

Availability:



Inquire Add to Basket

Model:
CQD-B-1545-Q
Brand:
ONEN
Name:
Electric Reach Truck
Power form:
Electric
Load Capacity:
1500kg
Driving Style:
Seated
Load Center:
500mm
Wheel Type:
PU
lift height:
4500mm
Fork Length:
1070mm
Turning Radius:
1800mm
Battery:
Lead-acid / Lithium
Use Tray Type:
Single Sided Tray, Double Sided Tray
Voltage/Capacity:
48V/300Ah【Lead-acid】、48V/280Ah【Lithium】
Charger:
24V/40A【Lead-acid】、24V/50A【Lithium】
Customization:
Support
After-Sales Service:
Warranty for one year or 1000 hours (lithium battery warranty for three years)
Certification:
CE/RoHS/SGS

ONEN CQD-B stacking vehicle, with a load capacity of 1.5 tons and a lifting height of 4.5 meters, is ideally suited for efficient and dense storage in narrow aisle warehouses, thanks to its compact body and forward-moving design.

The forklift model can easily achieve precise stacking of heavy pallets (1.5 tons) on 4.5-meter-high shelves, significantly improving vertical space utilization. The sit-down design and electric drive ensure comfort and environmental friendliness for long-duration, high-frequency operations, making it particularly suitable for logistics centers, finished product warehousing in production workshops, and cold storage scenarios.

ONEN CQD-B CQD-B seated reach truck ONEN 1.5-ton stacking truck 4.5-meter driver-operated stacking truck narrow aisle stacking truck high-level shelf supporting forklift Reach Truck reach truck Manufacturer China reach truck Reach Truck Forklift

Related News

Related Products

ONEN CQD-A Factory Wholesale Stand-up Compact Electric Reach Truck Forklift

ONEN CQD-B Wholesale Car Type High Lift Electric Reach Forklift Truck

CQD-B-1530-Q Electric Reach Truck

CQD-B-1535-Q Electric Reach Truck

CQD-B-1540-Q Electric Reach Truck

1	Model		CQD-B
2	Configuration No.		1545-Q
3	Power type		Electric
4	Steering type		Electric steering
5	Operation type		Seated
6	Load capacity	kg	1500
7	Load center distance	mm	500
8	Reach Distance	mm	505
9	Wheels type		PU
10	Driving wheel size	mm	Ф382×142
11	Bearing wheel size	mm	Ф267×114
12	Overall Length (With Fork)	mm	2477
13	Overall Width	mm	1270
14	Mast lowered height	mm	2100
15	Lift height	mm	4500
16	Extended mast height	mm	5465
17	Fork dimensions	mm	35/100/1070
18	Turning radius	mm	1800
19	Travel speed (Laden/Unladen)	km/h	6.8/7.8
20	Lift speed (Laden/Unladen)	mm/s	120/240
21	Lowering speed (Laden/Unladen)	mm/s	315/260
22	Gradeability (Laden/Unladen)	%	≤10
23	Driving motor	kw	6.5
24	Lifting motor	kw	4.5
25	Voltage/Capacity of lead-acid battery	V/Ah	48/300
26	Lead-acid battery charger	V/A	24/40
27	Voltage/Capacity of lithium battery (Optional)	V/Ah	48/280
28	Lithium battery charger	V/A	24/50
29	Sound level at driver's ear	dB(A)	<70

Mast Table
Lift height	Mast lowered height	Free lift	Extended mast height
h3（mm）	h1（mm）	h2（mm）	h4（mm）
3000	2100	‐	3577.5
3500	2350	‐	4077.5
4000	2600	‐	4577.5
4500	2100	1500	5465
5000	2280	1660	5965
5500	2450	1820	6465
6000	2620	1980	6965
6500	2790	2140	7465
7000	3210	2320	7965
