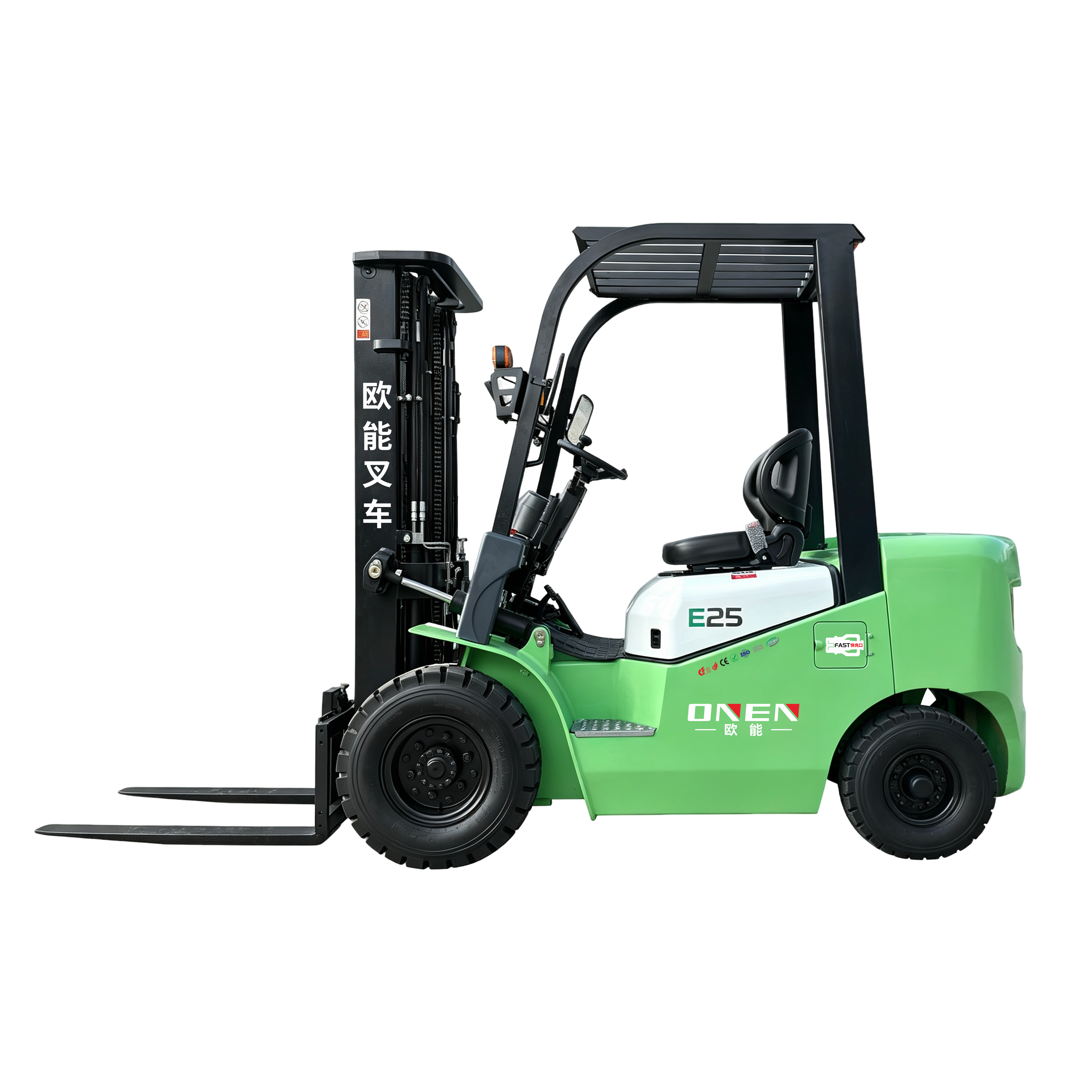

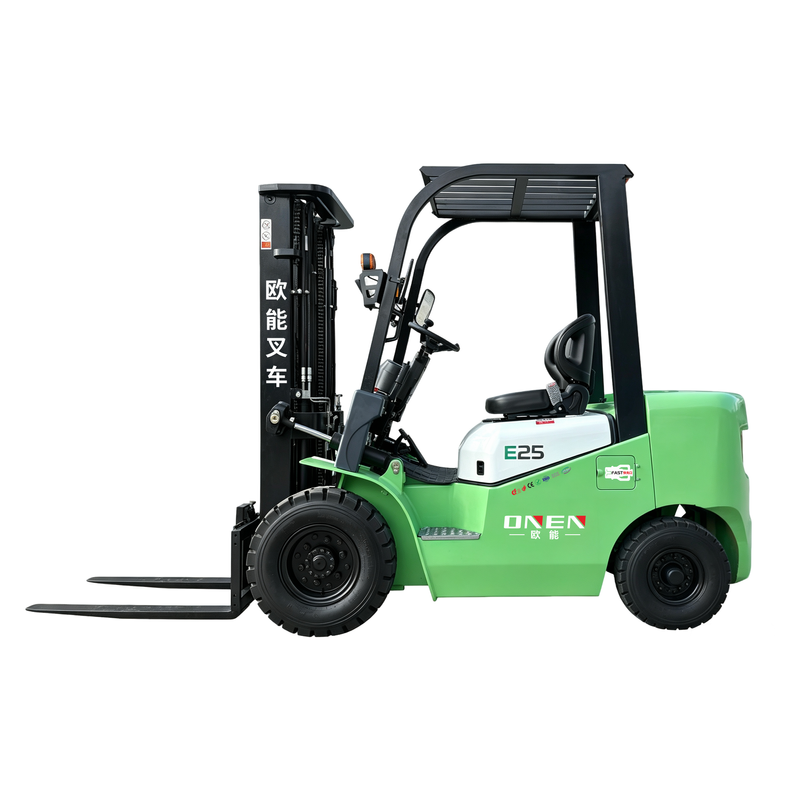

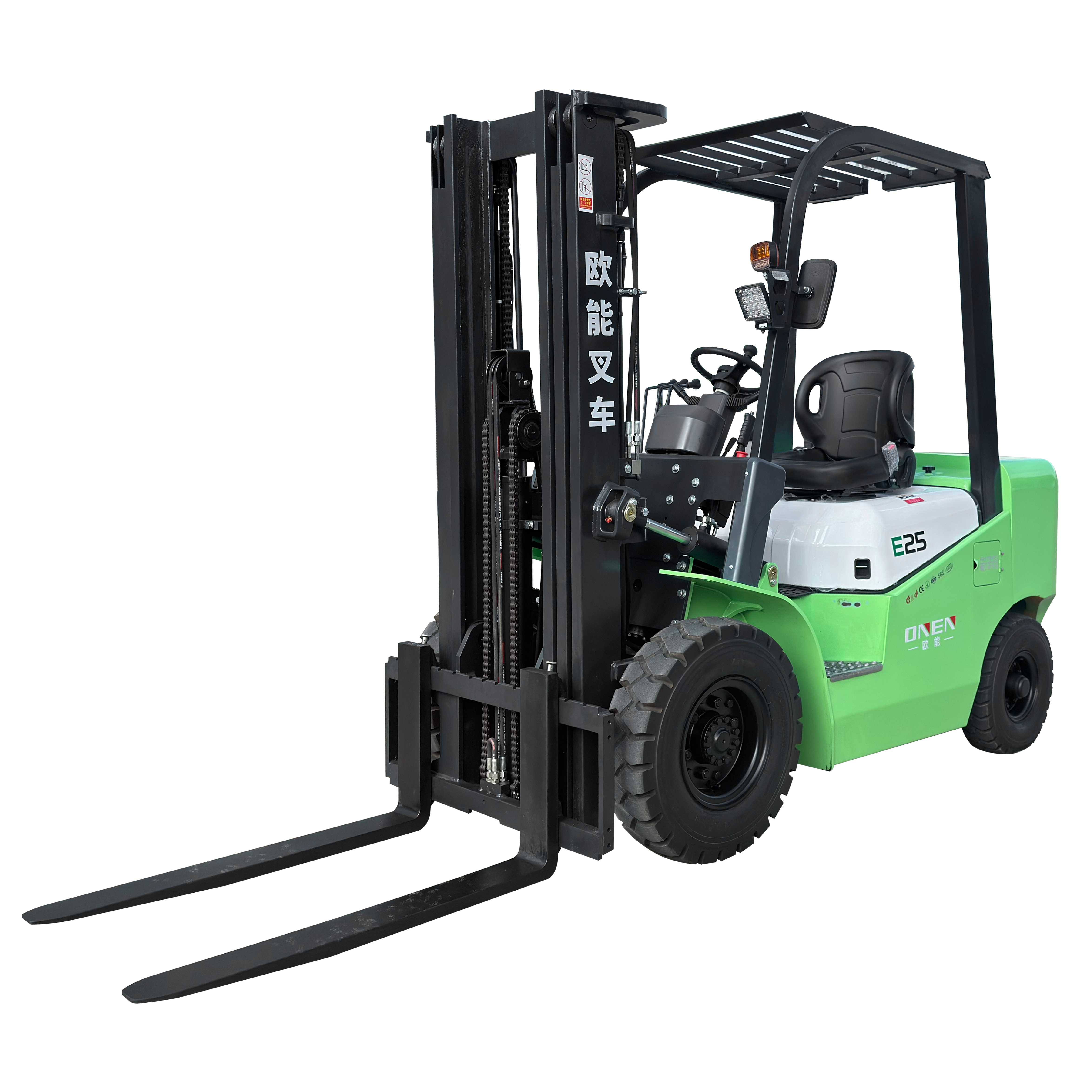

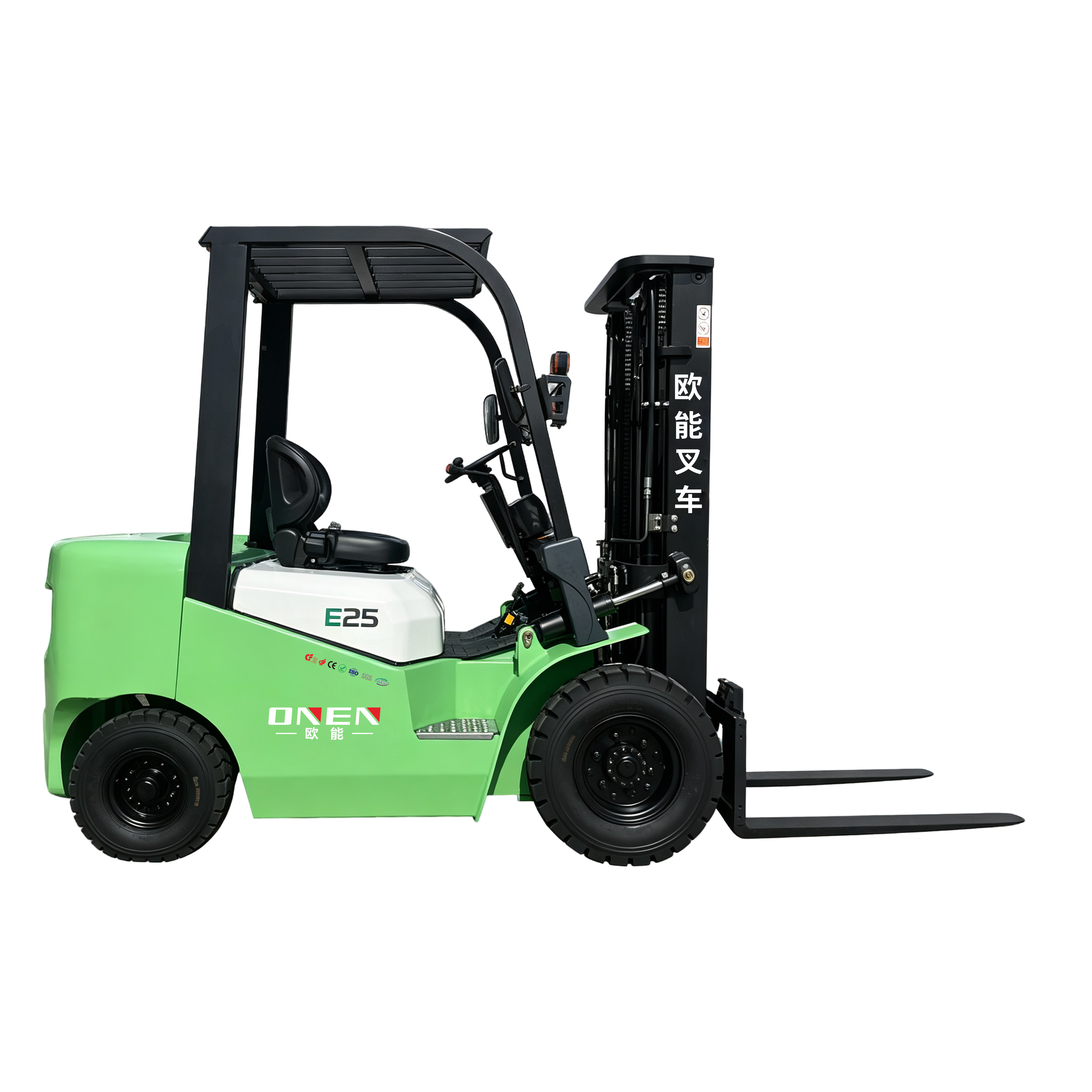

ONEN 2.5T Full-Electric Counterbalance Forklift, Seated Operator, Lift 3M

(CPDD-V-2530)

Model: CPDD-V-2530
Rated Load: 2,500 kg (5,500 lb)
Max. Lift Height: 3,000 mm (10 ft)
Drive Type: 2WD Seated Operation
Power: 80V / 230Ah Lithium Battery
Tires: Solid or Pneumatic (18×7-10 Front / 16×6-8 Rear)

Product Overview

    When your loads run heavy but you still want clean, quiet electric operation, the ONEN CPDD-V-2530 delivers. It is a 2.5-ton, seated-operator, lithium-battery counterbalance forklift for warehouses, factory workshops, building-material yards, logistics centers, stations and port terminals. It carries 2,500 kg at a 500 mm load center and lifts to 3 m as standard, with mast options up to 6 m. Powered by an 80 V / 230 Ah lithium battery, a 14 kW AC drive motor and an 18 kW lift motor, it travels at up to 16 km/h and climbs 22% grades while fully loaded. A 1,625 mm wheelbase and 1,000 mm front track give the stability heavy lifting demands, while the ergonomic seated station and full overhead guard keep operators productive all shift. Every unit ships export-ready from Guangdong ONEN New-resource Equipments Co., Ltd, backed by 30 years of material-handling experience.

Key Features & Competitive Advantages

1. 2.5T Heavy-Duty Capacity, Zero Emissions.

Rated for a full 2,500 kg at a 500 mm load center, the CPDD-V-2530 handles dense, heavy pallet loads — drums, building materials, steel components, machinery parts — that would traditionally demand a diesel or LPG counterbalance truck. Yet it runs entirely on electricity, producing zero tailpipe emissions and near-silent operation, so it is equally safe inside enclosed warehouses, food-grade cold storage, pharmaceutical clean rooms and air-quality-sensitive factory floors where combustion engines are prohibited. This means you can consolidate your fleet: one electric truck that does both indoor racking and outdoor yard work, eliminating the need to maintain a separate diesel unit for heavy loads. The 2,530's 3,445 kg service weight and reinforced chassis structure are engineered specifically for the higher stress of 2.5-ton cycles, giving a longer structural life under demanding duty than a lighter-rated truck pushed to its limit.

2. Zero-Emission 80V Lithium Power.

The CPDD-V-2530 runs on an 80 V / 230 Ah lithium battery paired with a matched 80 V / 100 A fast charger, delivering enough energy to sustain a full multi-shift duty cycle of heavy lifting without a mid-day charge stop. Opportunity charging during breaks and shift handovers means the truck tops up in as little as 30 minutes and is ready for the next run — no battery swap, no spare pack, no acid maintenance, and no dedicated ventilated charging room eating into your floor space. The lithium chemistry offers over 3,000 charge cycles to 80% capacity, far outlasting lead-acid, and carries a three-year warranty for peace of mind. For operations running two or three shifts, this translates into higher truck utilization per capital dollar and a dramatically simpler energy management routine compared to battery-swap fleets.

3. Low-Maintenance AC Drivetrain.

A 14 kW AC drive motor and 18 kW lift motor run brushless — no carbon brushes to inspect or replace every few hundred hours, no complex multi-speed transmission to tear down and rebuild. That eliminates the two most common downtime items on engine trucks and even on older DC electric forklifts. Daily upkeep is reduced to a quick visual walk-around: check tyre condition, clear debris from the wheel paths, confirm the battery state of charge. The electromagnetic parking brake and regenerative reverse-braking system are essentially wear-free, so brake service intervals stretch dramatically. For fleet managers, the math is compelling — fewer spare parts on the shelf, shorter service windows, and higher availability per unit across multi-shift operations.

4. Stable, Confident Under Load.

A 1,625 mm wheelbase, 1,000 mm front track and 3,445 kg counterweight give the 2530 a planted, confidence-inspiring chassis when you are lifting 2.5 tons to height — the stability margin a heavy-duty truck demands. With 16 km/h travel speed and 22% laden / 25% unladen gradeability, the truck climbs loaded up dock plates, boat-ramp gradients and uneven yard surfaces without hesitation. Lifting runs at 350–400 mm/s and lowering at 400–450 mm/s, while the high-torque hydraulic power unit delivers smooth, jerk-free mast motion that protects fragile or high-value cargo from shock and sway. The 6° forward / 10° backward mast tilt lets operators dump and rake in loads without repositioning, speeding up bulk stacking in yards and container work.

5. Comfortable, Safe Seated Operation.

The ergonomic seated operator station, low step-in height and full overhead guard (2,150 mm) reduce fatigue and protect the driver through long, demanding shifts — a real productivity advantage over stand-on and walk-behind trucks when travel distances are long and loads are heavy. Controls are laid out for natural hand and foot reach so operators stay precise at the rack face and dock edge without twisting or straining. The 2,410 mm turning radius and 1,150 mm overall width keep the truck maneuverable despite its 2,600 mm body length, threading through staging lanes and container doors that would stop a larger IC truck. Choose standard solid tyres for smooth indoor concrete or optional pneumatic tyres for rougher outdoor yard ground — the same truck adapts to both environments in a single shift. Combined with low noise and zero emissions, the 2530 is a heavy-duty forklift operators are genuinely happy to run all day.

Application Scenarios

Warehouses & Distribution Centers. Clean, quiet electric power handles heavy palletized stock in racking, with a 3,130 mm pallet aisle (1000×1200) for efficient stocking and picking.

Building-Material & Industrial Yards. 2,500 kg capacity and the pneumatic-tyre option move bags, blocks, drums and steel safely both indoors and out.

Loading Docks & Containers. The 2,600 mm body and compact mast speed trailer and container loading of heavy goods.

Stations & Port Terminals. 22% laden gradeability and a robust chassis handle dock approaches and mixed ground.

Why Source from ONEN?

Guangdong ONEN New-resource Equipments Co., Ltd. has spent three decades refining forklift design and manufacturing. When you partner with ONEN, you gain:

• Complete Certifications: ISO 9001, ISO 14001, ISO 45001, CE, RoHS, and SGS.

• Licensed Manufacturing: China Special Equipment Production License and TX type-test certificates.

• Award-Winning Design: Recognized with the Canton Fair Design Award.

• Full Product Ecosystem: From electric and diesel forklifts to scissor lifts, reach trucks, pallet stackers, and walkie pallet trucks—standardize your entire fleet with one trusted supplier.
