ONEN CPDD-V is a seated full-electric counterbalance forklift for indoor & outdoor material handling. Zero-emission and quiet, it replaces diesel/LPG trucks, ideal for warehouses, workshops, logistics hubs, stations and ports. It manages pallet loads, supporting order picking, horizontal transport, loading/unloading and finished goods stacking. 1.80V / 230Ah lithium battery with matched 80V / 100A fast charger — opportunity charging, no battery room, 3-year battery warranty. 2.14 kW AC drive motor and 18 kW lift motor deliver 16 km/h travel speed and 22% laden gradeability. 3.Seated operator station with ergonomic layout and full overhead guard for all-day comfort and safety. 4.Compact 2-stage mast — 2,010 mm lowered height, 3,000 mm lift, 130 mm free lift, 4,050 mm extended height. 5.Core components from top-quality global brands; solid or pneumatic tyres optional.

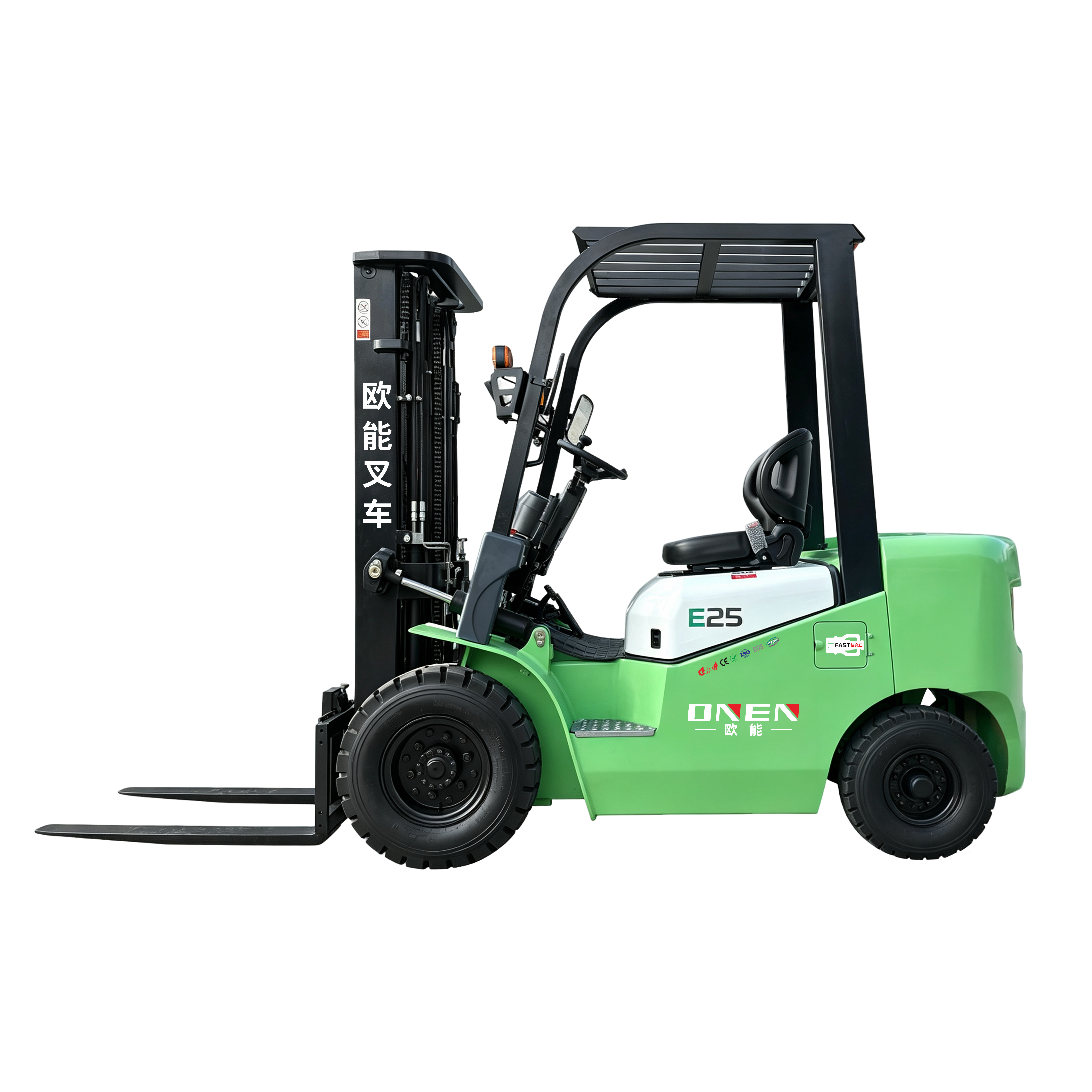

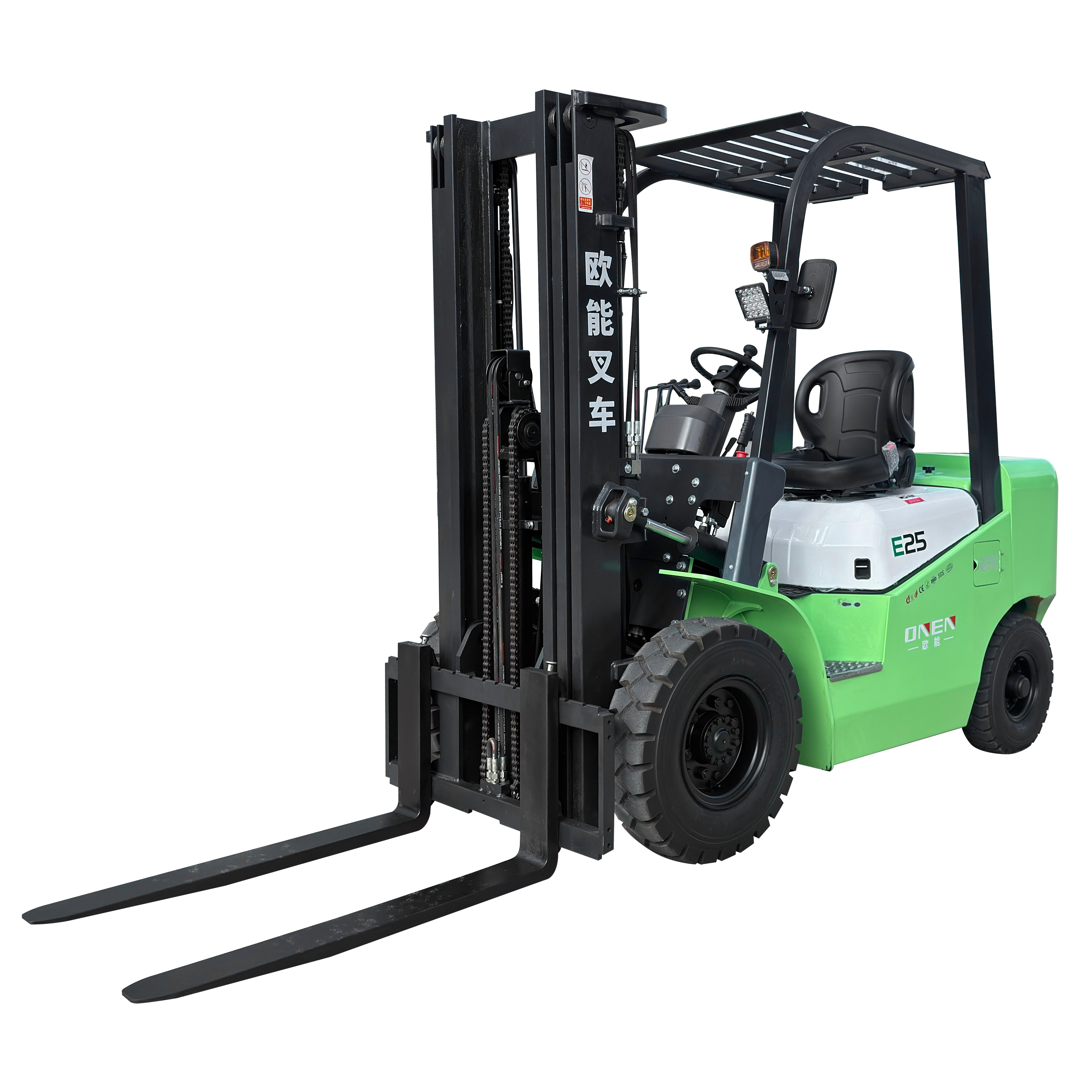

Model: CPDD-V-2030 Rated Load: 2,000 kg (4,400 lb) Max. Lift Height: 3,000 mm (10 ft) Drive Type: 2WD Seated Operation Power: 80V / 230Ah Lithium Battery Tires: Solid or Pneumatic (18×7-10 Front / 16×6-8 Rear)
Product Overview
The ONEN CPDD-V-2030 is a 2.0-ton, seated-operator, lithium-battery counterbalance forklift built for warehouses, factory workshops, logistics centers, stations and port terminals. It carries 2,000 kg at a 500 mm load center and lifts to 3 m as standard, with mast options up to 6 m. Powered by an 80 V / 230 Ah lithium battery and a 14 kW AC drive motor, it travels at up to 16 km/h and climbs 22% grades while loaded. The ergonomic seated station and full overhead guard keep operators comfortable through long shifts, and the 2,300 mm turning radius threads narrow rack aisles.
Key Features & Competitive Advantages
1. Zero-Emission 80V Lithium Power
The CPDD-V-2030 is powered by an 80V/230Ah lithium battery and an 80V/100A fast charger, supporting quick and opportunity charging for nonstop operation. No battery swapping, acid handling or ventilated charging rooms are needed, saving space and reducing safety hazards. Zero emissions make it ideal for enclosed warehouses, food, pharmaceutical and other air-sensitive indoor areas. The lithium battery has a 5-year warranty, with longer cycle life and higher efficiency to cut total ownership cost vs lead-acid units.
2. Low-Maintenance AC Drivetrain.
Its 14 kW AC drive and 18 kW lift motors are brushless, requiring no carbon brush checks or replacement, plus no complex multi-gear transmission maintenance. This cuts planned downtime and spare parts costs greatly. Daily maintenance only needs simple visual inspections: clearing wheel debris and keeping the battery charged. Its electromagnetic reverse braking system is nearly wear-free. For multi-shift fleets, it delivers higher uptime and lighter maintenance workload than equivalent engine-powered trucks.
3. Strong, Confident Performance
With 16 / 16 km/h travel speed (laden and unladen) and 22% / 25% laden/unladen gradeability, the 2.0T CPDD-V keeps pace with busy operations, moves quickly between zones, and still climbs loaded up dock plates, ramps and gradient approaches with authority. Lifting runs at 350–400 mm/s and lowering at 400–450 mm/s, so stacking and put-away cycles are fast without sacrificing control, and the high-torque hydraulic power unit delivers smooth, jerk-free motion that protects fragile or high-value loads. The result is real throughput: more pallets moved per shift than a walk-behind or economic rider unit, at a fraction of the cost of a large IC forklift.
4. Compact, Maneuverable Body
At just 1,150 mm overall width with a 2,300 mm turning radius and a 2,010 mm lowered mast, the truck threads narrow rack aisles, turns inside tight staging areas and drives straight into standard shipping containers and trailers. A 3,130 mm working aisle for 1000×1200 pallets (2,930 mm for 800×1000) lets you pack racking denser and store more pallets per square meter. Where ceiling or door height is limited, 3-stage mast options add generous free lift — up to 2,000 mm — so the forks extend inside a low-profile mast, and the whole CPDD-V series can be specified with lift heights from 3,000 mm up to 6,000 mm to match your tallest rack.
5. Comfortable, Safe Seated Operation
The ergonomic seated operator station, low step-in height and full overhead guard reduce fatigue and keep the driver protected through long, demanding shifts — a real productivity advantage over stand-on and walk-behind trucks when travel distances are long. Controls are laid out for natural reach so operators stay precise at the rack face, and the choice of standard solid tyres for smooth indoor floors or optional pneumatic tyres for rougher ground lets you tune ride comfort and traction to the actual working surface. Combined with low noise and zero emissions, the 2030 is a truck operators are happy to run all day.
Application Scenarios
Warehouses & Distribution Centers. Zero emissions and sub-noise electric operation make it safe for indoor racking, and the 3,130 mm pallet aisle (1000×1200) keeps stocking and picking fast.
Factory Workshops & Production Lines. Move raw material, WIP and finished goods between stations; 2,000 kg capacity handles standard pallet loads with margin.
Loading Docks & Containers. The 2,500 mm body length and compact mast load and unload trailers and containers efficiently.
Stations & Port Terminals. Pneumatic-tyre option and 22% gradeability suit mixed indoor/outdoor and dock approaches.
Why Source from ONEN?
Guangdong ONEN New-resource Equipments Co., Ltd. has spent three decades refining forklift design and manufacturing. When you partner with ONEN, you gain:
Complete Certifications: ISO 9001, ISO 14001, ISO 45001, CE, RoHS, and SGS.
Licensed Manufacturing: China Special Equipment Production License and TX type-test certificates.
Award-Winning Design: Recognized with the Canton Fair Design Award.
Full Product Ecosystem: From electric and diesel forklifts to scissor lifts, reach trucks, pallet stackers, and walkie pallet trucks—standardize your entire fleet with one trusted supplier.
Frequently Asked Questions
What capacity and lift heights does the CPDD-V-2030 offer?
2,000 kg at a 500 mm load center, with a standard 3,000 mm lift and mast options up to 6,000 mm (2-stage and 3-stage).
Is the battery included? Can I upgrade?
Yes — it ships with an 80 V / 230 Ah lithium battery and matched 80 V / 100 A charger, with a three-year battery warranty.
What is the minimum aisle width?
About 3,130 mm for 1000×1200 pallets and 2,930 mm for 800×1000 pallets, with a 2,300 mm turning radius.
Solid or pneumatic tyres?
Solid tyres are standard for smooth indoor floors; pneumatic tyres are optional for rougher outdoor ground.
Do you offer OEM or custom configurations?
Yes — custom colors, branding decals, mast heights, fork lengths, battery options and regional voltage standards for private-label partners.
