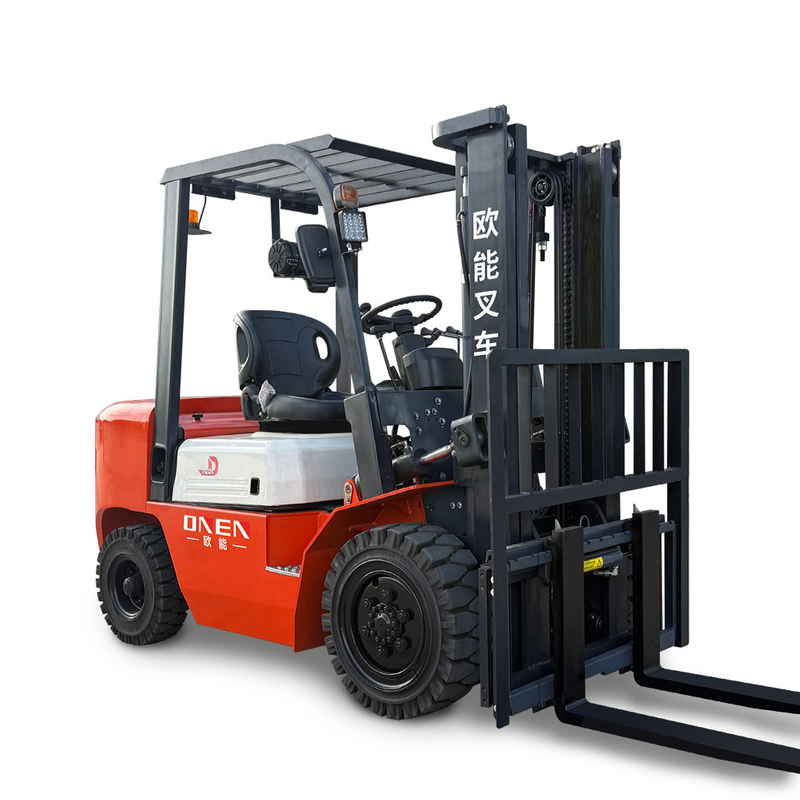

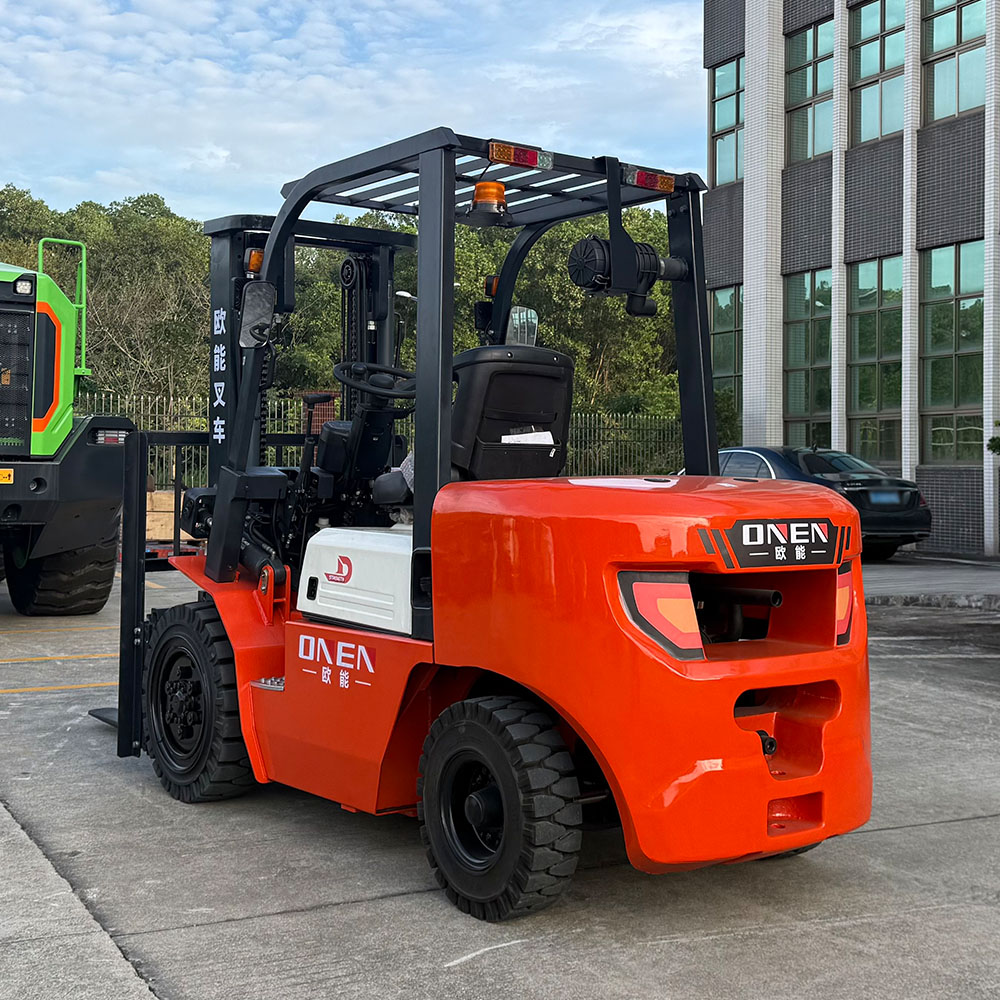

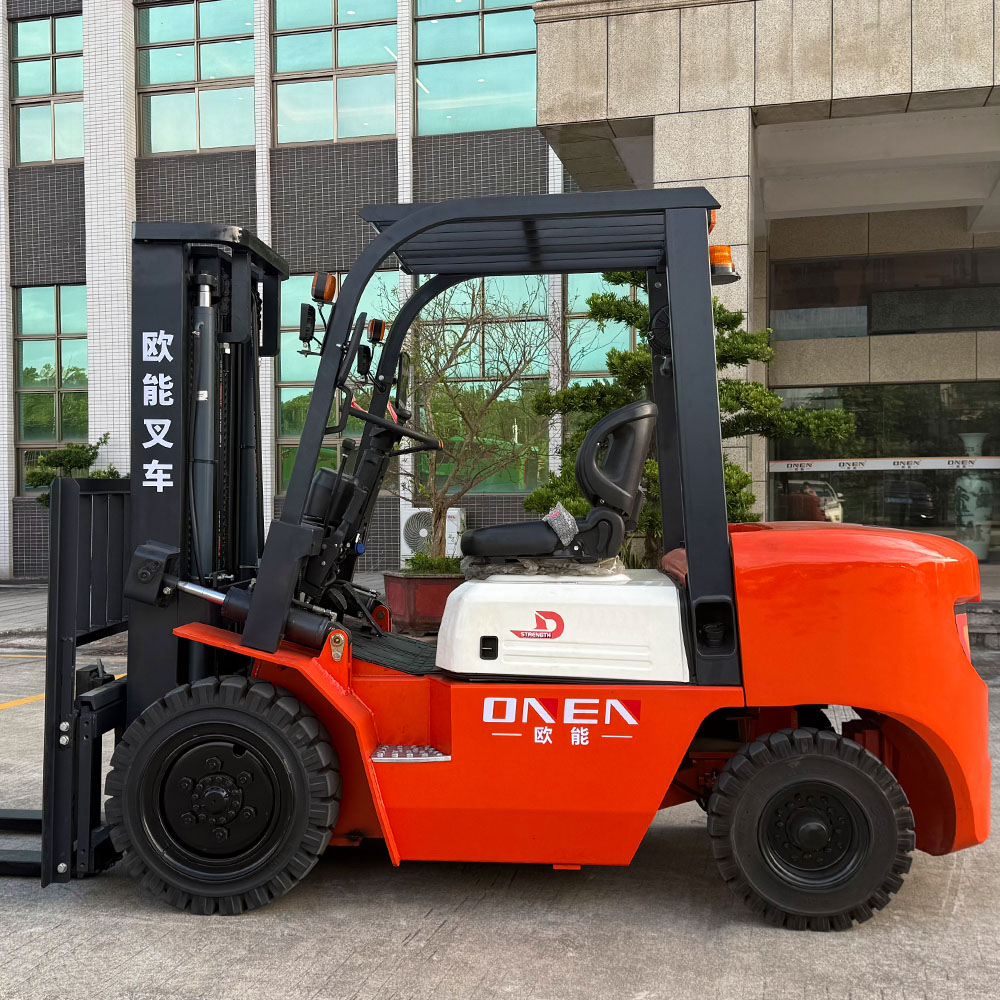

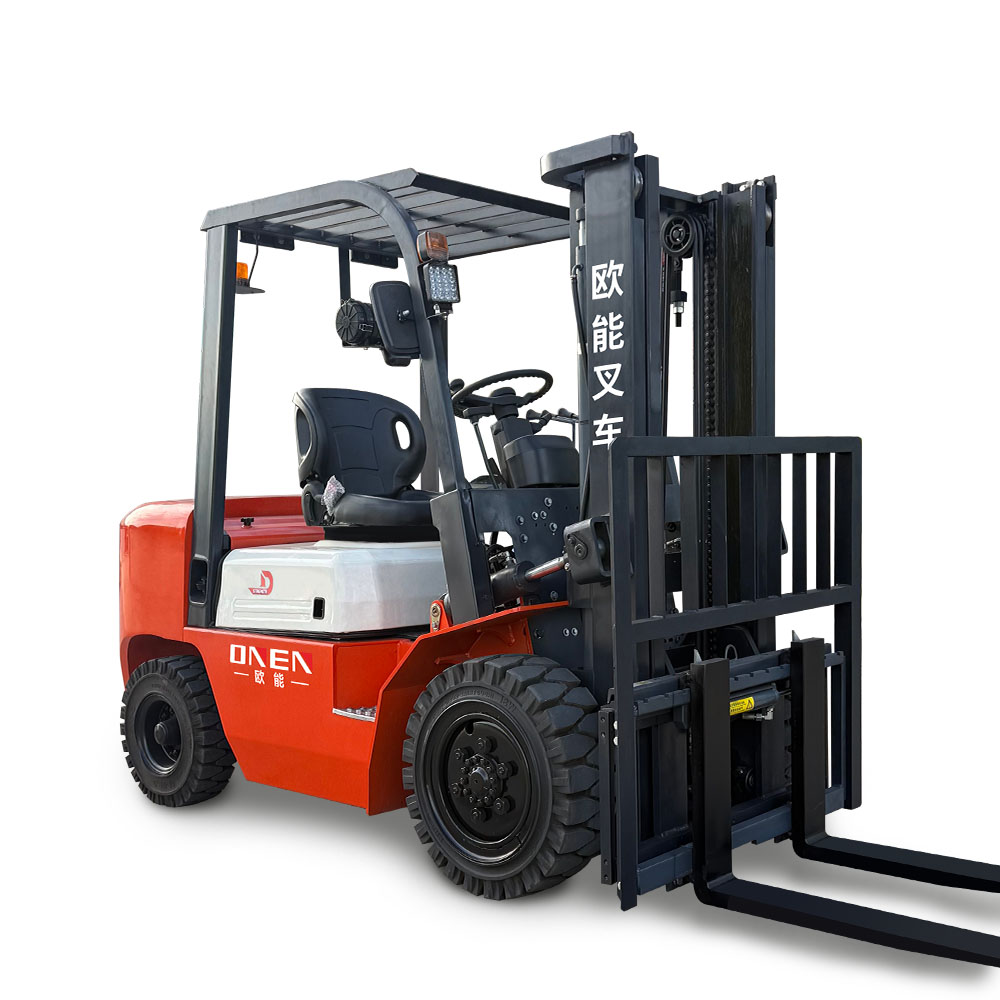

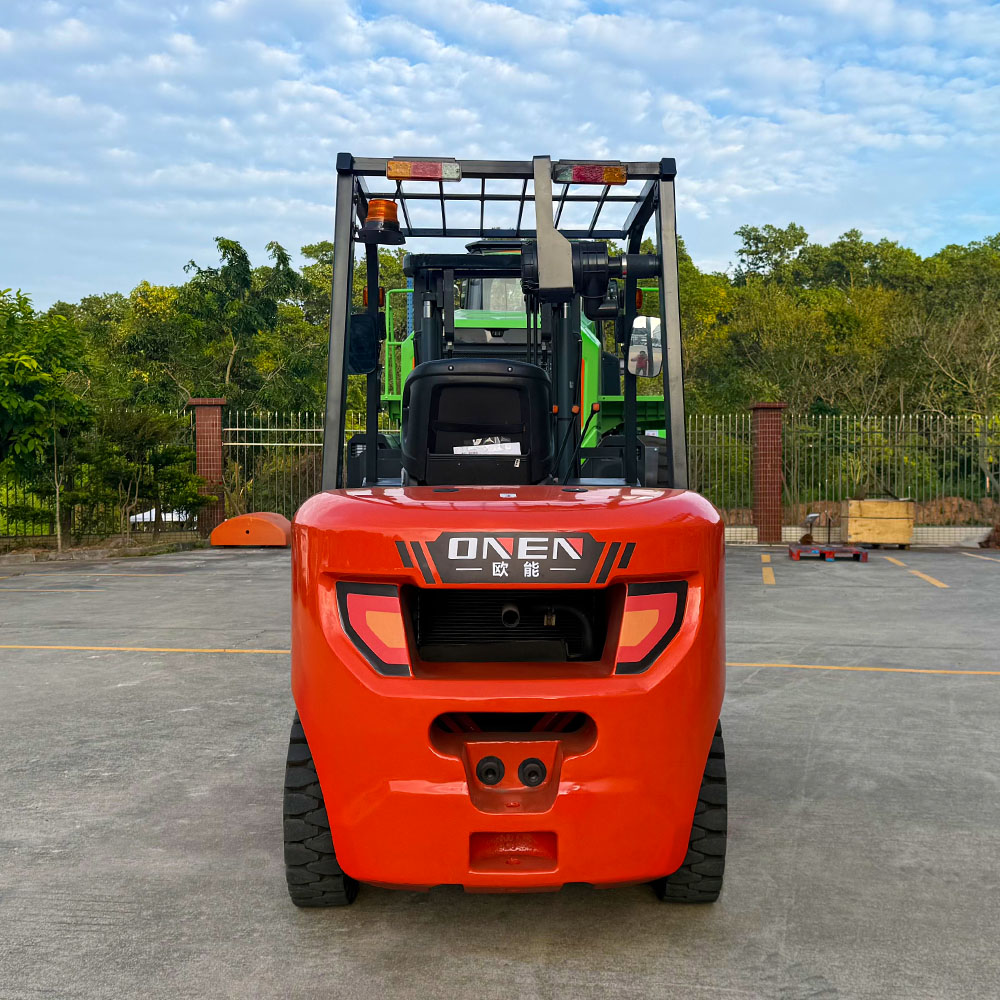

CPC/CPCD-3035 Diesel Forklift

Load Capacity: 3000kg
lift height: 3500mm
engine model: Xinchai / Quanchai / YANMAR / KUBOTA
Availability:
  • CPC/CPCD-3035

  • ONEN

  • Single Sided Tray, Double Sided Tray


diesel forklift 3000kg

CPC/CPCD-3035 is equipped with a 3.5-meter lifting mast, boasting strong power. Ideal for outdoor work environments under heavy loads, such as logistics yards, construction sites, and ports, CPC/CPCD-3035's high-strength mast offers excellent stability, enabling it to effortlessly navigate rough terrain and slopes.

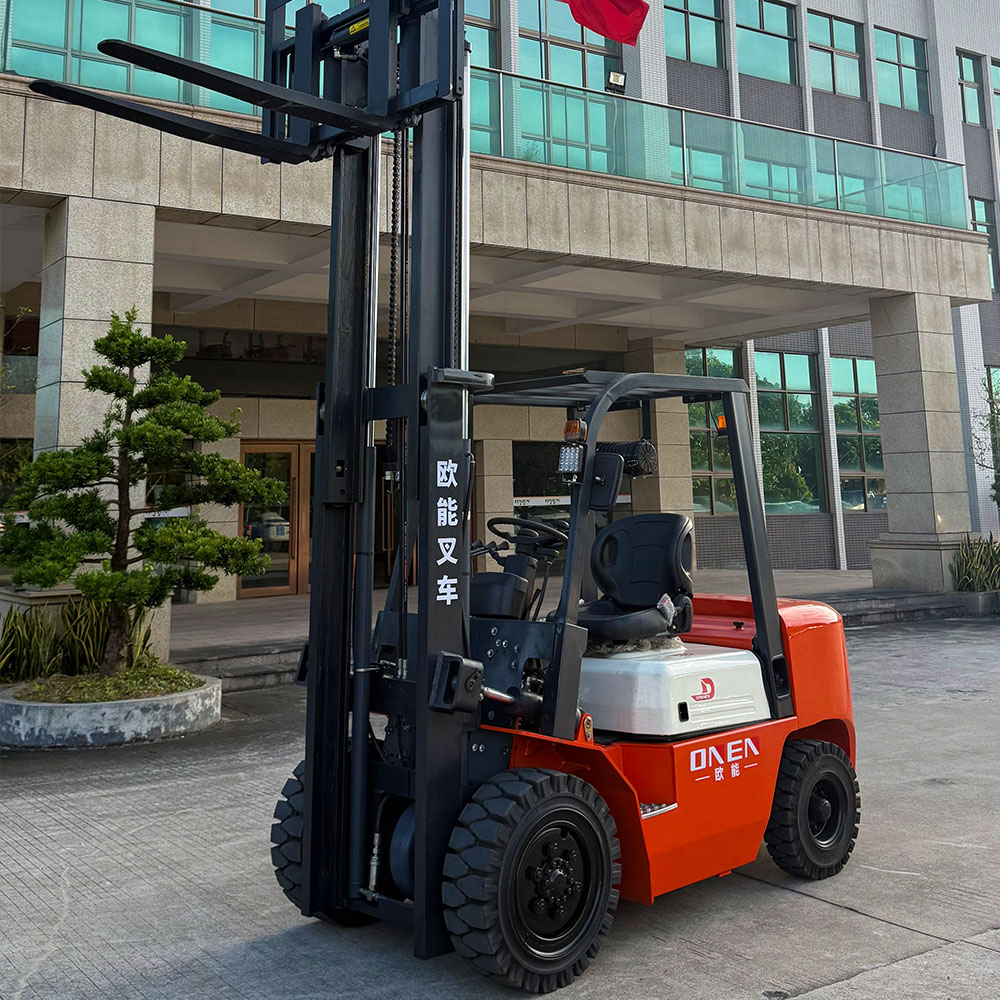

Diesel forklift price 3 ton

It is commonly used for loading and unloading containers, stacking heavy pallets, or performing high-frequency, large-tonnage material handling tasks in open and ventilated areas where there are no exhaust emission restrictions.


1 Model
CPC3035/CPCD3035
2 Powertype
diesel
3 Operation type
seated
4 Load capacity kg 3000
5 Load centre distance mm 500
6 Wheels type
Solid tires/Pneumatic tires(Optional)
7 Tire specification(Front/Rear)
28x9-15/6.50-10
8 Fork length mm 1070
9 Width overall forks (Adjustable) mm 1100/250
10 Overall Length (Without fork) mm 2690
11 Overall Width mm 1210
12 Lift height mm 3500
13 Extended mast height mm 4060
14 Mast lowered height mm 2365
15 Free height mm 165
16 Tilt of mast carriage (Forward/Backward) α/β 6°/12°
17 Turning radius mm 2240
18 Travelspeed (Laden/Unladen) km/h 18/20
19 Lift speed (Laden/Unladen) mm/s 485/505
20 Lowering speed (Laden/Unladen) mm/s <600
21 Gradeability (Unladen) % 20
22 Service brake
Power brake (Pedal)
23 Parking brake
Mechanical (Manual)
24 Fuel capacity L 60
25 Engine model
Xinchal/Quanchai/YANMAR/KUBOTA
26 Battery (Voltage/Capacity) V/Ah 12/80
