CPC/CPCD-3040
ONEN
Single Sided Tray, Double Sided Tray

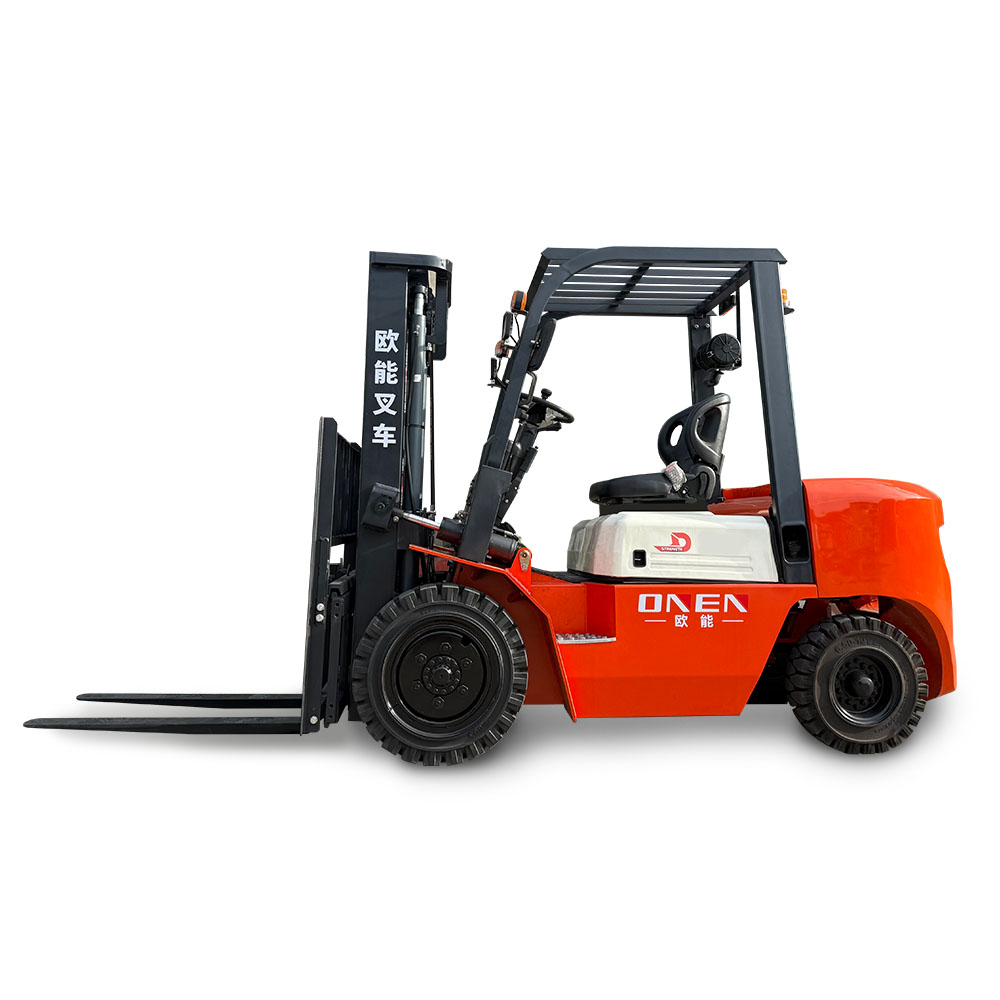

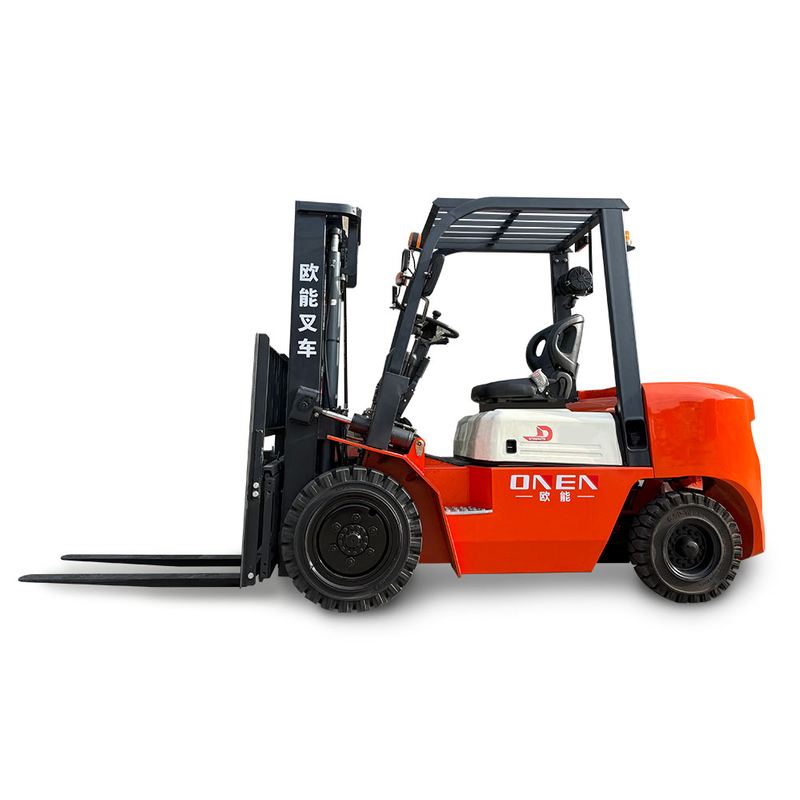

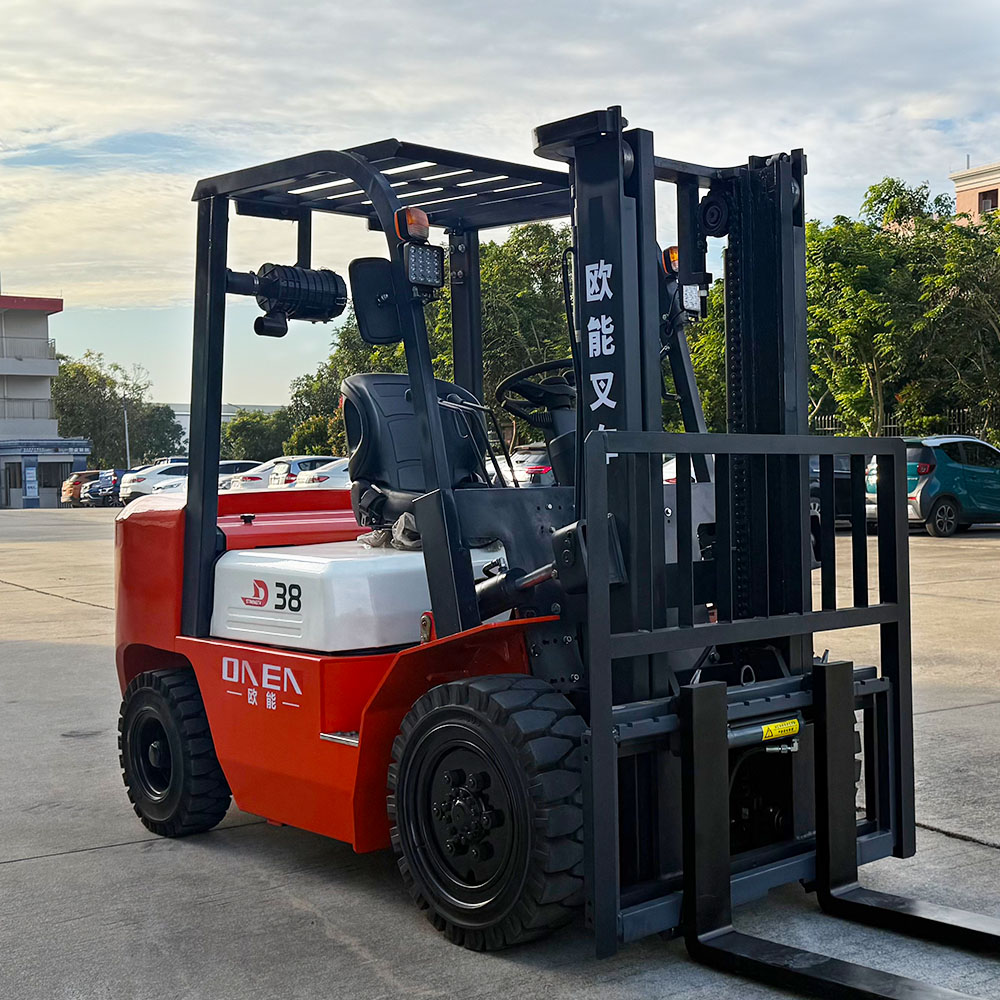

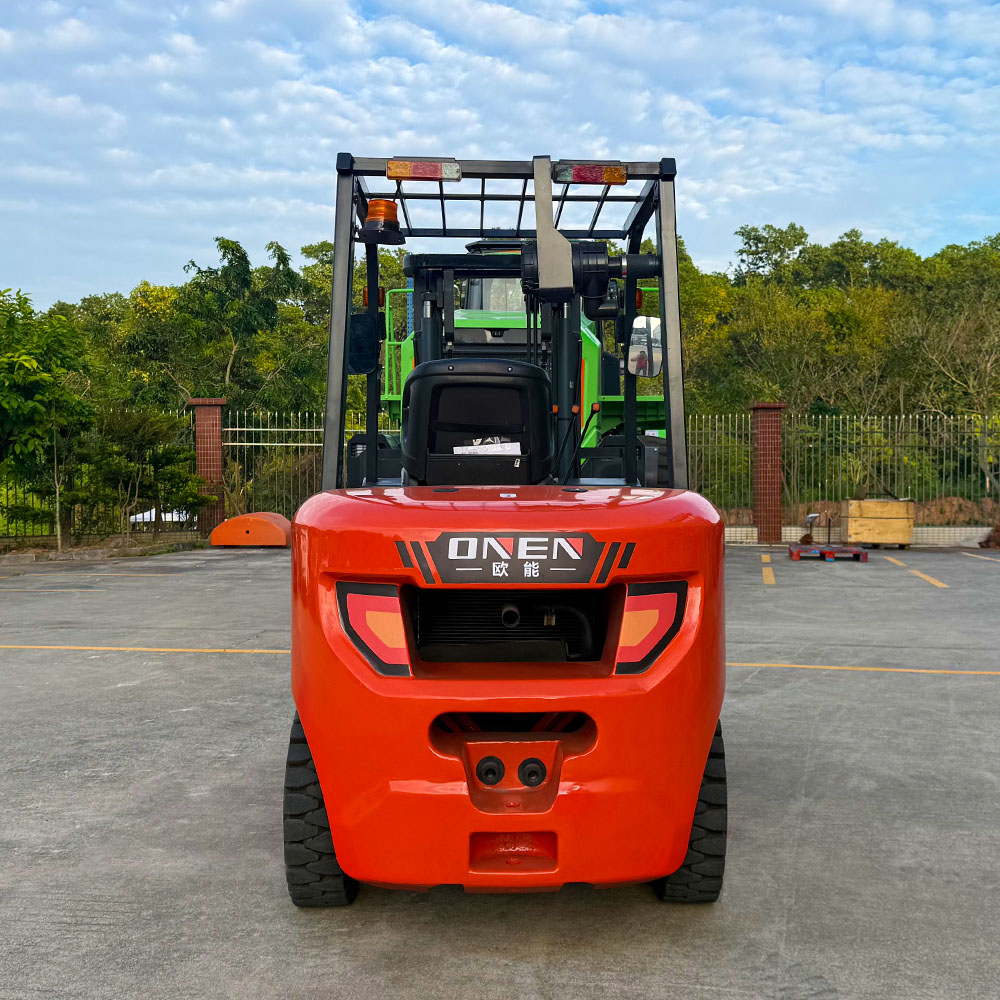

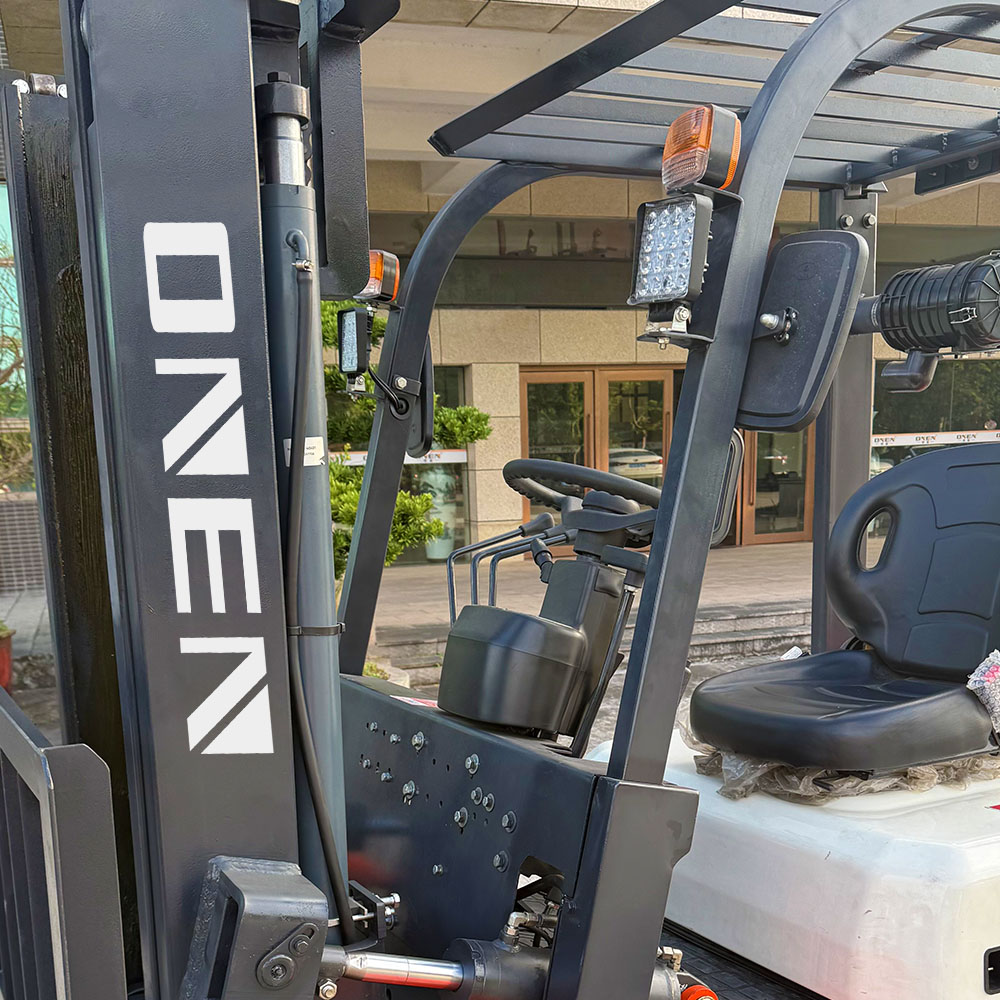

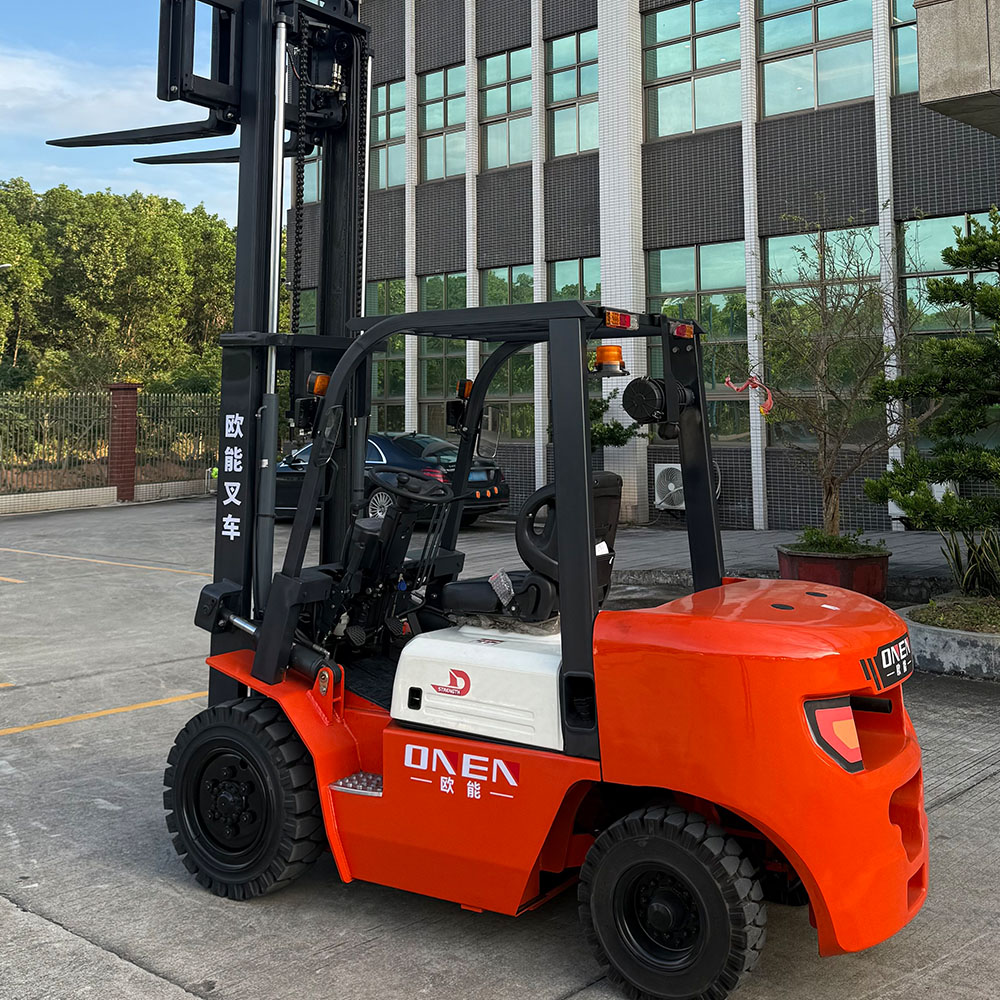

ONEN CPC/CPCD-3040 is equipped with Quanchai/Xinchai engines, providing strong power and capable of handling heavy loads. The forklift's mast design, with a lifting height of 4 meters, is particularly suitable for enterprises seeking to maximize the utilization of vertical storage space.
CPC/CPCD-3040 has a minimum turning radius of 2240mm and a vehicle width of 1210mm, allowing it to maneuver flexibly through narrow shelf aisles and load and unload large trucks. With a 20% gradeability, it can easily handle the high-intensity operational demands of ports, freight yards, and complex outdoor road conditions.
| 1 | Model | CPC3040/CPCD3040 | |
| 2 | Powertype | diesel | |
| 3 | Operation type | seated | |
| 4 | Load capacity | kg | 3000 |
| 5 | Load centre distance | mm | 500 |
| 6 | Wheels type | Solid tires/Pneumatic tires(Optional) | |
| 7 | Tire specification(Front/Rear) | 28x9-15/6.50-10 | |
| 8 | Fork length | mm | 1070 |
| 9 | Width overall forks (Adjustable) | mm | 1100/250 |
| 10 | Overall Length (Without fork) | mm | 2690 |
| 11 | Overall Width | mm | 1210 |
| 12 | Lift height | mm | 4000 |
| 13 | Extended mast height | mm | 4560 |
| 14 | Mast lowered height | mm | 2630 |
| 15 | Free height | mm | 165 |
| 16 | Tilt of mast carriage (Forward/Backward) | α/β | 6°/12° |
| 17 | Turning radius | mm | 2240 |
| 18 | Travelspeed (Laden/Unladen) | km/h | 18/20 |
| 19 | Lift speed (Laden/Unladen) | mm/s | 485/505 |
| 20 | Lowering speed (Laden/Unladen) | mm/s | <600 |
| 21 | Gradeability (Unladen) | % | 20 |
| 22 | Service brake | Power brake (Pedal) | |
| 23 | Parking brake | Mechanical (Manual) | |
| 24 | Fuel capacity | L | 60 |
| 25 | Engine model | Xinchal/Quanchai/YANMAR/KUBOTA | |
| 26 | Battery (Voltage/Capacity) | V/Ah | 12/80 |
