CQD-B-1565-Q Electric Reach Truck

Name: CQD-B-1565-Q Electric Reach Truck
Brand: ONEN
Rating: 5.0 (7 reviews)

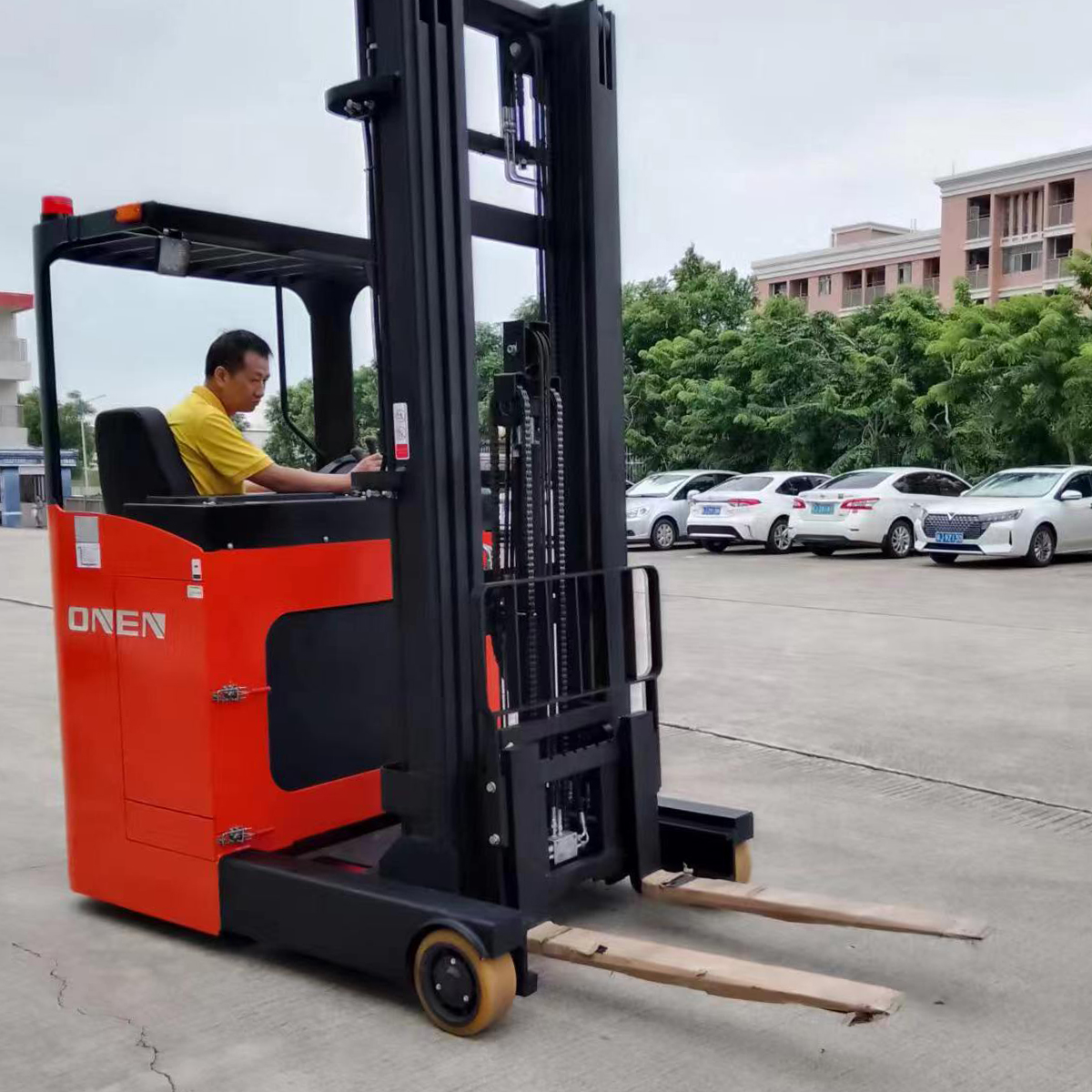

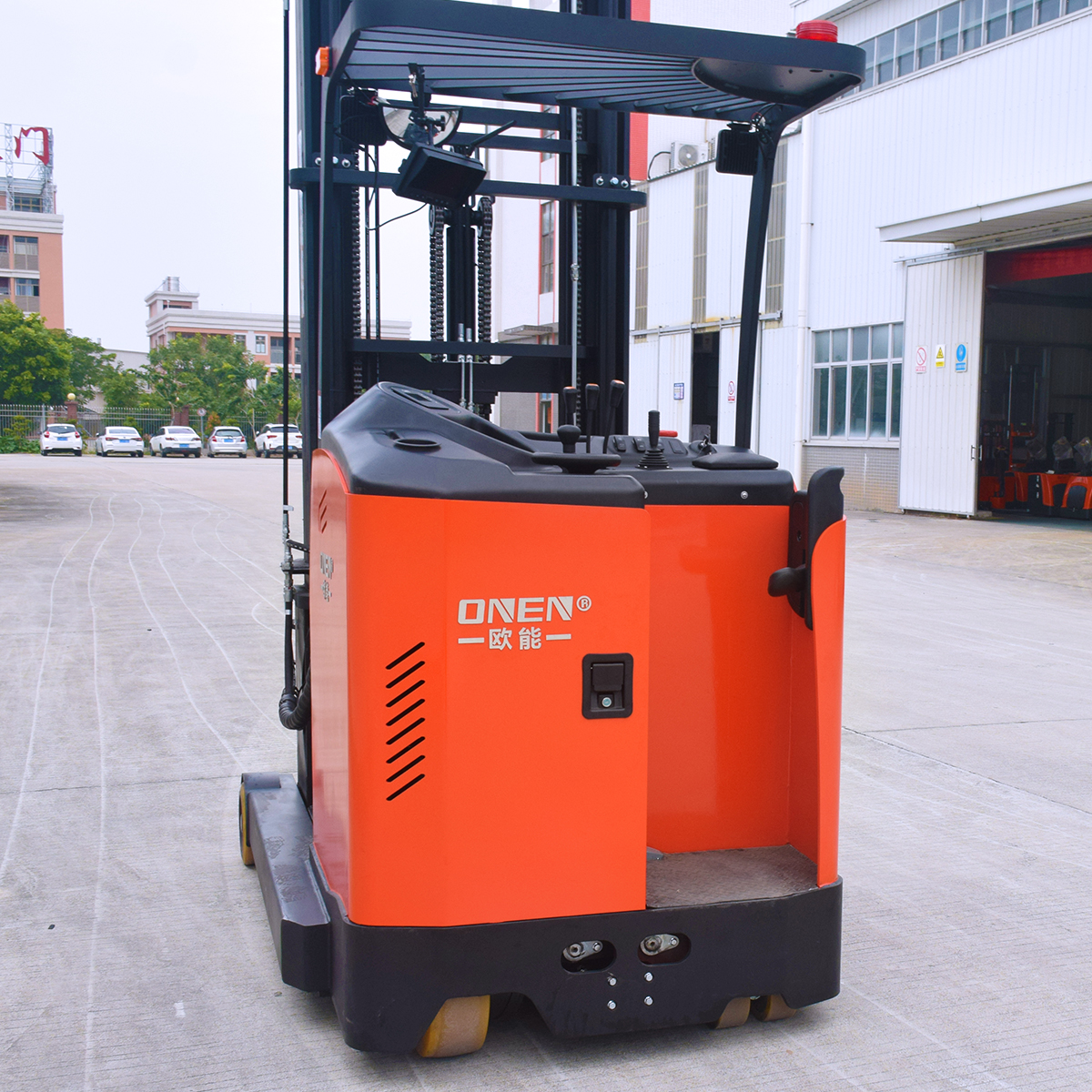

ONEN CQD-B stacking truck has a rated load capacity of 1.5 tons and a maximum lifting height of up to 6.5 meters. This truck features a sit-down design, equipped with electronic steering for comfortable and lightweight operation. With its compact body structure, it can operate flexibly in narrow passageways, making it suitable for efficient warehouse stacking.

Availability:



Inquire Add to Basket

Model:
CQD-B-1565-Q
Brand:
ONEN
Name:
Electric Reach Truck
Power form:
Electric
Load Capacity:
1500kg
Driving Style:
Seated
Load Center:
500mm
Wheel Type:
PU
lift height:
6500mm
Fork Length:
1070mm
Turning Radius:
1800mm
Battery:
Lead-acid / Lithium
Use Tray Type:
Single Sided Tray, Double Sided Tray
Voltage/Capacity:
48V/300Ah【Lead-acid】、48V/280Ah【Lithium】
Charger:
24V/40A【Lead-acid】、24V/50A【Lithium】
Customization:
Support
After-Sales Service:
Warranty for one year or 1000 hours (lithium battery warranty for three years)
Certification:
CE/RoHS/SGS

ONEN CQD-B stacking truck (1.5 tons/6.5 meters) is specifically designed for high-density storage in elevated positions, making it an ideal solution for automated storage and retrieval systems (AS/RS) and narrow aisles.

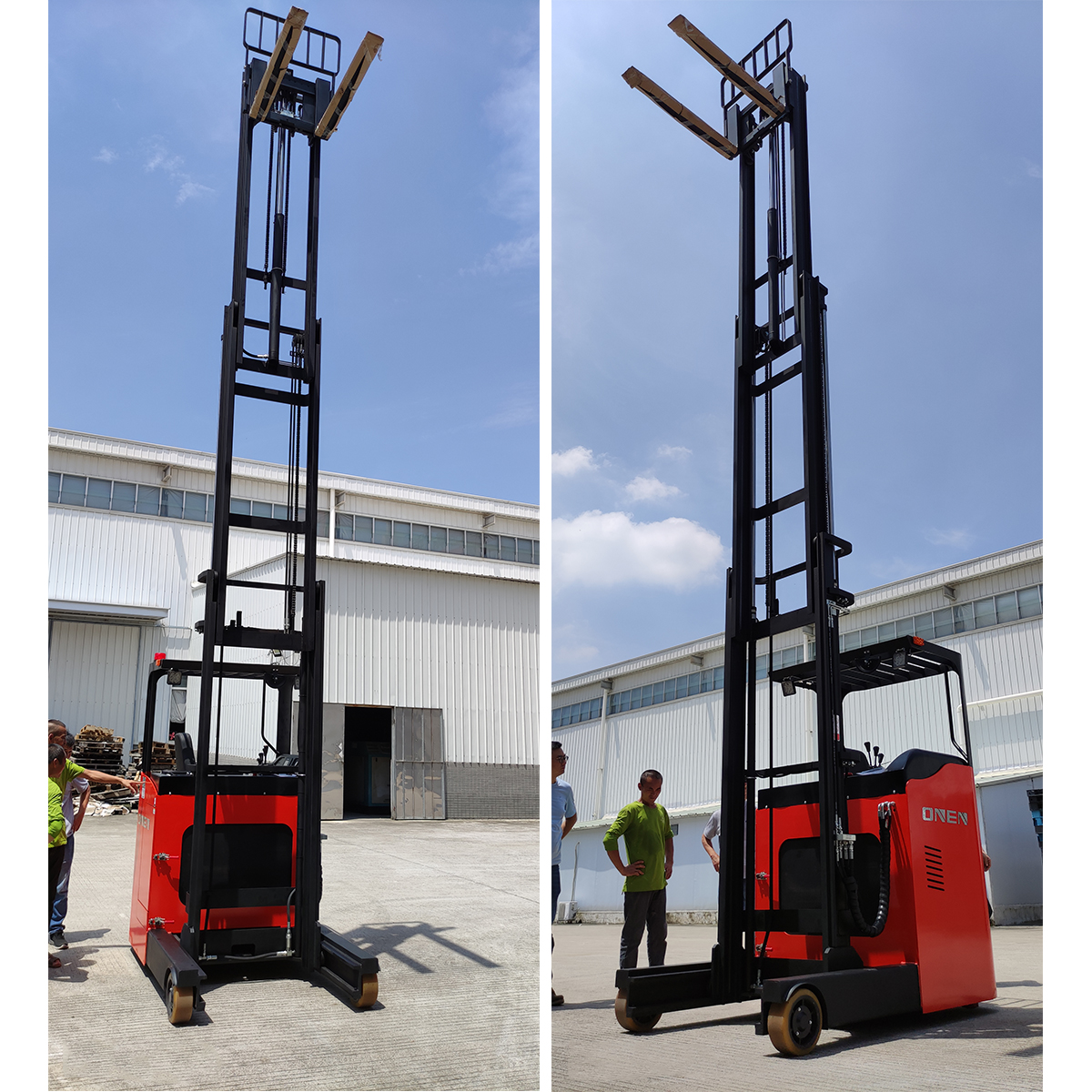

With a rated load capacity of 1.5 tons and a lifting height of up to 6.5 meters, the forklift can efficiently utilize the upper space for pallet stacking. Thanks to its compact body and forward movement function (forward movement distance of 505mm), it can operate flexibly in narrow passageways about 3 meters wide, significantly increasing storage capacity. The sit-down design and electronic steering make long-term high-position operations more comfortable and safe.

ONEN CQD-B 1.5-ton sit-down reach truck electric forklift with a mast lifting height of 6.5 meters narrow aisle electric stacker for warehouse use with a lifting capacity of 1.5 tons and a lifting height of 6.5 meters dedicated for cold storage/high-rise warehouse electric reach truck reach truck Manufacturer China reach truck Reach Truck Forklift

Related News

Related Products

ONEN CQD-A Factory Wholesale Stand-up Compact Electric Reach Truck Forklift

ONEN CQD-B Wholesale Car Type High Lift Electric Reach Forklift Truck

CQD-B-1530-Q Electric Reach Truck

CQD-B-1535-Q Electric Reach Truck

CQD-B-1540-Q Electric Reach Truck

CQD-B-1545-Q Electric Reach Truck

CQD-B-1550-Q Electric Reach Truck

CQD-B-1555-Q Electric Reach Truck

CQD-B-1560-Q Electric Reach Truck

1	Model		CQD-B
2	Configuration No.		1565-Q
3	Power type		Electric
4	Steering type		Electric steering
5	Operation type		Seated
6	Load capacity	kg	1500
7	Load center distance	mm	500
8	Reach Distance	mm	505
9	Wheels type		PU
10	Driving wheel size	mm	Ф382×142
11	Bearing wheel size	mm	Ф267×114
12	Overall Length (With Fork)	mm	2477
13	Overall Width	mm	1270
14	Mast lowered height	mm	2790
15	Lift height	mm	6500
16	Extended mast height	mm	7465
17	Fork dimensions	mm	35/100/1070
18	Turning radius	mm	1800
19	Travel speed (Laden/Unladen)	km/h	6.8/7.8
20	Lift speed (Laden/Unladen)	mm/s	120/240
21	Lowering speed (Laden/Unladen)	mm/s	315/260
22	Gradeability (Laden/Unladen)	%	≤10
23	Driving motor	kw	6.5
24	Lifting motor	kw	4.5
25	Voltage/Capacity of lead-acid battery	V/Ah	48/300
26	Lead-acid battery charger	V/A	24/40
27	Voltage/Capacity of lithium battery (Optional)	V/Ah	48/280
28	Lithium battery charger	V/A	24/50
29	Sound level at driver's ear	dB(A)	<70

Mast Table
Lift height	Mast lowered height	Free lift	Extended mast height
h3（mm）	h1（mm）	h2（mm）	h4（mm）
3000	2100	‐	3577.5
3500	2350	‐	4077.5
4000	2600	‐	4577.5
4500	2100	1500	5465
5000	2280	1660	5965
5500	2450	1820	6465
6000	2620	1980	6965
6500	2790	2140	7465
7000	3210	2320	7965
