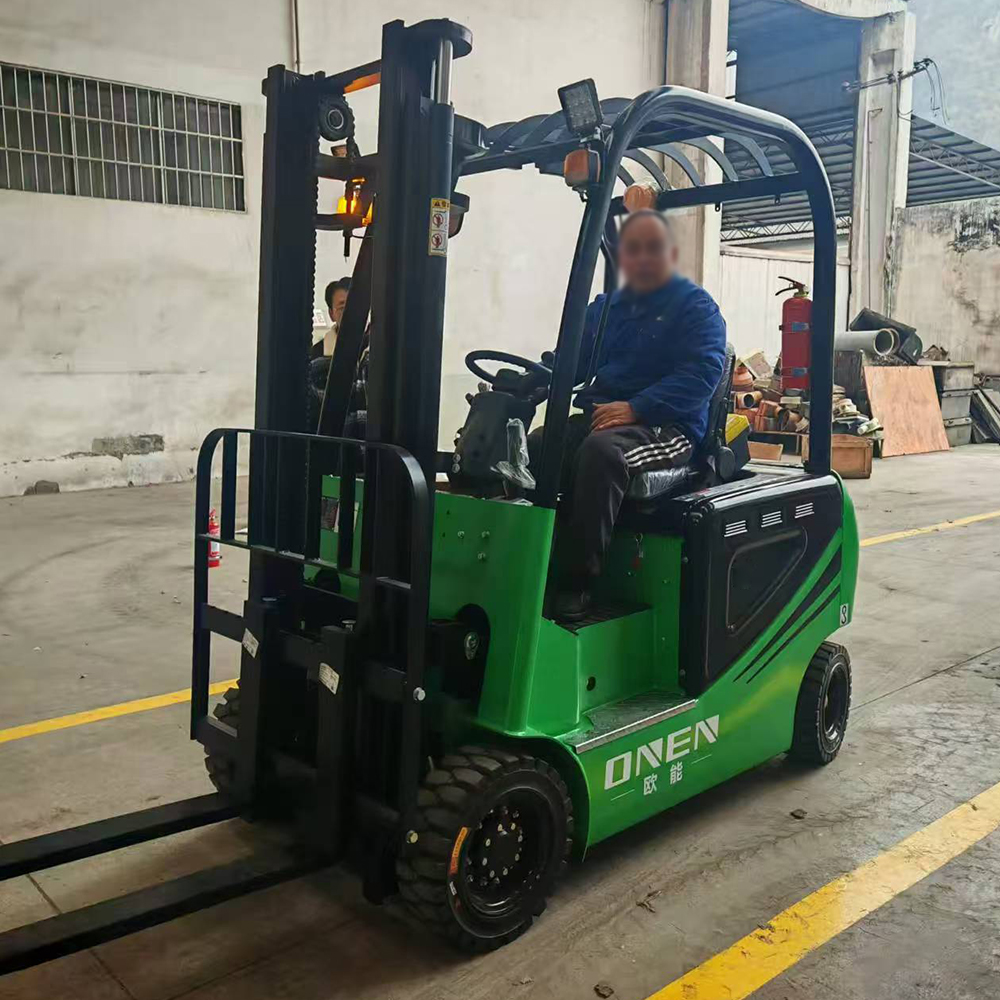

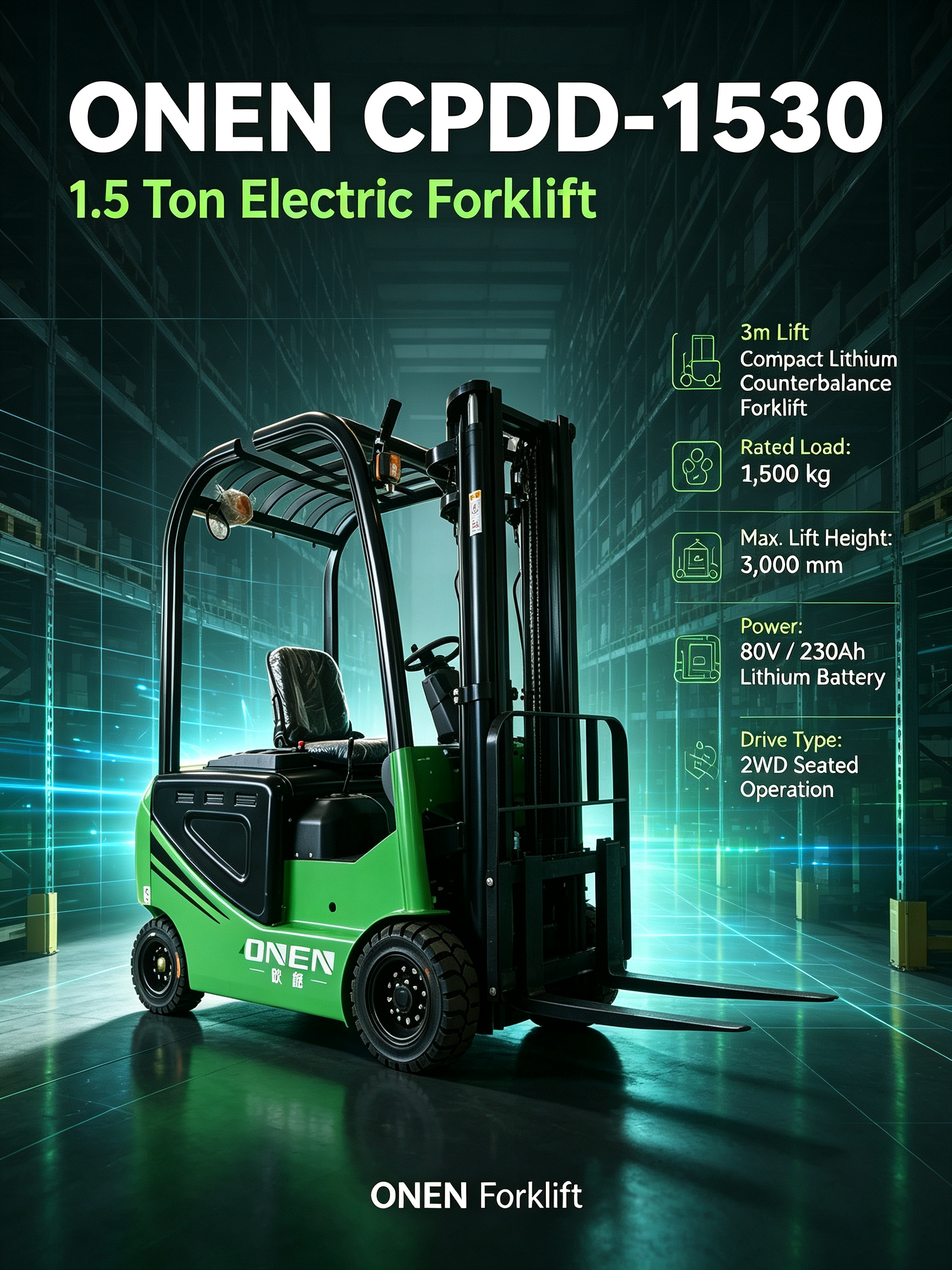

CPDD-1530 1.5 Ton Electric Forklift | 3m Lift Compact Lithium Counterbalance Forklift
Model: CPDD-1530 Rated Load: 1,500 kg (3,300 lb) Max. Lift Height: 3,000 mm (10 ft) Drive Type: 2WD Seated Operation Power: 80V / 230Ah Lithium Battery Tires: Solid or Pneumatic (18×7-10 Front / 16×6-8 Rear)
Product Overview
When your facility is defined by tight corridors, clean-air requirements, and the need for nimble maneuverability, the ONEN CPDD-1530 is the compact electric workhorse built to thrive. This 1.5-ton lithium counterbalanced forklift is purpose-engineered for narrow-aisle warehouses, interior workshops, and floor unloading platforms where every millimeter of space counts and exhaust emissions are unacceptable.
Powered by an advanced AC electronic control system, the CPDD-1530 delivers smooth, responsive power with whisper-quiet operation. Its ultra-compact footprint and tight turning circle allow operators to navigate congested storage areas with confidence, while the 3-meter mast unlocks valuable vertical space. For industries with strict hygiene and environmental standards—such as food processing, pharmaceutical storage, and printing facilities—this zero-emission forklift is the smart, sustainable choice.
Key Features & Competitive Advantages

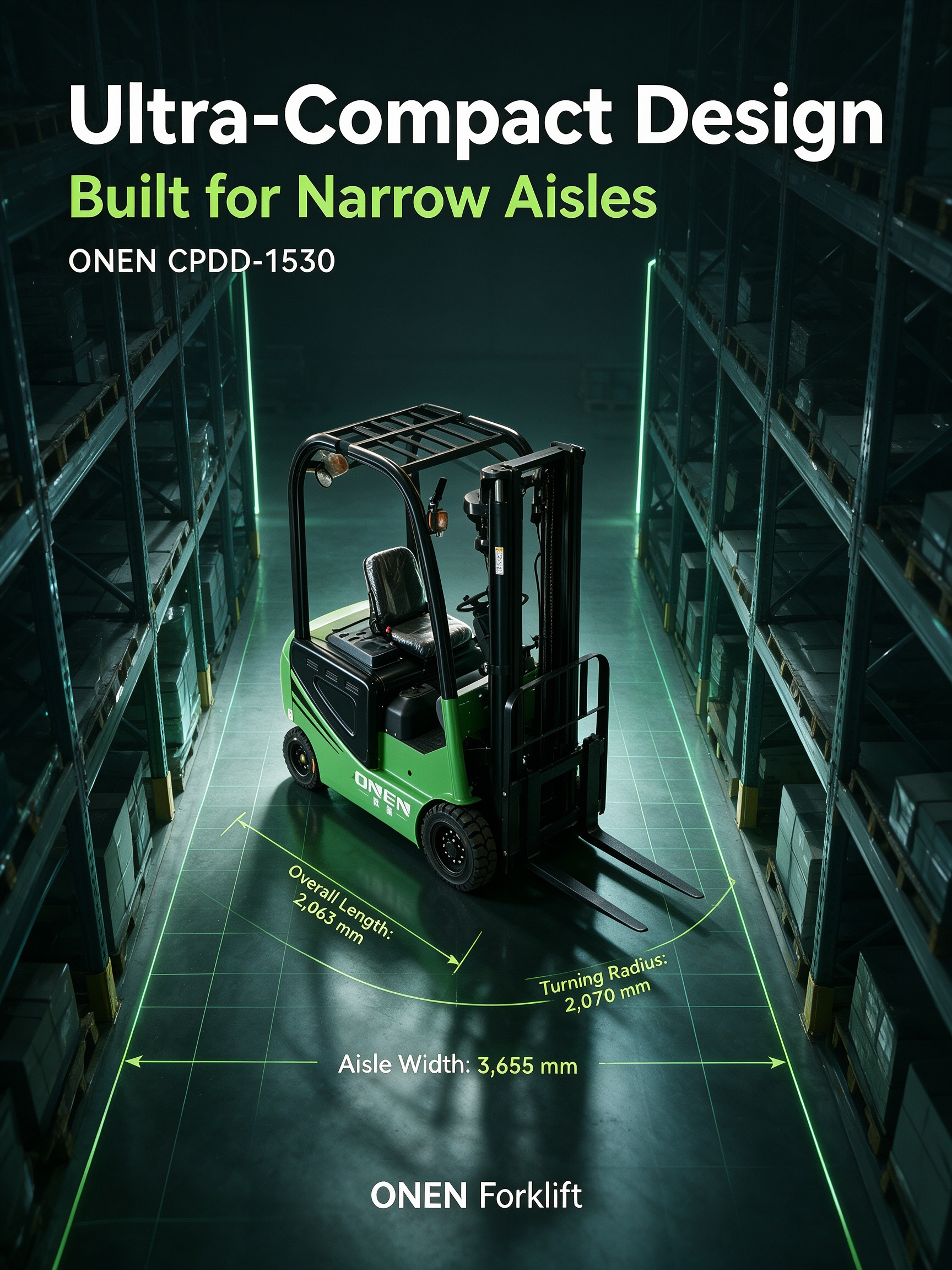

1. Ultra-Compact Design for Narrow Aisles & Confined Spaces
With an overall length of just 2,063 mm (without forks), an overall width of 1,096 mm, and a turning radius of only 2,070 mm, the CPDD-1530 slips through passages that would challenge larger trucks. The required aisle width for a standard 1,000×1,200 mm pallet is just 3,655 mm, making it ideal for high-density racking systems and small-to-medium warehouses where floor space is at a premium.

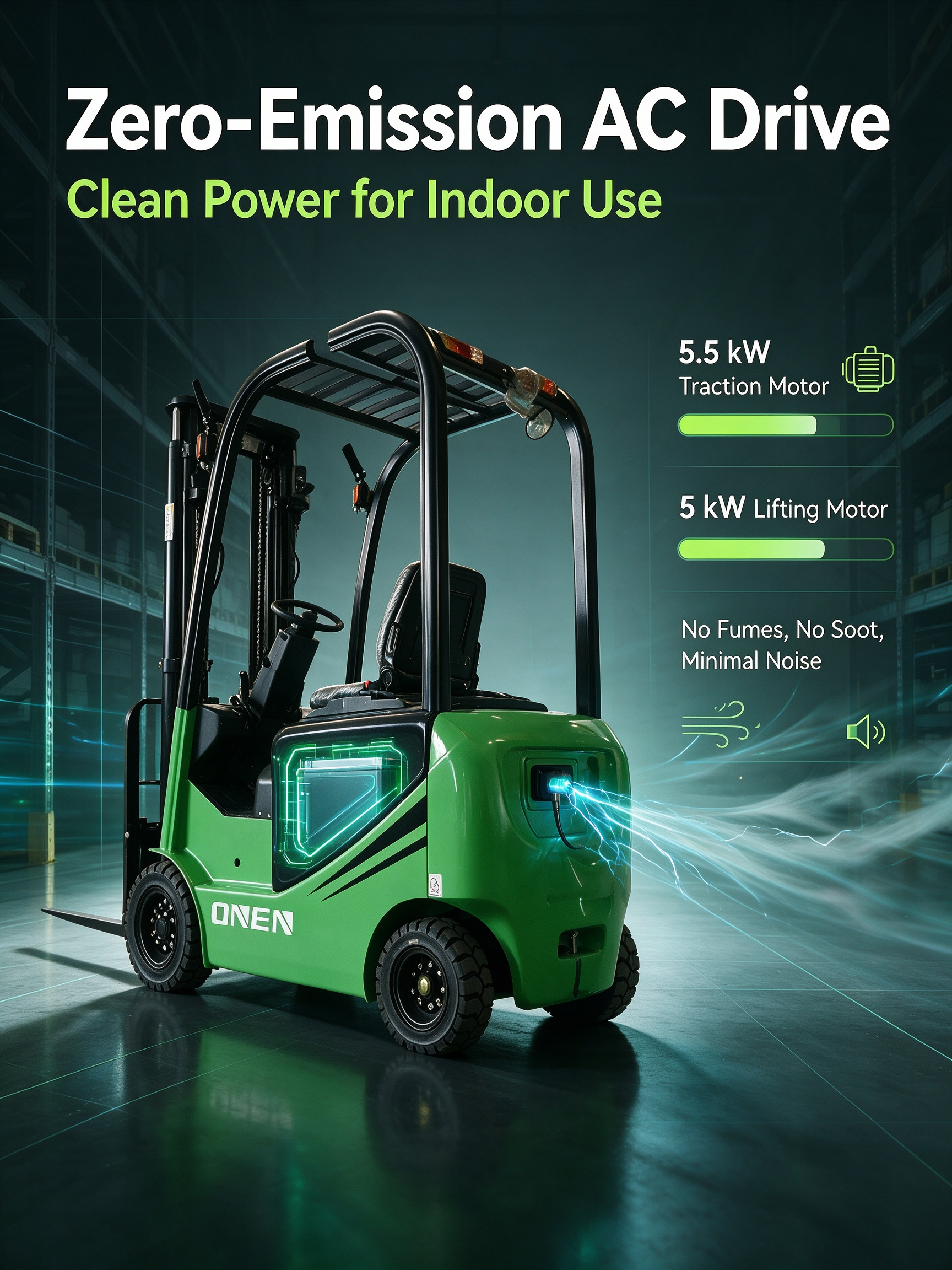

2. Zero-Emission AC Electric Drive for Clean Environments
The CPDD-1530 utilizes a high-efficiency AC electronic control system paired with a 5.5 kW traction motor and 5 kW lifting motor. This combination produces zero exhaust emissions and minimal operating noise, making it perfectly suited for:
Food and beverage production lines
Pharmaceutical and cold-storage warehouses
Printing and packaging workshops
Retail backrooms located near customer areas
No fumes, no soot, no disruption—just clean, reliable performance.

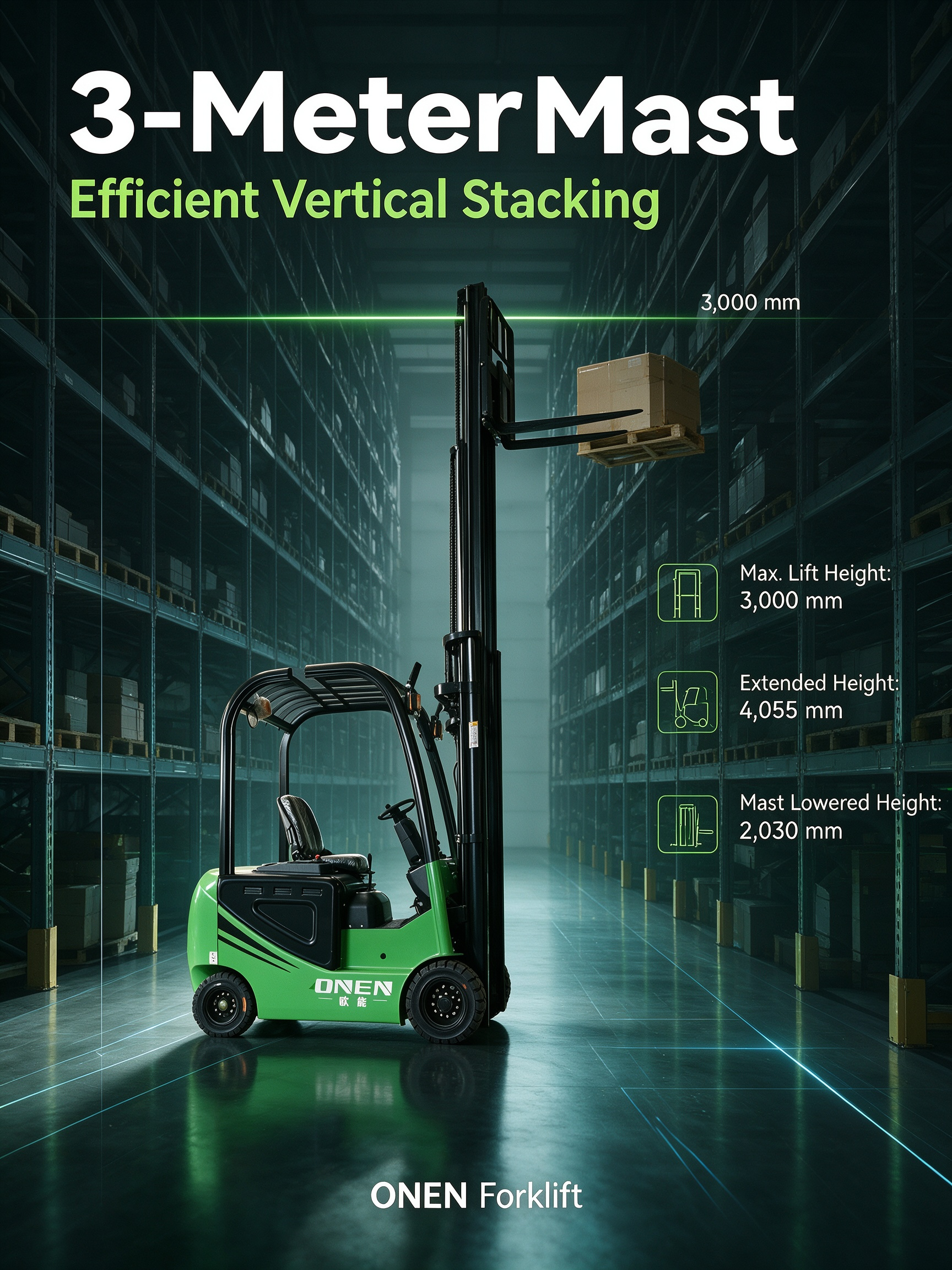

3. 3-Meter Mast for Efficient Vertical Stacking
The high-visibility mast reaches 3,000 mm (H1) with an extended height of 4,055 mm (H2), allowing operators to stack onto elevated shelving or load/unload high-sided vehicles with ease. When retracted, the mast lowered height of 2,030 mm ensures the truck can pass through standard interior doorways and low-clearance areas without issue.

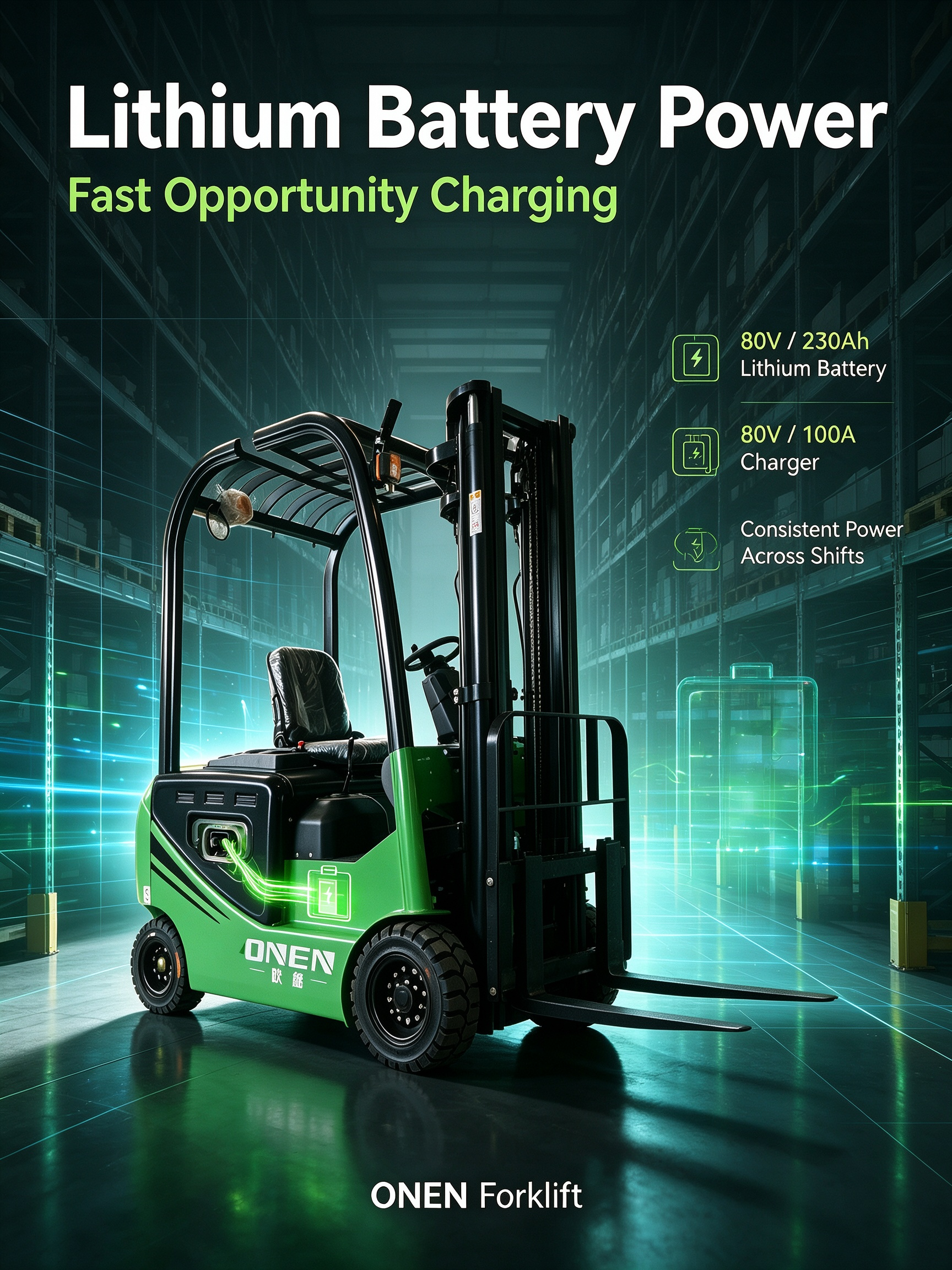

4. Lithium Battery Power with Fast Opportunity Charging
The 80V / 230Ah lithium battery pack provides consistent power throughout the shift and supports opportunity charging for multi-shift operations. Paired with the 80V / 100A charger, downtime is minimized compared to traditional lead-acid batteries. The sealed electric drivetrain also reduces maintenance costs—no engine oil, no filters, no exhaust after-treatment.

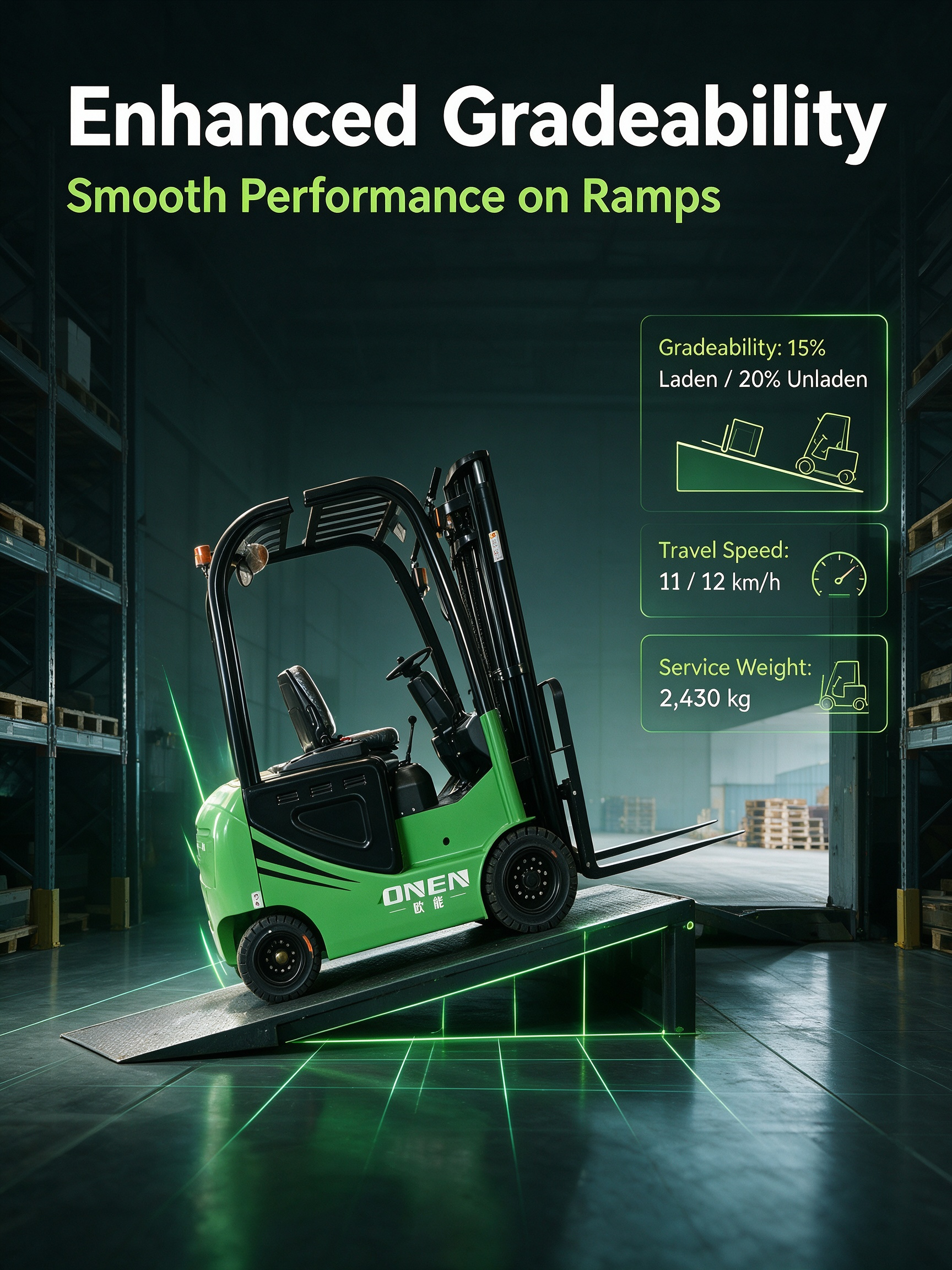

5. Enhanced Gradeability & Agile Performance
Despite its compact size, the CPDD-1530 boasts impressive 15% gradeability laden / 20% unladen, thanks to its optimized 2,430 kg service weight and balanced chassis. Travel speeds of 11 km/h laden / 12 km/h unladen keep productivity high during loading, unloading, and short-distance transfer cycles.

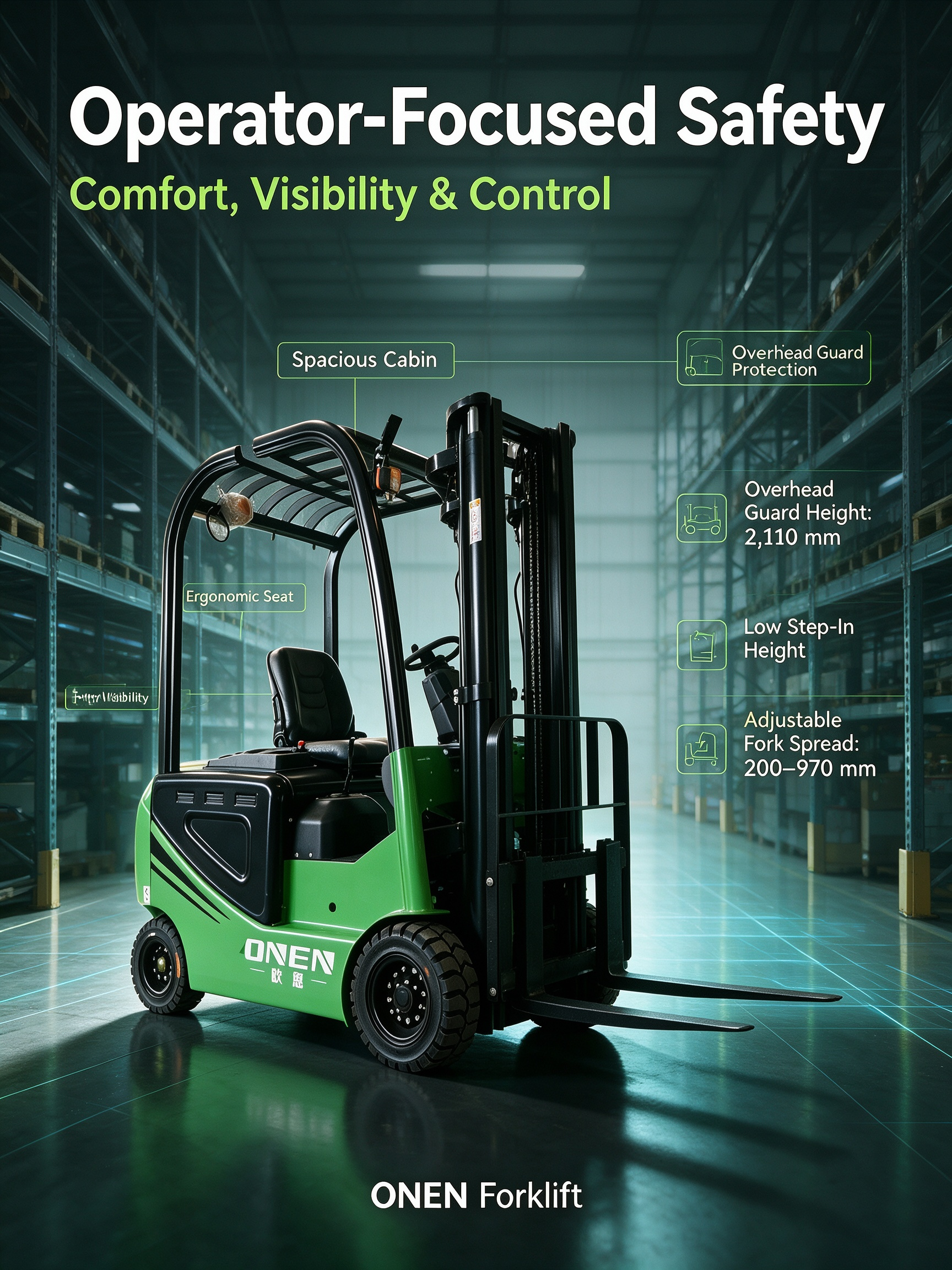

6. Operator-Focused Ergonomics & Safety
The ergonomically designed seated cabin features an overhead guard height of 2,110 mm and excellent forward visibility. Intuitive controls, a low step-in height, and a compact steering wheel reduce operator fatigue during repetitive stacking and floor-level unloading tasks. The adjustable fork spread (200–970 mm) accommodates various pallet sizes and cargo boxes with quick, tool-free adjustment.

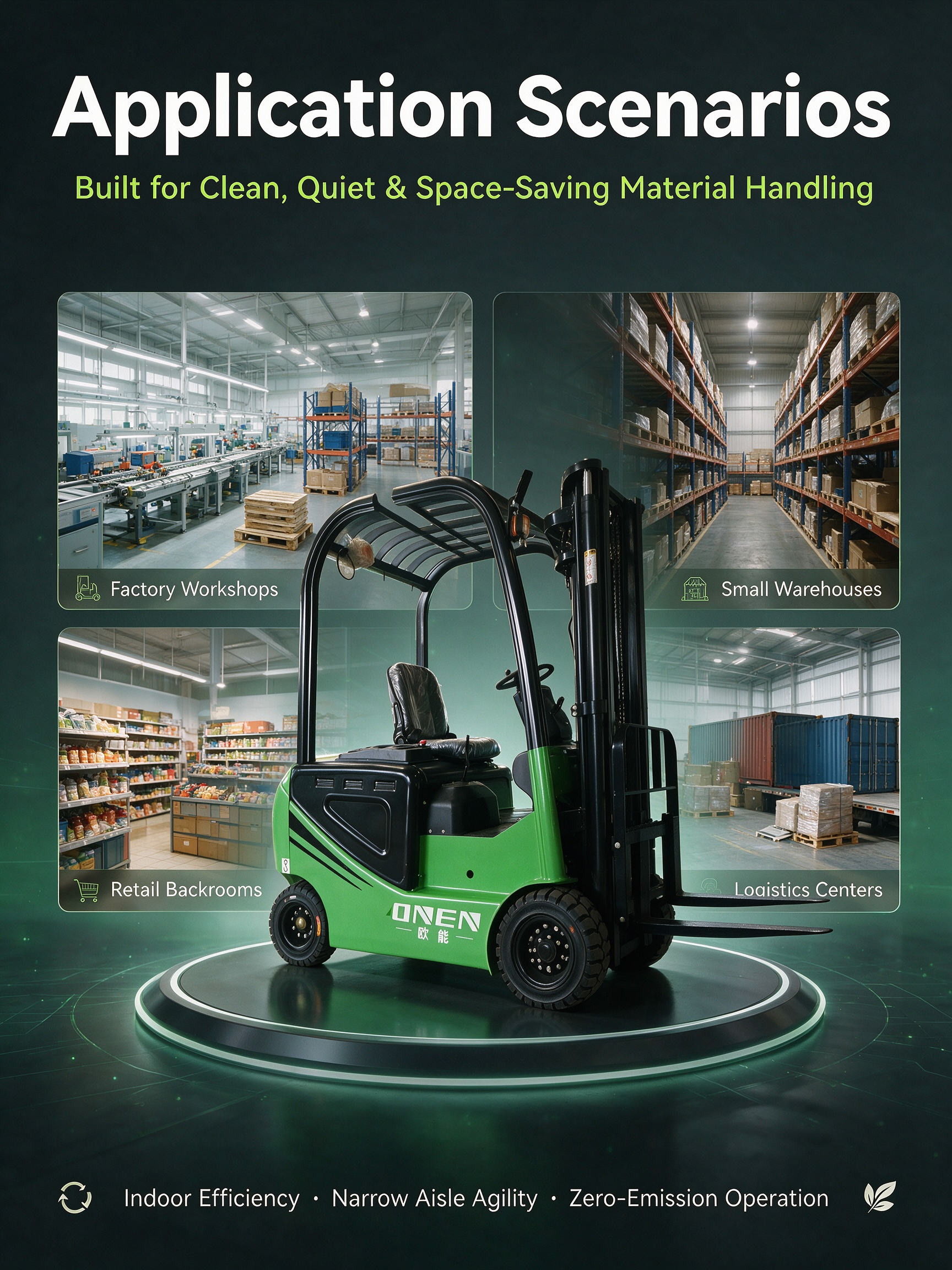

Application Scenarios
The CPDD-1530 excels in environments where space is tight, air quality matters, and versatility is key:
Narrow-Aisle Warehouses – Maximize storage density with a truck designed for 3.6-meter aisles.
Food & Beverage Facilities – Handle palletized ingredients and finished goods in clean, quiet conditions.
Printing & Packaging Workshops – Transport paper rolls, cartons, and printed materials without noise or exhaust.
Retail & Supermarket Backrooms – Unload delivery trucks and restock high shelving near customer areas.
Factory Workshops & Assembly Lines – Feed production stations and remove finished products with minimal footprint.
Why Source from ONEN?
Guangdong ONEN New-resource Equipments Co., Ltd. has spent three decades refining forklift design and manufacturing. When you partner with ONEN, you gain:
Complete Certifications: ISO 9001, ISO 14001, ISO 45001, CE, RoHS, and SGS.
Licensed Manufacturing: China Special Equipment Production License and TX type-test certificates.
Award-Winning Design: Recognized with the Canton Fair Design Award.
Full Product Ecosystem: From 1.5-ton and 2-ton electric forklifts to diesel forklifts, scissor lifts, reach trucks, pallet stackers, and walkie pallet trucks—standardize your entire fleet with one trusted supplier.
Ready to Optimize Your Indoor Fleet?
Get a factory-direct quotation for the ONEN CPDD-1530 1.5-ton electric forklift today. We welcome factory inspections and can customize fork lengths, mast heights, tire types, and battery configurations to match your operational needs and local regulations.
Contact Guangdong ONEN New-resource Equipments Co., Ltd. now to discuss volume pricing, dealer partnerships, shipping logistics, and after-sales support for your market.
