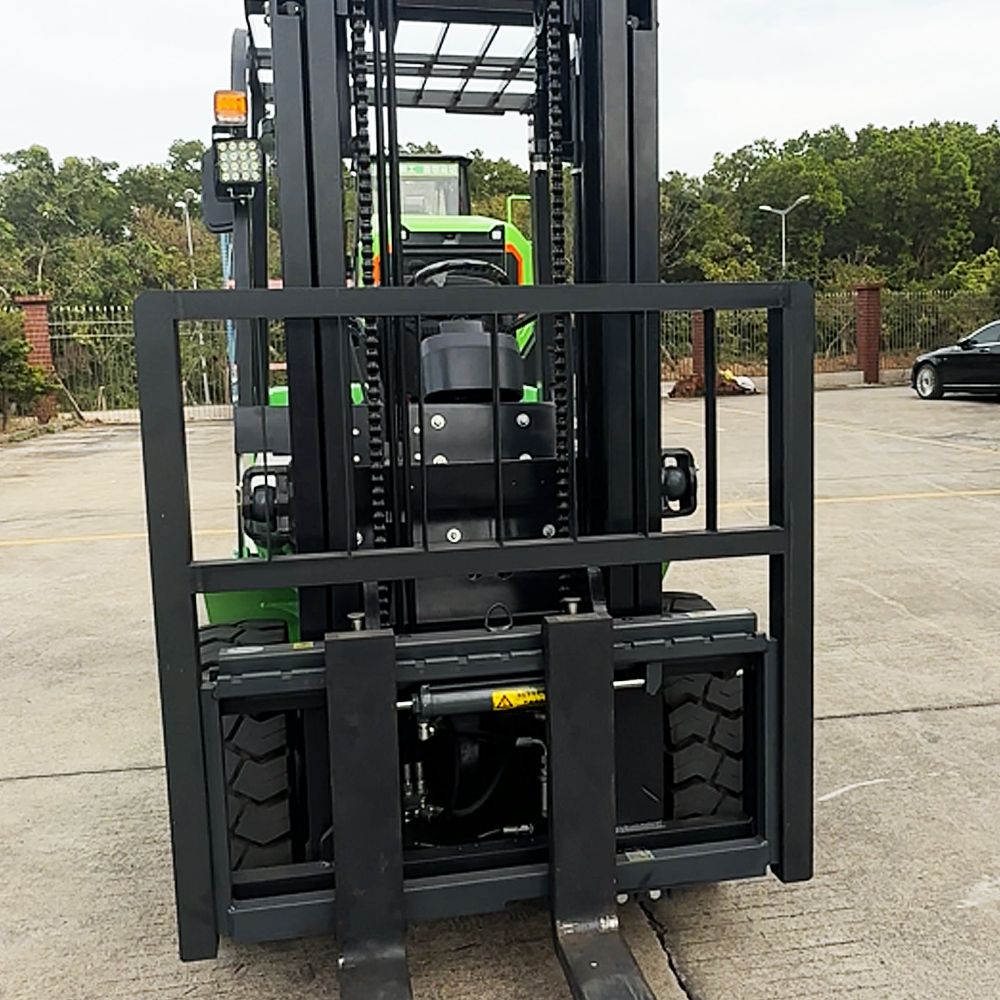

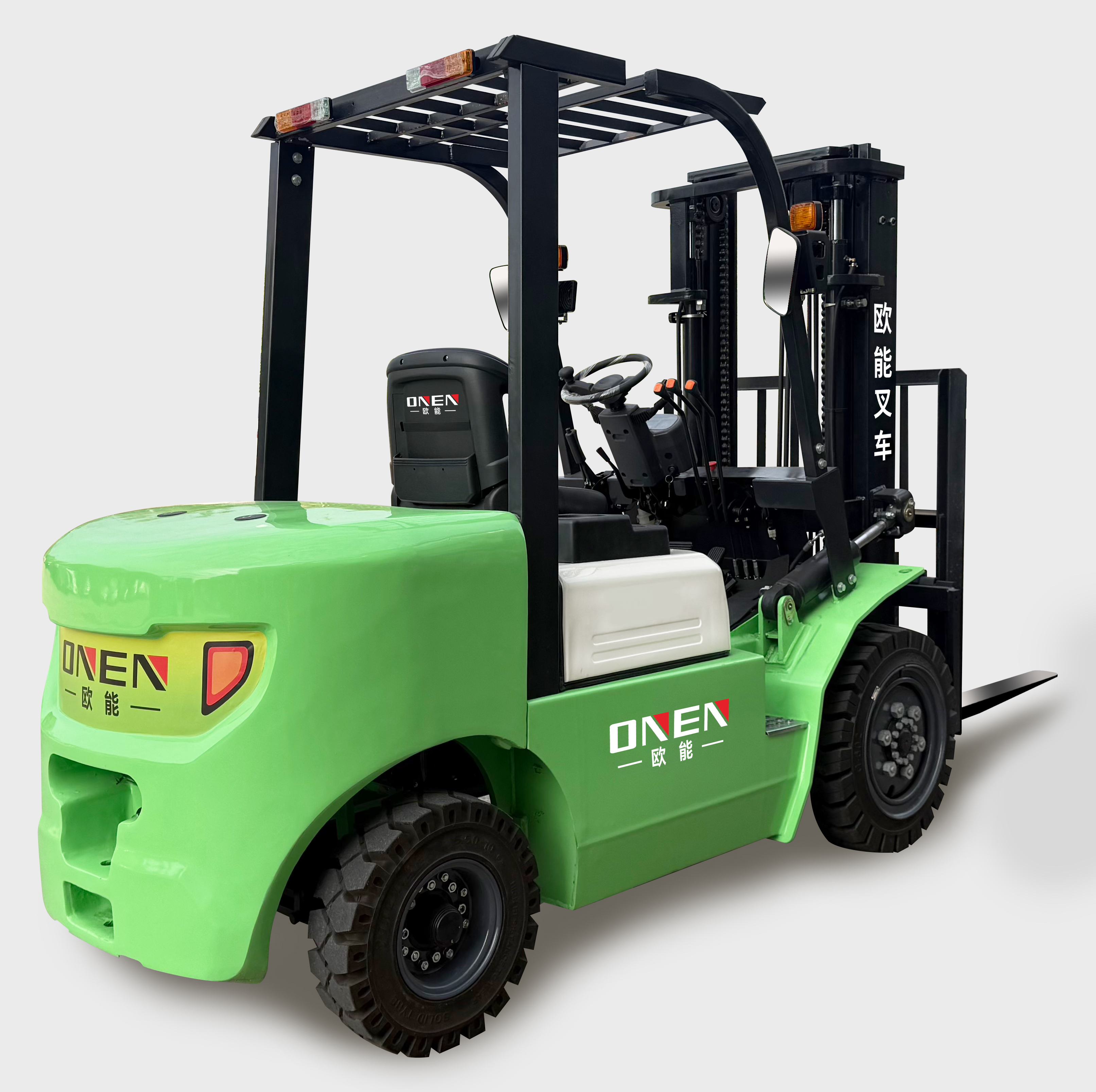

Counterbalanced Electric Forklift CPDD-V 3530, 3500kg, 3000mm, 80VLi-Ion

Share to:

Counterbalanced Electric Forklift CPDD-V 3530, 3500kg, 3000mm, 80VLi-Ion

Name: Counterbalanced Electric Forklift CPDD-V 3530, 3500kg, 3000mm, 80VLi-Ion
Brand: ONEN
Rating: 5.0 (65 reviews)

Application

ONEN CPDD-V electric forklift (with a load capacity of 3.5 tons/height of 3 meters) is designed for high-intensity and diversified working conditions, suitable for logistics warehouses, manufacturing workshops, ports, and other scenarios. Its compact body (1220mm wide) with a turning radius of 2500mm allows for flexible operation in narrow cargo yards, container interiors, or workshop passages; With a lifting height of 3 meters and a free lift of 130mm, it can easily handle standard platform loading and unloading, high-level shelf stacking, and cargo stacking inside the carriage. Lithium battery drive is pollution-free and low-noise, meeting the stringent environmental requirements of industries such as food and cold chain. 15% climbing ability and solid tire optional, capable of handling complex terrains such as cold storage and outdoor slopes.

Availability:



Inquire Add to Basket

Model:
CPDD-V-3530
Brand:
ONEN
Name:
Lithium forklift
Power form:
Electric
Load Capacity:
3.5T
Driving Style:
Seated
Load Center:
500mm
Wheel Type:
Pneumatic Tire / Solid Core Tire
lift height:
3m
Fork Length:
1070mm
Turning Radius:
2500mm
Battery:
Lithium Battery
Use Tray Type:
Single Sided Tray, Double Sided Tray
Voltage/Capacity:
80V/205Ah
Charger:
80V/100A
Customization:
support
After-Sales Service:
Warranty for one year or 2000 hours (5-year warranty for lithium batteries)
Certification:
CE/RoHS/SGS

Product Description

CPDD-V-3530

About the CPDD-V-3530

CPDD-V-3530 is an electric balance weight forklift with a rated load of 3500kg and a standard 3-meter gantry, suitable for various warehousing and logistics scenarios. The car is equipped with an 80V/205Ah lithium battery, which supports fast charging and maintenance free, effectively reducing maintenance costs. The overall dimensions of the vehicle are 2760mm in length and 1220mm in width, with a turning radius of 2500mm, making it flexible to turn in narrow spaces. In terms of performance, its full load driving speed is 13km/h, with a climbing ability of 15%, and with a free lifting height of 130mm, it can significantly improve work efficiency.

Specs

Core specifications for the CPDD-V-3530.

1	Model		CPDD-V
2	Configuration No.		3530
3	Power type		Electric
4	Operation type		Seated
5	Load capacity	kg	3500
6	Load center distance	mm	500
7	Wheels type		Pneumatic tires/Solid tires(Optional)
8	Tyre size (Front)		28×9-15-14PR
9	Tyre size (Rear)		6.5-10-10PR
10	Mast lowered height	mm	2070
11	Free lift	mm	130
12	Lift height	mm	3000
13	Full height at maximum lifting	mm	4173
14	Tilt of mast carriage (Forward/Backward)	°	6/12
15	Overall length（Without forks）	mm	2760
16	Overall width	mm	1220
17	Turning radius	mm	2500
18	Aisle width for pallets 1000×1200	mm	4080
19	Maximum Travel speed (Laden/Unladen)	km/h	13/14
20	Maximum Lift speed (Laden/Unladen)	mm/s	280/400
21	Maximum Lowering speed (Laden/Unladen)	mm/s	390/380
22	Gradeability (Laden/Unladen)	%	15/15
23	Voltage/Capacity of lithium battery	V/Ah	80/205
24	Lithium battery charger	V/A	80/100
