CPDD-V-3545
ONEN
Lithium forklift
Electric
3.5T
Seated
500mm
Pneumatic Tire / Solid Core Tire
4.5m
1070mm
2500mm
Lithium Battery
Single Sided Tray, Double Sided Tray
80V/205Ah
80V/100A
Support
Warranty for one year or 2000 hours (5-year warranty for lithium batteries)
CE/RoHS/SGS
CPDD-V-3545
About the CPDD-V-3550

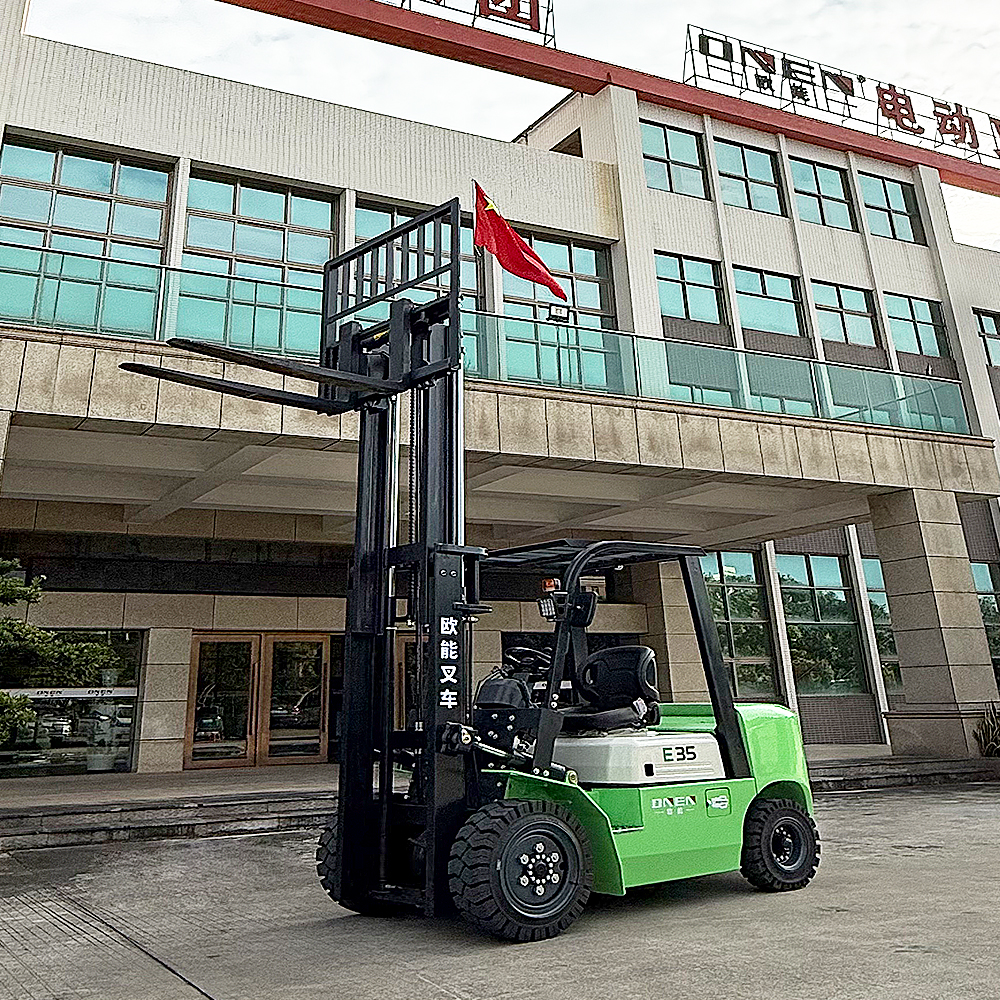

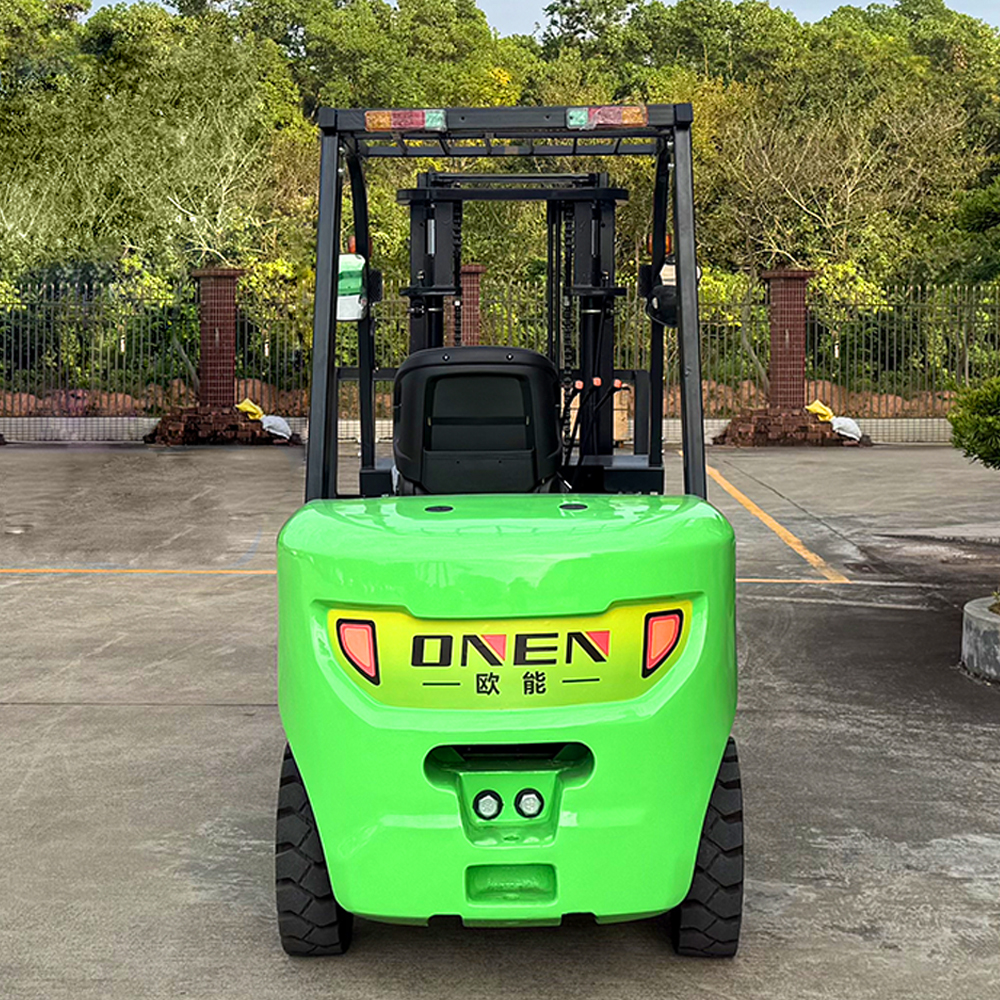

CPDD-V-3545 is an electric balance weight forklift with a load capacity of 3.5 tons. It uses an 80V/205Ah lithium battery, supports fast charging, and is maintenance free. Its core features are a 4.5-meter gantry and a free lifting height of 1379mm, suitable for internal operations in containers or warehouses. The overall width of the vehicle is 1220mm, with a turning radius of only 2500mm, providing high flexibility. In terms of performance, the full load driving speed is 13km/h, and the climbing ability reaches 15%, which can efficiently meet the material handling needs of medium tonnage.
Core specifications for the CPDD-V-3545.
1 | Model | CPDD-V | ||
2 | Configuration No. | 3545 | ||
3 | Power type | Electric | ||
4 | Operation type | Seated | ||
5 | Load capacity | kg | 3500 | |
6 | Load center distance | mm | 500 | |
7 | Wheels type | Pneumatic tires/Solid tires(Optional) | ||
8 | Tyre size (Front) | 28×9-15-14PR | ||
9 | Tyre size (Rear) | 6.5-10-10PR | ||
10 | Mast lowered height | mm | 2170 | |
11 | Free lift | mm | 1379 | |
12 | Lift height | mm | 4500 | |
13 | Full height at maximum lifting | mm | 5674 | |
14 | Tilt of mast carriage (Forward/Backward) | ° | 6/12 | |
15 | Overall length（Without forks） | mm | 2760 | |
16 | Overall width | mm | 1220 | |
17 | Turning radius | mm | 2500 | |
18 | Aisle width for pallets 1000×1200 | mm | 4080 | |
19 | Maximum Travel speed (Laden/Unladen) | km/h | 13/14 | |
20 | Maximum Lift speed (Laden/Unladen) | mm/s | 280/400 | |
21 | Maximum Lowering speed (Laden/Unladen) | mm/s | 390/380 | |
22 | Gradeability (Laden/Unladen) | % | 15/15 | |
23 | Voltage/Capacity of lithium battery | V/Ah | 80/205 | |
24 | Lithium battery charger | V/A | 80/100 | |
