CPC/CPCD-3045
ONEN
Single Sided Tray, Double Sided Tray

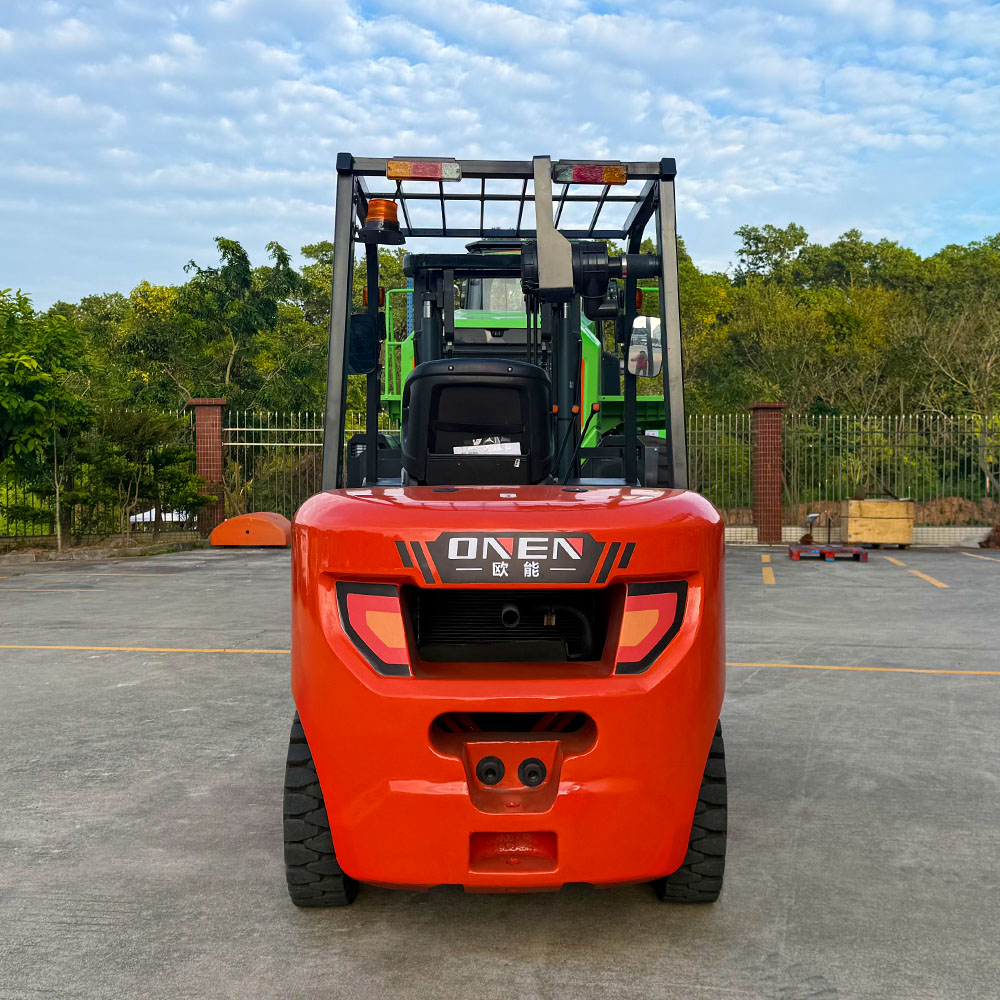

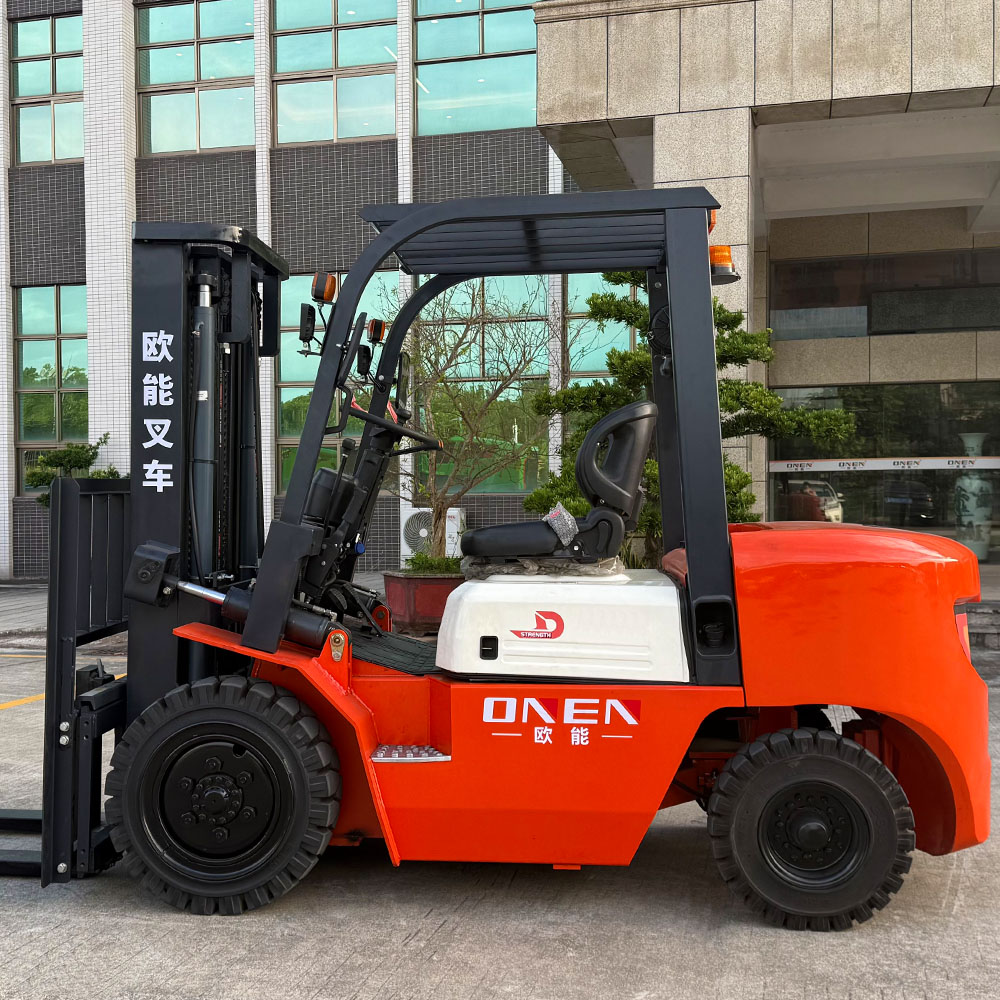

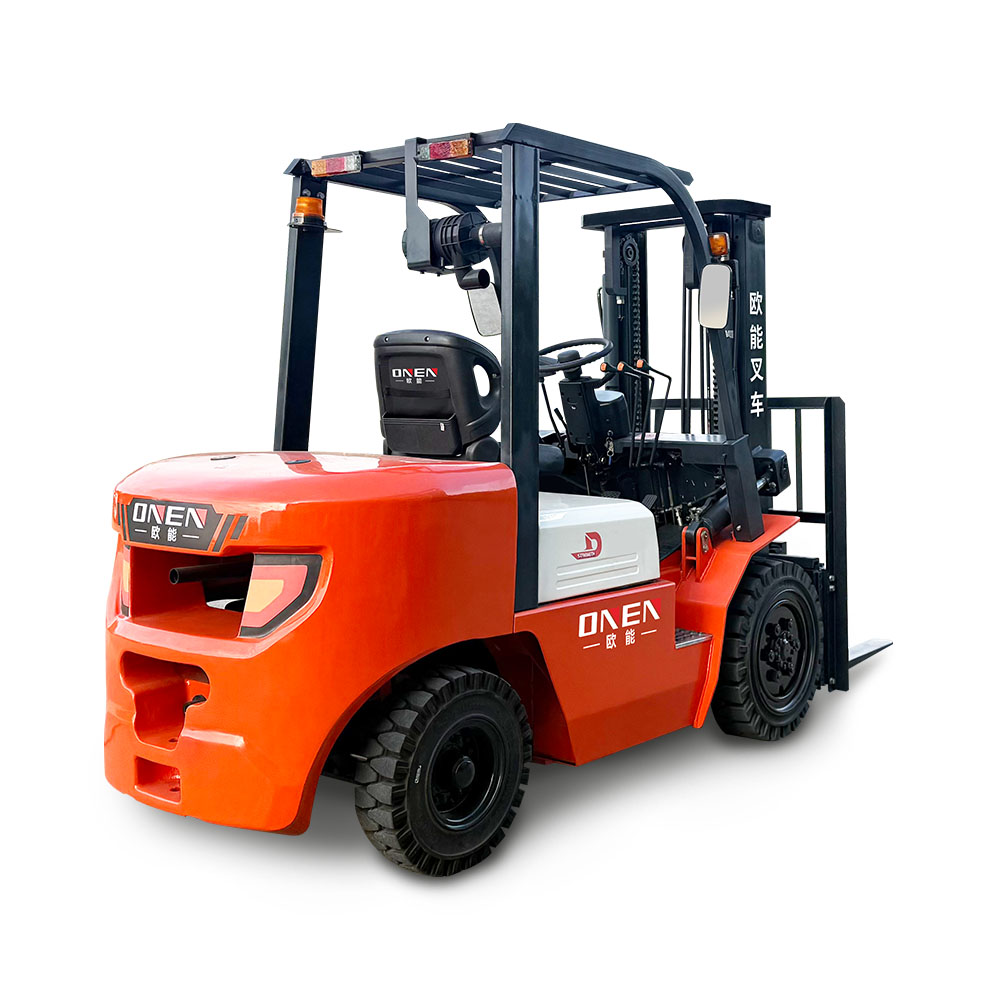

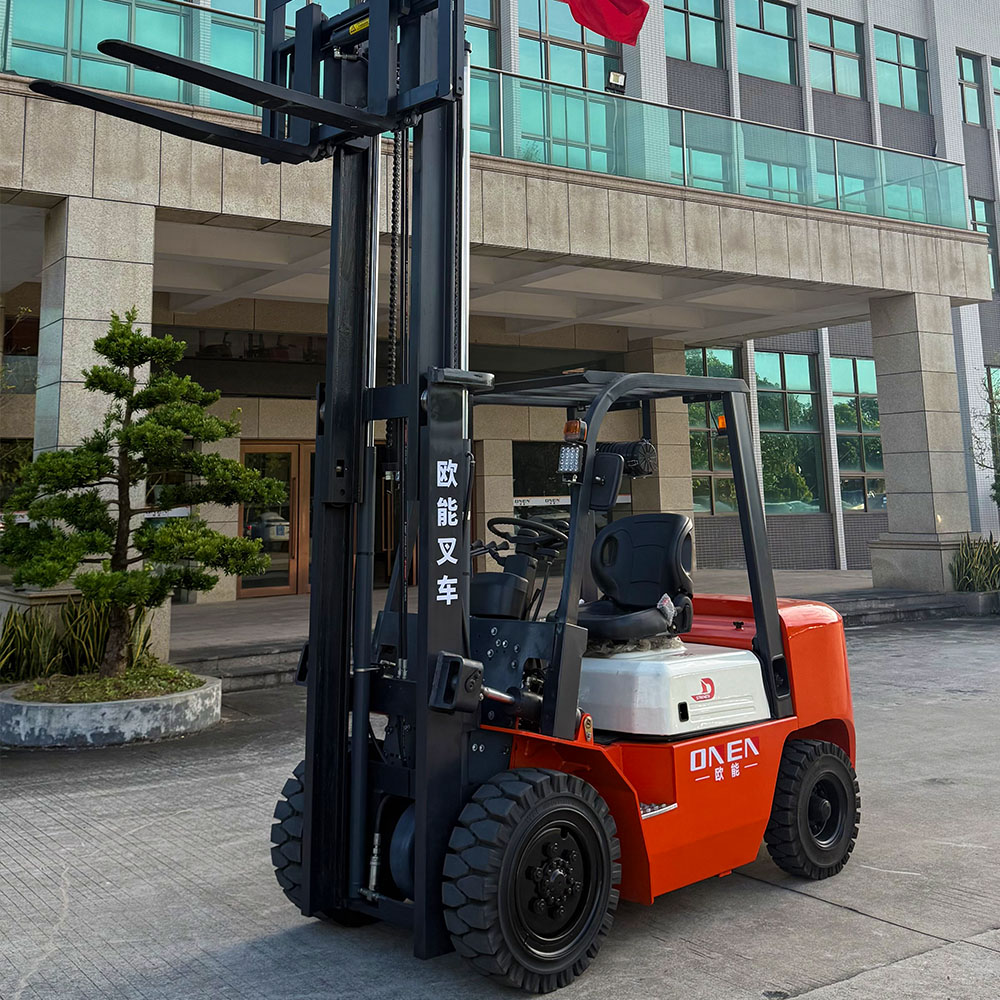

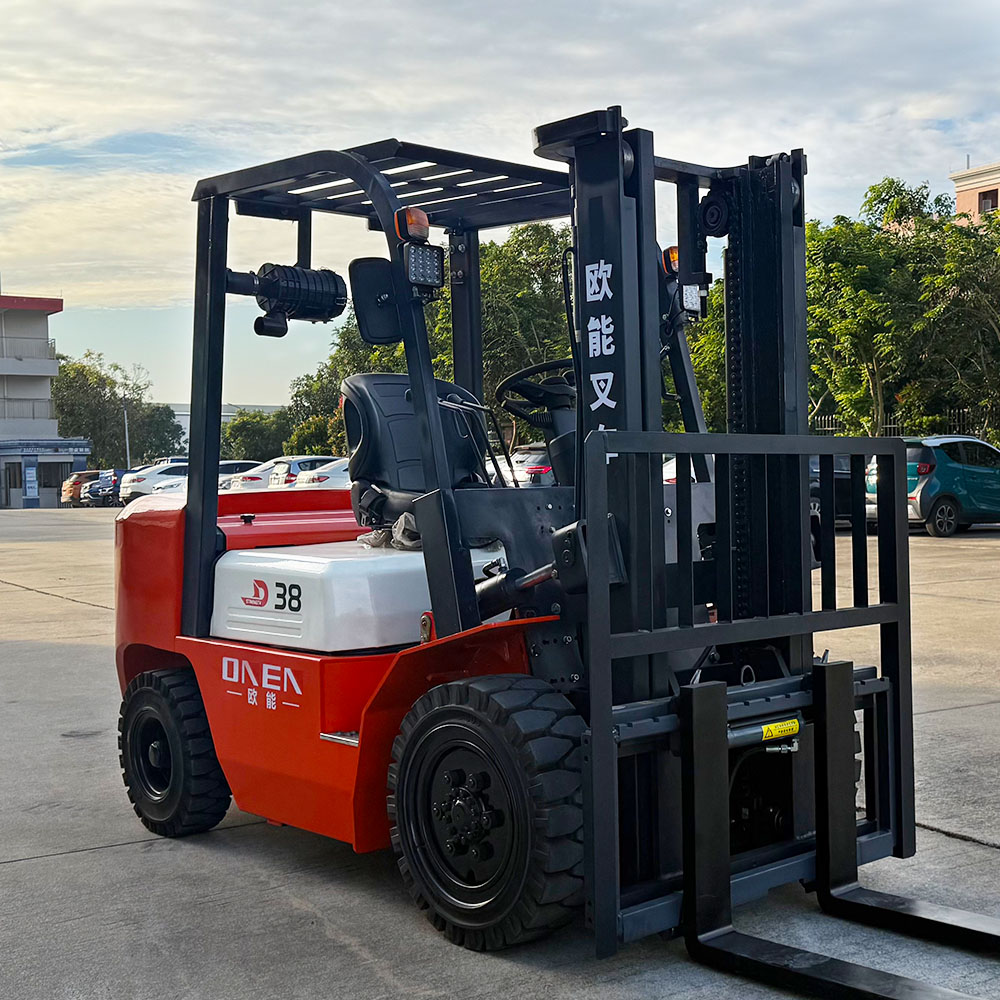

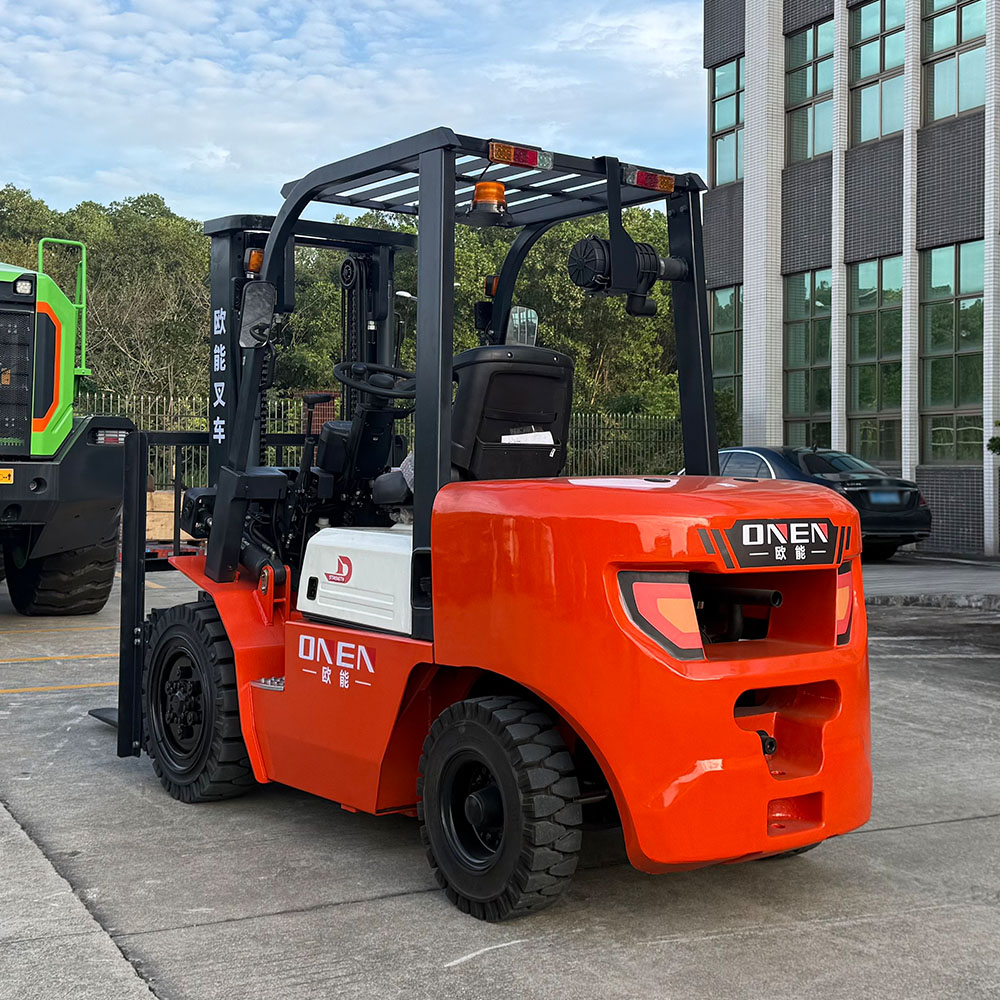

ONEN CPC/CPCD-3045 is equipped with a 4.5-meter mast, boasts powerful dynamics, and has a gradeability of 20%, making it suitable for outdoor rugged roads and ramps. The compact body design and small turning radius of the forklift ensure high maneuverability in narrow freight yards, building material storage yards, and port terminals.
CPC/CPCD-3045 adopts a high-strength mast structure, suitable for high-level stacking and short-distance transfer of heavy goods in outdoor or low-environmental-requirement places such as construction sites and extensive manufacturing workshops.
| 1 | Model | CPC3045/CPCD3045 | |
| 2 | Powertype | diesel | |
| 3 | Operation type | seated | |
| 4 | Load capacity | kg | 3000 |
| 5 | Load centre distance | mm | 500 |
| 6 | Wheels type | Solid tires/Pneumatic tires(Optional) | |
| 7 | Tire specification(Front/Rear) | 28x9-15/6.50-10 | |
| 8 | Fork length | mm | 1070 |
| 9 | Width overall forks (Adjustable) | mm | 1100/250 |
| 10 | Overall Length (Without fork) | mm | 2690 |
| 11 | Overall Width | mm | 1210 |
| 12 | Lift height | mm | 4500 |
| 13 | Extended mast height | mm | 5060 |
| 14 | Mast lowered height | mm | 2100 |
| 15 | Free height | mm | 1500 |
| 16 | Tilt of mast carriage (Forward/Backward) | α/β | 6°/12° |
| 17 | Turning radius | mm | 2240 |
| 18 | Travelspeed (Laden/Unladen) | km/h | 18/20 |
| 19 | Lift speed (Laden/Unladen) | mm/s | 485/505 |
| 20 | Lowering speed (Laden/Unladen) | mm/s | <600 |
| 21 | Gradeability (Unladen) | % | 20 |
| 22 | Service brake | Power brake (Pedal) | |
| 23 | Parking brake | Mechanical (Manual) | |
| 24 | Fuel capacity | L | 60 |
| 25 | Engine model | Xinchal/Quanchai/YANMAR/KUBOTA | |
| 26 | Battery (Voltage/Capacity) | V/Ah | 12/80 |
