CPDD-1530
ONEN
Single Sided Tray, Double Sided Tray

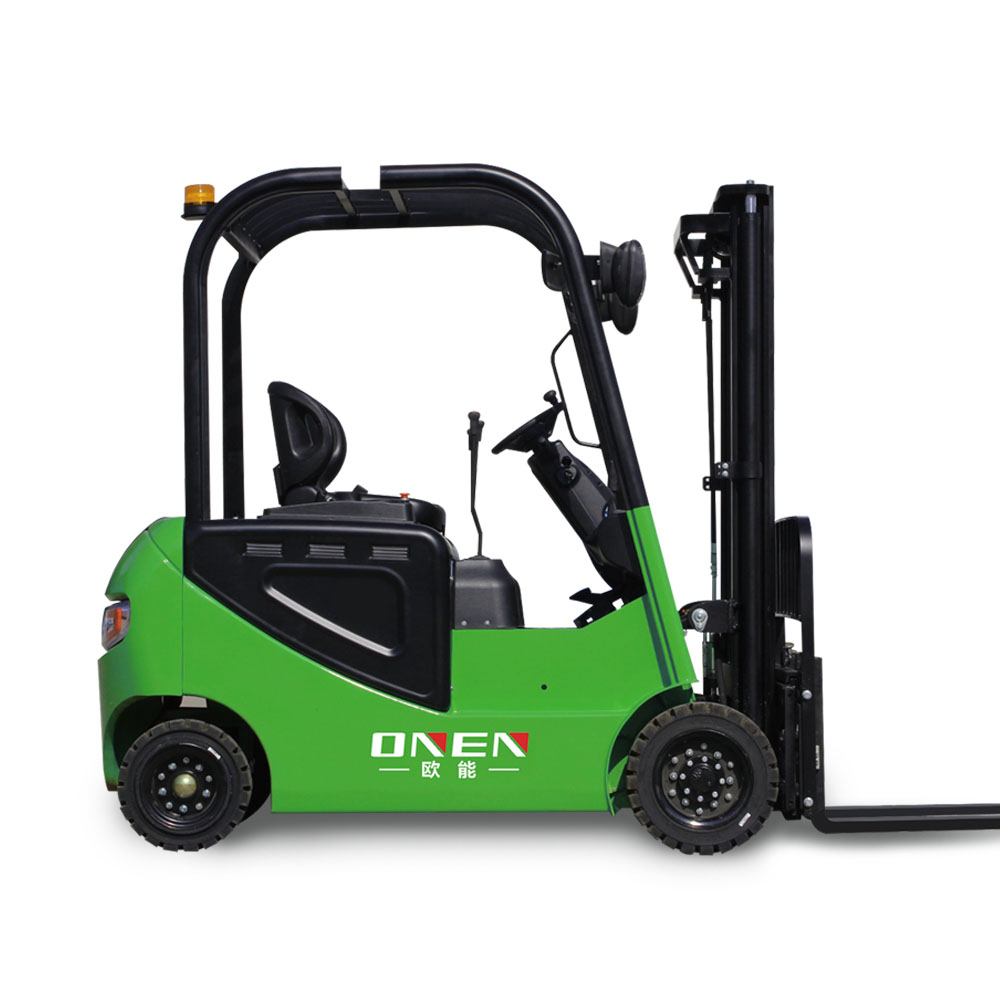

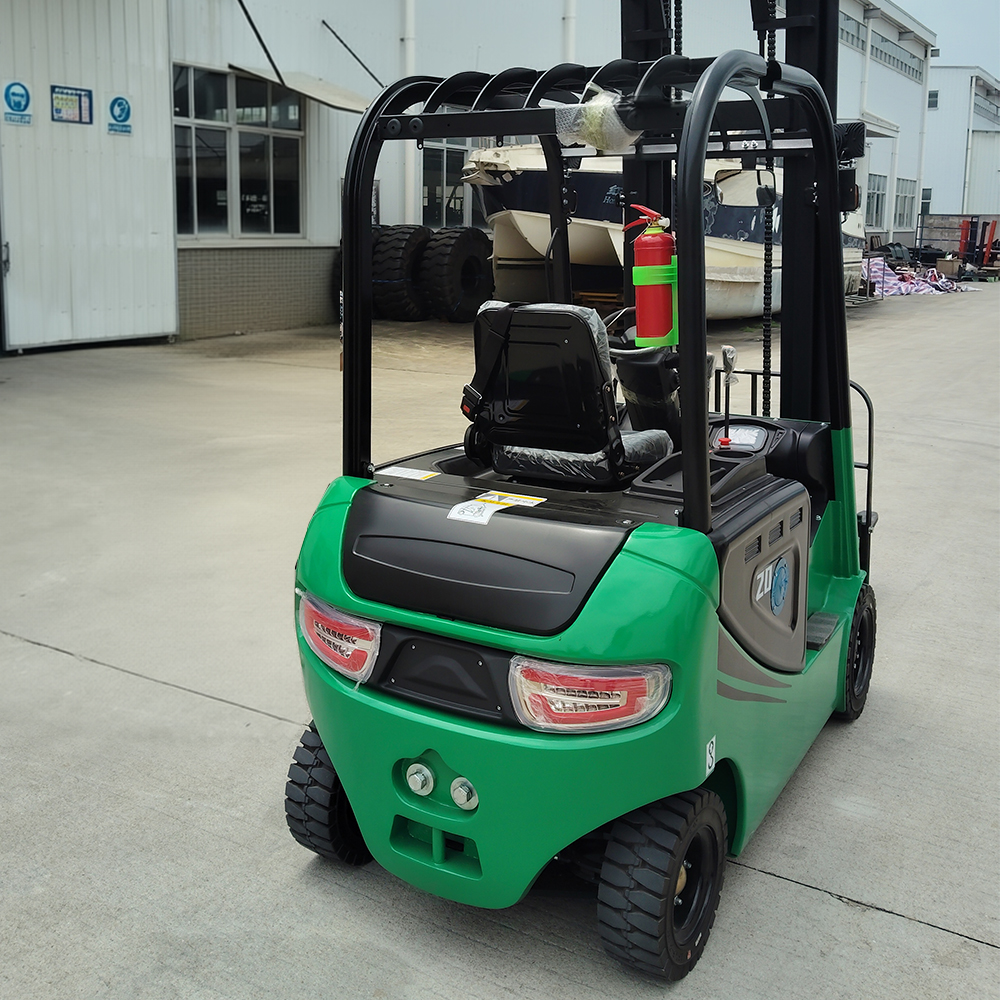

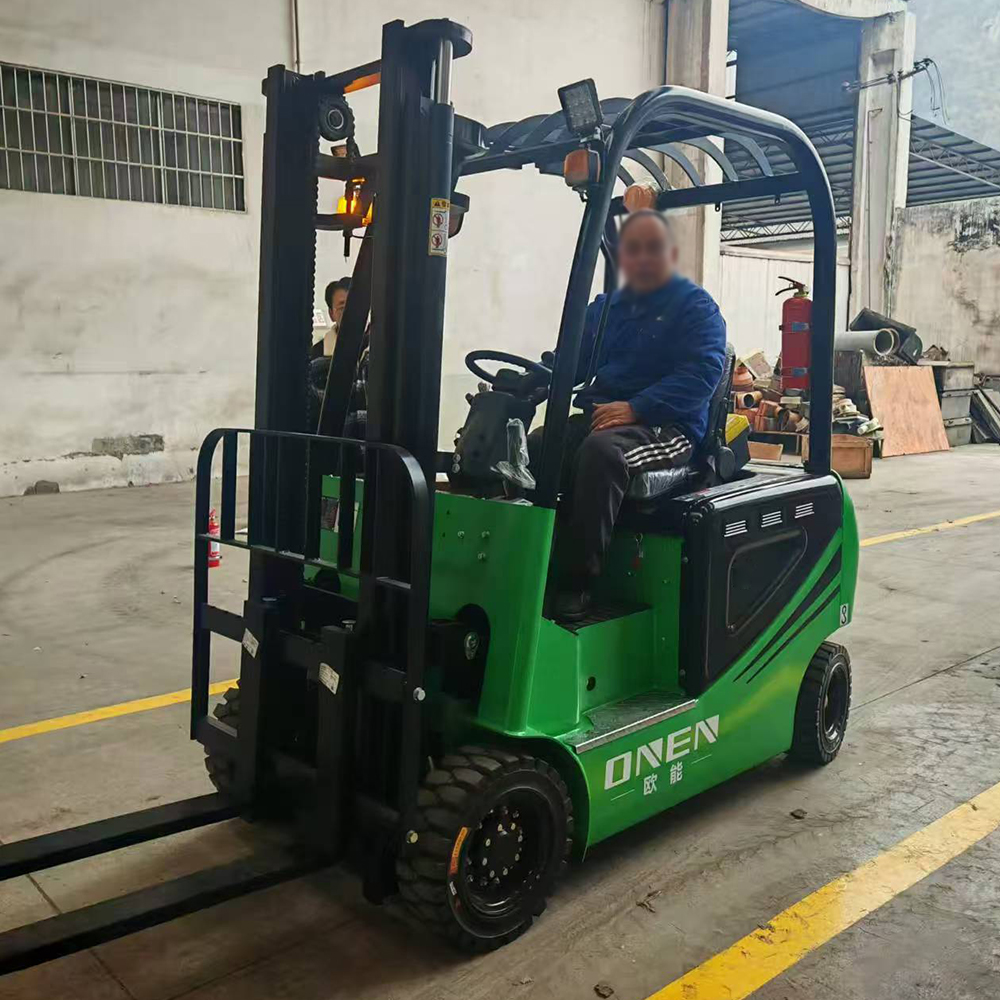

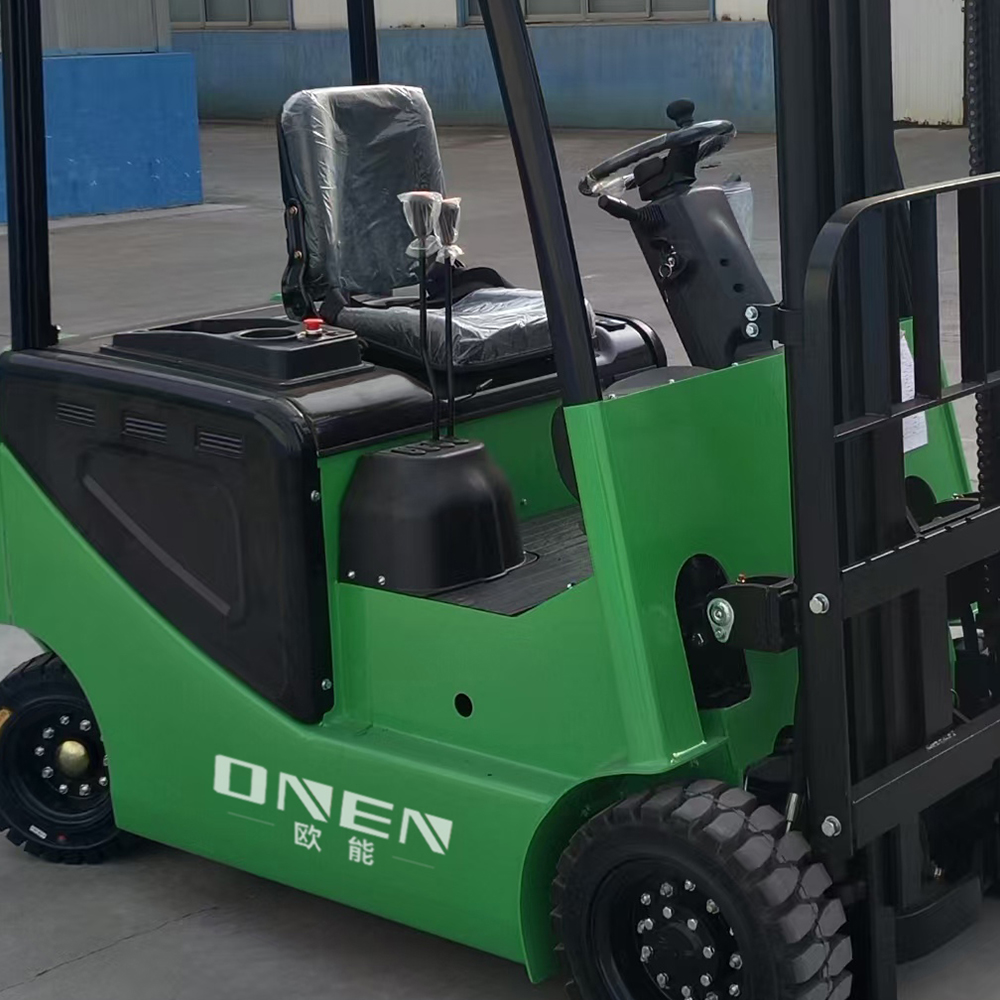

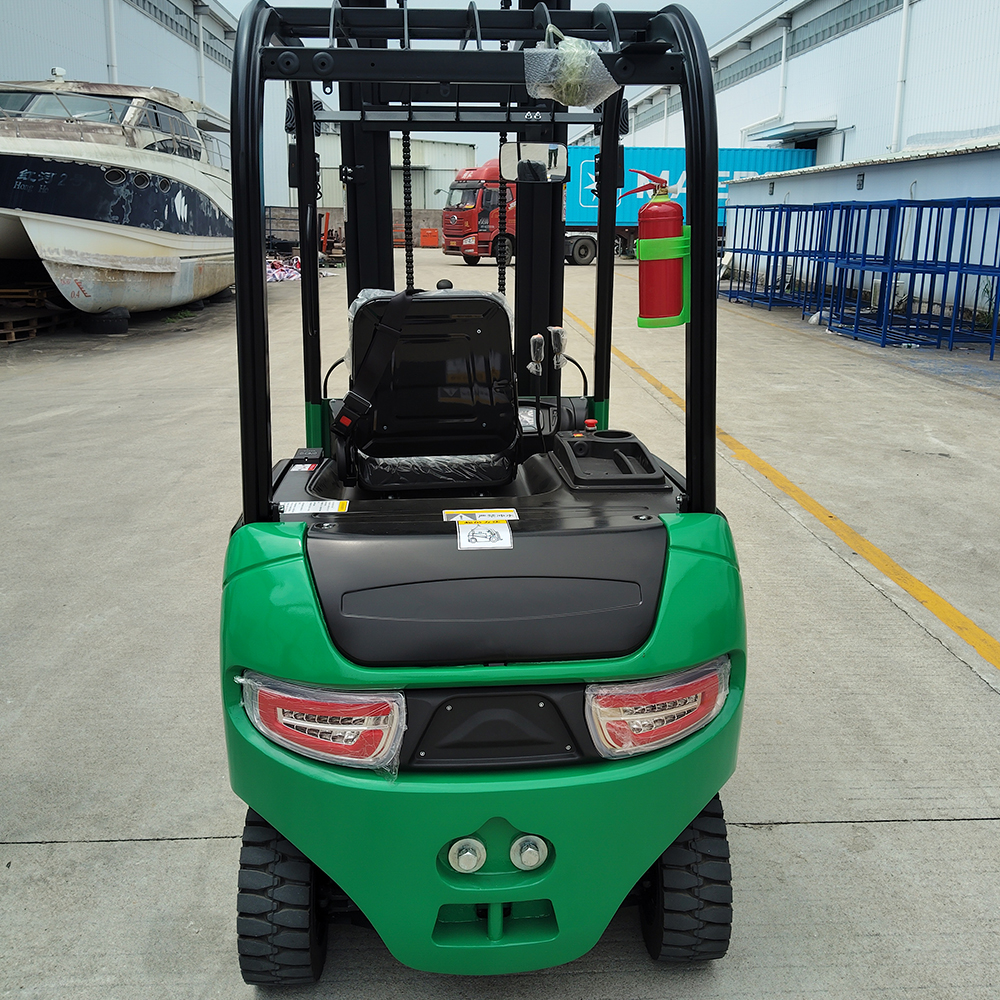

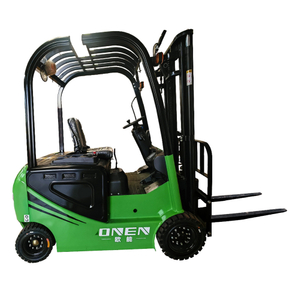

ONEN CPDD-1530 is specifically designed for narrow aisle warehouses, interior workshops, and floor unloading platforms. With its compact structure and small turning radius, it can maneuver flexibly within limited spaces.
Equipped with AC electronic control and a powerful motor, it delivers smooth power output, low noise, and zero exhaust emissions, making it ideal for high environmental protection requirements such as food and printing industries. When paired with pallets or cargo boxes, this vehicle can efficiently complete stacking, loading, and unloading tasks within a range of 3 meters, significantly reducing labor intensity and enhancing handling efficiency. | 1 | Model | CPDD | |
| 2 | Configuration No. | 1530 | |
| 3 | Power type | Electric | |
| 4 | Operation type | Seated | |
| 5 | Load capacity | kg | 1500 |
| 6 | Load center distance | mm | 500 |
| 7 | Wheelbase | mm | 1430 |
| 8 | Service weight with battery | kg | 2430 |
| 9 | Wheels type | Pneumatic tires/Solid tires(Optional) | |
| 10 | Tyre size (Front) | 18x7-10 | |
| 11 | Tyre size (Rear) | 16x6-8 | |
| 12 | Mast lowered height | mm | 2030 |
| 13 | Free lift | mm | / |
| 14 | Lift height | mm | 3000 |
| 15 | Extended mast height | mm | 4055 |
| 16 | Tilt of mast carriage (Forward/Backward) | ° | 5/10 |
| 17 | Fork length | mm | 1070 |
| 18 | Overall length(Without forks) | mm | 2063 |
| 19 | Overall width | mm | 1096 |
| 20 | Turning radius | mm | 2070 |
| 21 | Aisle width for pallets 1000×1200 | mm | 3655 |
| 22 | Ground clearance (Center of wheelbase) | mm | 110 |
| 23 | Travel speed (Laden/Unladen) | km/h | 11/12 |
| 24 | Lift speed (Laden/Unladen) | mm/s | 250/260 |
| 25 | Lowering speed (Laden/Unladen) | mm/s | 450 |
| 26 | Gradeability (Laden/Unladen) | % | 15/20 |
| 27 | Driving motor | kw | 5.5 |
| 28 | Lifting motor | kw | 5 |
| 29 | Voltage/Capacity of lithium battery | V/Ah | 80/230 |
| 30 | Lithium battery charger | V/A | 80/100 |
