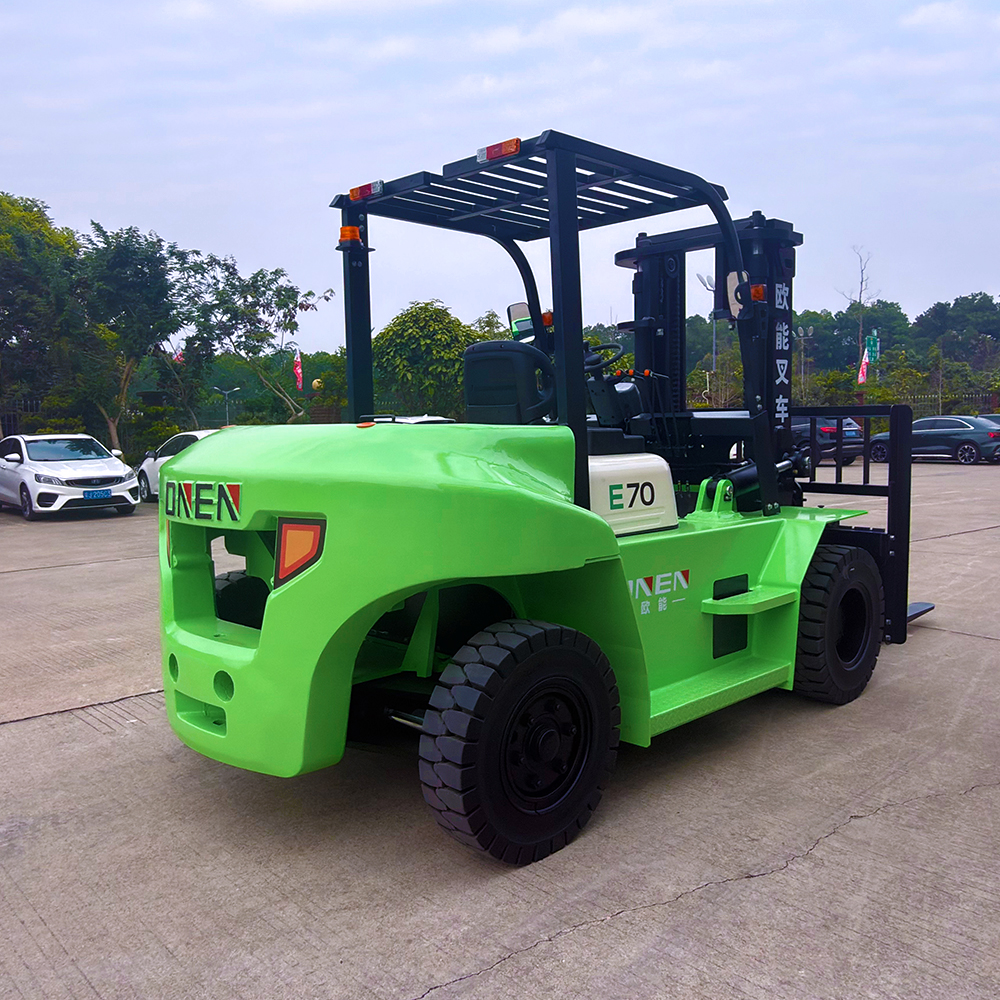

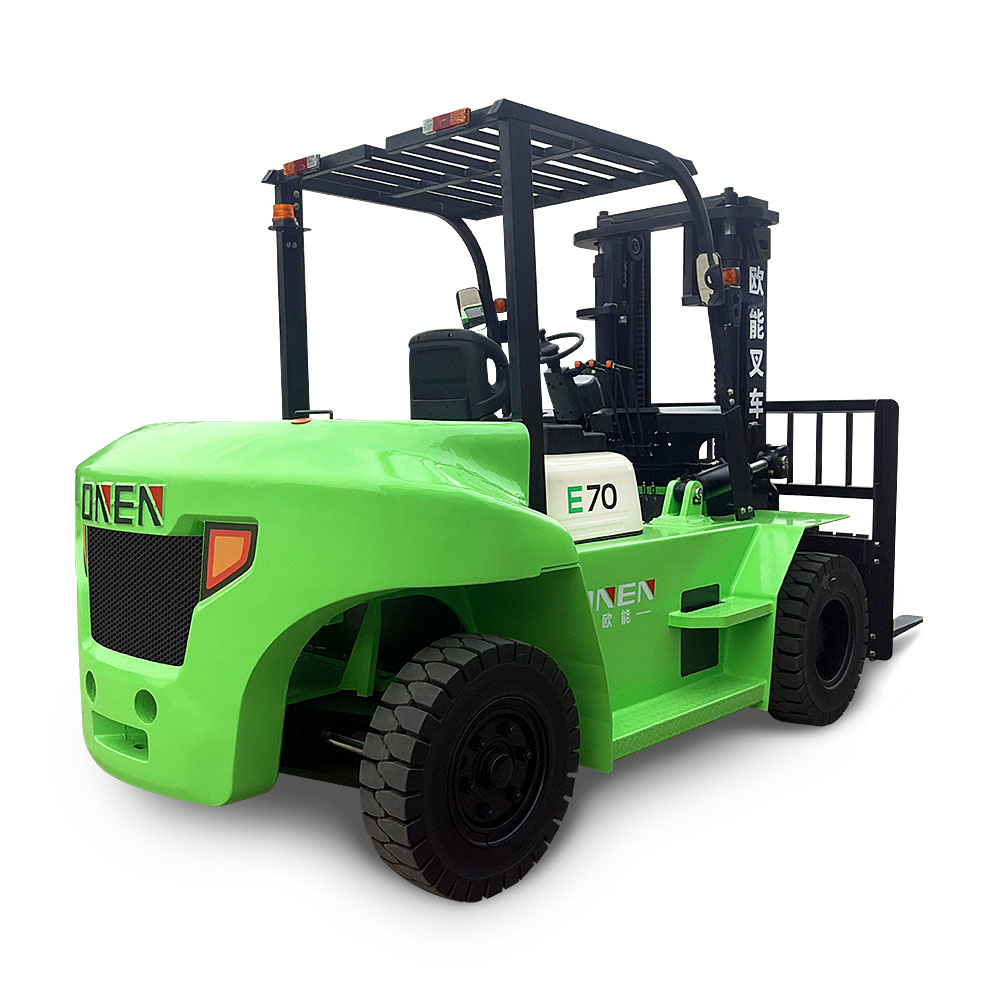

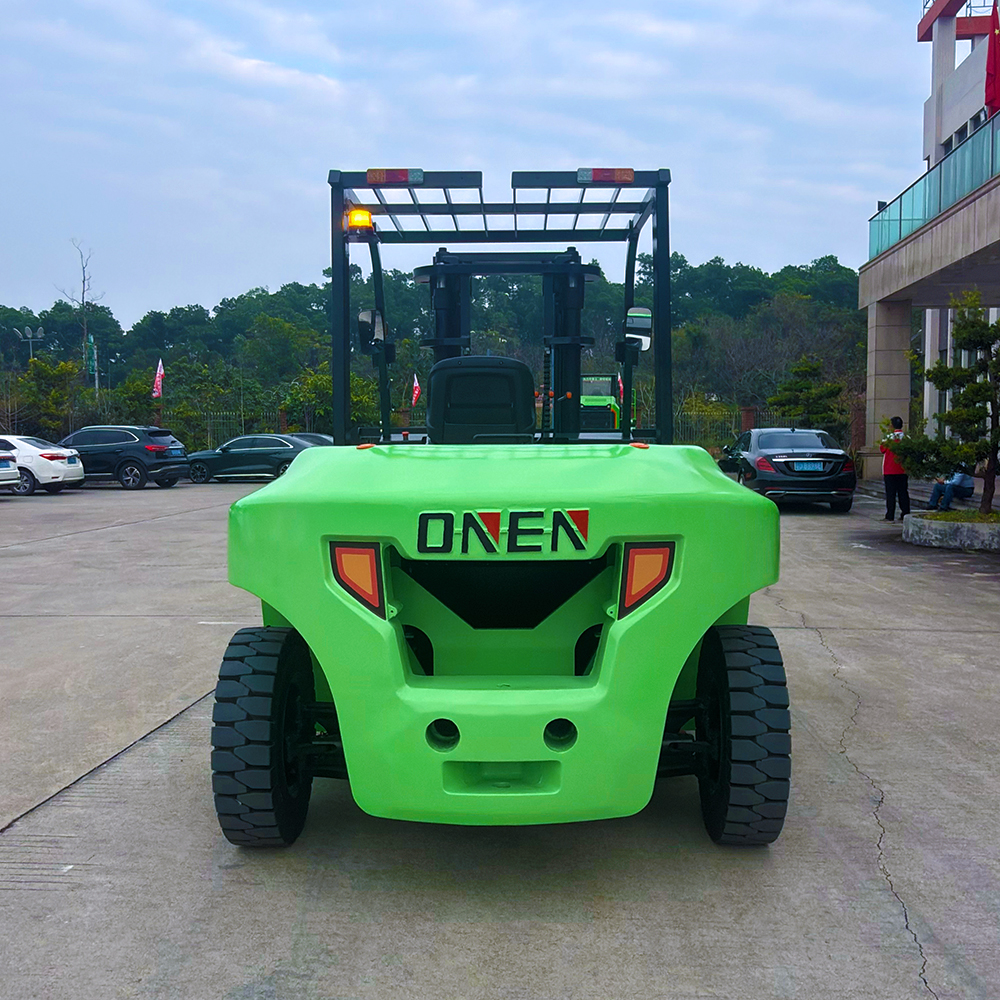

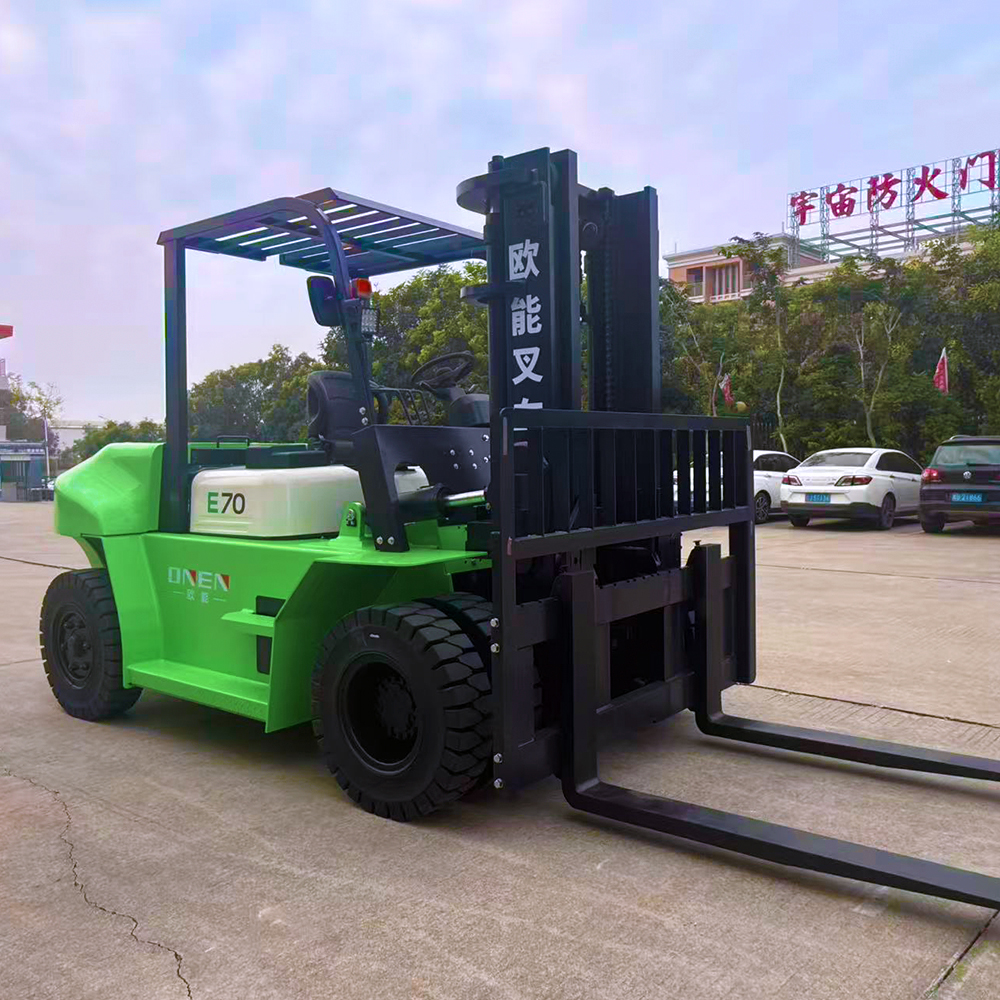

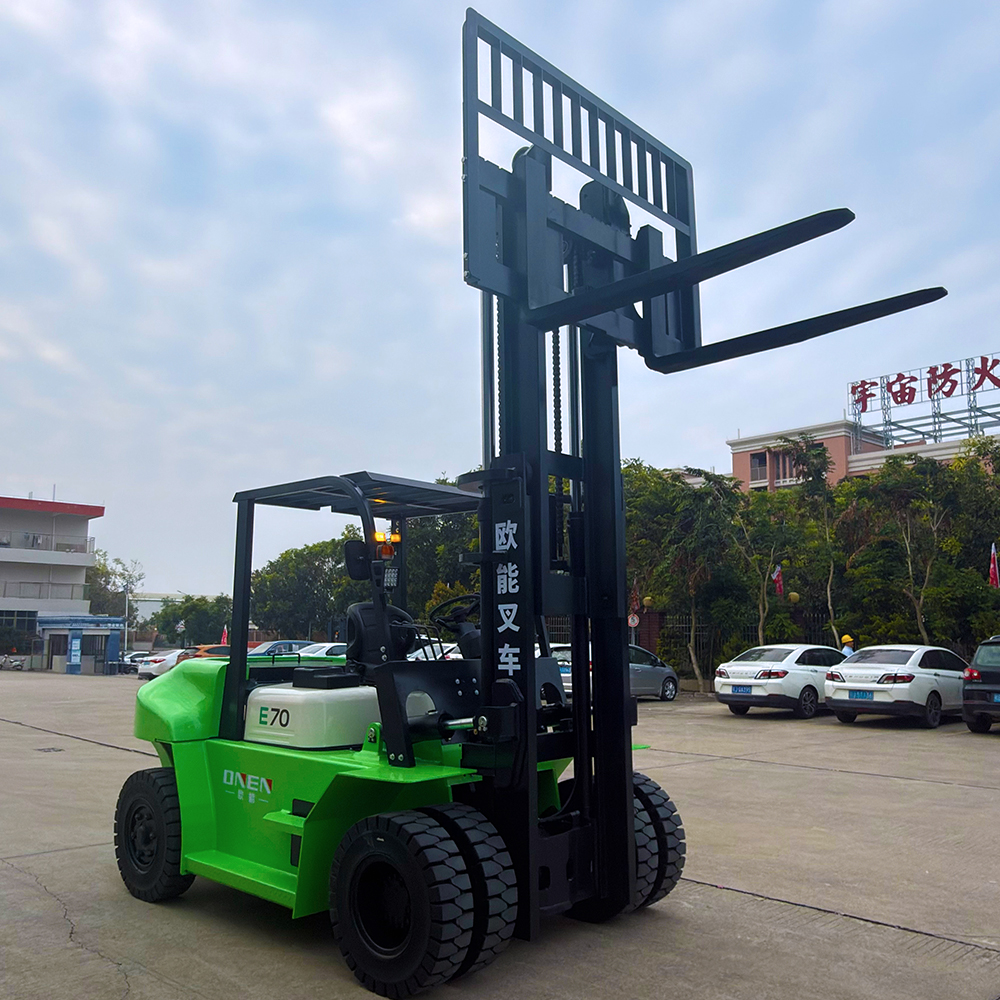

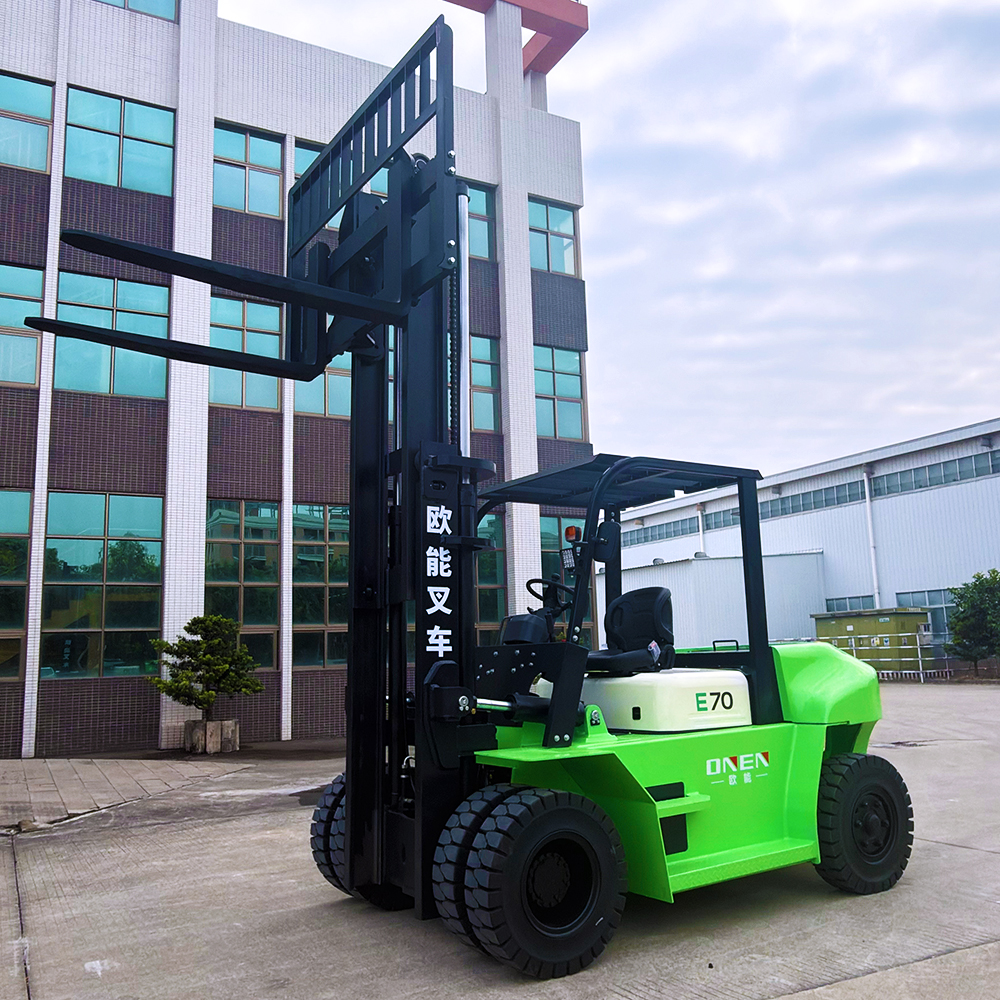

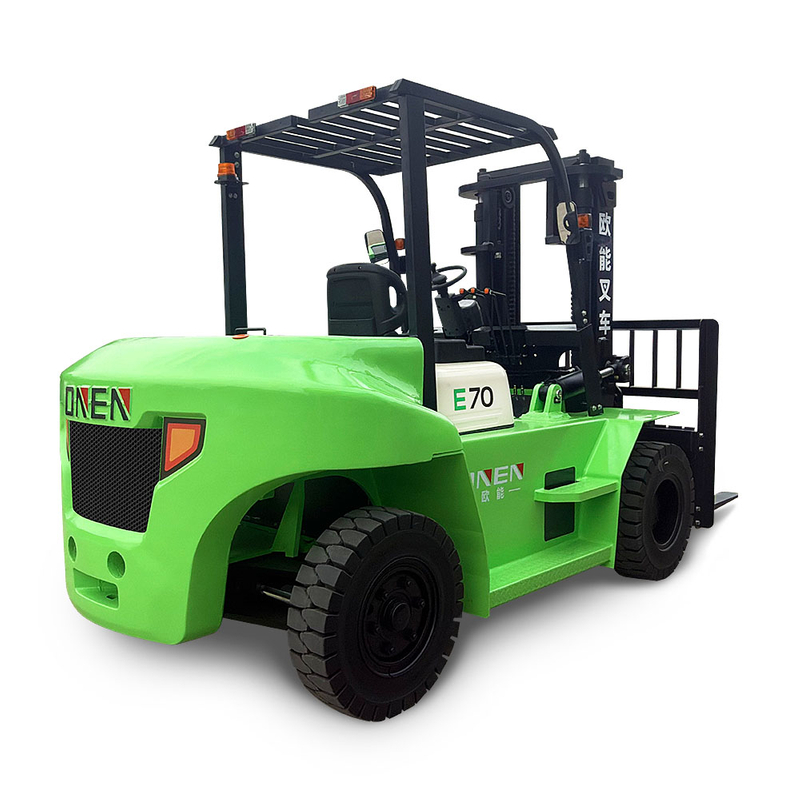

CPDD-L-7030, Electric Forklift

Load Capacity: 7T
lift height: 3m
Battery: 80VLi-Ion
Availability:
  • CPDD-L-7030

  • ONEN

  • Counterbalanced Electric Forklift

  • Electric

  • 7T

  • Seated

  • 600mm

  • Pneumatic Tire / Solid Core Tire

  • 3000mm

  • 1520mm

  • 3450mm

  • Lithium Battery

  • Single Sided Tray, Double Sided Tray

  • 80V/690Ah

  • 80V/200A

  • support

  • Warranty for one year or 2000 hours (5-year warranty for lithium batteries)

  • CE/RoHS/SGS

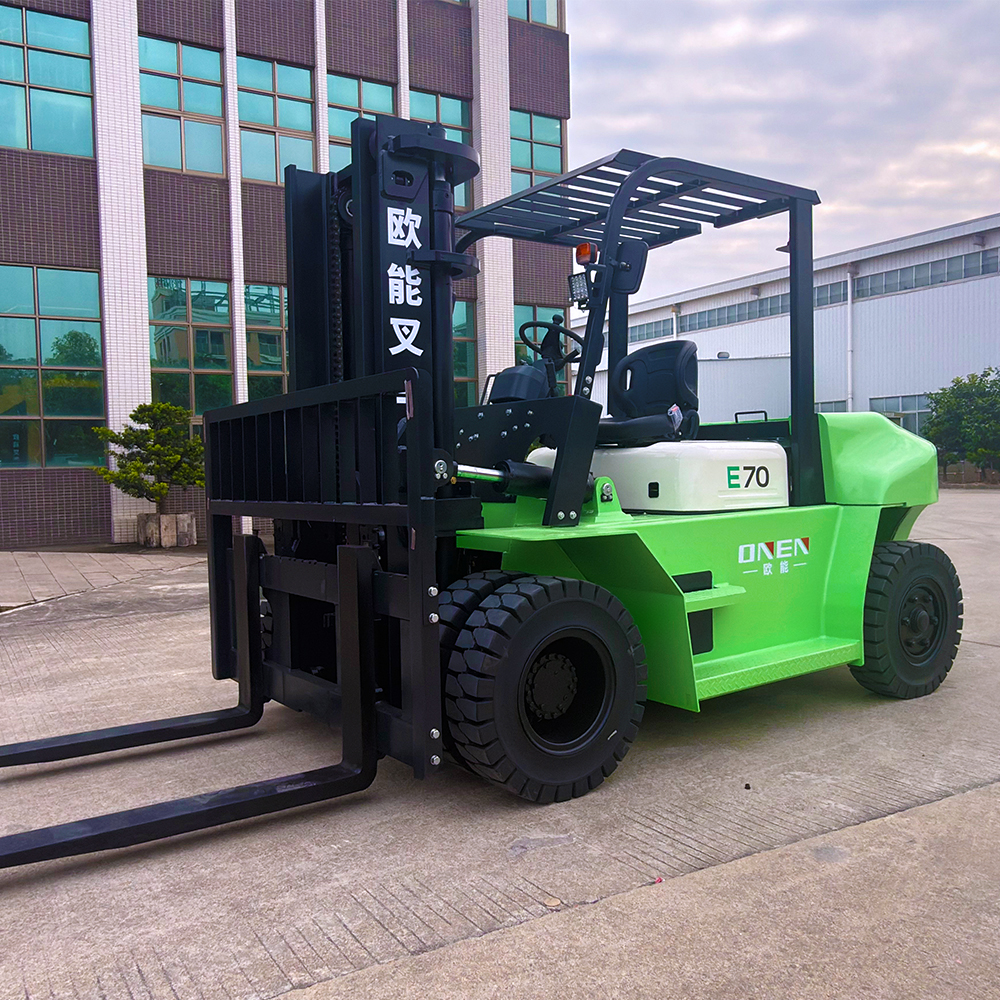

Storage Forklift

CPDD-V-7030 electric forklift is specifically designed for heavy-duty, dense storage environments.

With its compact body and excellent maneuverability, it is highly suitable for heavy-duty operations in confined spaces such as factory floors, logistics warehouses, and port yards.

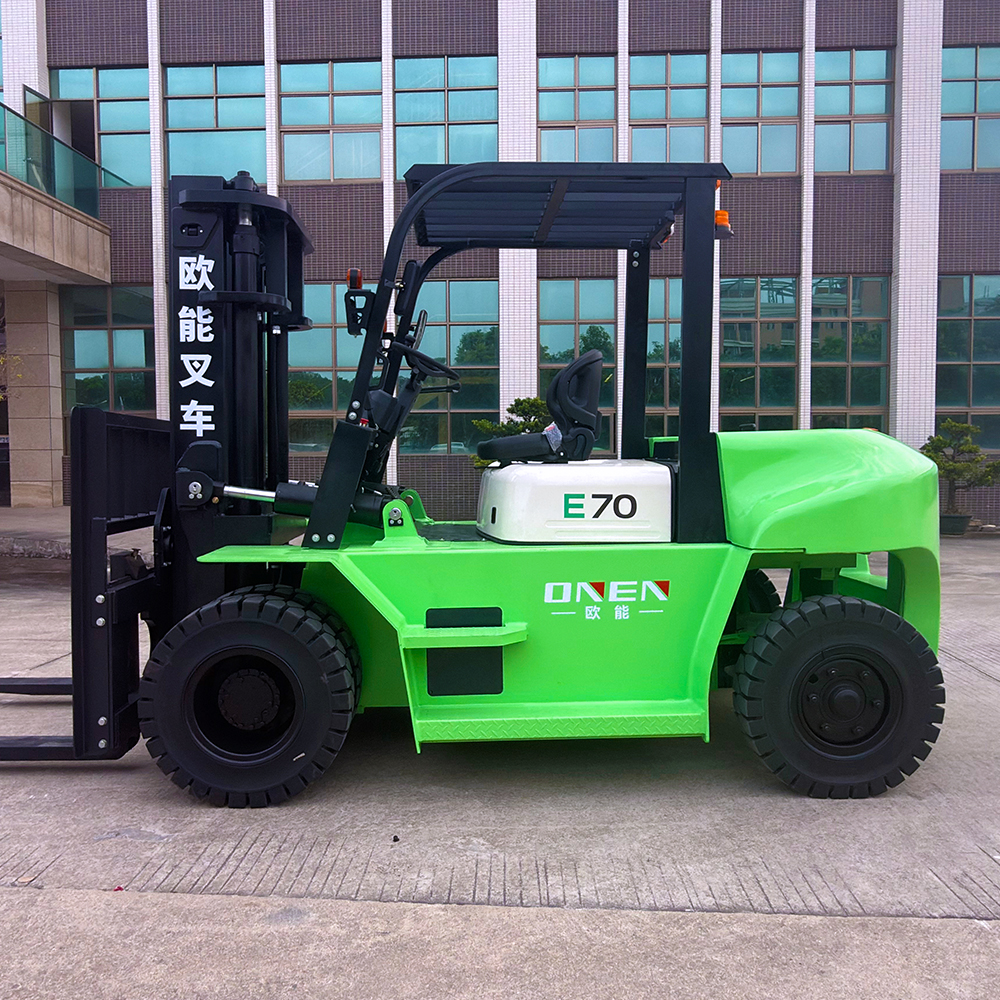

Warehouse Forklift TruckLeveraging the advantages of electric drive, the CPDD-V-7030 operates smoothly and without pollution, producing low noise, making it particularly suitable for indoor applications in food processing, cold chain, or environments with strict environmental requirements. The forklift's lifting height of 3 meters perfectly matches the stacking requirements of standard racks, enabling it to efficiently handle the loading, unloading, transfer, and high-level stacking of heavy raw materials and finished products.


1 Model
CPDD-L
2 Configuration No.
7030
3 Power type
Electric
4 Operation type
Seated
5 Load capacity kg 7000
6 Load center distance mm 600
7 Wheels type
Solid tires/Pneumatic tires(Optional)
8 Track width (Front) mm 1470
9 Track width (Rear) mm 1735
10 Mast lowered height mm 2470
11 Free lift mm /
12 Lift height mm 3000
13 Extended mast height mm 4370
14 Tilt of mast carriage (Forward/Backward) ° 6/10
15 Fork length mm 1520
16 Overall length (With forks) mm 5155
17 Overall length(Without forks) mm 3635
18 Overall width mm 1980
19 Overall height mm 2510
20 Turning radius mm 3450
21 Travel speed (Laden/Unladen) km/h 16/17
22 Lift speed (Laden/Unladen) mm/s 310/360
23 Lowering speed (Laden/Unladen) mm/s 320/300
24 Max. traction (Laden) KN 40
25 Gradeability (Laden/Unladen) % 15
26 Driving motor kw 23
27 Voltage/Capacity of lithium battery V/Ah 80/690
28 Lithium battery charger V/A 80/200
