CQD-B-1570-Q Electric Reach Truck

Name: CQD-B-1570-Q Electric Reach Truck
Brand: ONEN
Rating: 5.0 (22 reviews)

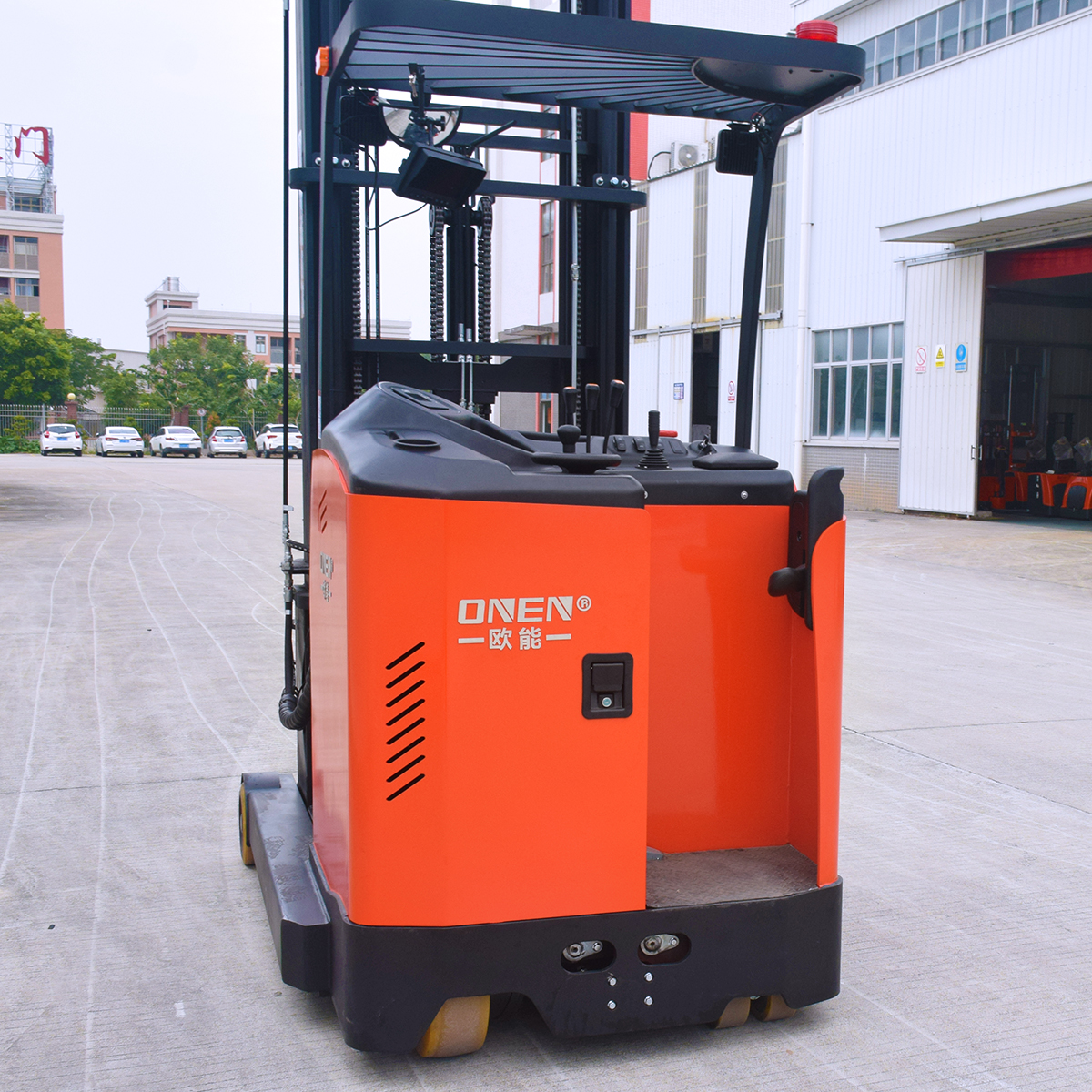

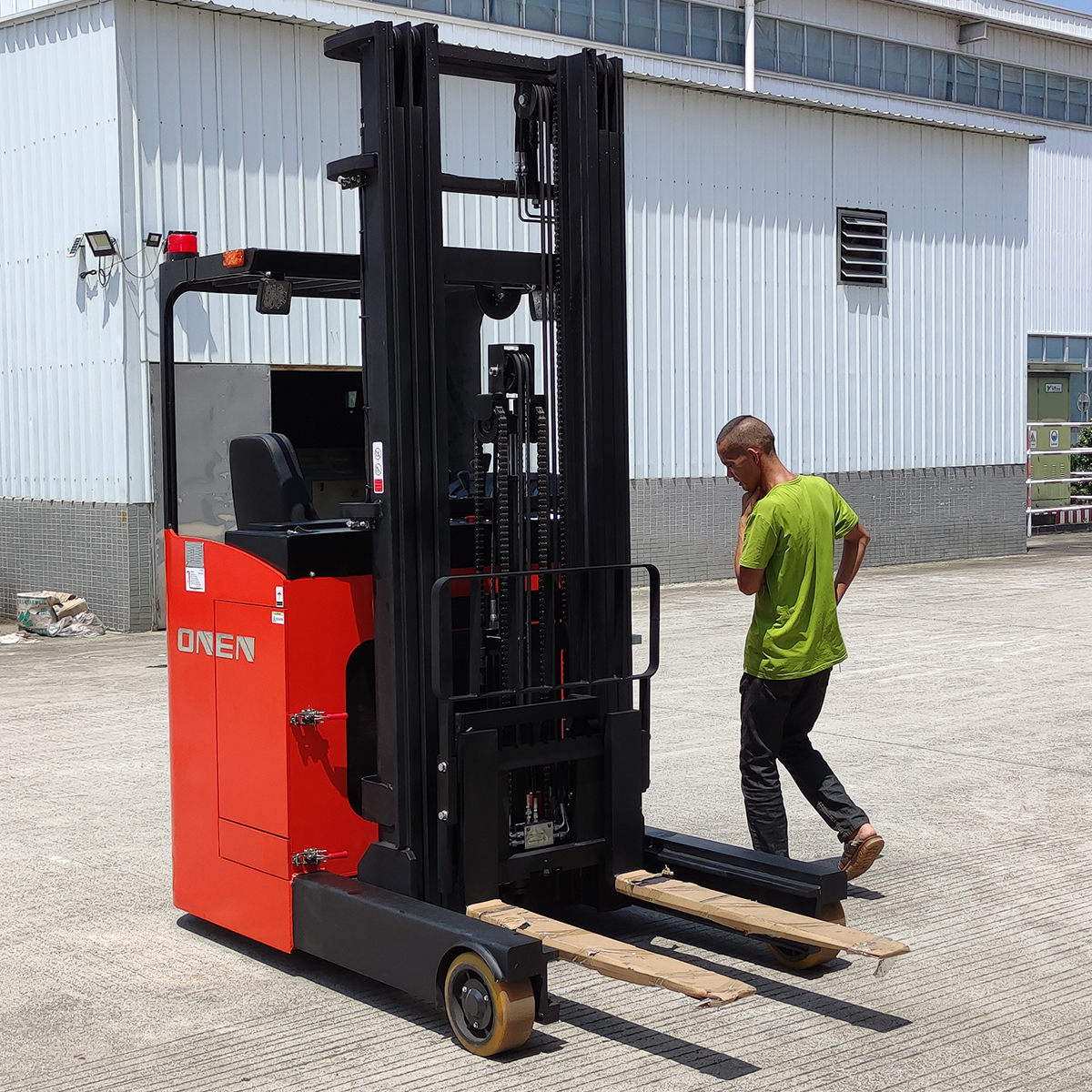

ONEN CQD-B ride-on stacker has a rated load capacity of 1.5 tons and a maximum lifting height of up to 7 meters. With its compact design, it is suitable for flexible operations in narrow warehouses and factory corridors. The vehicle features ride-on operation and electronic steering, providing stable performance, energy efficiency, and environmental friendliness. Equipped with a powerful motor and a multi-valve hydraulic system, it possesses functions such as lifting, moving forward and backward, effectively enhancing the loading and unloading efficiency of high-level warehousing.

Availability:



Inquire Add to Basket

Model:
CQD-B-1570-Q
Brand:
ONEN
Name:
Electric Reach Truck
Power form:
Electric
Load Capacity:
1500kg
Driving Style:
Seated
Load Center:
500mm
Wheel Type:
PU
lift height:
7000mm
Fork Length:
1070mm
Turning Radius:
1800mm
Battery:
Lead-acid / Lithium
Use Tray Type:
Single Sided Tray, Double Sided Tray
Voltage/Capacity:
48V/300Ah【Lead-acid】、48V/280Ah【Lithium】
Charger:
24V/40A【Lead-acid】、24V/50A【Lithium】
Customization:
support
After-Sales Service:
Warranty for one year or 1000 hours (lithium battery warranty for three years)
Certification:
CE/RoHS/SGS

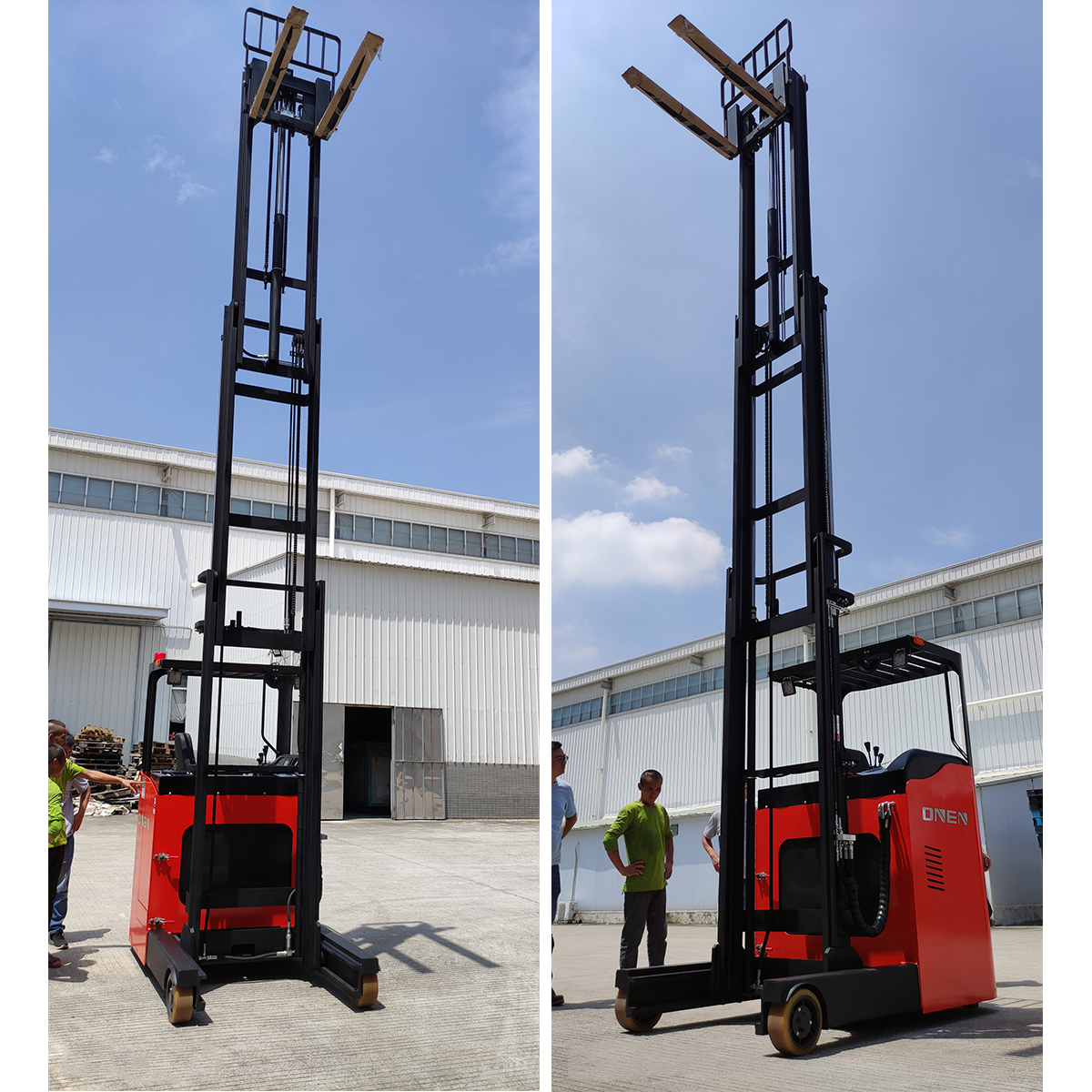

ONEN CQD-B stacking vehicle (1.5 tons/7 meters) is specifically designed for dense storage on high-level racks, suitable for narrow aisle warehouses and high-level automated warehouses.

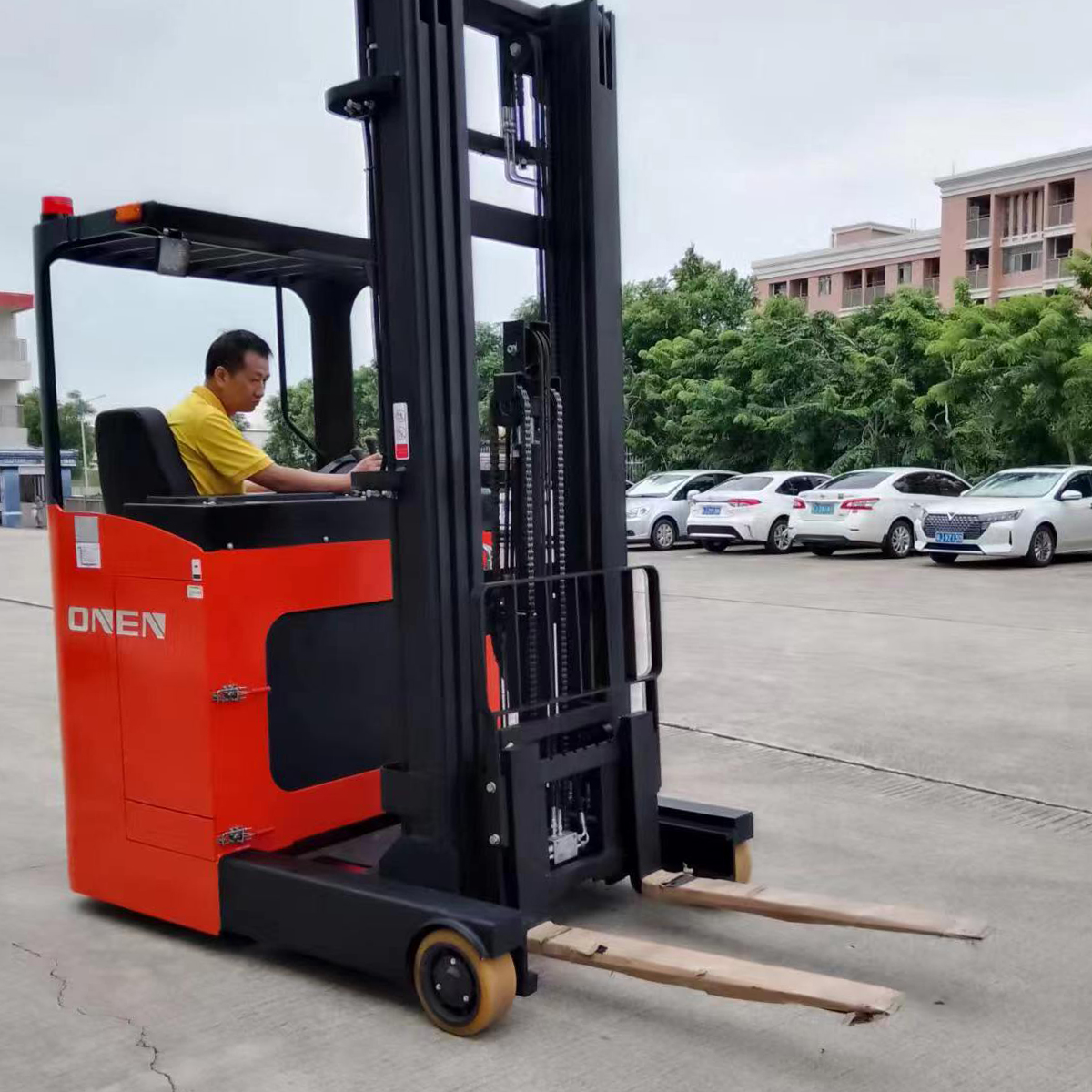

The reach-type structure of the forklift allows for flexible operations in narrow passageways, enabling precise stacking of heavy goods (such as building materials, chemical raw materials, and pallets) up to a height of 7 meters, maximizing vertical storage space. The vehicle's saddle-type design, coupled with electronic steering, effectively reduces operator fatigue during high-frequency operations, ensuring efficient and safe material handling over long distances and extended periods.

ONEN CQD-B stacking truck 1.5-ton electric stacker 7-meter-high stacking truck electric reach truck sit-down stacking truck high-level warehouse forklift reach truck Manufacturer China reach truck Reach Truck Forklift Reach Truck

1	Model		CQD-B
2	Configuration No.		1570-Q
3	Power type		Electric
4	Steering type		Electric steering
5	Operation type		Seated
6	Load capacity	kg	1500
7	Load center distance	mm	500
8	Reach Distance	mm	505
9	Wheels type		PU
10	Driving wheel size	mm	Ф382×142
11	Bearing wheel size	mm	Ф267×114
12	Overall Length (With Fork)	mm	2477
13	Overall Width	mm	1270
14	Mast lowered height	mm	3210
15	Lift height	mm	7000
16	Extended mast height	mm	7965
17	Fork dimensions	mm	35/100/1070
18	Turning radius	mm	1800
19	Travel speed (Laden/Unladen)	km/h	6.8/7.8
20	Lift speed (Laden/Unladen)	mm/s	120/240
21	Lowering speed (Laden/Unladen)	mm/s	315/260
22	Gradeability (Laden/Unladen)	%	≤10
23	Driving motor	kw	6.5
24	Lifting motor	kw	4.5
25	Voltage/Capacity of lead-acid battery	V/Ah	48/300
26	Lead-acid battery charger	V/A	24/40
27	Voltage/Capacity of lithium battery (Optional)	V/Ah	48/280
28	Lithium battery charger	V/A	24/50
29	Sound level at driver's ear	dB(A)	<70

Mast Table
Lift height	Mast lowered height	Free lift	Extended mast height
h3（mm）	h1（mm）	h2（mm）	h4（mm）
3000	2100	‐	3577.5
3500	2350	‐	4077.5
4000	2600	‐	4577.5
4500	2100	1500	5465
5000	2280	1660	5965
5500	2450	1820	6465
6000	2620	1980	6965
6500	2790	2140	7465
7000	3210	2320	7965
