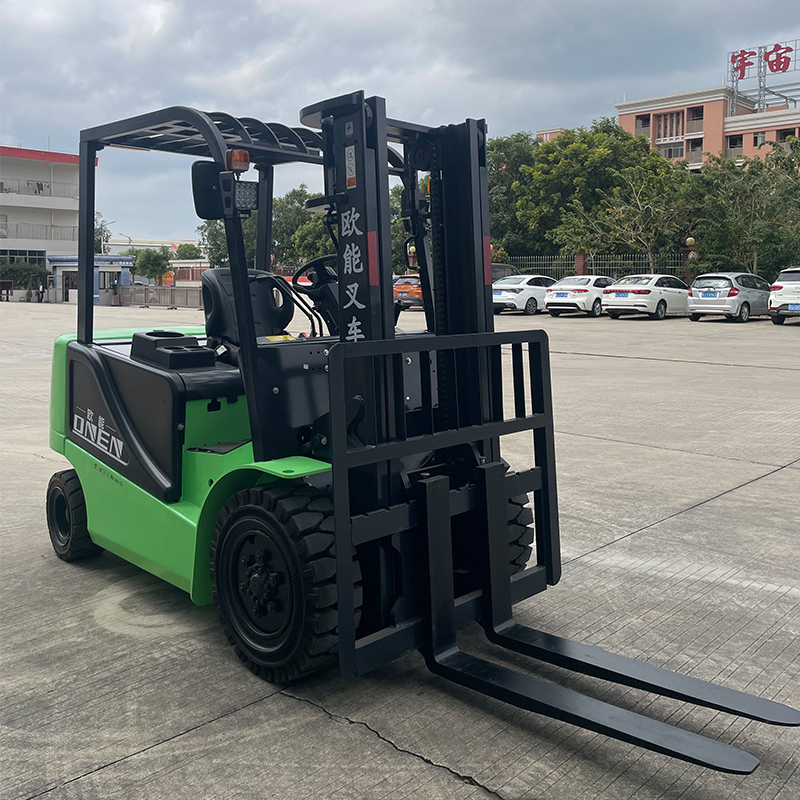

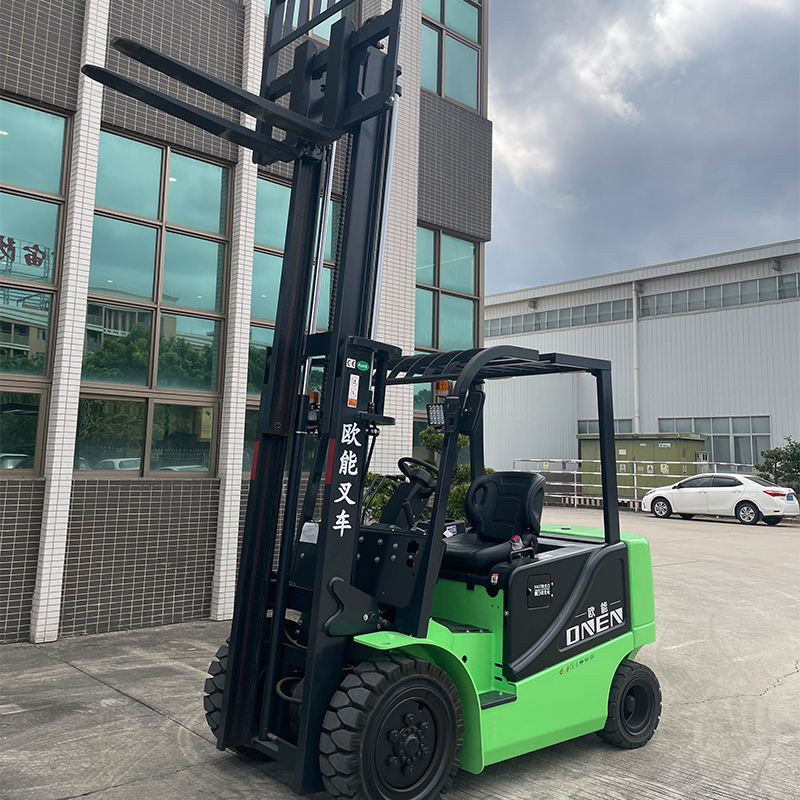

ONEN CPDD-L | 3.5 Ton Lithium Battery Electric Forklift

Heavy-Duty Counterbalanced Forklift for Modern Warehousing & Manufacturing

Model: CPDD-L | Load Capacity: 3,500 kg (3.5T) | Power: 80V Lithium Battery
Configuration: Seated Operation | Lift Height: 3.0m – 3.5m (Customizable up to 3.5m)

Product Overview: Power Meets Sustainability

The ONEN CPDD-L is a heavy-duty counterbalanced electric forklift engineered for facilities that refuse to compromise on performance, environmental responsibility, or total cost of ownership. Built around a high-density 80V lithium battery system, the CPDD-L delivers the continuous power of an internal combustion (IC) truck—without the emissions, noise, or maintenance burden.

Whether you are operating in a food storage warehouse, a high-throughput logistics hub, or a precision manufacturing workshop, the CPDD-L provides instant torque, rapid lift speeds, and all-day runtime with opportunity charging.

Why Switch to ONEN Lithium-Ion Electric?

1. Zero-Emission Powertrain for Cleaner Operations

Unlike diesel or LPG counterparts, the CPDD-L produces zero harmful emissions during operation. This makes it ideal for indoor/outdoor hybrid environments, enclosed warehouses, and industries with strict hygiene standards—such as food processing, pharmaceuticals, and cold storage—where air quality is non-negotiable.

2. High Energy Density & Instant Responsiveness

Lithium chemistry offers superior energy density and discharge efficiency. The result is stable, sustained power output across the entire shift, with none of the "voltage sag" common in lead-acid systems. Combined with a reversible drive motor, the forklift achieves:

• High starting torque for rapid acceleration

• Immediate startup with no preheating or cooldown downtime

• Precise, flexible control over speed and steering angle

3. Silent Operation, Productive Environment

Engine noise is eliminated. The CPDD-L runs at a fraction of the decibel level of an IC forklift, reducing operator fatigue and allowing safer communication in busy aisles.

4. Opportunity Charging = Maximum Uptime

The lithium battery supports fast charging during work breaks. No battery swapping, no dedicated charging rooms, and no 8-hour downtime cycles. Plug in during lunch, and return to full productivity. With a significantly longer cycle life than traditional batteries, the CPDD-L minimizes replacement costs over years of heavy use.

5. Lower Total Cost of Ownership (TCO)

Electric drivetrains eliminate vulnerable internal combustion components—no pistons, crankshafts, engine oil, or exhaust systems to service. Maintenance frequency drops dramatically, translating to:

• Fewer scheduled service interruptions

• Lower spare parts inventory

• Reduced long-term operating costs

  Built for Heavy-Duty Real-World Conditions

  While the CPDD-L is clean and quiet, it is anything but delicate. ONEN’s 30 years of manufacturing experience are evident in the chassis and mast engineering:

  表格

  Structural Feature	Benefit

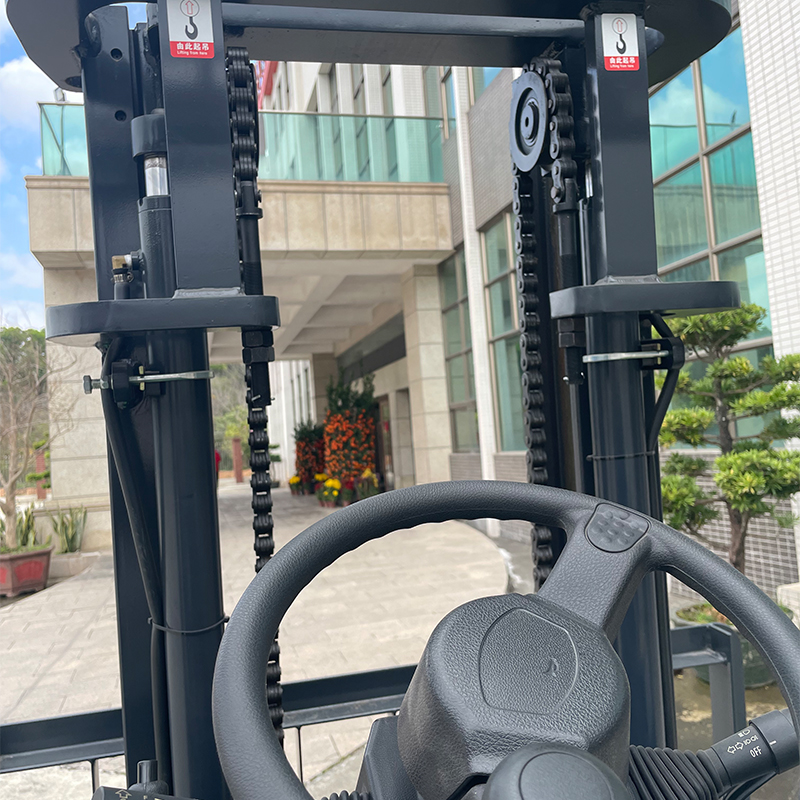

  Thick Door Frame (Mast)	Reinforced mast sections resist torsional stress when lifting to maximum heights (up to 3.5m).
  Thick, Reinforced Forks	Steel-plate reinforced connections resist deformation and sagging under full 3.5T loads.
  Wear-Resistant Tires	High-load-bearing solid or pneumatic tire options deliver extended service life on rough concrete, ramps, and outdoor yards.
  Optimized Gradeability	Tackle inclines with confidence: 12% gradeability laden / 15% unladen, making ramp work and uneven floors manageable.

  Tire Options: Solid tires (standard for indoor/high-abrasion environments) or pneumatic tires (optional, for outdoor/rough terrain comfort).



  Performance & Dimensions at a Glance

  Specification	Value
  Model	CPDD-L
  Configuration No.	3555
  Load Capacity	3,500 kg
  Load Center Distance	500 mm
  Wheelbase	1,720 mm
  Service Weight (with battery)	5,200 kg
  Overall Length (with forks)	3,500 mm
  Overall Width	1,238 mm
  Overall Height (overhead guard)	2,170 mm
  Mast Lowered Height	2,092 – 2,592 mm (depending on lift height)
  Free Lift	160 mm
  Lift Height	3,000 – 3,500 mm (customizable)
  Extended Mast Height	Up to 6,760 mm
  Travel Speed (Laden / Unladen)	16 / 19 km/h
  Lift Speed (Laden / Unladen)	350 / 450 mm/s
  Max. Traction (Laden)	190 kN
  Gradeability (Laden / Unladen)	12% / 15%
  Driving Motor	16.6 kW
  Lifting Motor	24 kW
  Battery	80V / 280Ah, 410Ah, or 560Ah Lithium
  Charger	80V / 150A or 200A

Application Scenarios

The CPDD-L transitions seamlessly between environments where IC trucks are restricted or inefficient:

• Warehousing & Distribution Centers: High-bay racking, cross-docking, and all-day pallet movement.

• Factory Workshops: Precision handling near production lines without exhaust contamination.

• Food & Cold Storage: Zero emissions protect product integrity; lithium performance is stable in temperature-controlled environments.

• Retail & Supermarket Backrooms: Quiet operation allows restocking during business hours.

• Logistics Yards: Pneumatic tire option and robust gradeability handle outdoor loading docks and ramps.

The ONEN Advantage: 30 Years of Production Excellence

Choosing a forklift supplier is about more than a spec sheet. ONEN brings three decades of professional manufacturing expertise to every unit:

• Legitimate Manufacturer: Complete production qualifications and Special Equipment Production License.

• Globally Recognized Certifications: ISO 9001, ISO 14001, ISO 45001, CE, RoHS, SGS, and TX Type Test Certificates.

• Award-Winning Design: Recognized at the Canton Fair for industrial design excellence.

• Rigorous Quality Control: Every machine undergoes strict factory testing before shipment.

• Export-Ready Logistics: Full documentation, packaging, and after-sales support for international wholesale buyers.

Explore the Full ONEN Fleet

The CPDD-L is part of a comprehensive material handling lineup. If your operation requires additional equipment, we offer a full range of models and configurations:

• Electric Forklifts (1.5T – 3.5T+)

• Diesel Forklifts (Heavy-duty outdoor applications)

• Electric Scissor Lifts (Aerial work platforms)

• Electric Reach Trucks (High-density narrow aisle storage)

• Electric Pallet Stackers (Medium-duty stacking)

• Walkie Pallet Trucks (Last-mile horizontal transport)

Ready to Upgrade Your Fleet?

Factory-direct wholesale pricing is available for distributors, rental fleets, and end-user bulk orders. We welcome factory inspections and live video demonstrations.

[Request a Quote] | [Download Full CPDD-L Brochure] | [Schedule a Video Factory Tour]

For customization or more information, please consult our online customer service or contact your regional ONEN representative.
