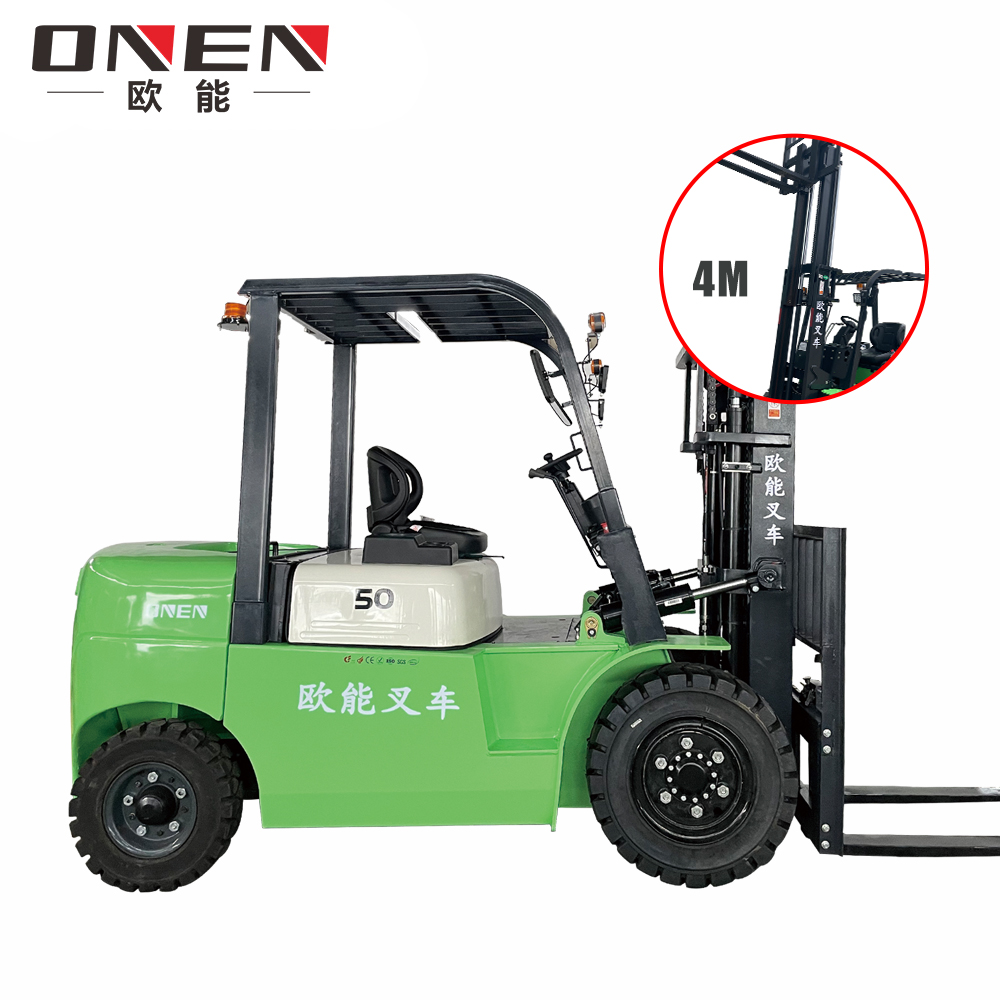

ONEN 5T Li-ion Counterbalance Electric Forklift, Lift 4m (CPDD-L-5040)

ONEN 5T Li-ion Counterbalance Electric Forklift, Lift 4m (CPDD-L-5040)

Heavy-Duty Handling Without the Diesel Drawbacks

As warehouses and manufacturing floors face tighter emissions rules and rising fuel costs, moving heavy loads sustainably is no longer optional. The ONEN CPDD-L-5040 is engineered from the ground up as a 5-ton class electric counterbalanced forklift, pairing an 80V/560Ah high-density lithium battery with a reinforced heavy-duty chassis. It delivers diesel-grade lifting muscle with zero exhaust, near-silent operation, and dramatically lower running costs — helping fleet operators, manufacturers, and logistics hubs hit sustainability targets without sacrificing throughput.

Six Core Advantages That Redefine 5-Ton Electric Handling

1. Native 80V Lithium Battery Platform — 560Ah, Fast-Charge Ready Built on a high-voltage 80V architecture with a 560Ah lithium battery pack, the CPDD-L-5040 stores enough energy for demanding multi-shift cycles. The 80V/200A rapid charging system enables opportunity charging during breaks, minimizing downtime. Unlike retrofitted lead-acid designs, this native lithium platform offers consistent power output across the entire discharge curve — no voltage sag, no mid-shift power fade.

2. 5-Ton Lifting Muscle with Extended Reach Rated at 5,000 kg with a 500 mm load center, this forklift handles heavy machinery, bulk raw materials, and oversized pallets with confidence. The standard 3,000 mm lift height aligns with common racking systems, while optional mast configurations extend up to 4,000 mm for high-bay warehousing and container stuffing operations.

3. Compact Chassis, Surprising Maneuverability Despite its heavy-duty rating, the truck maintains a turning radius of just 3,050 mm and an overall width of 1,480 mm. It navigates narrow warehouse aisles, crowded factory floors, and tight loading bays where space is limited — outperforming many larger internal-combustion equivalents in confined environments.

4. Zero-Emission, Indoor-Ready Operation A 23 kW permanent magnet drive motor delivers instant torque for smooth acceleration and precise load placement, while producing virtually no noise and zero exhaust. This makes the CPDD-L-5040 ideal for food processing plants, cold storage, pharmaceutical facilities, and any indoor setting with strict air-quality or noise regulations.

5. High-Power Drive & Lift System Combined 23 kW travel motor and 30 kW lift motor provide aggressive climbing ability — up to 20% gradeability fully loaded — and rapid lift speeds of 350 mm/s under load. Whether climbing dock ramps or stacking at height, responsive power is always on tap.

6. Built Tough for Daily Punishment Heavy-section forks, reinforced plate chains, wear-resistant solid or pneumatic tire options, and an emergency stop button come standard. The wide-view mast design improves operator visibility at elevation, while the rugged overhead guard and frame structure withstand the knocks of real-world logistics.

Comprehensive International Certifications — Export-Ready & Policy Compliant

Backed by ISO 9001/45001/14001 management systems, CE, RoHS, SGS product compliance, TX type test certificates, and Special Equipment Production Licenses.

• Overseas Buyers: CE and SGS compliance ensures smooth customs clearance and market entry into Europe and other high-standard regions without costly retrofits.

• Domestic Enterprise & State-Owned Bids: Complete special equipment qualifications meet bidding thresholds and safety inspection requirements.

• ESG & Green Operations: RoHS compliance and zero-emission operation support corporate carbon accounting and sustainability ratings.

Precision Dimensions — Balancing Heavy Loads with Tight-Space Maneuverability

Born for Real-World Conditions — Four Core Application Scenarios

1. Heavy Manufacturing & Metal Processing Moves castings, dies, and raw materials up to 5 tons across factory floors. Zero exhaust prevents contamination of painted or precision-machined surfaces, while low noise improves communication in busy production environments.

2. High-Density Logistics & Distribution The 3-meter standard lift and compact turning radius slot perfectly into modern racking systems. Fast-charge lithium batteries support multi-shift fulfillment operations, keeping throughput high during peak seasonal demand.

3. Food, Cold Chain & Pharmaceutical Warehousing No emissions and minimal heat signature make the CPDD-L-5030 safe for refrigerated warehouses and clean-room environments. Quiet operation meets strict indoor noise limits, and the sealed electrical system performs reliably in temperature-controlled spaces.

4. Wholesale Trade & Retail Supply Hubs From receiving dock to bulk storage to outbound staging, the 5-ton capacity handles full truckloads of consumer goods, building materials, and packaged products efficiently — day in, day out.

Fleet-Level Customization & Full-Lifecycle Support

The CPDD-L-5040 supports OEM customization including mast heights (3.0 m – 4 m), fork lengths (1,070 mm – 1,520 mm), cabin configurations (open canopy or enclosed cab), tire compounds, and telematics integration.

[Request a Custom Quote] — Share your daily operating hours, aisle dimensions, and typical load weights. We will match the optimal battery capacity, mast specification, and charging strategy.

[Schedule a Video Factory Tour] — See our assembly line, battery testing lab, and finished-vehicle commissioning process in real time.
