When your job site demands both heavy-duty lifting and vertical reach, the ONEN CPC/CPCD-3055 stands out as the economical diesel forklift solution engineered for complex working conditions. Combining a 3,000 kg rated capacity with a 5.5-meter three-stage mast, this counterbalanced forklift is purpose-built for operations where standard 3-meter or 4-meter lifts simply fall short.
Unlike compact warehouse-only models, the CPC-3055 thrives on rough outdoor surfaces—ports, logistics parks, construction sites, and bulk-material yards. Its high-rigidity mast and reinforced counterbalance chassis deliver the stability required for high-altitude stacking of stone, steel, and bulk palletized goods, while the rugged drivetrain ensures continuous shift-after-shift performance without compromise.
Key Features & Competitive Advantages

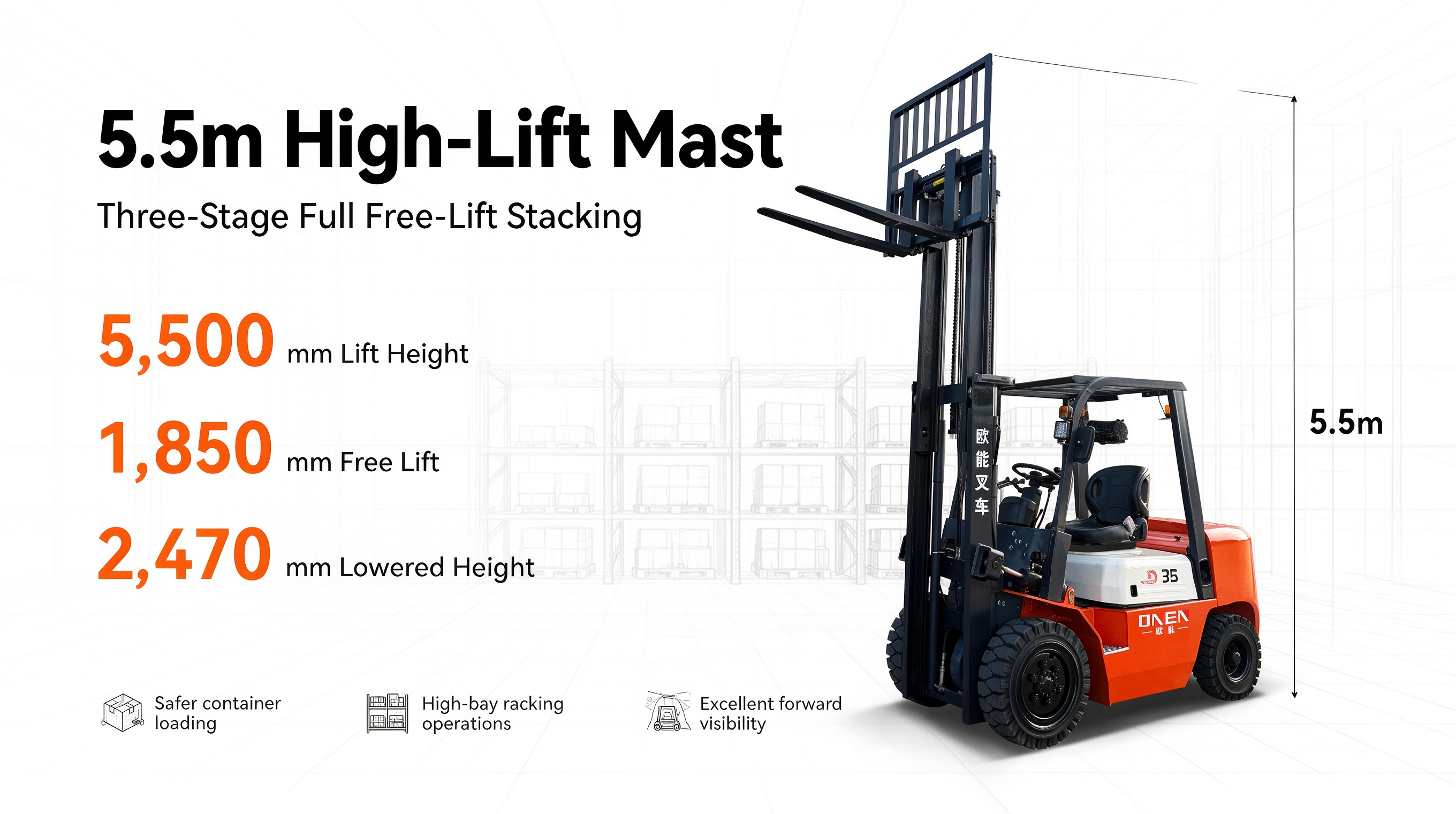

1. Extended 5.5m Mast for High-Bay & Vehicle-Top Stacking
The CPC/CPCD-3055 features a three-stage full free-lift mast that raises loads to 5,500 mm (H1) with an extended mast height of 6,060 mm (H2). Thanks to a generous 1,850 mm free lift, operators can begin elevating pallets while the overall collapsed height remains at 2,470 mm—low enough for standard factory doorways and container interiors.
This extended reach makes the 3055 ideal for:
Loading and unloading goods onto high-sided trucks and rail wagons
Double-deep or high-density racking systems
Stacking bagged cement, timber, or steel coils at height
2. True Counterbalance Stability Under 3-Ton Loads
With a service weight of 4,200 kg and a 500 mm load center, the CPC30 chassis is dynamically balanced to minimize mast sway at full extension. The wide front/rear track (1,000 / 980 mm) and low center of gravity keep the truck planted on inclines and uneven pavement—critical when carrying uneven stone slabs or unbalanced steel loads at 5.5 meters.
3. Flexible Powertrain Built for Your Market & Emission Standards
Power is delivered through your choice of Xinchai, Quanchai, Yanmar, or Kubota diesel engines, allowing you to match local emission regulations and parts availability. Paired with a 60L fuel tank, the CPC-3055 supports full-shift continuous operation without refueling. The drivetrain achieves travel speeds of 18 km/h laden / 20 km/h unladen and tackles 20% grades with confidence—essential for ramp work and yard shuttling.
4. All-Terrain Mobility & Tire Flexibility
Choose solid rubber tires for puncture-proof indoor/outdoor hybrid use, or deep-tread pneumatic tires (28×9-15 / 6.50-10) for maximum shock absorption on construction sites and port terminals. With 110 mm ground clearance beneath the mast and a tight 2,240 mm turning radius, the CPC-3055 navigates cluttered docks, muddy yards, and narrow warehouse aisles alike.
5. Operator-Centric Safety & Ergonomics
The spacious seated cabin features an overhead guard height of 2,100 mm and a seat-to-guard clearance of 1,000 mm, providing ample headroom for operators during long shifts. A dual-brake system—hydraulic power service brake (pedal) plus mechanical parking brake—ensures controlled, safe stopping even when descending inclines with a full 3-ton load at height.
6. Economical Ownership & Low Total Cost
Manufactured at our ISO-certified plant with 30 years of forklift production experience, the CPC/CPCD-3055 is engineered for straightforward maintenance. Common components are shared across the ONEN diesel range, reducing parts inventory costs. For buyers seeking economical diesel forklifts in China without sacrificing reliability, the CPC-3055 offers a proven, factory-direct value proposition.
Application Scenarios
The CPC/CPCD-3055 is widely deployed in environments where both lift height and raw capacity are non-negotiable:
Construction Sites & Building Material Yards – Navigate rough, uneven ground while lifting bricks, mortar, and prefabricated panels to high staging areas.
Port Terminals & Logistics Parks – Stuff and de-stuff containers; stack pallets on high-sided trucks and rail wagons with the 5.5m reach.
Steel, Stone & Timber Yards – Handle heavy, uneven loads at height with the stability of a true counterbalance chassis.
High-Rack Warehouses – Access double-deep or elevated racking systems that standard 3-ton forklifts cannot reach.
Why Source from ONEN?
Guangdong ONEN New-resource Equipments Co., Ltd. brings three decades of professional production expertise to every machine. When you specify an ONEN forklift, you benefit from:
Complete Certifications: ISO 9001, ISO 14001, ISO 45001, CE, RoHS, and SGS.
Licensed Manufacturing: China Special Equipment Production License and TX type-test certificates.
Award-Winning Design: Recognized with the Canton Fair Design Award.
Full Product Ecosystem: Beyond diesel forklifts, we manufacture electric forklifts, scissor lifts, reach trucks, pallet stackers, and walkie pallet trucks—allowing you to standardize your entire fleet with one trusted supplier.
Ready to Add the CPC/CPCD-3055 to Your Fleet?
Get a factory-direct quotation for the ONEN CPC/CPCD-3055 3-ton diesel forklift today. We welcome factory inspections and can customize mast heights, tire types, fork lengths, and engine configurations to match your local regulations and operational needs.
Contact Guangdong ONEN New-resource Equipments Co., Ltd. now to discuss volume pricing, shipping logistics, and after-sales support for your market.
