Counterbalanced Electric Forklift CPDD-V 3035, 3000kg, 3500mm, 80VLi-Ion

Share to:

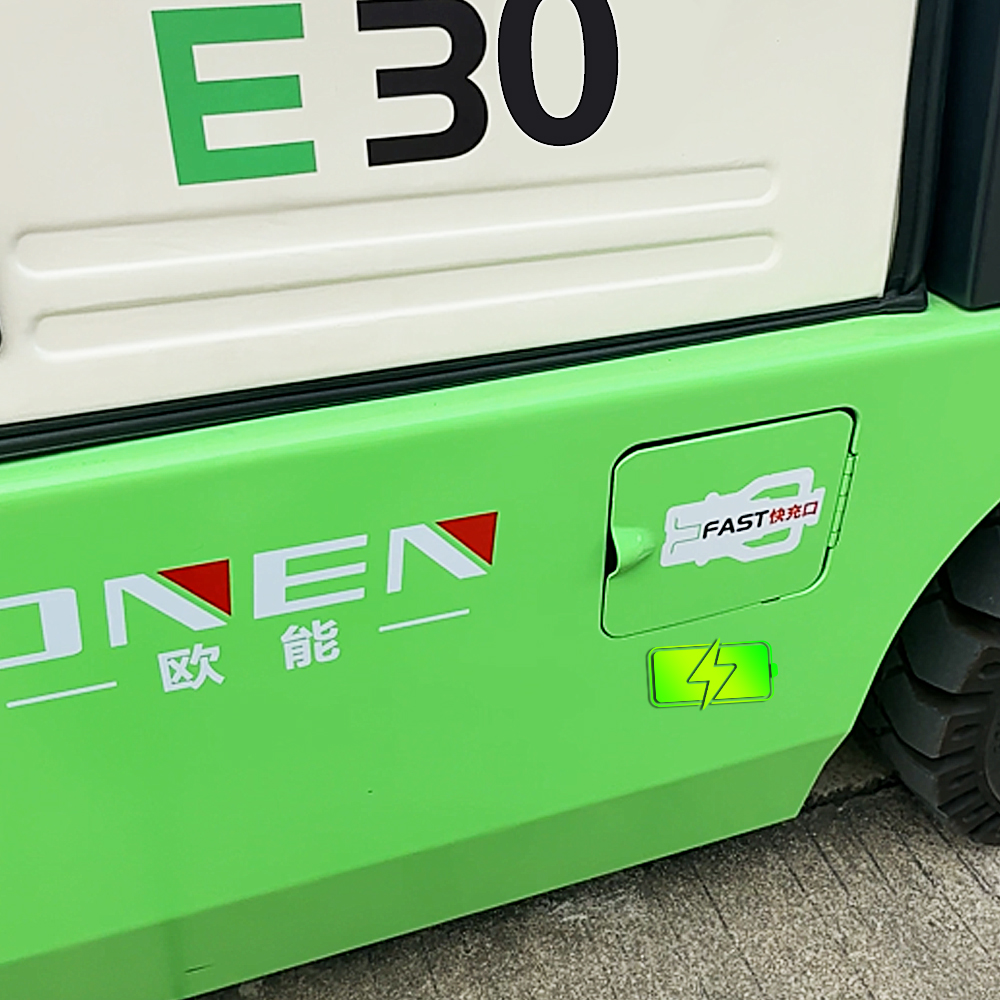

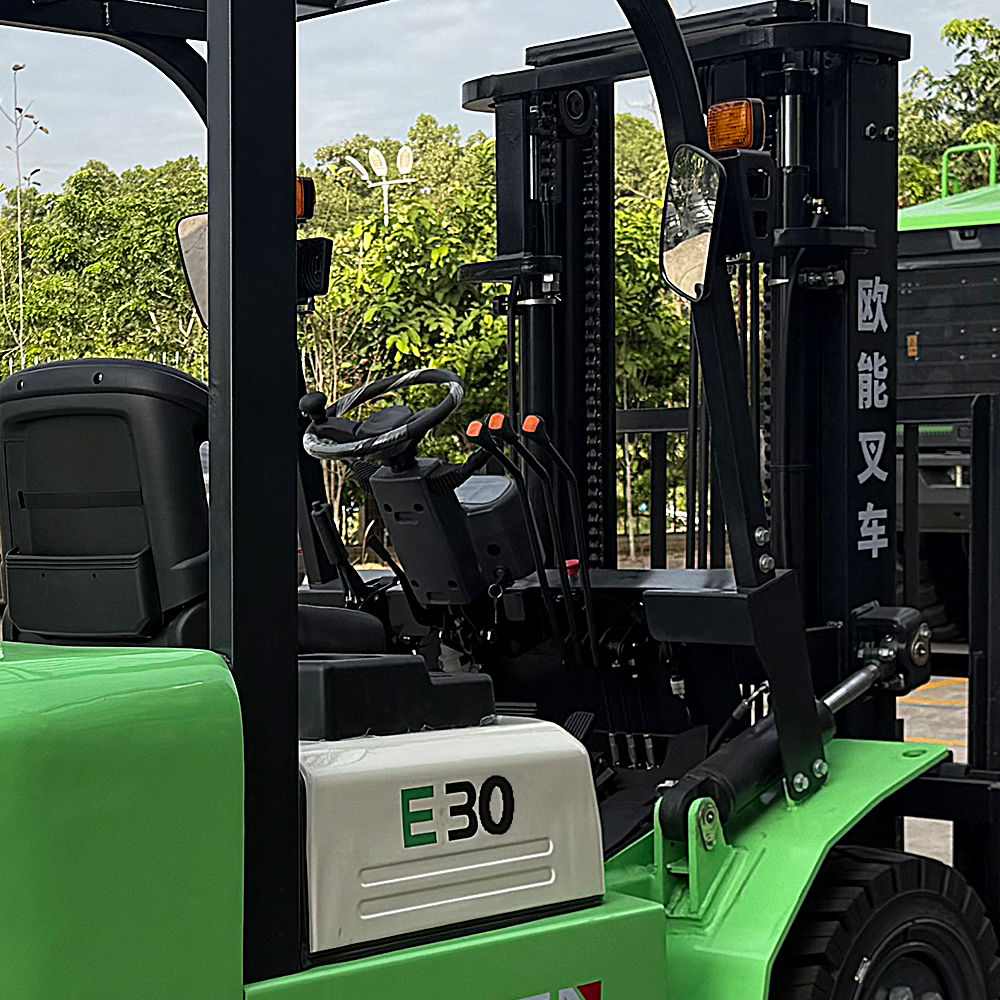

Counterbalanced Electric Forklift CPDD-V 3035, 3000kg, 3500mm, 80VLi-Ion

Name: Counterbalanced Electric Forklift CPDD-V 3035, 3000kg, 3500mm, 80VLi-Ion
Brand: ONEN
Rating: 5.0 (83 reviews)

Application

CPDD-V series is mainly used in indoor and outdoor material handling and loading and unloading scenarios. The vehicle is equipped with 80V/205Ah lithium batteries, which are pollution-free, low-noise, and suitable for operation in food, cold chain, warehouses, and indoor environments with strict environmental requirements. It is equipped with solid core tires or pneumatic tires, with a climbing ability of 15%, and can cope with some uneven outdoor roads. This model offers multi specification gantries ranging from 3 meters to 5.5 meters, with a free lifting height of 1379mm for the 4.5-meter gantry configuration, making it particularly suitable for stacking operations in confined spaces inside containers or trucks. The vehicle has a width of 1220mm and a turning radius of 2500mm, and is also suitable for narrow aisle stacking and turnover in manufacturing workshops.

Availability:



Inquire Add to Basket

Model:
CPDD-V-3035
Brand:
ONEN
Name:
Lithium forklift
Power form:
Electric
Load Capacity:
3.0T
Driving Style:
Seated
Load Center:
500mm
Wheel Type:
Pneumatic Tire / Solid Core Tire
lift height:
3.5m
Fork Length:
1070mm
Turning Radius:
2500mm
Battery:
Lithium Battery
Use Tray Type:
Single Sided Tray, Double Sided Tray
Voltage/Capacity:
80V/205Ah
Charger:
80V/100A
Customization:
support
After-Sales Service:
Warranty for one year or 2000 hours (5-year warranty for lithium batteries)
Certification:
CE/RoHS/SGS

Product Description

CPDD-V-3035

About the CPDD-V series

CPDD-V series is a counterbalanced electric forklift with a rated load range of 3000kg to 3500kg. It comes standard with an 80V/205Ah lithium battery, supports fast charging, and is maintenance free.

The car adopts a seat style design and four-wheel support, with a turning radius of only 2500mm, making it flexible and suitable for narrow channel operations. The gantry can be lifted at different heights ranging from 3.0 to 5.5 meters, with a 130mm free lifting configuration making it particularly suitable for container internal operations. In terms of performance, the vehicle can travel at a full load speed of 13-14km/h and has a climbing ability of 15%, which can meet high-intensity logistics handling needs. In addition, users can choose solid core tires or pneumatic tires according to their working conditions, which have the overall characteristics of comfortable operation and high cost-effectiveness.

Specs

Core specifications for the CPDD-V-3035.

1	Model		CPDD-V
2	Configuration No.		3035
3	Power type		Electric
4	Operation type		Seated
5	Load capacity	kg	3000
6	Load center distance	mm	500
7	Wheels type		Pneumatic tires/Solid tires(Optional)
8	Tyre size (Front)		28×9-15-14PR
9	Tyre size (Rear)		6.5-10-10PR
10	Mast lowered height	mm	2320
11	Free lift	mm	130
12	Lift height	mm	3500
13	Full height at maximum lifting	mm	4673
14	Tilt of mast carriage (Forward/Backward)	°	6/12
15	Overall length（Without forks）	mm	2760
16	Overall width	mm	1220
17	Turning radius	mm	2500
18	Aisle width for pallets 1000×1200	mm	4080
19	Maximum Travel speed (Laden/Unladen)	km/h	13.5/14.5
20	Maximum Lift speed (Laden/Unladen)	mm/s	290/400
21	Maximum Lowering speed (Laden/Unladen)	mm/s	390/380
22	Gradeability (Laden/Unladen)	%	15/15
23	Voltage/Capacity of lithium battery	V/Ah	80/205
24	Lithium battery charger	V/A	80/100
