CPC/CPCD-3535
ONEN
Diesel Forklift
Diesel
3.5T
Seated
500mm
Pneumatic Tire / Solid Core Tire
3.5m
1070mm
2240mm
60L
Xinchai / Quanchai / YANMAR / KUBOTA
Single Sided Tray, Double Sided Tray
Support
Warranty for one year or 1000 hours
CE/RoHS/SGS

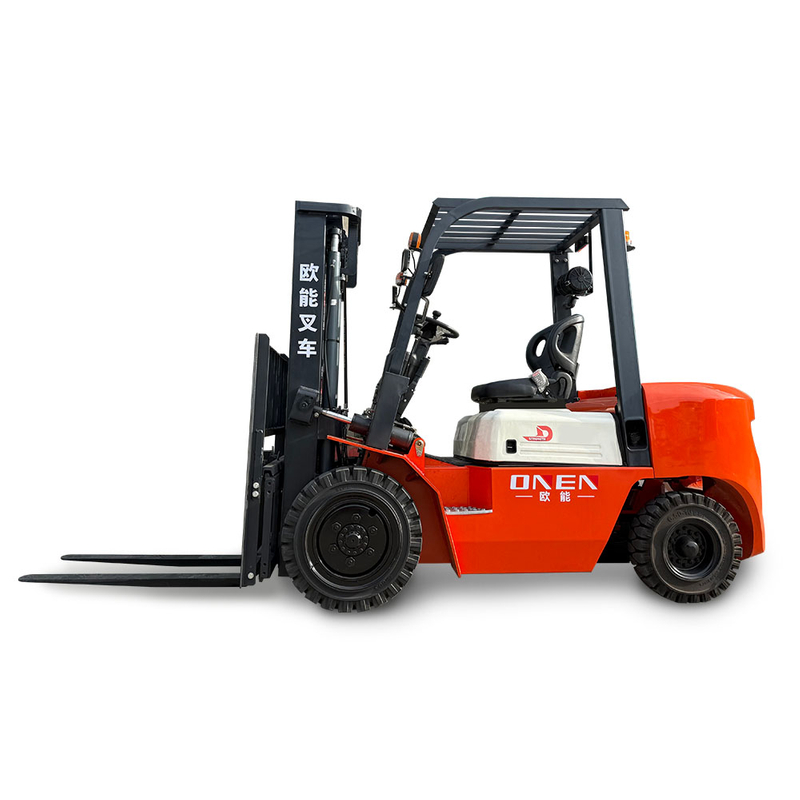

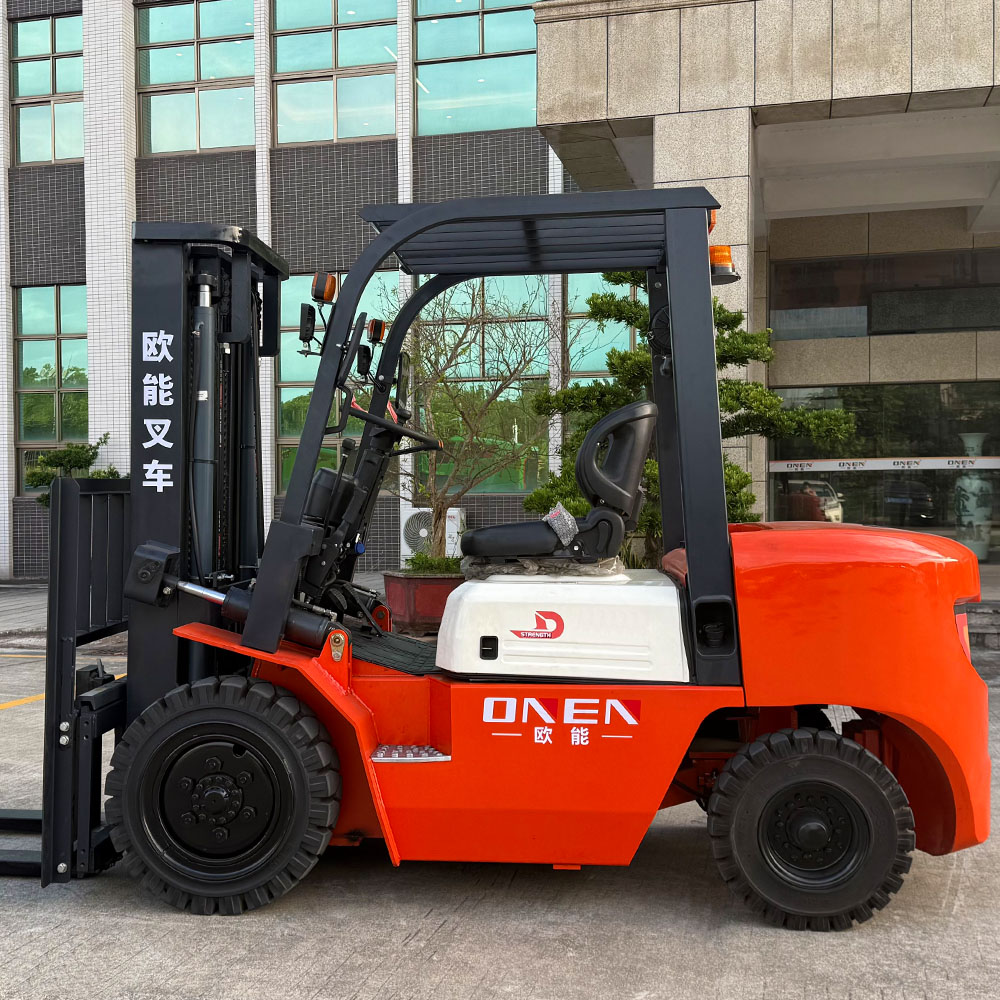

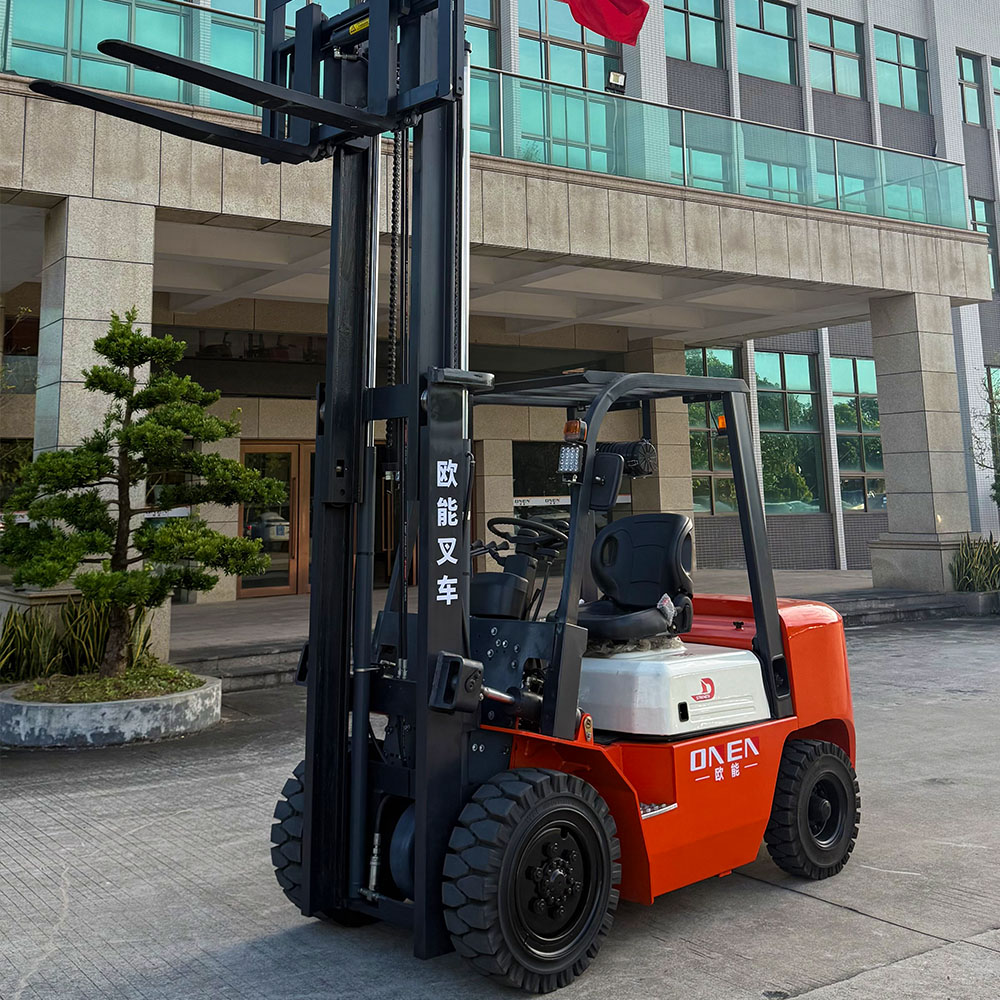

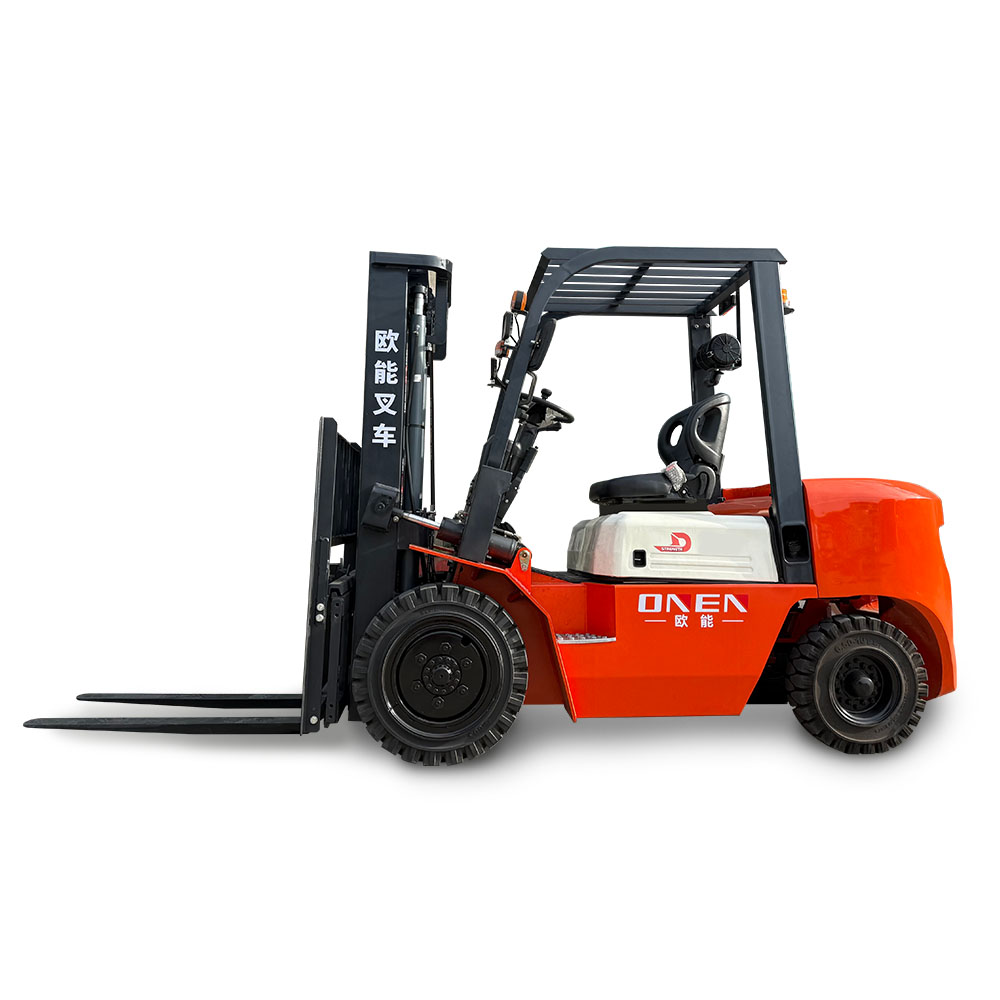

CPC/CPCD-3535 diesel forklift is a versatile tool for outdoor operations. With a rated load capacity of 3.5 tons and a lifting height of 3.5 meters, it can easily handle the loading, unloading, and short-distance transportation of heavy goods in various settings such as manufacturing workshops, logistics yards, ports, and docks.
The diesel engine of the forklift provides strong power, making it resilient to harsh environments like sun exposure and rain, and suitable for long-duration, continuous operations. Additionally, CPC/CPCD-3535 features a high-strength mast and counterweight design, ensuring body stability even on rough terrain. | 1 | Model | CPC3535/CPCD3535 | |
| 2 | Powertype | diesel | |
| 3 | Operation type | seated | |
| 4 | Load capacity | kg | 3500 |
| 5 | Load centre distance | mm | 500 |
| 6 | Wheels type | Solid tires/Pneumatic tires(Optional) | |
| 7 | Tire specification(Front/Rear) | 28x9-15/6.50-10 | |
| 8 | Fork length | mm | 1070 |
| 9 | Width overall forks (Adjustable) | mm | 1100/250 |
| 10 | Overall Length (Without fork) | mm | 2690 |
| 11 | Overall Width | mm | 1210 |
| 12 | Lift height | mm | 3500 |
| 13 | Extended mast height | mm | 4060 |
| 14 | Mast lowered height | mm | 2365 |
| 15 | Free height | mm | 165 |
| 16 | Tilt of mast carriage (Forward/Backward) | α/β | 6°/12° |
| 17 | Turning radius | mm | 2240 |
| 18 | Travelspeed (Laden/Unladen) | km/h | 18/20 |
| 19 | Lift speed (Laden/Unladen) | mm/s | 485/505 |
| 20 | Lowering speed (Laden/Unladen) | mm/s | <600 |
| 21 | Gradeability (Unladen) | % | 20 |
| 22 | Service brake | Power brake (Pedal) | |
| 23 | Parking brake | Mechanical (Manual) | |
| 24 | Fuel capacity | L | 60 |
| 25 | Engine model | Xinchal/Quanchai/YANMAR/KUBOTA | |
| 26 | Battery (Voltage/Capacity) | V/Ah | 12/80 |
