CQD-B-2035-Q Electric Reach Truck

Name: CQD-B-2035-Q Electric Reach Truck
Brand: ONEN
Rating: 5.0 (32 reviews)

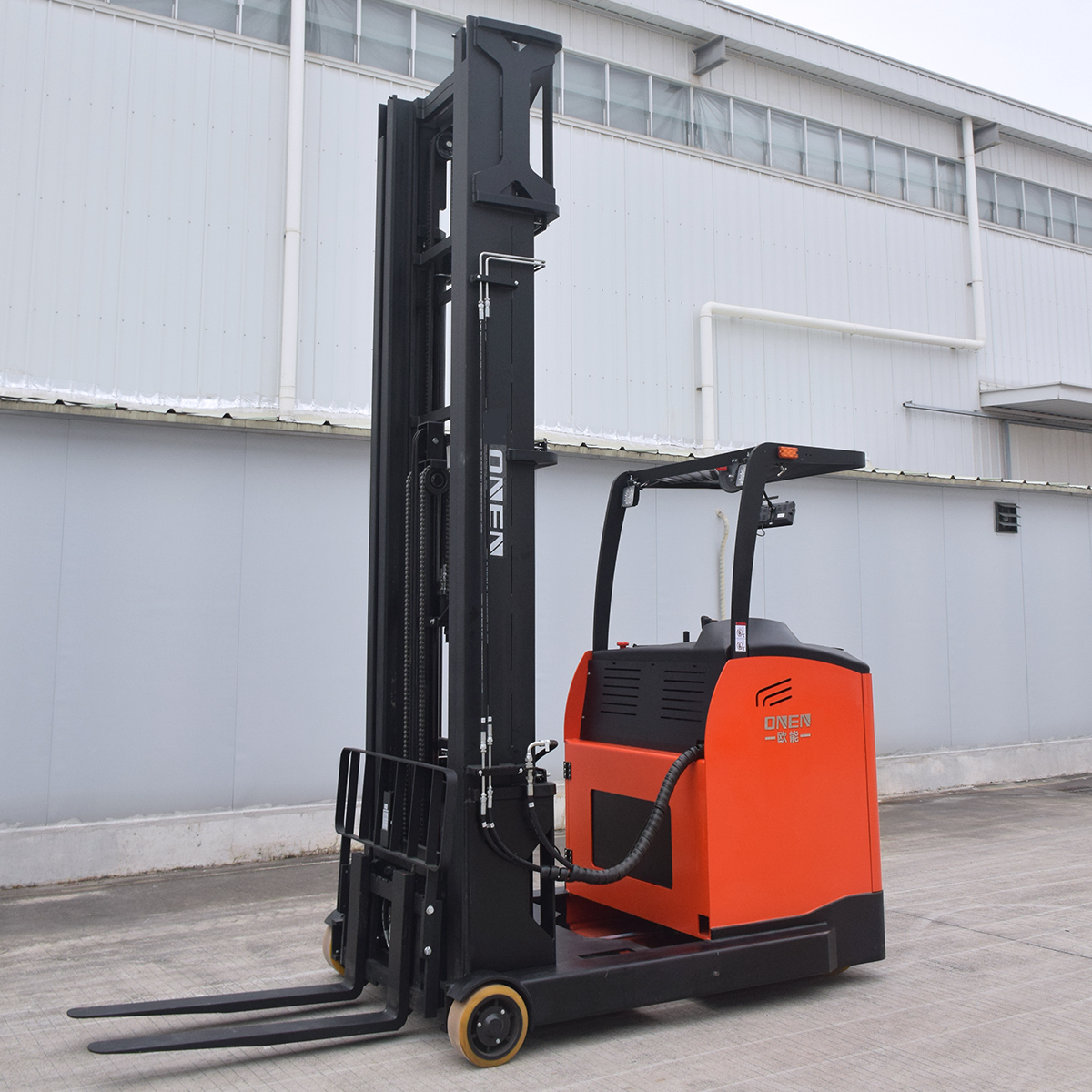

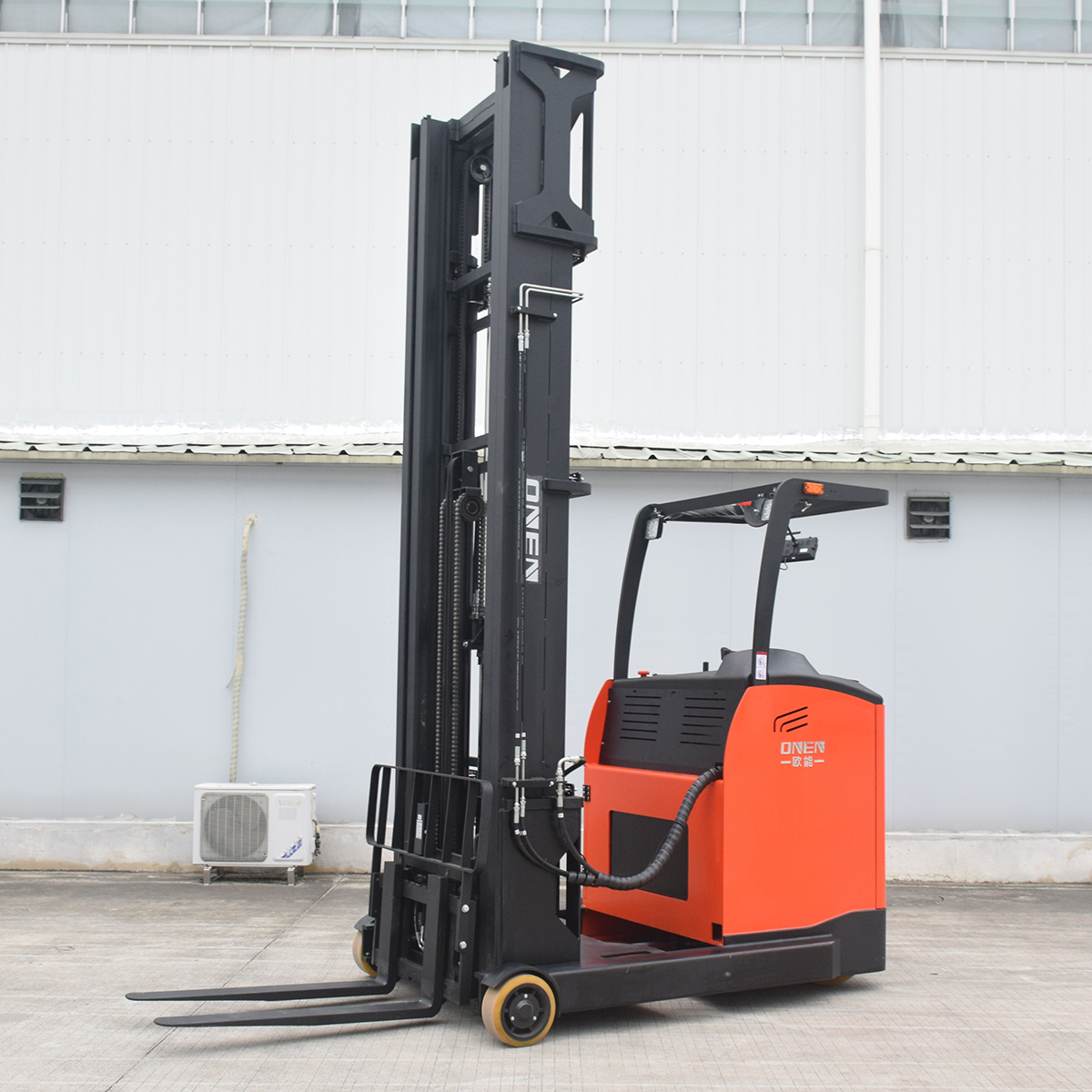

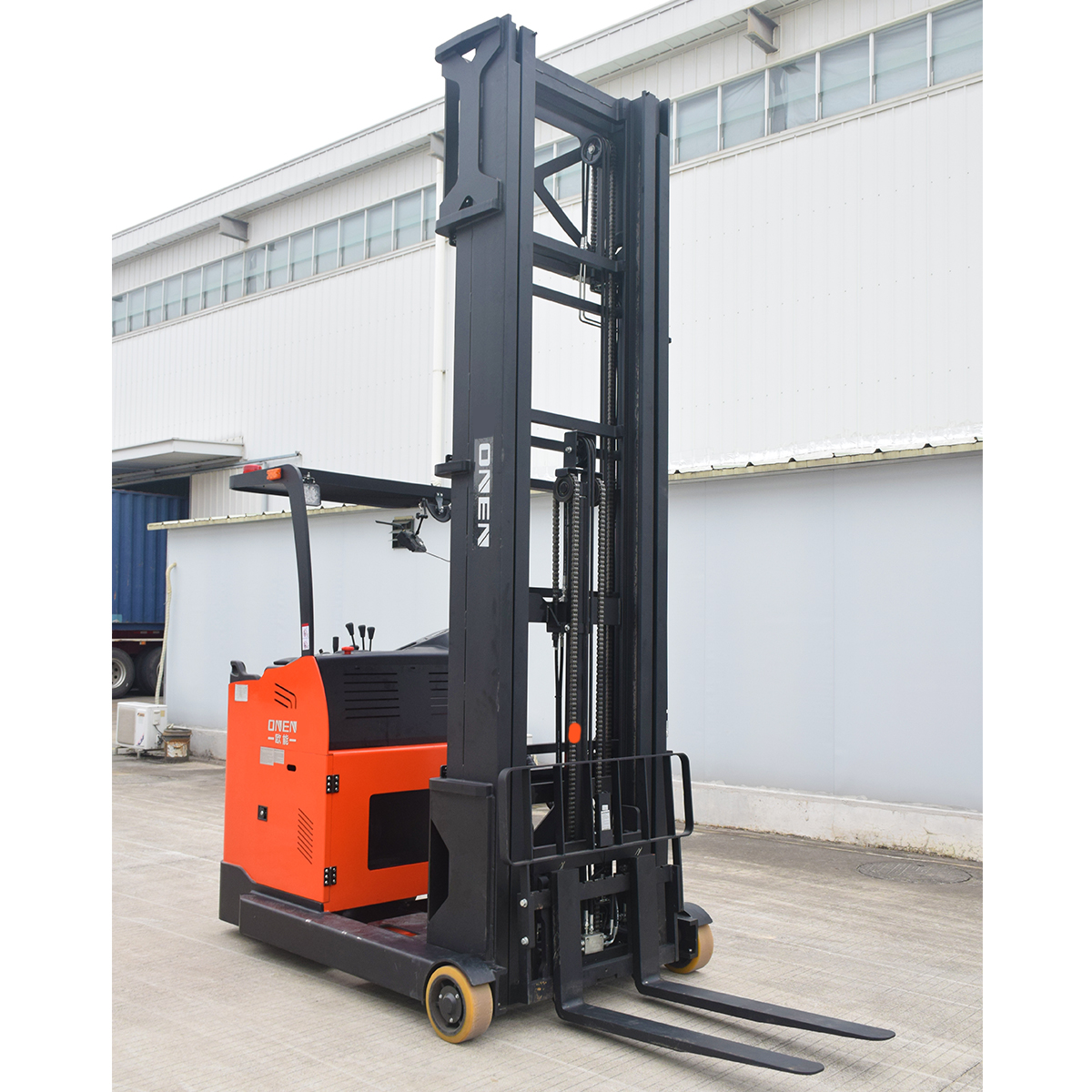

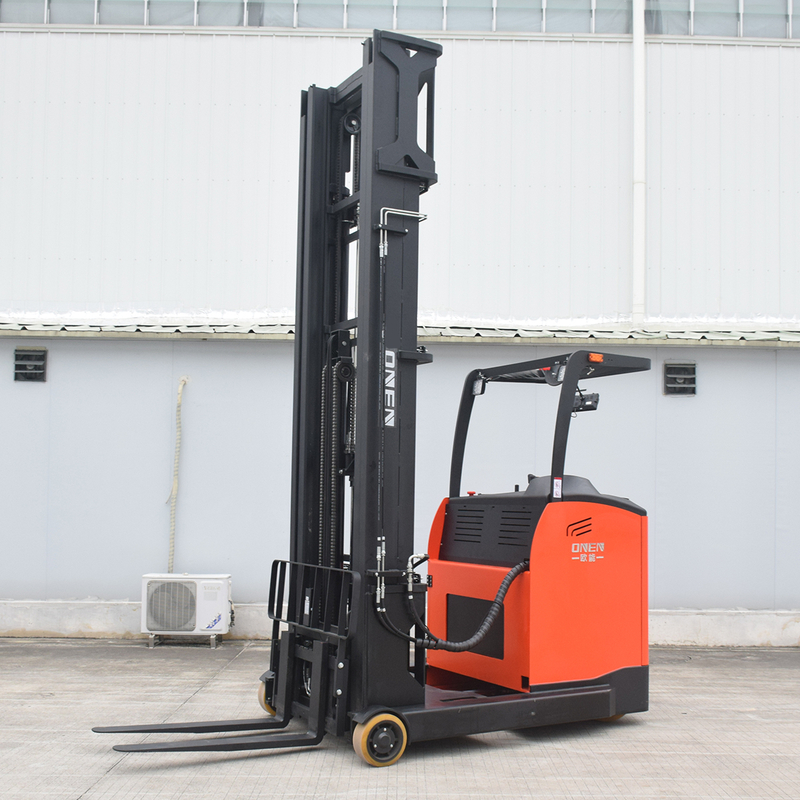

ONEN CQD-B is a sit-down reach truck with a rated load capacity of 2 tons and a maximum lifting height of up to 3.5 meters.
This vehicle features a compact body design, offering lightweight maneuverability and good passage adaptability. When the door frame is raised to a height of 3.5 meters, the vehicle's static height is approximately 2.35 meters, and its extended height is about 4.08 meters. Equipped with electronic steering and a multi-valve hydraulic system, it can be optionally equipped with lithium batteries, combining operational comfort with energy-saving and environmental protection features.

Availability:



Inquire Add to Basket

Model:
CQD-B-2035-Q
Brand:
ONEN
Name:
Electric Reach Truck
Power form:
Electric
Load Capacity:
2000kg
Driving Style:
Seated
lift height:
3500mm
Battery:
Lead-acid / Lithium
Use Tray Type:
Single Sided Tray, Double Sided Tray
Certification:
CE/RoHS/SGS

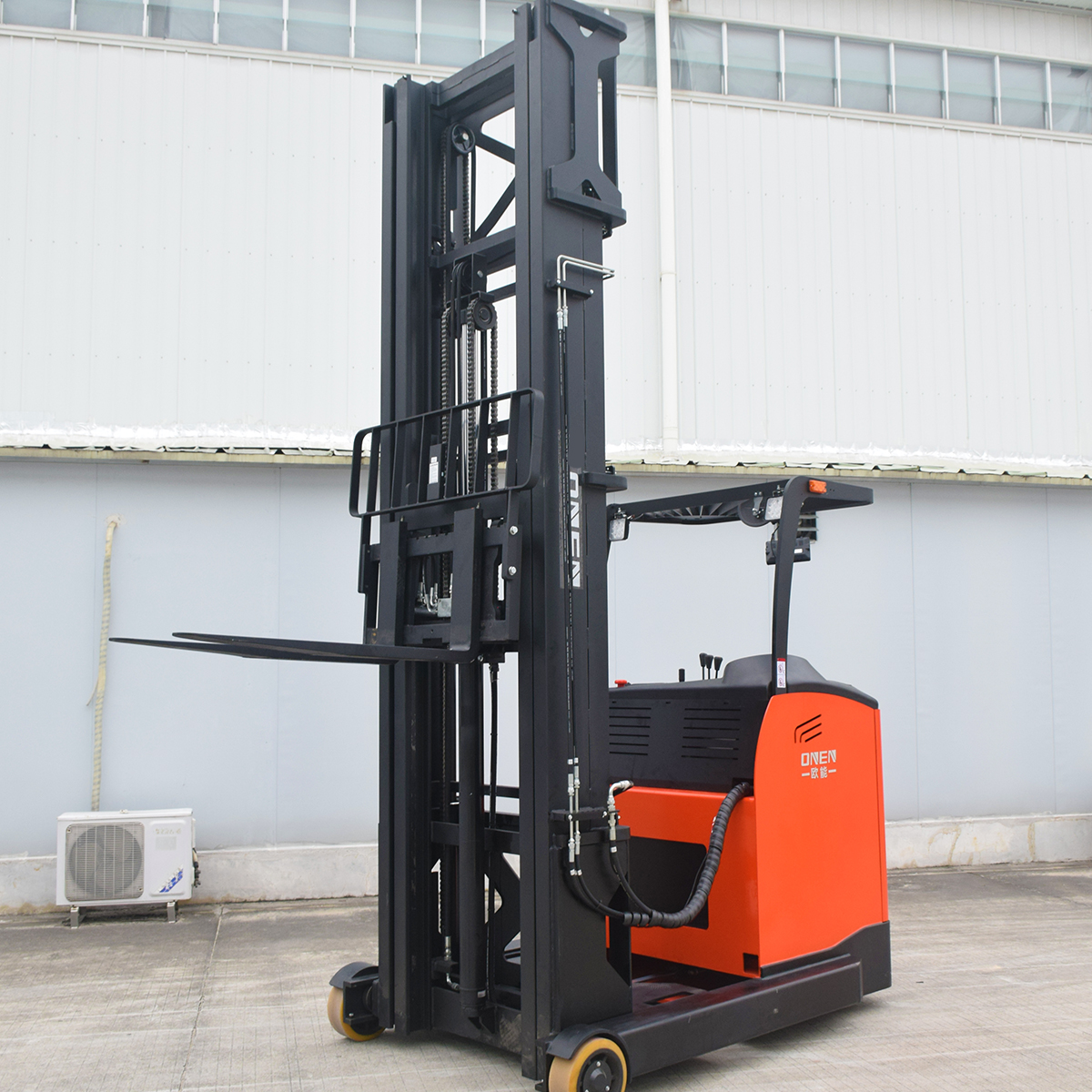

ONEN CQD-B stacking vehicle, with a load capacity of 2 tons and a lifting height of 3.5 meters, is highly suitable for dense storage in medium-sized three-dimensional warehouses and factory workshops. It adopts a reach-forward design, allowing for flexible operations even in narrow passageways, effectively enhancing space utilization.

Operators can sit and operate the vehicle, easily completing precise stacking and long-distance handling of heavy goods (such as auto parts and ton bags). Additionally, the electric drive produces low noise and zero emissions, meeting environmental protection requirements.

ONEN 2-ton electric stacker Seated 3.5-meter forward-moving stacking truck How much does a 2-ton electric forklift cost 2-ton stacking truck for warehouse use Narrow aisle stacking vehicle Supermarket warehouse loading and unloading Reach Truck reach truck Manufacturer China reach truck Reach Truck Forklift

1	Model		CQD-B
2	Configuration No.		2035-Q
3	Power type		Electric
4	Steering type		Electric steering
5	Operation type		Seated
6	Load capacity	kg	2000
7	Load center distance	mm	500
8	Reach Distance	mm	505
9	Wheels type		PU
10	Driving wheel size	mm	Ф382×142
11	Bearing wheel size	mm	Ф267×114
12	Overall Length (With Fork)	mm	2477
13	Overall Width	mm	1270
14	Mast lowered height	mm	2350
15	Lift height	mm	3500
16	Extended mast height	mm	4077.5
17	Fork dimensions	mm	35/100/1070
18	Turning radius	mm	1800
19	Travel speed (Laden/Unladen)	km/h	6.8/7.8
20	Lift speed (Laden/Unladen)	mm/s	120/240
21	Lowering speed (Laden/Unladen)	mm/s	315/260
22	Gradeability (Laden/Unladen)	%	≤10
23	Driving motor	kw	6.5
24	Lifting motor	kw	4.5
25	Voltage/Capacity of lead-acid battery	V/Ah	48/300
26	Lead-acid battery charger	V/A	24/40
27	Voltage/Capacity of lithium battery (Optional)	V/Ah	48/280
28	Lithium battery charger	V/A	24/50
29	Sound level at driver's ear	dB(A)	<70

Mast Table
Lift height	Mast lowered height	Free lift	Extended mast height
h3（mm）	h1（mm）	h2（mm）	h4（mm）
3000	2100	‐	3577.5
3500	2350	‐	4077.5
4000	2600	‐	4577.5
4500	2100	1500	5465
5000	2280	1660	5965
5500	2450	1820	6465
6000	2620	1980	6965
6500	2790	2140	7465
7000	3210	2320	7965
