CPDD-V-3555
ONEN
Lithium forklift
Electric
3.5T
Seated
500mm
Pneumatic Tire / Solid Core Tire
5.5m
1070mm
2500mm
Lithium Battery
Single Sided Tray, Double Sided Tray
80V/205Ah
80V/100A
support
Warranty for one year or 2000 hours (5-year warranty for lithium batteries)
CE/RoHS/SGS
CPDD-V-3555
About the CPDD-V-3555

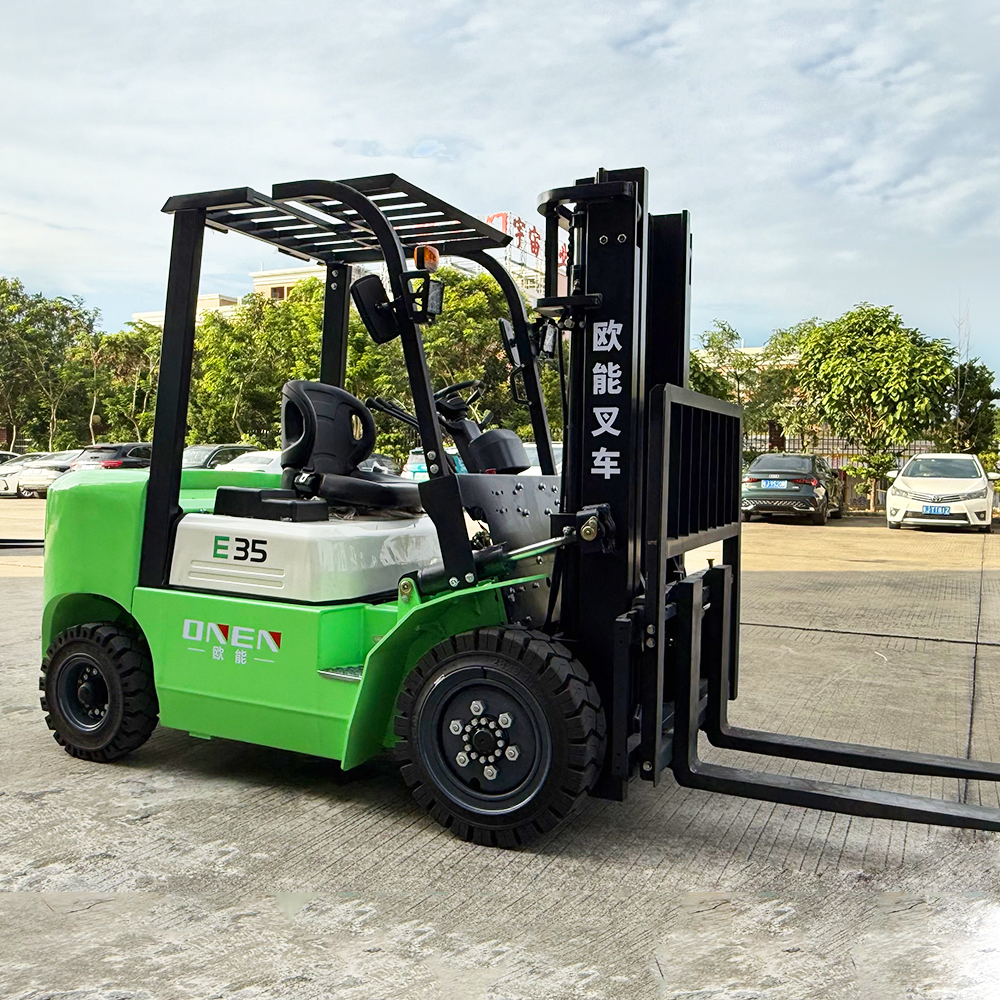

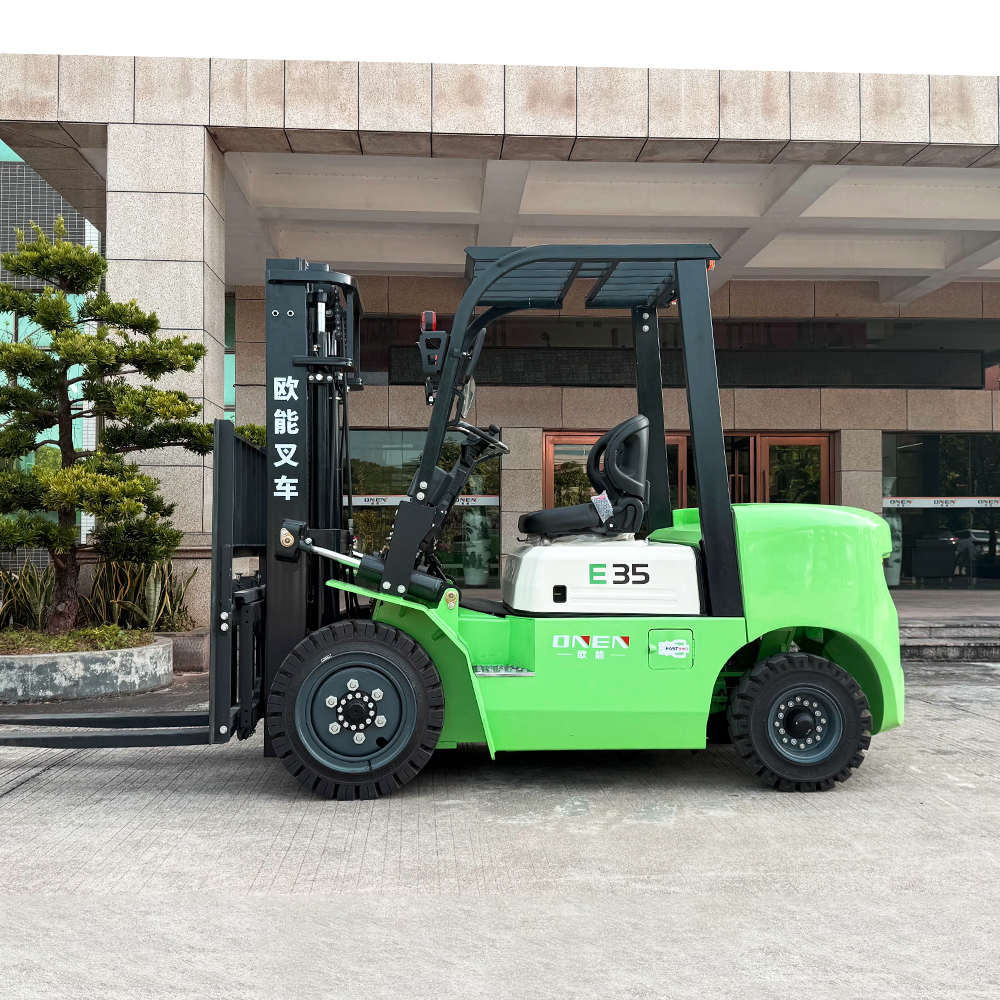

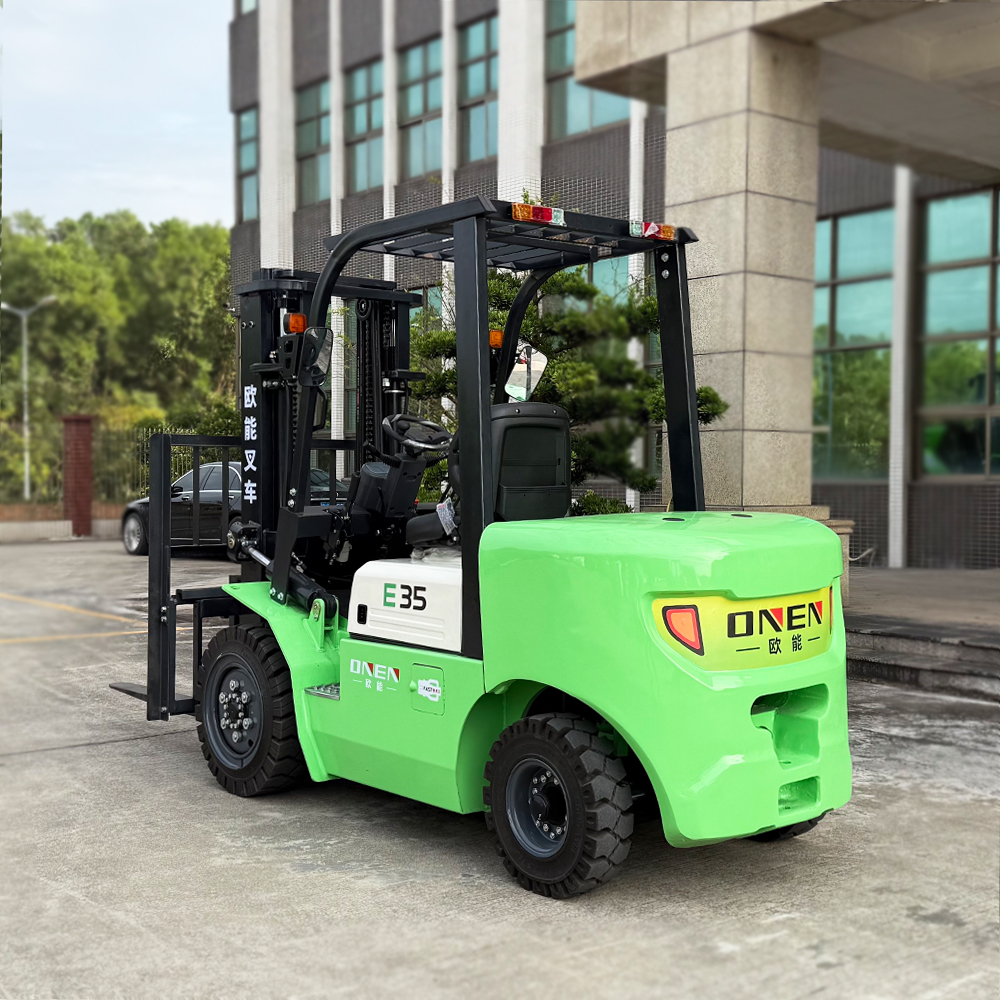

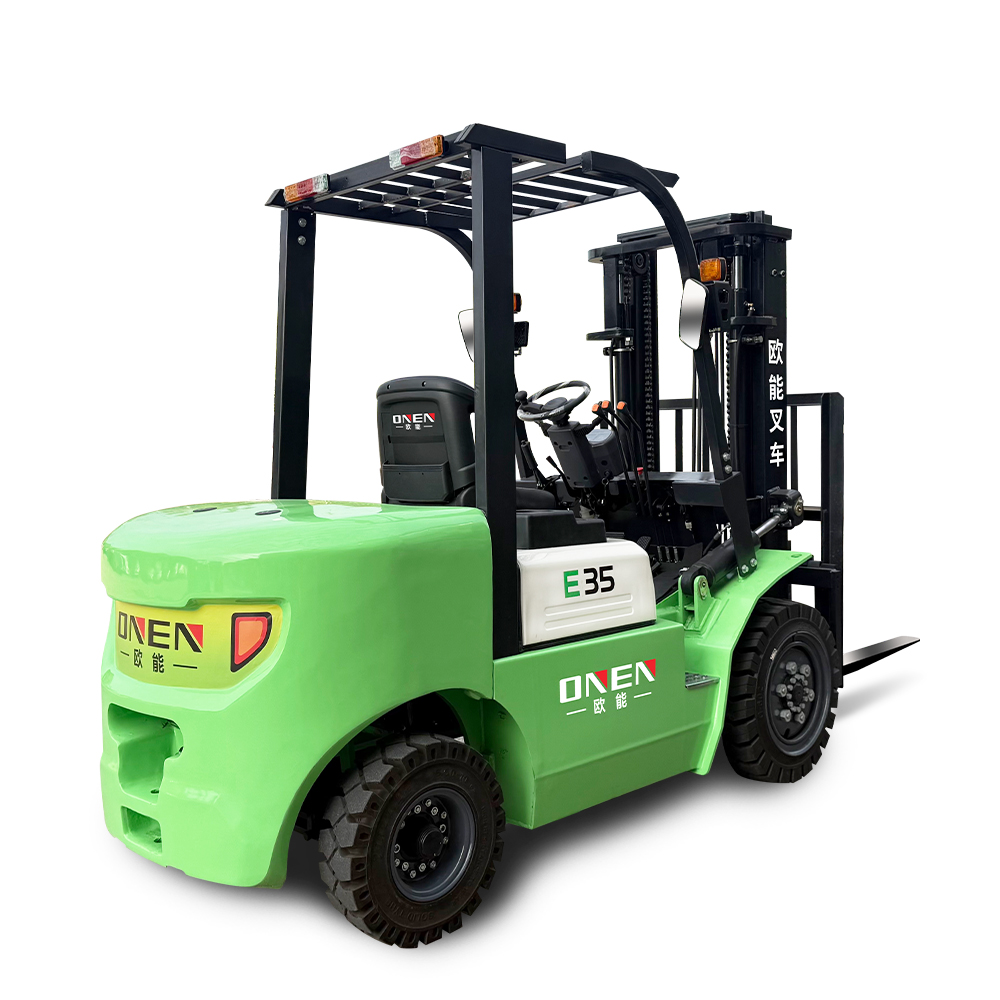

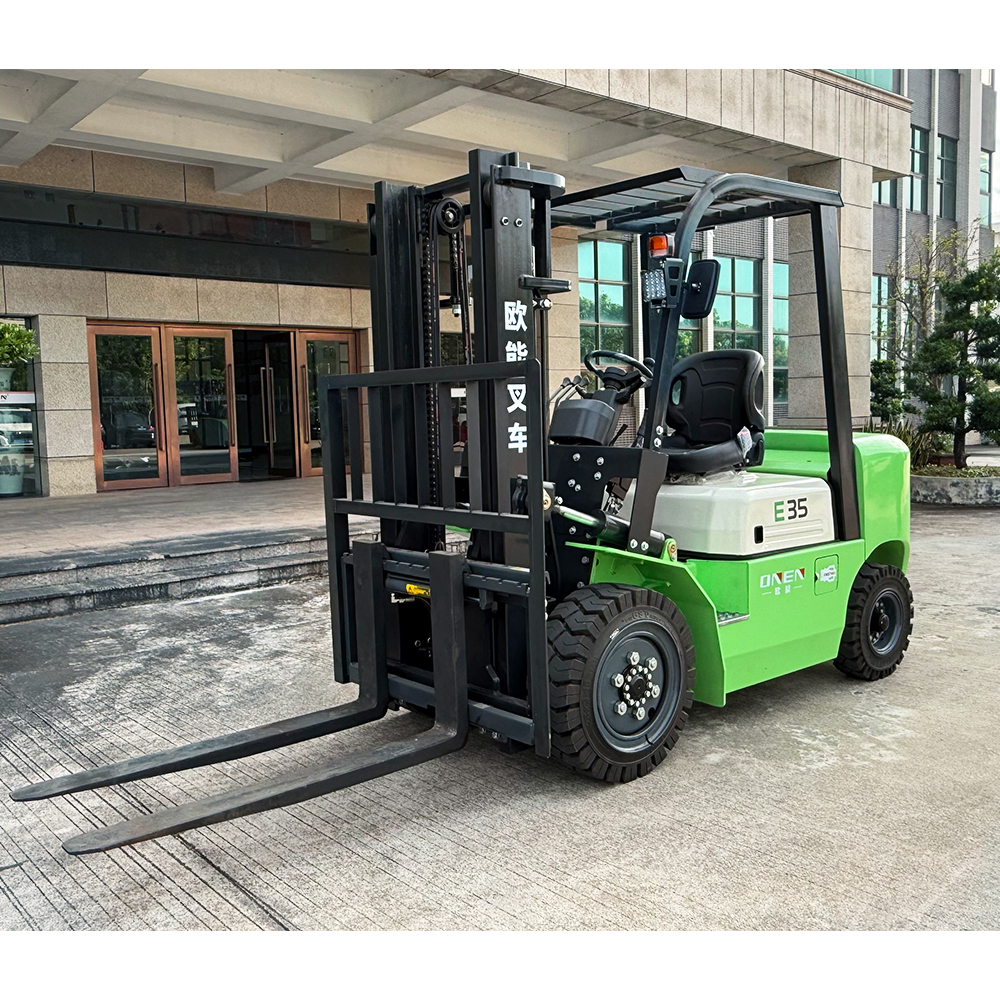

CPDD-V-3555 is a 3.5-ton electric balance weight forklift equipped with an 80V/205Ah lithium battery, supporting fast charging and maintenance free. Its core highlight lies in the 5.5-meter gantry, with a maximum lifting height of 5500mm and a free lifting height of 1779mm, suitable for high-level stacking operations. The vehicle has a compact size (total width 1220mm) and a turning radius of only 2500mm, making it flexible to turn in narrow spaces. In terms of performance, the full load driving speed is 13km/h, with a climbing ability of 15%, and solid core tires can be optionally equipped to adapt to complex working conditions. This model combines the advantages of long endurance, low noise, and environmental friendliness, making it suitable for high-intensity work scenarios in logistics, warehousing, and manufacturing industries.
Core specifications for the CPDD-V-3555.
1 | Model | CPDD-V | ||
2 | Configuration No. | 3555 | ||
3 | Power type | Electric | ||
4 | Operation type | Seated | ||
5 | Load capacity | kg | 3500 | |
6 | Load center distance | mm | 500 | |
7 | Wheels type | Pneumatic tires/Solid tires(Optional) | ||
8 | Tyre size (Front) | 28×9-15-14PR | ||
9 | Tyre size (Rear) | 6.5-10-10PR | ||
10 | Mast lowered height | mm | 2570 | |
11 | Free lift | mm | 1779 | |
12 | Lift height | mm | 5500 | |
13 | Full height at maximum lifting | mm | 6574 | |
14 | Tilt of mast carriage (Forward/Backward) | ° | 6/12 | |
15 | Overall length（Without forks） | mm | 2760 | |
16 | Overall width | mm | 1220 | |
17 | Turning radius | mm | 2500 | |
18 | Aisle width for pallets 1000×1200 | mm | 4080 | |
19 | Maximum Travel speed (Laden/Unladen) | km/h | 13/14 | |
20 | Maximum Lift speed (Laden/Unladen) | mm/s | 280/400 | |
21 | Maximum Lowering speed (Laden/Unladen) | mm/s | 390/380 | |
22 | Gradeability (Laden/Unladen) | % | 15/15 | |
23 | Voltage/Capacity of lithium battery | V/Ah | 80/205 | |
24 | Lithium battery charger | V/A | 80/100 | |
