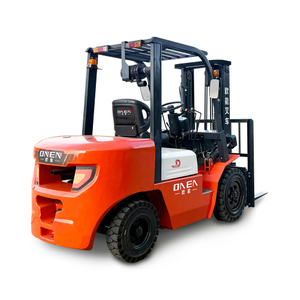

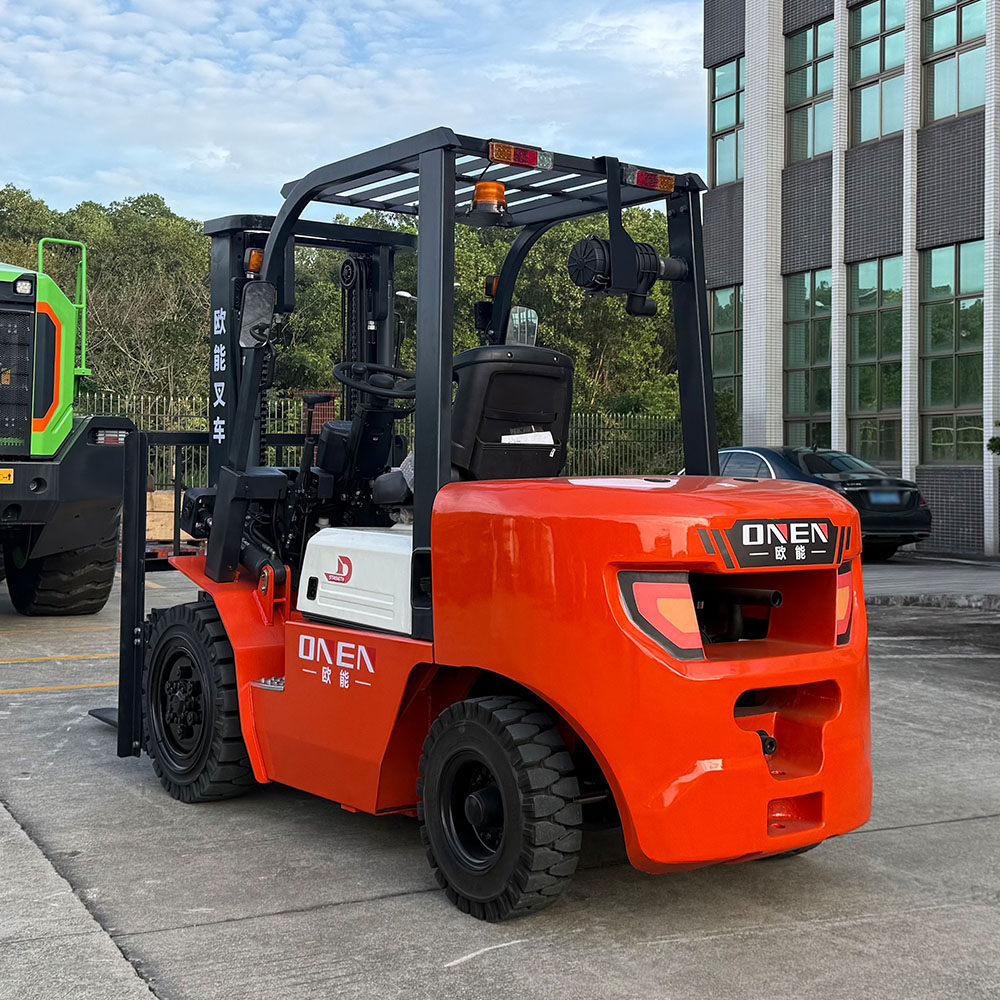

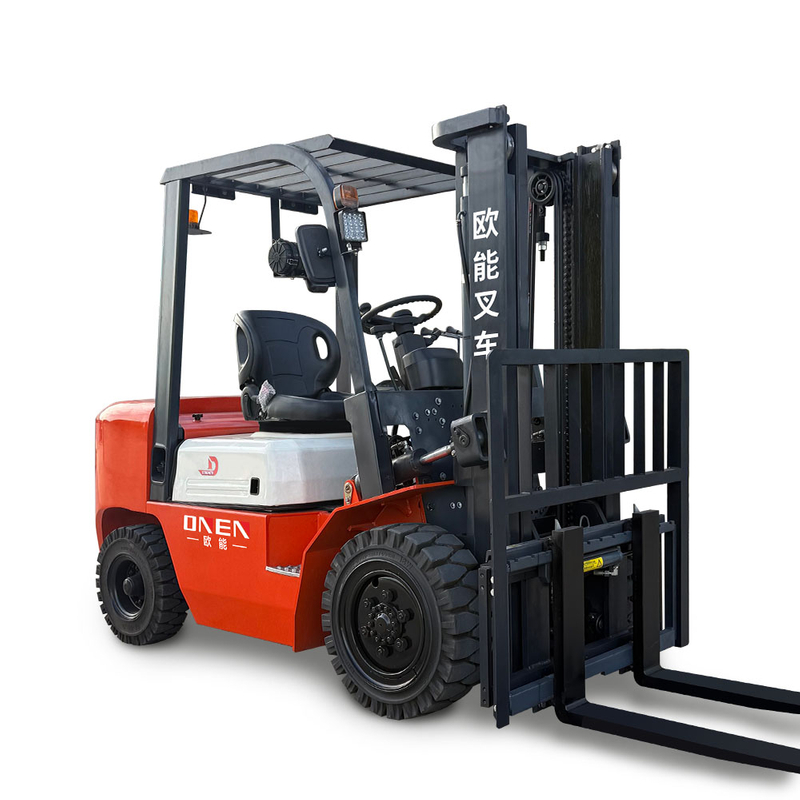

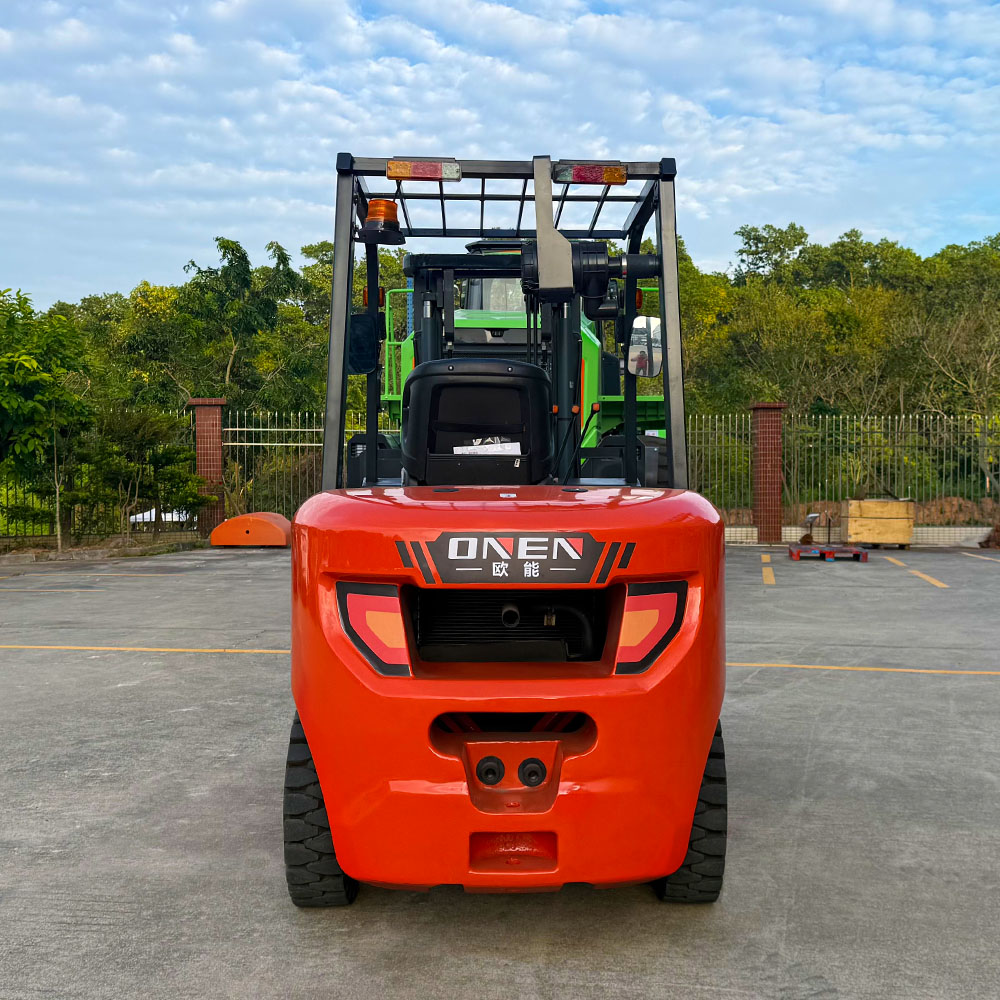

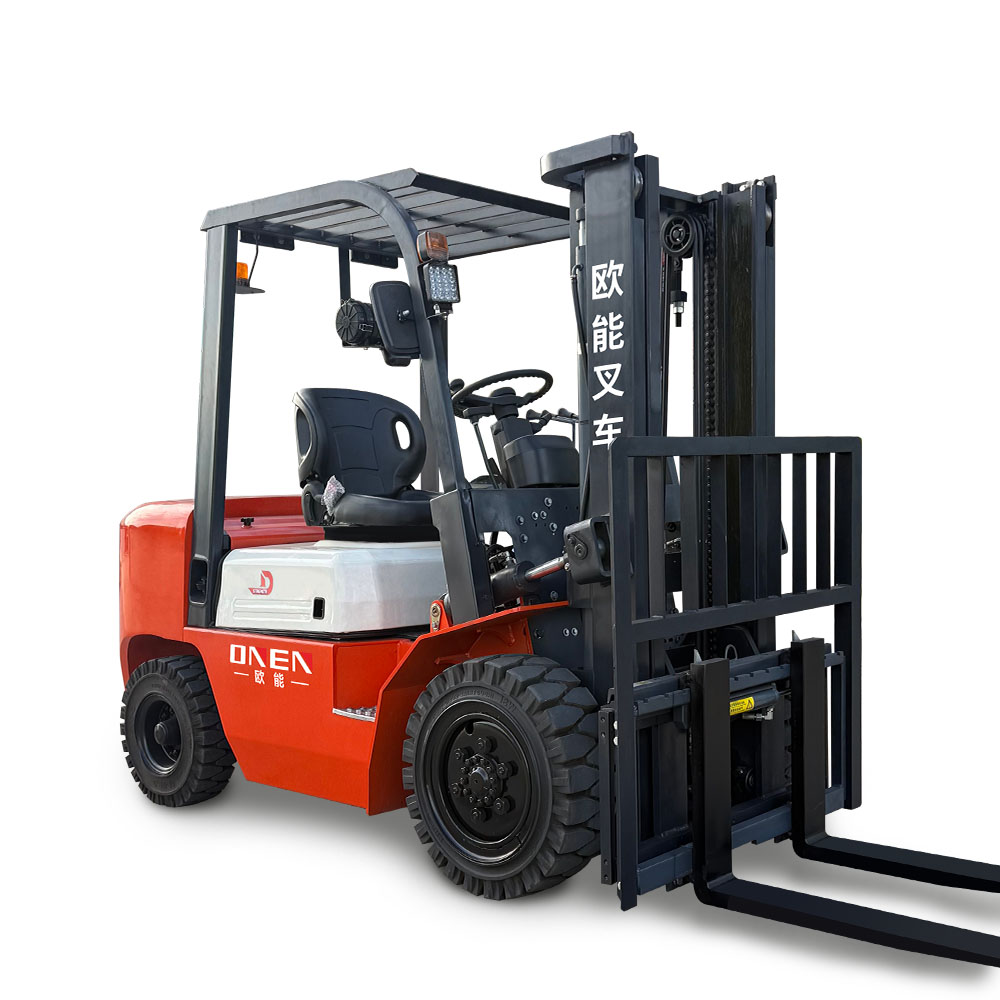

CPC/CPCD-3540 Diesel Forklift

Load Capacity: 3500kg
lift height: 4000mm
engine model: Xinchai / Quanchai / YANMAR / KUBOTA
Availability:
  • CPC/CPCD-3540

  • ONEN

  • Single Sided Tray, Double Sided Tray

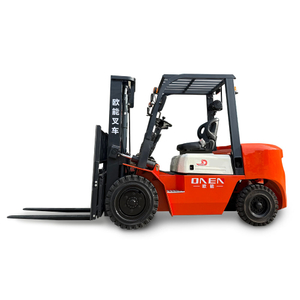

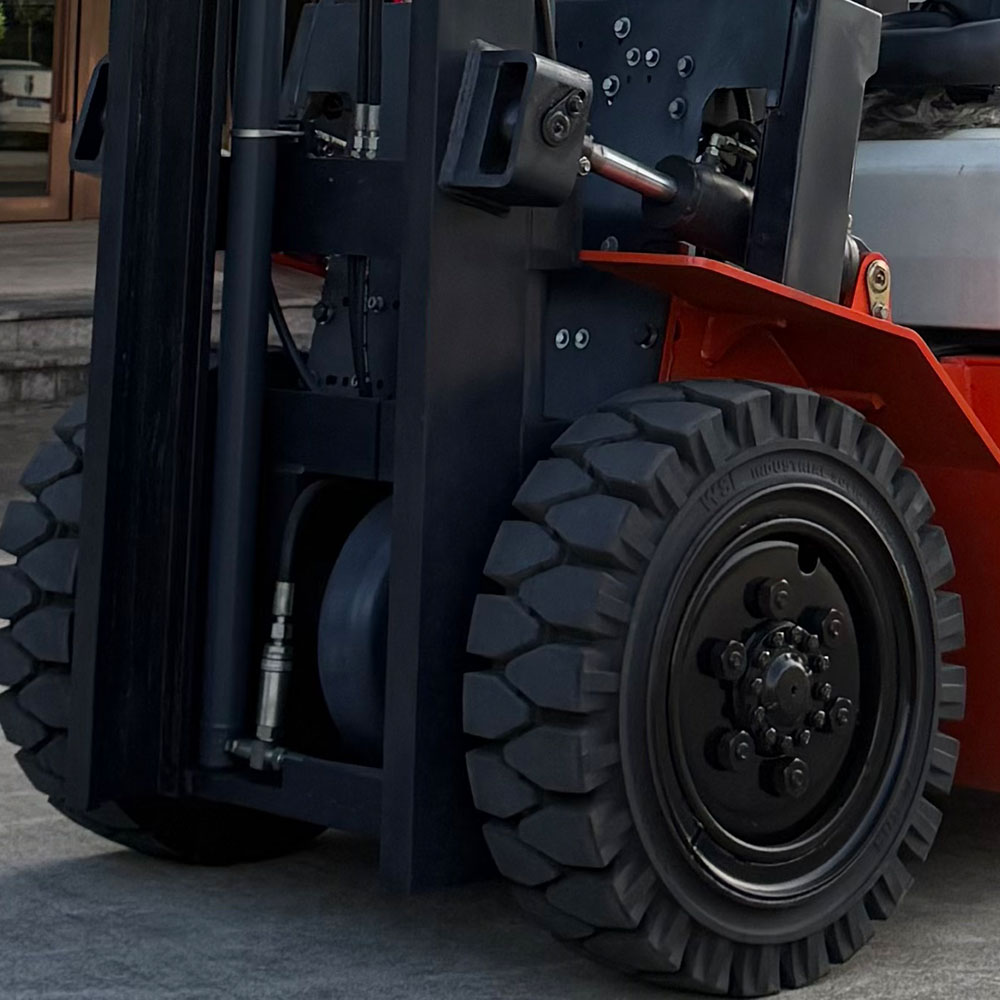

ONEN 3.5-ton diesel forklift

CPC/CPCD-3540 diesel forklift is primarily suitable for outdoor or indoor open areas with heavy loads, such as logistics parks, ports and docks, warehouses, and factory loading and unloading scenarios. The core applications of the forklift typically include loading and unloading of bulk goods, short-distance transfer, and high-level stacking. Due to its diesel power and strong endurance, it is suitable for continuous operations and uneven roads.

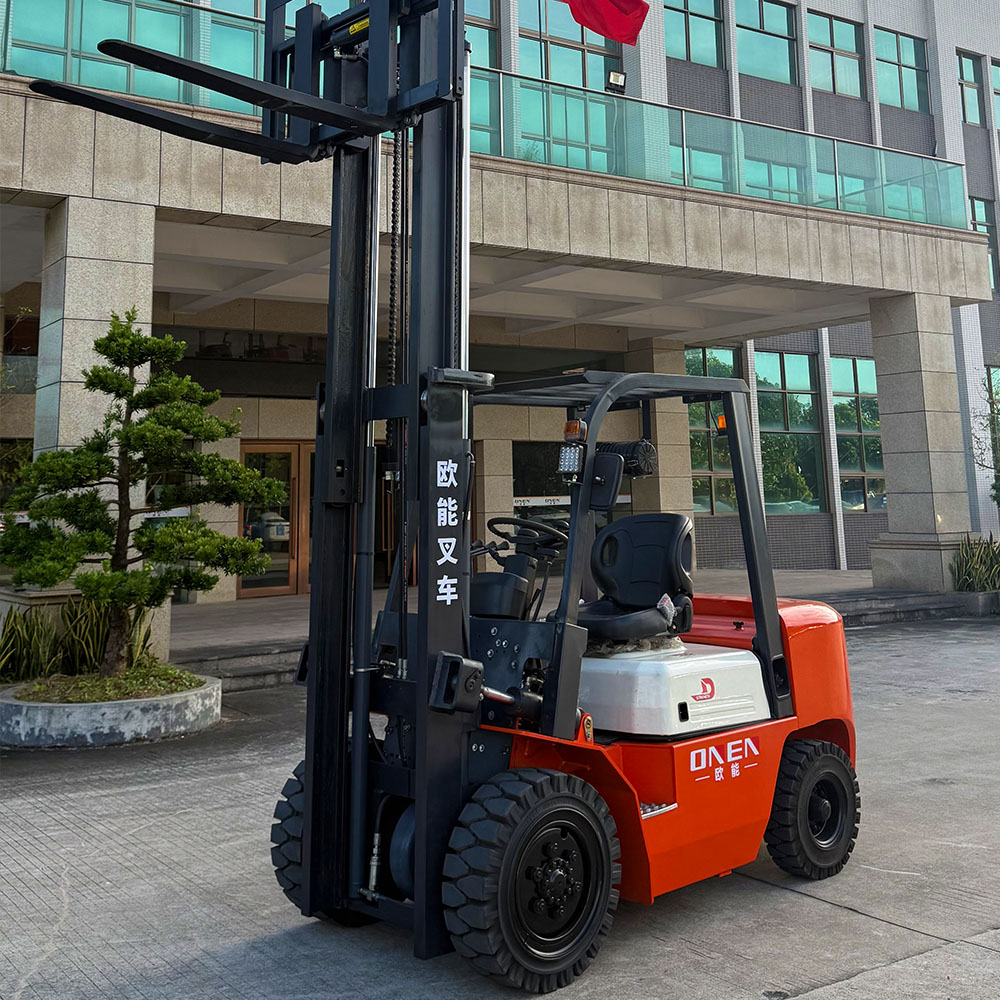

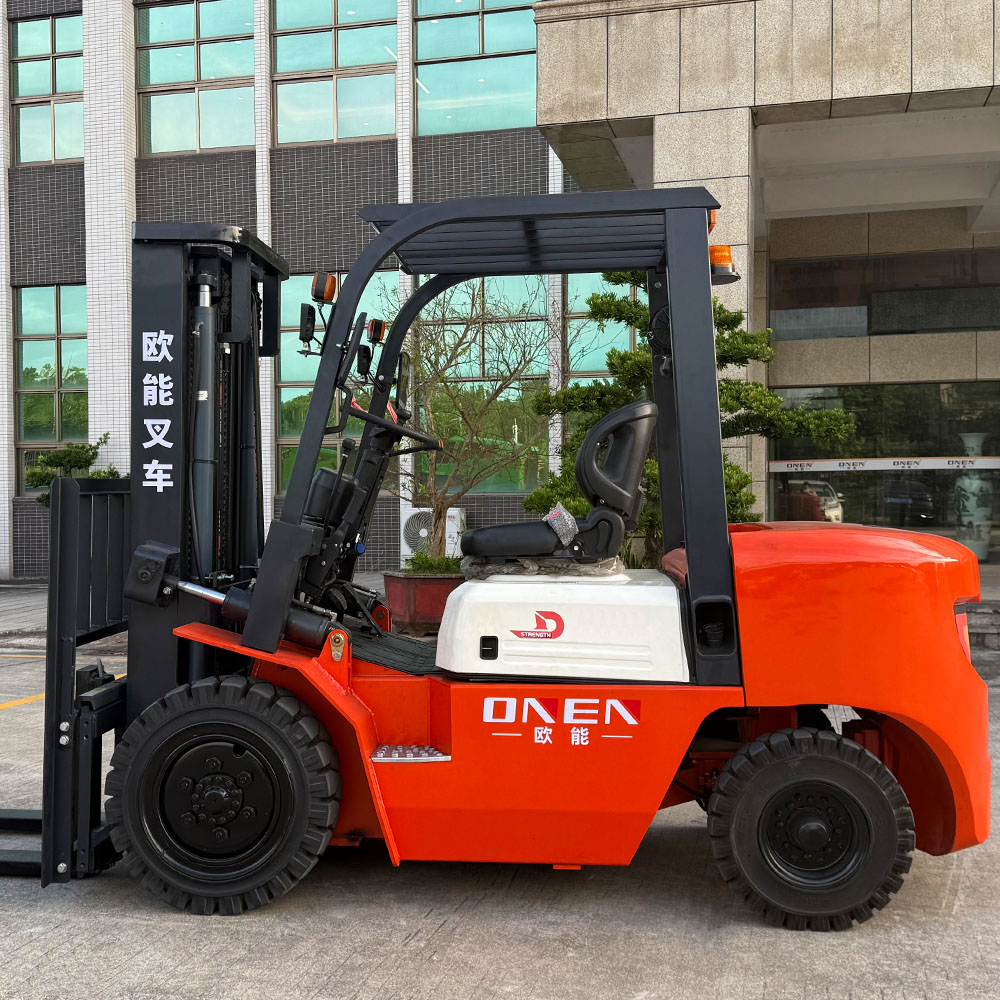

4000mm lifting diesel forklift quotationHowever, in relatively enclosed or environmentally demanding workshops, attention should be paid to exhaust emissions and ventilation issues to ensure compliance with on-site environmental standards. This equipment can effectively meet the material handling needs of medium to high intensity and large tonnage.


1 Model
CPC3540/CPCD3540
2 Powertype
diesel
3 Operation type
seated
4 Load capacity kg 3500
5 Load centre distance mm 500
6 Wheels type
Solid tires/Pneumatic tires(Optional)
7 Tire specification(Front/Rear)
28x9-15/6.50-10
8 Fork length mm 1070
9 Width overall forks (Adjustable) mm 1100/250
10 Overall Length (Without fork) mm 2690
11 Overall Width mm 1210
12 Lift height mm 4000
13 Extended mast height mm 4560
14 Mast lowered height mm 2630
15 Free height mm 165
16 Tilt of mast carriage (Forward/Backward) α/β 6°/12°
17 Turning radius mm 2240
18 Travelspeed (Laden/Unladen) km/h 18/20
19 Lift speed (Laden/Unladen) mm/s 485/505
20 Lowering speed (Laden/Unladen) mm/s <600
21 Gradeability (Unladen) % 20
22 Service brake
Power brake (Pedal)
23 Parking brake
Mechanical (Manual)
24 Fuel capacity L 60
25 Engine model
Xinchal/Quanchai/YANMAR/KUBOTA
26 Battery (Voltage/Capacity) V/Ah 12/80
